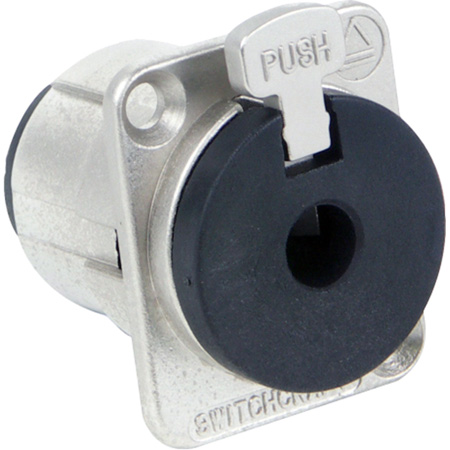

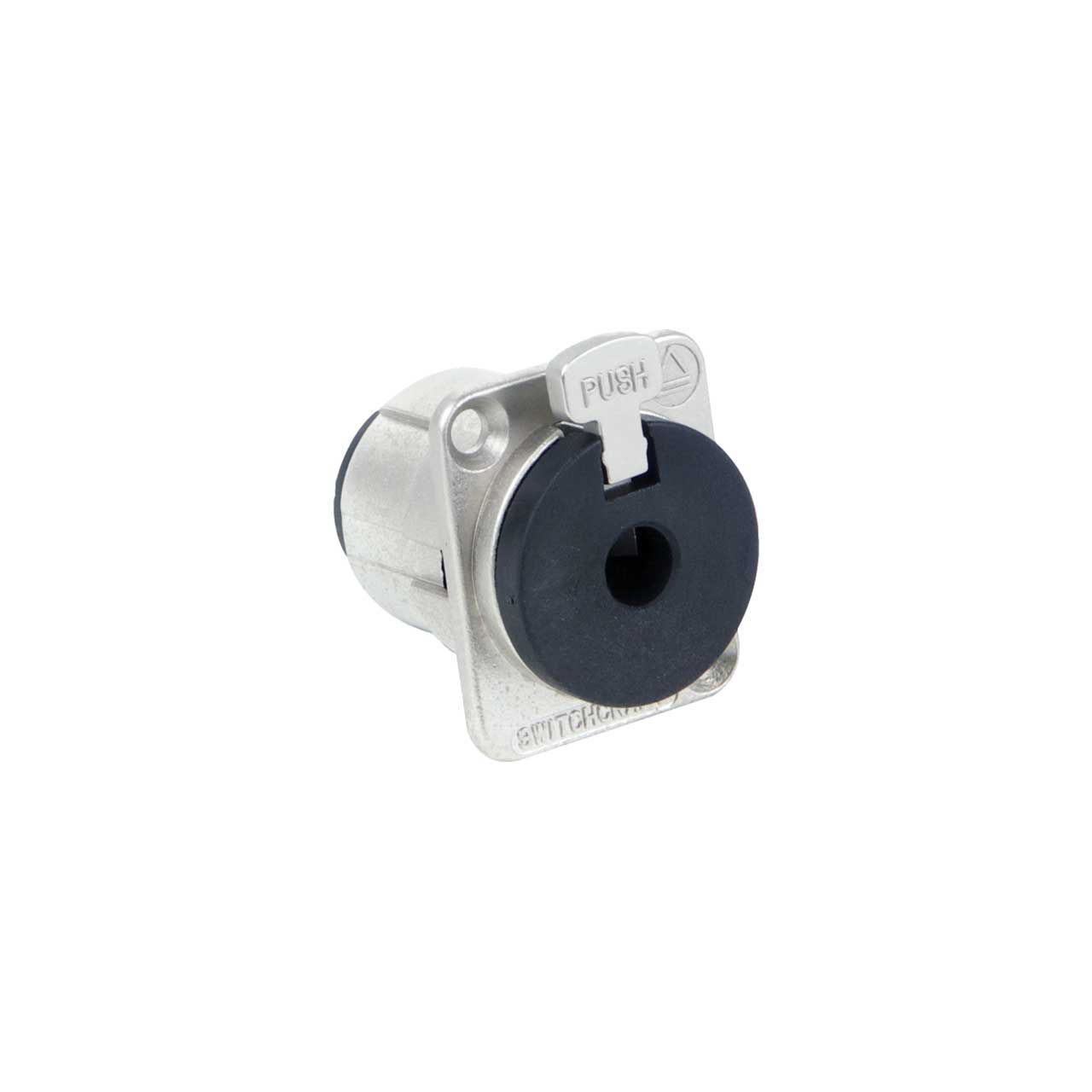

Switchcraft E112BL E Series 1/4 Inch / 3 Conductor Stereo Locking Panel Mount Phone Jack- Nickel Finish

ITEM #: E112BL MFG #: E112BL

Primary Image
Switchcraft
Free Shipping with $49 Minimum Order

List Price:

$14.00

Our Price:

$12.84

Quantity Pricing

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

E112BL - Overview

Switchcraft E112BL locking 1/4 inch panel mount phone jack provides stable, secure connections in panels where shock/vibration or accidental disconnect may occur. Plug locks-in automatically upon insertion; press "PUSH" tab to unlock and remove plug. Series E jacks have the same front panel appearance as Series E Q-G® audio connectors.

  • Specifications:

    • Mechanical
    • Life: 10,000 cycles minimum.

      Electrical
    • Insulation Resistance: 2 x 106 M(omega) at 500 V DC per MIL-STD-202, method 302 (initial).
    • Dielectric Withstanding Voltage: 1,000 V AC (rms).

      Environmental
    • Thermal Range: -55°C to +85°C (non-operating); -20°C to +65°C (operating).
    • Thermal Shock: Per MIL-STD-202, method 107.
    • Humidity: Per MIL-STD-202, method 106.
    • Salt Spray: Per MIL-STD-202, method 101.

      Material
    • Shell: Die-cast zinc, with satin nickel-plating. Black chrome over nickel-plating on special order.
    • Insert and Latch: Thermoplastic, UL 94V-O.
    • Latch Release: Nickel-plated die-cast zinc.
    • Contact Springs: Tin-plated copper alloy.


  • Item Includes:

    • 1x Switchcraft E112BL E Series 1/4 Inch / 3 Conductor Stereo Locking Panel Mount Phone Jack- Nickel Finish
