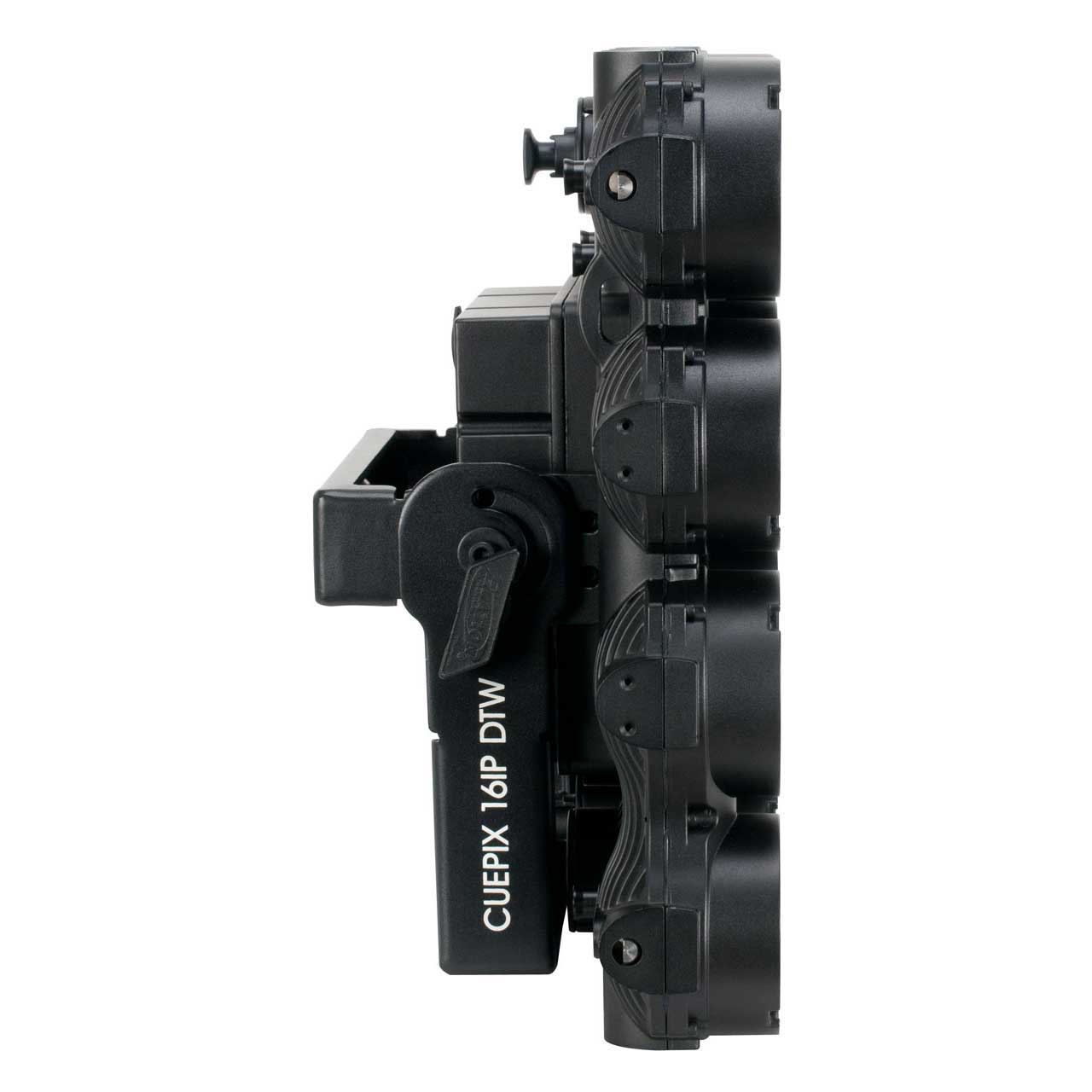

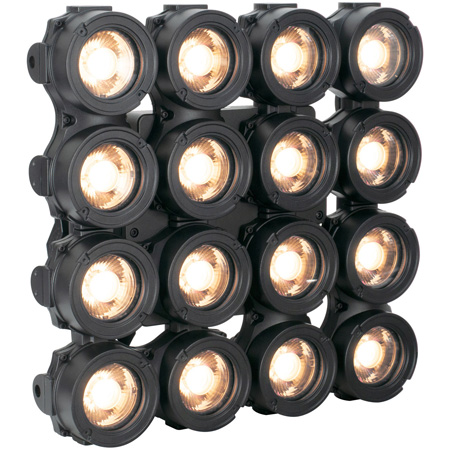

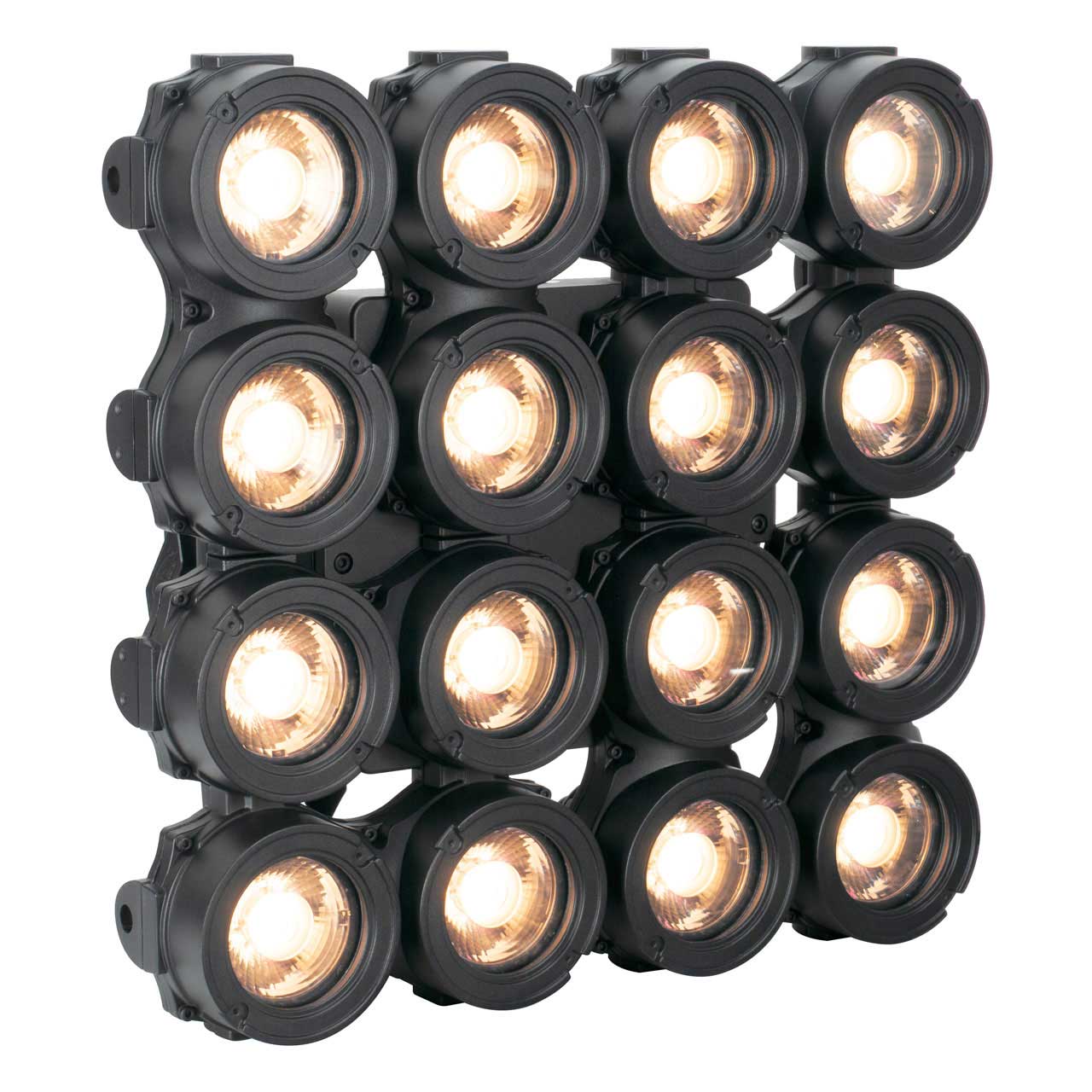

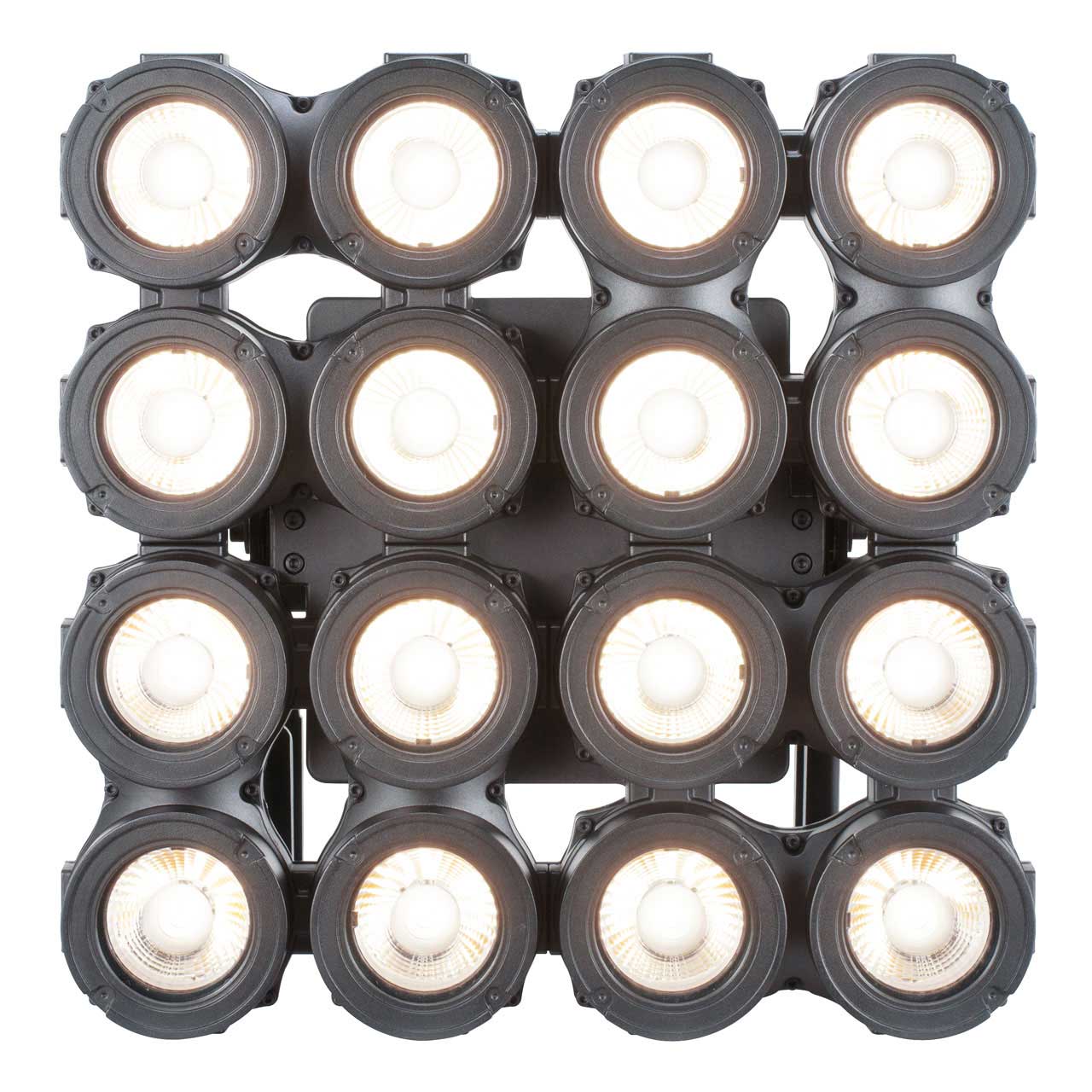

Elation Professional CUE207 Cuepix 16IP DTW Panel Luminaire Lighting

CUE207 - Overview

• Features:

  • Versatile IP65 Outdoor Rated Effect Panel Luminaire
  • 4x4 Matrix Array of 16 40W DTW COB LEDs
  • Full Pixel Control with Pixel Flip Modes
  • 16-bit Dimming and Variable Dimming Curve Modes
  • Convection Cooled - No Fans for Noise-Sensitive Applications
  • 90° Adjustable and Fixed Yoke Brackets w/3-Position Holes
  • Integrated Fixture-to-Fixture Interlocking Alignment Pins/Locks
  • Optional 1/4 Turn Omega Brackets Available


• Specifications:

  • Source:
  • 16 40W 4-IN-1 DTW COB LEDs
  • 50,000 Hour Average LED Life*
  • *Test lab conditions. May vary depending on several factors including but not limited to:
  • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

    Effects:
  • Full Pixel Control with Pixel Flip Modes
  • High Speed Electronic Shutter and Strobe
  • 16-Bit Dimming and Variable Dimming Curve Modes

    Color:
  • DTW

    Control / Connections:
  • 7 DMX Channel Modes (64 total channels)
  • Adjustable Refresh Rate (900-25,000 (Hz)
  • 4 Button OLED Menu Control Display
  • DMX, RDM, and Art-Net Protocol Support

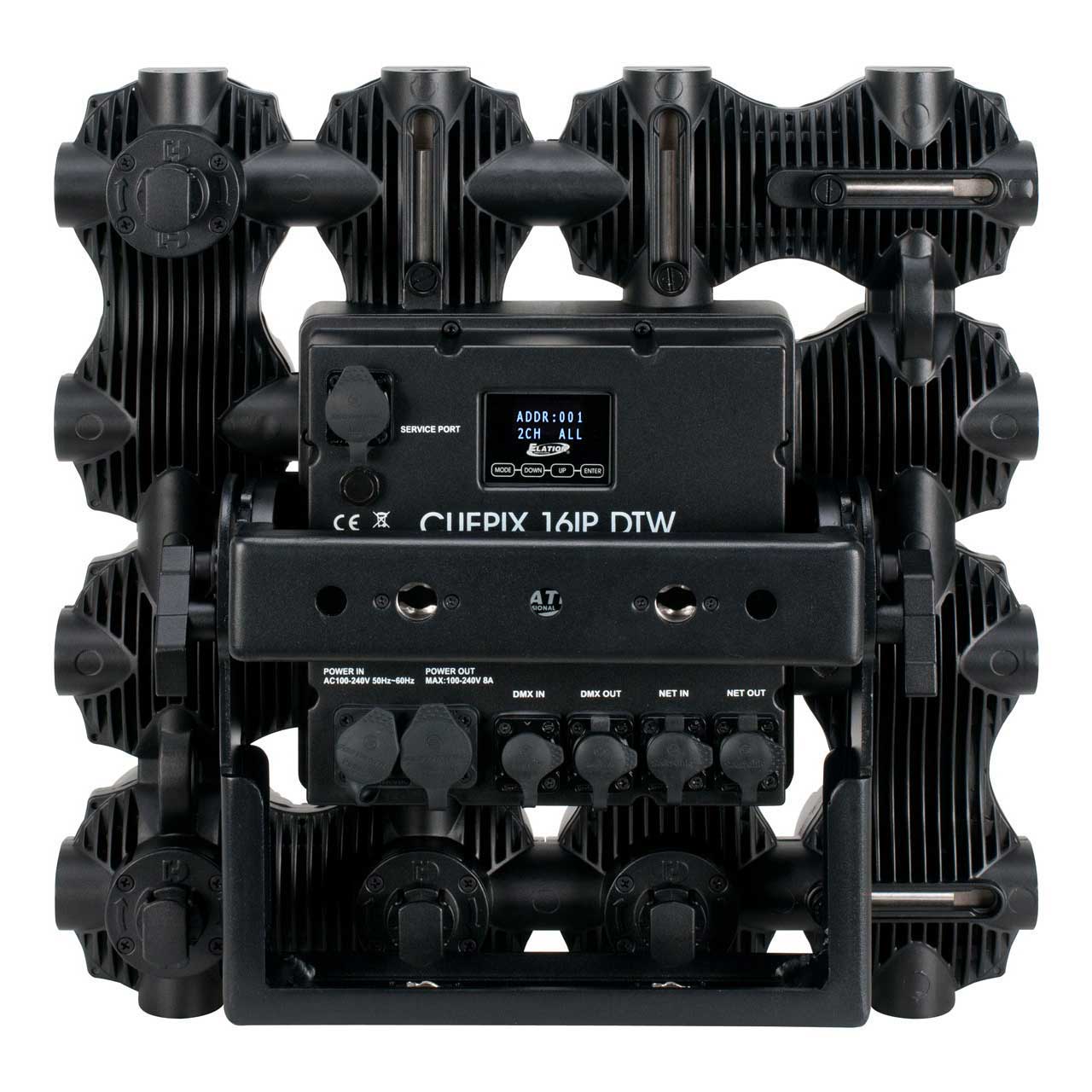

  • IP65 Locking 5pin XLR DMX, RJ45 Ethernet, Power In/Out
  • Fixture-to-Fixture Interlocking Alignment Pins/Locks
  • With Wired Digital Communication Network

    Size / Weight:
  • Length: 17.32” (440mm)
  • Width: 8.1” (207mm)
  • Vertical Height: 17.31” (440mm)
  • Weight: 33.0 lbs. (15.0 kg)

    Electrical / Thermal:
  • AC 100-240V - 50/60Hz
  • 400W Max Power Consumption
  • 14°F to 113°F (-10°C to 45°C)

    Approvals / Ratings:
  • CE
  • cETLus
  • IP65


• Item Includes:

  • 1x CUE207 Panel Luminaire Lighting
  • 1x Power Cable


• Warranty:

  • 2 Year


• GTIN:

  0810008260197
