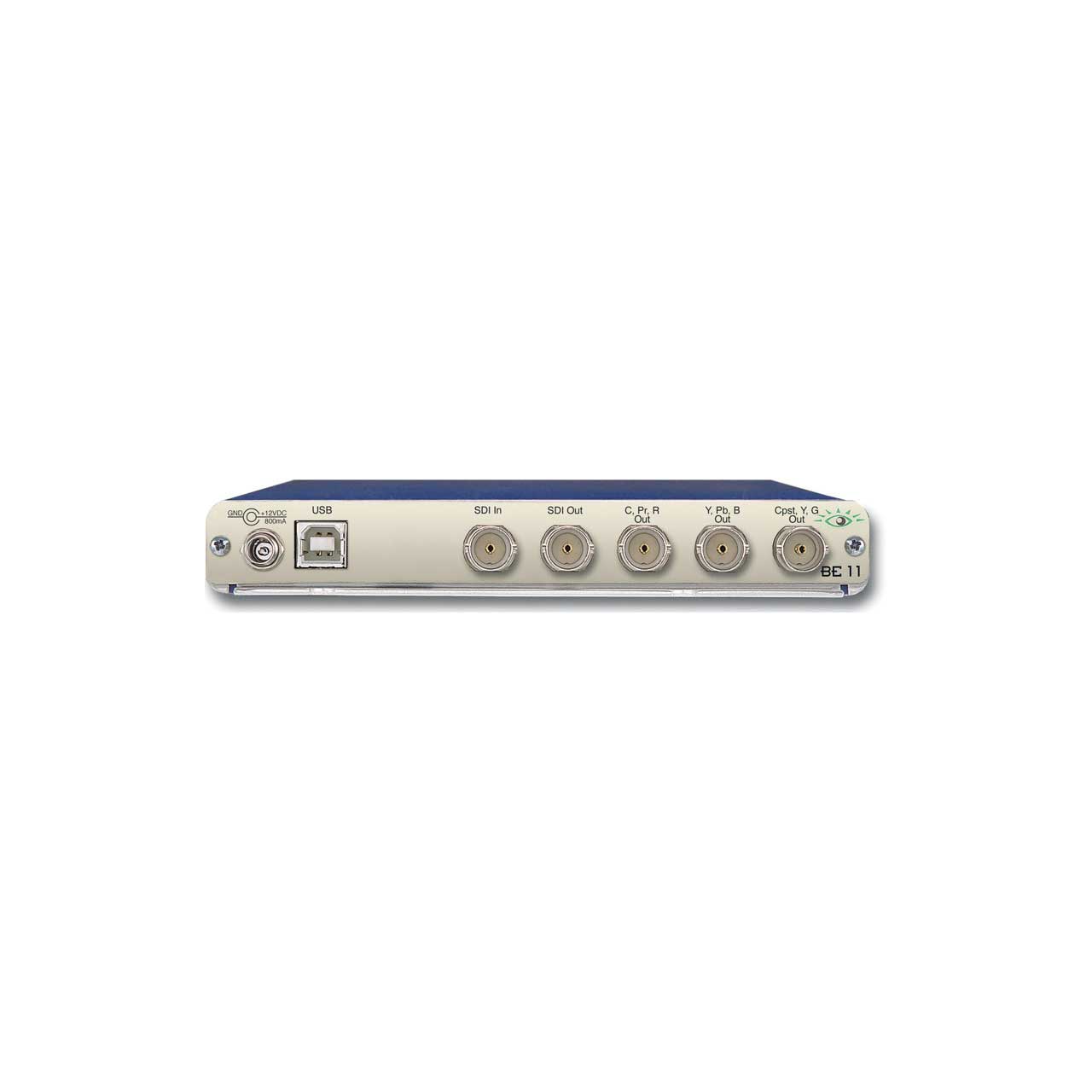

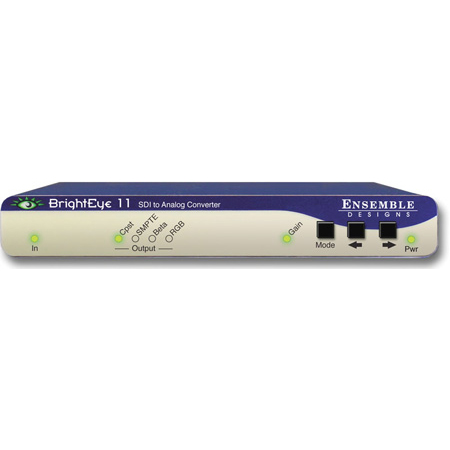

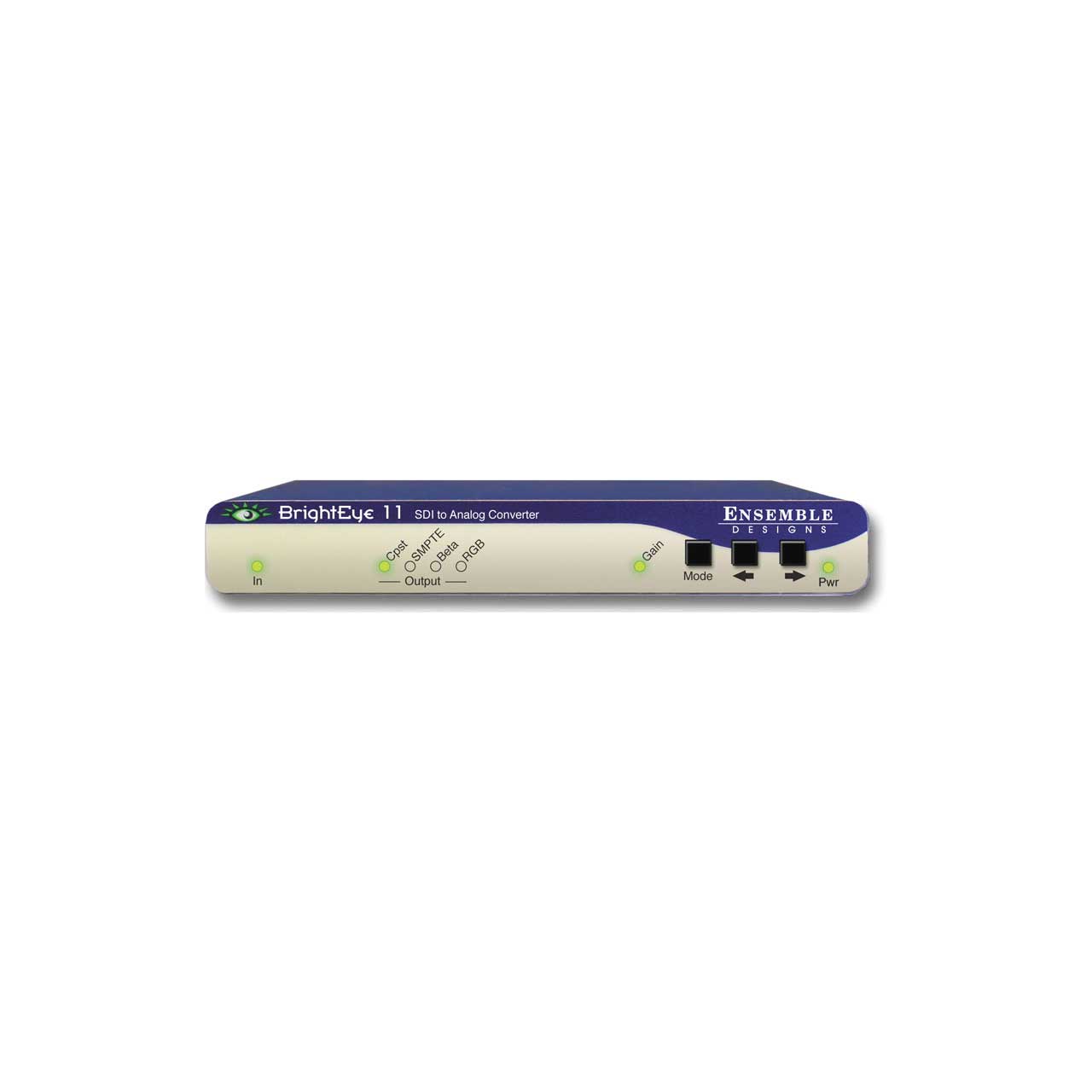

Ensemble Designs BrightEye 11 SDI to Analog Converter

BE11 - Overview

• Features:

  • Use with HD or SD monitors, VTRs and projectors
  • HD or SD SDI input
  • Analog composite output
  • Component, S-Video output
  • 12 bit processing
  • Passes embedded audio


• Specifications:

  • Serial Digital Input
  • Number One
  • Type HD Serial Digital 1.485 Gb/s
  • SMPTE 274M, 292M or 296M
  • or SD Serial Digital 270 Mb/s
  • SMPTE 259M
  • Impedance 75 U
  • Return Loss >15 dB
  • Max Cable Length 100 meters for HD
  • 300 meters for SD
  • (Belden 1694A)
  • Automatic Input Cable Equalization
  • HD Standards Supported:
  • 1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60 Hz720p (SMPTE 296M -1,2,3) 50, 59.94 or 60 Hz1080p (SMPTE 274M -9,10,11) 23.98, 24, 25 Hz1080sF (RP211 -14,15,16) 23.98, 24, 25 Hz

    Analog Output
  • HD input yields HD analog out,
  • SD input yields SD analog out
  • Number One component or
  • one composite and one Y/C
  • Type Beta/SMPTE, Y, Pr, Pb
  • RGB
  • NTSC, PAL Composite
  • NTSC, PAL S-Video
  • Return Loss >40 dB
  • Output DC None (AC coupled)

    Serial Digital Output
  • Number One
  • Type Follows input
  • Impedance 75 U
  • Return Loss >15 dB
  • Max Cable Length 100 meters for HD
  • 300 meters for SD
  • (Belden 1694A)

    SDI to Analog Performance
  • Bit Resolution 12 bit output reconstruction
  • 8 x oversampling
  • Signal to Noise >65 dB
  • Frequency Response ±0.1 dB, 0 to 5.5 MHz
  • K Factor <1%
  • ScH Phase Error <±2 degrees
  • Differential Phase <1 degree
  • Differential Gain <1%

    General Specifications
  • Size 5.63" W x 0.8" H x 5.98" D
  • (143 mm x 21 mm x 152 mm)
  • including connectors and flange
  • Weight 1 lb 12 oz
  • Power 12 volts, 7 watts
  • (100-230 VAC modular power supply)
  • Temperature Range 0 to 40° C ambient (all specs met)
  • Relative Humidity 0 to 95%, non-condensing
  • Altitude 0 to 10,000 ft.
