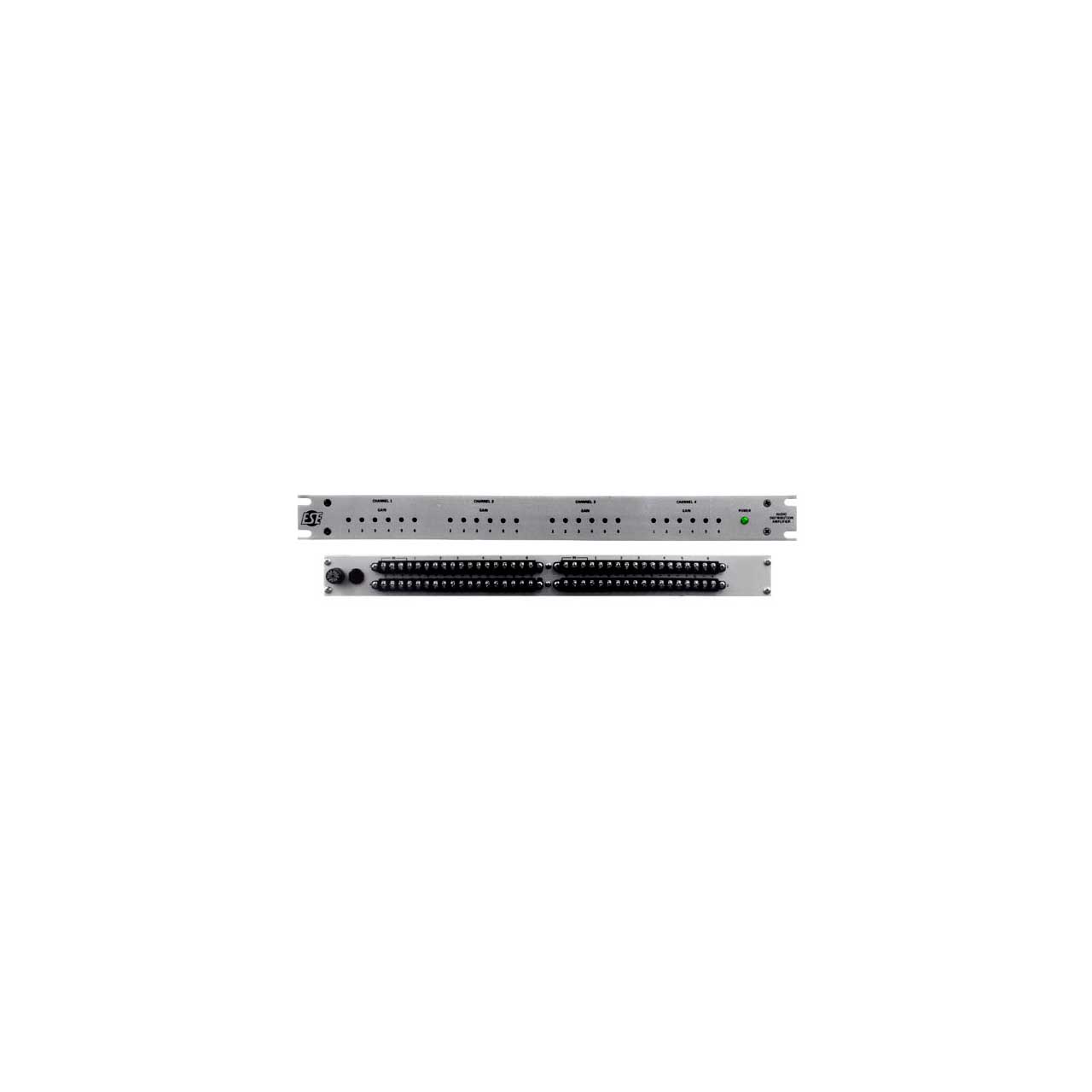

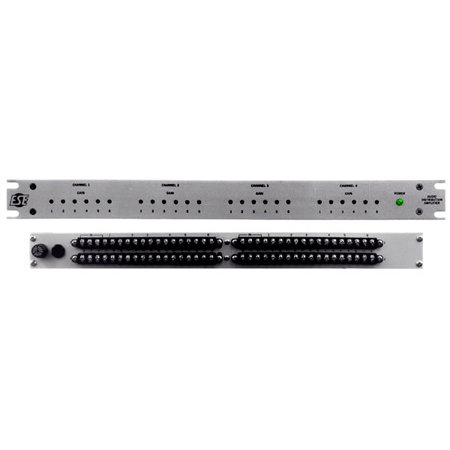

The ESE ES-245 is a Distribution Amplifier designed to distribute and isolate most any audio signal including SMPTE and EBU time code. Four channels, each with six outputs, provide up to 24 identical copies. Inputs and outputs are available on the rear mounted terminal blocks (optional XLR connectors are available). The unit is rack mounted.
Since the early '80s, ESE's Audio and Video Distribution Amplifiers have been recognized for their broadcast quality and durability. Using very similar technology, ESE presents a line of Distribution Amplifiers
(DAs) capable of isolating and distributing most any type of Time Code. The basic idea for each model is the same... provide the ability to distribute time code and compensate for lengthy cable runs while isolating each unit in the Master Clock System. All of ESE 's Time Code Isolation & Distribution Amplifiers units are capable of handling any of the IRIG time codes, ESE Time Code, SMPTE/EBU time code or ASCII time code.
Product Options:
Black Black Anodized Front Panel.
J 220 VAC/50 Hz Operation: The unit is configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard.
MT Multi-turn Potentiometers: Precision Multi-turn Potentiometers for Gain Control (Standard with the ES-246/XLR).
UL "UL" Approved Power Supply: The unit is supplied with a UL/CSA approved wall mount power supply.
XLR XLR Connectors: The terminal blocks are replaced with XLR connectors (the enclosure is doubled in height).
