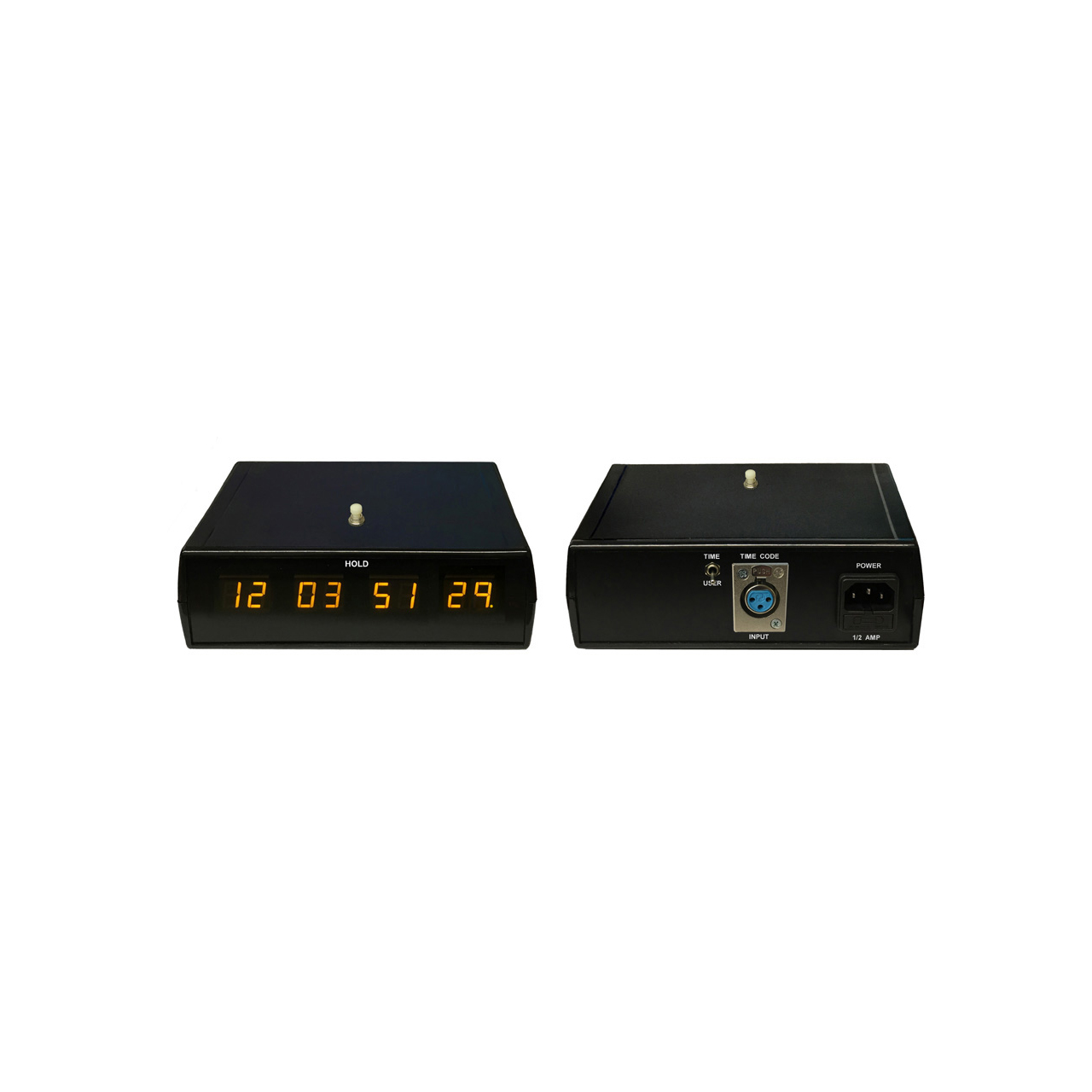

The ESE ES-453UE/ESE is a microprocessor-based SMPTE Time Code display with the ESE Time Code output option that allows the unit to drive ESE Time Code Slaves. This unit reads in both forward and reverse direction, from 1/20 to 10x play-speed and features a .56" high yellow LED display and comes standard in a desk-top case (rack-mount chassis optional). The unit displays Hours, Minutes, Seconds and Frames, or may be switched to display User Bit digits.
When the ESE Time Code Output option is ordered on the ES-453UE, a rear-mounted BNC connector provides access to the TC89T output in Hours, Minutes and Seconds. Up to 100 slave units may be driven at up to 4000' away.
Available Time Code Options:
ESE - ESE Time Code Output: An ESE Time Code output is provided allowing the unit to drive ESE Time Code Slaves.
J - 220 VAC/50 Hz Operation: The unit is configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard.
P - 19" Front Panel (Rack Mount): Designed for mounting into a standard equipment rack. Panel is 1/8" black anodized Aluminum and chassis is 5" - 10" deep.
RS - RS-232C Output: Computer Interface allows the time code data to be shared with a computer. RS-422A may be specified.
TZ - Time Zone Offset: Internal DIP switch allows the hours (and half-hour) to be independently offset to any time zone.
UL - "UL" Approved Power Supply: The unit is supplied with a UL/CSA approved wall mount power supply.
