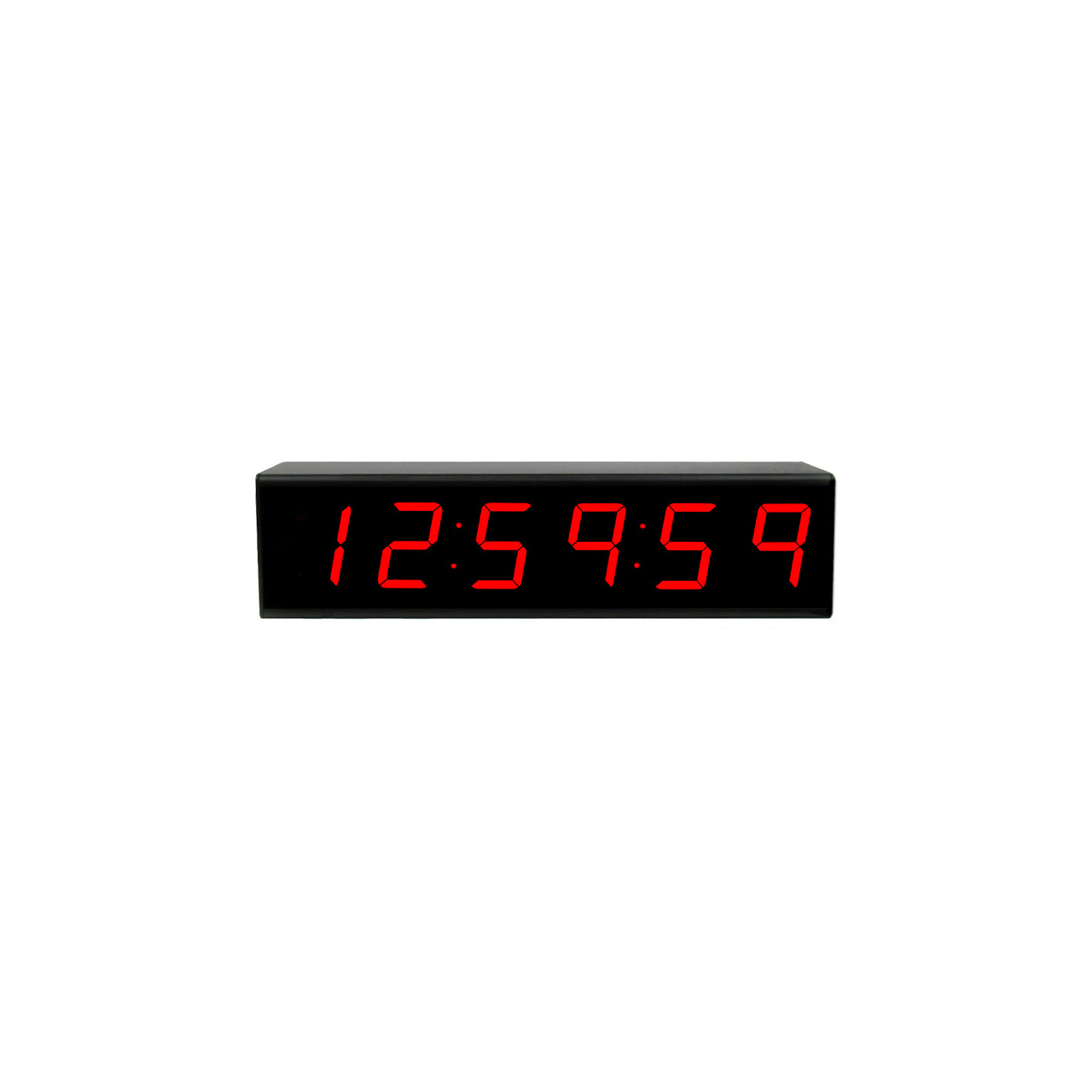

The ES-943U is a Time Code display featuring 4.0" bright red LED displays and PoE option. The unit is housed in a black-textured aluminum wall-mount enclosure (7" H x 26" W x 3.5" D). The unit accepts, via the rear-mounted terminal block, either ESE Time Code™ (TC76T, TC89T, or TC90T), SMPTE/EBU Time Code or RS-232C ASCII Time Code(format "0", "1" or "A" at 9600 baud). The ES-943U will automatically determine which code is being received. A rear-mounted DIP switch is used to configure the display for 12 or 24 Hour format, or to display the Date instead of time-of-day (if incoming time code contains Date information, such as ESE TC90, date-encoded SMPTE/EBU or ASCII formats "1" or "A"). If the Time Zone option is ordered, a rear-accessible DIP switch is installed for this function. If receiving ESE Time Code from a timer, the unit will display Minutes and Seconds.
Available Time Code Options:
Amber - Amber LED Displays
Blue - Blue LED Displays
CW - Ceiling/Wall Mount Bracket
Green - Green LED Displays
J - 220 VAC/50 Hz Operation: The unit is configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard.
NTP-C - NTP Client: NTP Client Displays synchronize exclusively with an NTP server (replaces all standard inputs).
PoE - Receives 48V operating power via Ethernet cable.
TZ - Time Zone Offset: Internal DIP switch allows the hours (and half-hour) to be independently offset to any time zone.
UL - "UL" Approved Power Supply: The unit is supplied with a UL/CSA approved wall mount power supply.
W - 3-Wire Power Cord: Recommended where static charges can occur. Standard on many units, otherwise a 2-wire cord is supplied.
