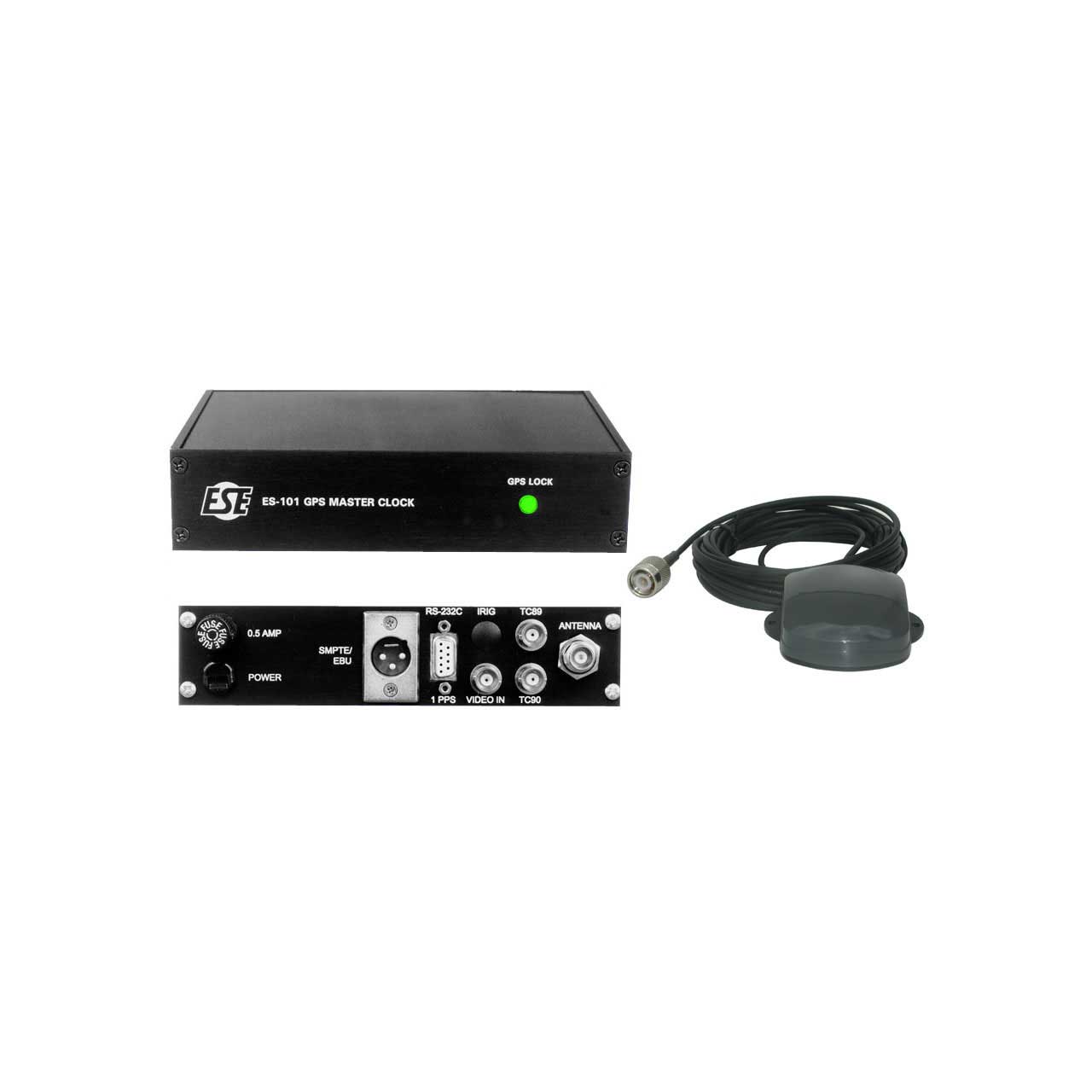

The ES-101 is a low-cost yet very accurate GPS Master Clock/Time Code Generator. The unit receives time and date information from Global Positioning System satellites and supplies this data to the user in the form of three (3) different types of time code; ASCII (RS-232C), ESE-TC89 and ESE-TC90. Two (2) One Pulse Per Second outputs and a GPS "Lock" output are also standard features. A twelve-channel receiver is employed that is capable of tracking up to twelve (12) satellites simultaneously, although reception of only one is required for time data to be output. Several options are available that allow the unit to meet most any requirement asked from a Master Clock or Time Code Generator.

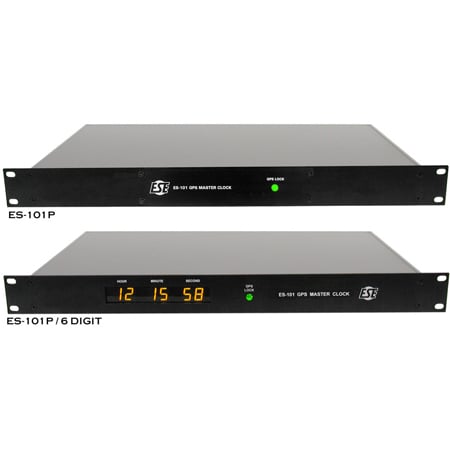

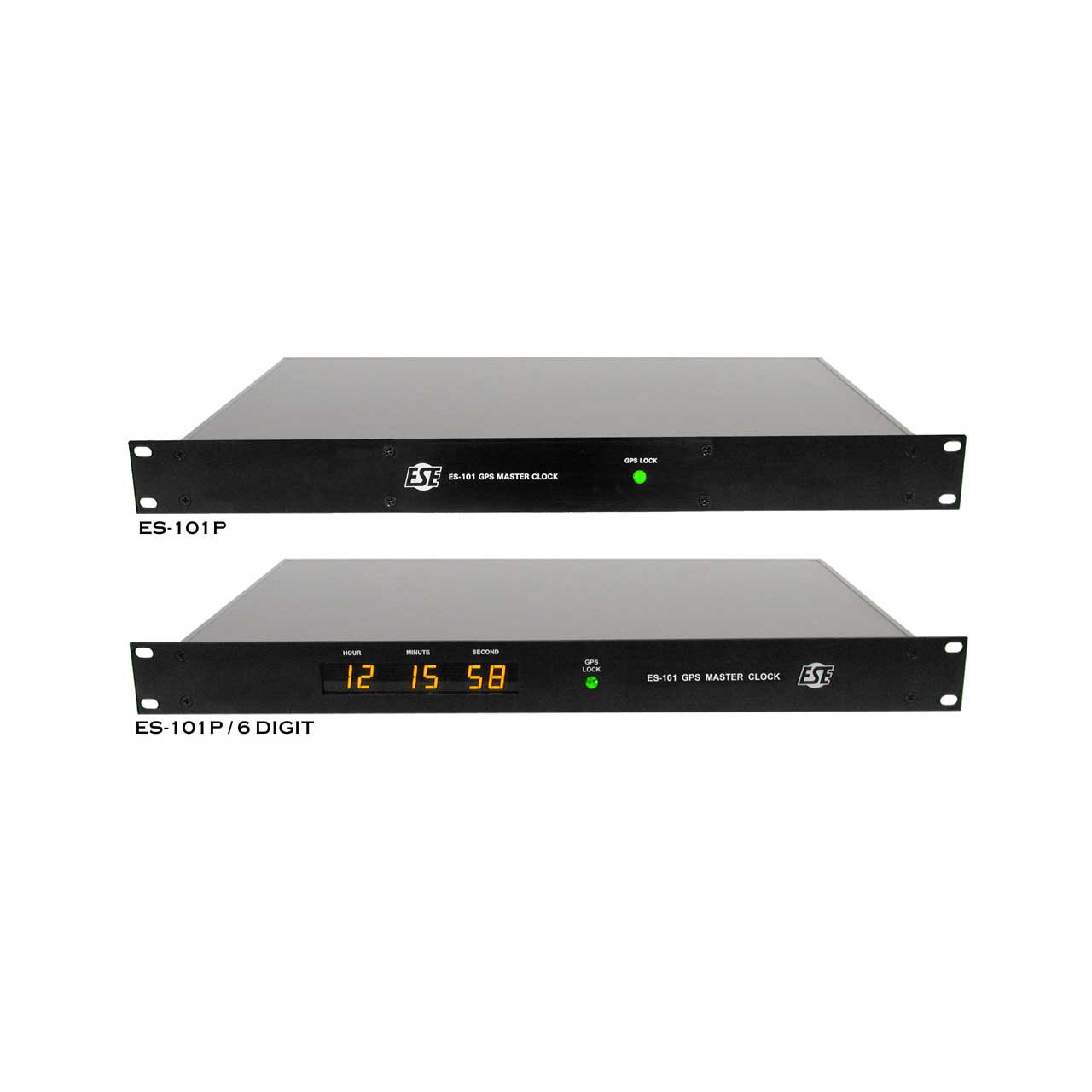

The ES-101-ANT-J-EBU-P-6DIGIT comes with several options. The unit comes with a High Performance GPS Antenna for harsh RF Environments (ANT), and a 6-Digit (Hr, Min & Sec) Front Panel Mounted Display with a 19" Front Panel Rack Mount Designed for mounting into a standard equipment rack. The panel is 1/8" black anodized Aluminum and chassis is 5" - 10" deep (6-DIGIT, P).
The ES-101-ANT-J-EBU-P-6DIGIT is configured to output EBU Time Code instead of SMPTE (EBU) and is also configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard. EBU and/or PAL may also be specified, if needed (J).
Please Note! This ESE model comes with the following Options....
Ant: GPS Antenna: High Performance GPS Antenna for harsh RF Environments.
J: 220 VAC/50 Hz Operation: The unit is configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard. EBU and/or PAL may also be specified, if needed.
EBU: EBU Time Code: The unit is configured to output EBU Time Code instead of SMPTE (standard, or at no charge on many units).
P: 19" Front Panel (Rack Mount): Designed for mounting into a standard equipment rack. Panel is 1/8" black anodized Aluminum and chassis is 5" - 10" deep.
6-Digit: Six-Digit Display: A 6-Digit (Hr, Min & Sec) Front Panel Mounted Display. Option 'P' is required.
