Everfocus EZA1280 2 Megapixel True Day/Night Outdoor IR Bullet Camera with 2.8-12mm Lens

ITEM #: EVF-EZA1280 MFG #: EZA1280

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the EVF-EZA1280

EZA1280 - Overview

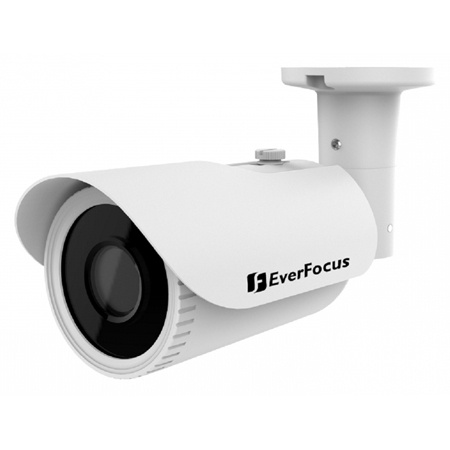

The Everfocus EZA1280 is a 2 Megapixel True Day/Night Outdoor IR Bullet Camera, 2.8-12mm Lens equipped with a 1080p Sony STARVIS CMOS sensor, the EZA1280 deliver 1080p full HD image quality. The model provides 2.8-12mm lens with ICR. Featured with Digital Wide Dynamic Range (D-WDR), the camera can provide clear images even under backlight circumstances where intensity of illumination can vary excessively. The EZA1280 supports dual power (12VDC / 24VAC) and supports both NTSC and PAL scanning systems.w

  • Features:

    • Project Based Ship to Order
    • 1080p Sony STARVIS CMOS sensor, delivering amazing high sensitivity
    • Varifocal 2.8-12mm with ICR to capture the desired field of view
    • Extended IR range of up to 40m / 131ft. with 4 LEDs (depends on scene IR reflectivity)
    • D-WDR to improve the visibility under high contrast scene
    • The flexible angle viewing with its 3-Axis rotation design allows wall or ceiling mounting
    • IP66-rated with metal housing
    • Supports dual power (12VDC / 24VAC)
    • Supports UTC function: Control camera OSD settings directly from DVR end


  • Specifications:

    • Pickup Device: 1080p Sony STARVIS CMOS sensor
    • System Format: NTSC / PAL (switchable via OSD)
    • Effective Pixels: 1920 (H) x 1080 (V)
    • Scanning System: Progressive Scan
    • Sensitivity: 0.1 Lux with IR On
    • Electronic Shutter: 1/30s ~ 1/30000s
    • Gamma Correction: 0.45 / 0.55 / 0.65 / 0.75
    • Lens Type: Varifocal 2.8-12mm with ICR, F1.6
    • FOV (D x H x V): 118~45° x 102~40° x 55~22°
    • BLC: Off / BLC / HLC / WDR
    • AGC: Auto
    • White Balance: Auto / Manual
    • Sync. Mode: Internal
    • Day / Night: Auto / Color / B&W / Extern
    • UTC Function: Supported
    • IR LEDS: 4 Units
    • IR Distance: Up to 40m / 131ft. (Depends on scene IR reflectivity)
    • Video Format: AHD / TVI / CVI / CVBS
    • S/N Ratio: =50dB
    • OSD Languages: English / Simplified Chinese / Traditional Chinese / Japanese / Korean / Portuguese
    • DNR: Off / Middle / High / Low
    • DWDR: 96dB
    • SensUp: Off / x2 / x4 / x8 / x16 / x32
    • Mirror / Flip: Off / On
    • Motion Detection: Supported
    • Privacy Mask: Supported
    • Environmental: IP66 Weather Resistant
    • Power Source: Dual Power (12VDC/24VAC~)
    • Max. Power Consumption: 12Vdc 8.5w/24Vac 7.8w
    • Operating: -20°C ~ 50°C / 14°F ~ 122°F
    • Humidity: Less than 95%

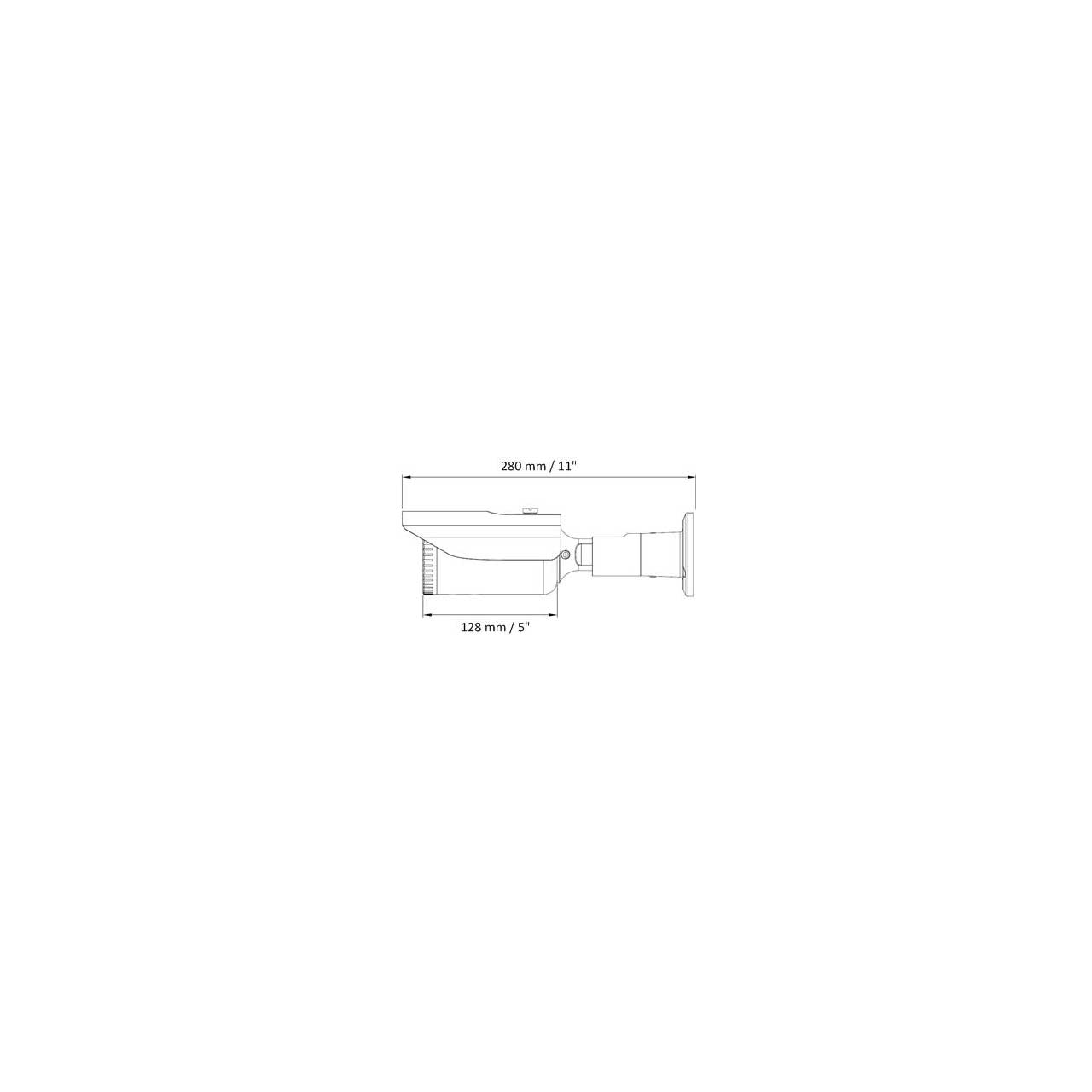

    • Dimensions: 91.5(W) x 84(H) x 280(D)mm / 3.6" x 3.3" x 11"
    • Weight: 1400g / 3.09lb
    • Certificates: CE, FCC, RoHS
