Everfocus EZA1281 2 Megapixel 1080p Dual Power FHD IP66 True Day/Night Outdoor IR Bullet Camera w/2.8-12mm Lens - White

ITEM #: EVF-EZA1281 MFG #: EZA1281

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the EVF-EZA1281

EZA1281 - Overview

True Day/Night Outdoor IR Bullet Camera with 1/2.8" 2.1 Mega-pixel Sony CMOS!

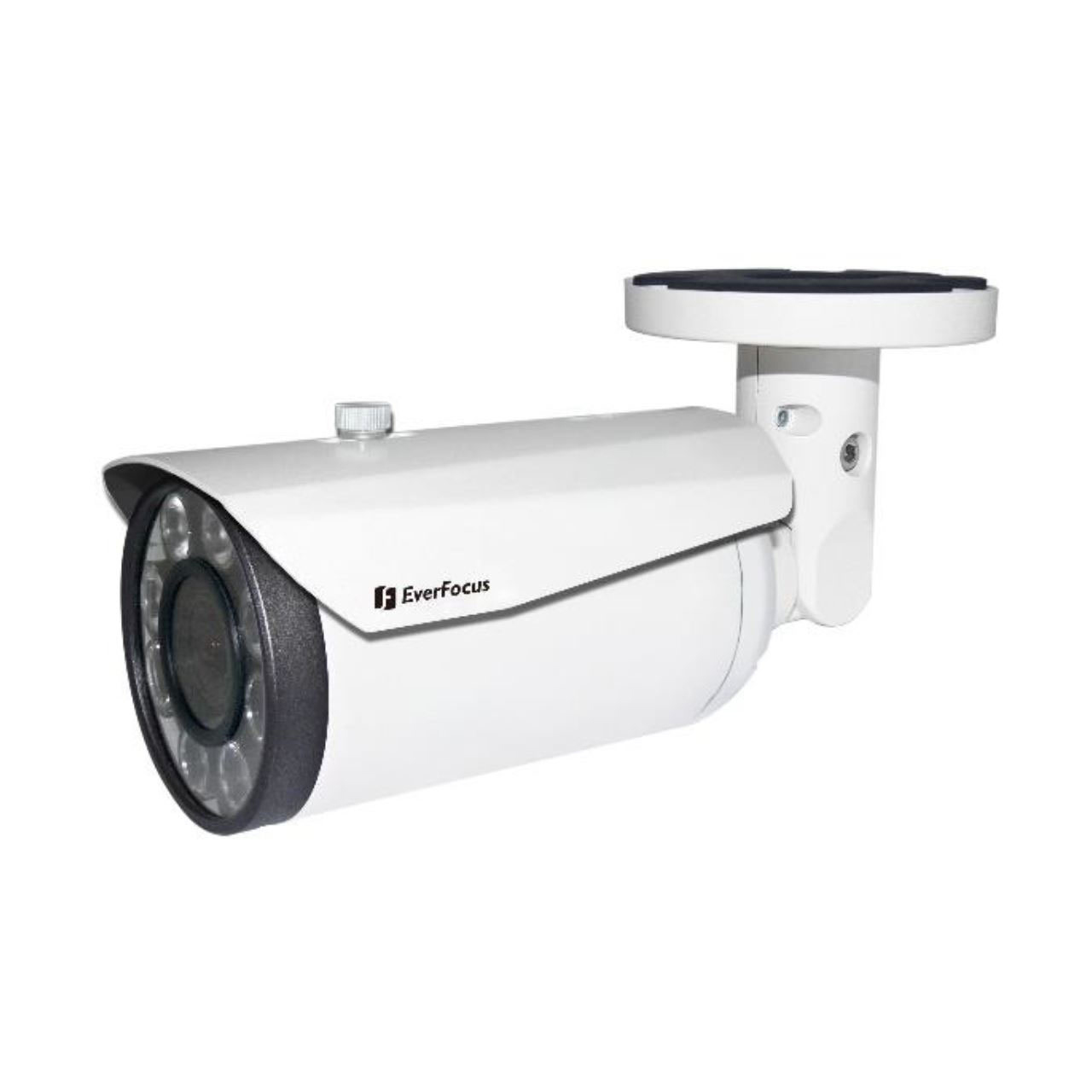

The Everfocus EZA1281 is a 2-Megapixel, True Day/Night, Outdoor IR Bullet Camera with a Varifocal 2.8-12mm with ICR to capture the desired field of view and a 3-Axis rotation design to facilitate wall or ceiling mounting. It's IP66-rated with metal housing and features an extended IR range of up to 40 meters / 131 feet with 8 LEDs, results dependent on scene IR reflectivity. It also supports dual power 12VDC / 24VAC, UTC function with control camera OSD settings directly from DVR end and features D-WDR technology to improve visibility under high contrast scenes.

  • Features:

    • 1/2.8" 2.1 Mega-pixel Sony CMOS , delivering amazing high sensitivity
    • Varifocal 2.8-12mm with ICR to capture the desired field of view
    • Extended IR range of up to 40m / 131ft. with 8 LEDs (depends on scene IR reflectivity)
    • D-WDR to improve the visibility under high contrast scene
    • The flexible angle viewing with its 3-Axis rotation design allows wall or ceiling mounting
    • IP66-rated with metal housing
    • Supports dual power (12VDC / 24VAC)Supports UTC function: Control camera OSD settings directly from DVR end

  • Specifications:

    • Pickup Device: 1/2.8" 2.1 Mega-pixel Sony CMOS
    • System Format: NTSC / PAL (switchable via OSD)
    • Effective Pixels: 1920 (H) x 1080 (V)
    • Scanning System: Progressive Scan
    • Electronic Shutter: 1/25-1/50,000S
    • Gamma Correction: 0.45
    • Resolution: 50Hz:25fps/1920X1080 25fps/1280X720 60Hz:30fps/1920X1080 30fps/1280X720
    • Lens Type: 2.8-12mm Varifocal IR Lens
    • FOV (D x H x V): 110~45° x 106~40° x 57~23°
    • BLC: Off / BLC / HLC / WDR
    • AGC: Auto
    • White Balance: ATW
    • Sync. Mode: Internal
    • Day / Night: IR cut filter with auto switch (Auto / Color / B&W / Extern)
    • UTC Function: Supported
    • IR LEDS: 8 Units
    • IR Distance: Up to 40m / 131ft. (Depends on scene IR reflectivity)
    • Video Format: AHD / TVI / CVI / CVBS
    • S/N Ratio: =54dB
    • OSD Languages: English / Simplified Chinese / Traditional Chinese / Japanese / Korean / Portuguese
    • DNR: Off / Middle / High / Low
    • DWDR: OFF/ON
    • SensUp: AUTO
    • Mirror / Flip: Off / On
    • Motion Detection: Supported
    • Privacy Mask: Supported
    • Environmental: IP66 Weather Resistant
    • Power Source: Dual Power (12VDC/24VAC)
    • Max. Power Consumption: 550mA (MAX)
    • Operating: -20°C ~ 50°C / 14°F ~ 122°F
    • Humidity: Less than 95%
    • Dimensions: 231(W) x 84(H) x 110(D)mm / 9.1" x 3.3" x4.3"
    • Weight: 720g (25.4oz)
    • Minimum Illumination Color: 0.0001Lux(F1.6,AGC ON) 0Lux with IR
    • Certificates: CE, FCC, RoHS

  • Item Includes:

    • 1x Camera
    • 1x Mounting Sticker
    • 1x Hexagonal Wrench
    • 3x Screw & Screw Anchor
    • 1x User Manual

  • Warranty:

    • 3 years
