KanexPro EXT-HDMICAS70MRX 4K60Hz HDMI Cascading Extender Receiver over Cat6 - up to 10 HD displays - 230 Feet/70M

Name: KanexPro EXT-HDMICAS70MRX 4K60Hz HDMI Cascading Extender Receiver over Cat6 - up to 10 HD displays - 230 Feet/70M
Brand: KanexPro
SKU: EXT-HDMICAS70MRX
Price: 129.95 USD
Availability: PreSale

ITEM #: EXT-HDMICAS70MRX MFG #: EXT-HDMICAS70MRX

KanexPro

Our Price:

$129.95

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

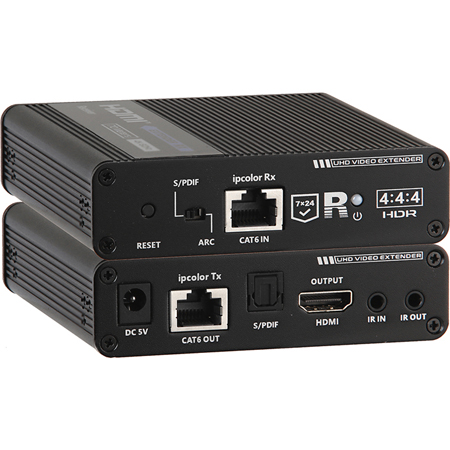

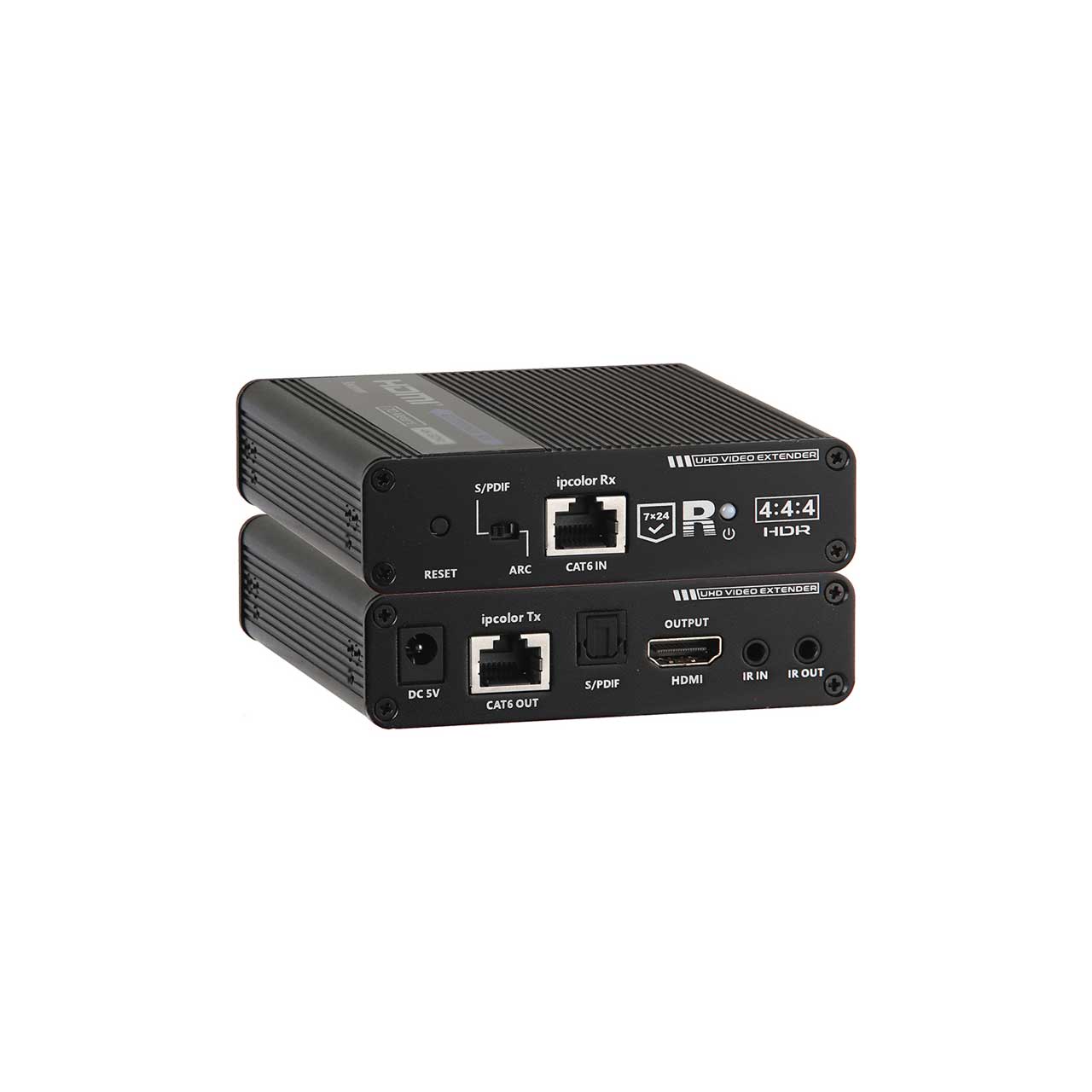

EXT-HDMICAS70MRX - Overview

The KanexPro EXT-HDMICAS70MRX cascading HDMI extender receiver units, allows for HDMI signals to be transmitted up to 70 meters at 4K resolution using a Cat6/6a/7 network cable. Supporting up to 10 additional receivers, combined with the EXT-HDMICAS70M system these receivers can cascade and share content to displays of varying resolutions with the built-in auto adapt feature. This is perfect for outdoor advertising, monitor systems, home entertainment and conference room solutions.

Applications:
Ideal for use in digital signage applications, healthcare AV, control rooms, educational facilities, airports, commanding centers and home theater.

Note: Use a CAT5e/6 cable with low impedance STP (Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.

Features:
- Zero Latency
- Supports transmission distance up to 230ft. (70m)
- Cascade up to 10 additional receivers
- Receiver units can individually manage display resolution and EDID
- Supports HDR(YUV 4:4:4)
- Supports UHD 4K (4K x 2K @ 60Hz)
- IR bi-directional Pass through 20-60KHz (kits included)
- HDCP 2.2 & EDID support for multiple displays
- Simple set up with zero configuration
- Compact design for flexible installations
- Support ARC S/PDIF digital audio de-embedded outputs
Specifications:
- Power Supply
- Voltage/Current: DC5V-12V
- Power Consumption: RX: <4W

  HDMI Performance
- HDMI Compliance: HDMI 2.0
- HDCP Compliance: HDMI 2.2
- HDMI Supported Resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz,576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600
- Supported Audio Formats: 100-240V , 50/60Hz, 0.3A

  Transmission Distance
- Cat6, Cat6A, or Cat7: up to 70M at 4K resolution

  Operating Enviroment
- Working Temperature: -20~60°C
- Storage Temperature: -30~70°C
- Humidity (No Humidity): -0~90%RH

  Physical Properties
- Dimentions: 106.0(L) x 99.0(W) x 26.2(H)mm
- Material: Aluminum
- Color: Black
- Weight: RX-210g
Item Includes:
- 1x KanexPro 4.EXT-HDMICAS70MRX 4K60Hz HDMI Cascading Extender Receiver over Cat6 - up to 230 Feet/70M
Warranty:
- Backed by KanexPro's 3 Year limited warranty
GTIN:
0813982022775
