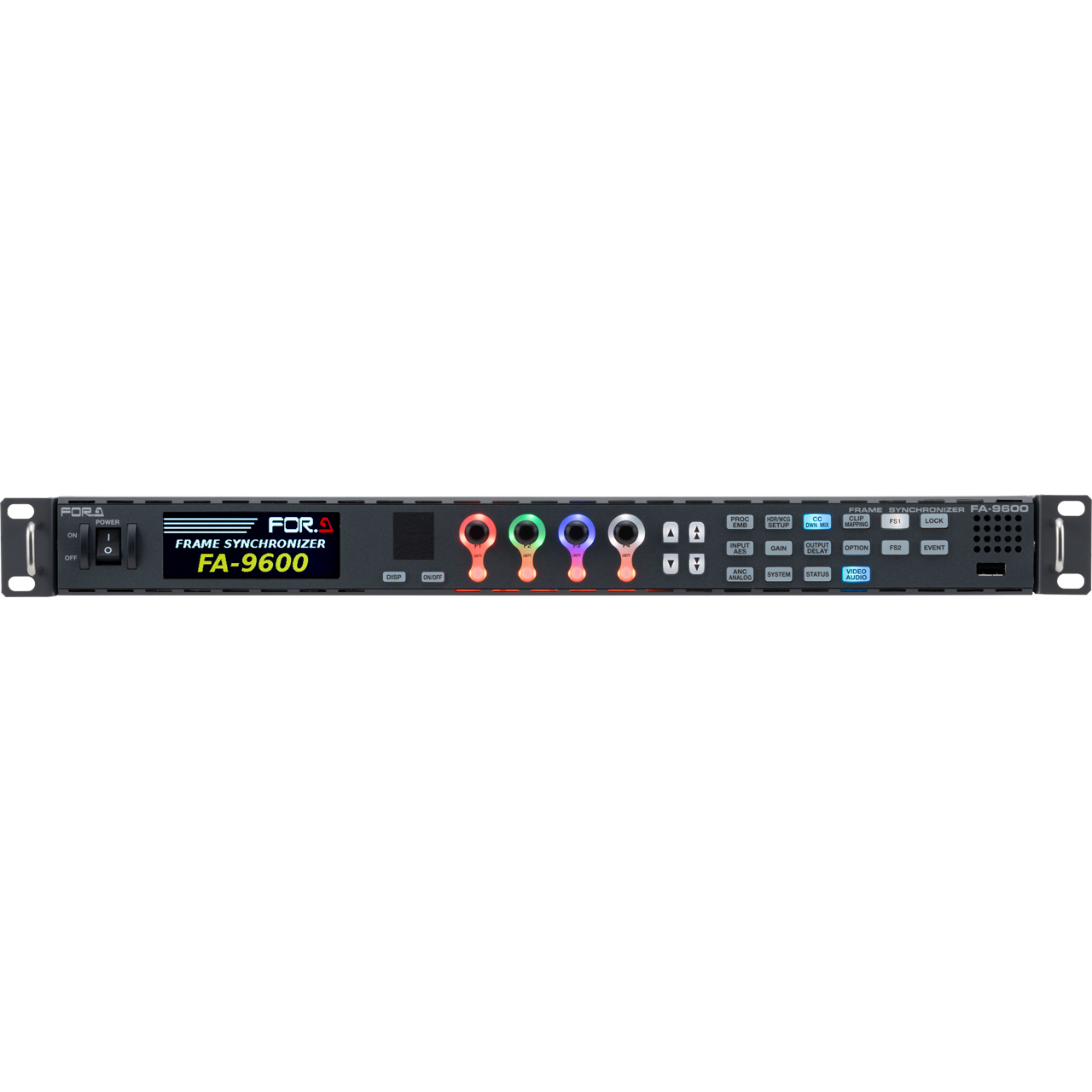

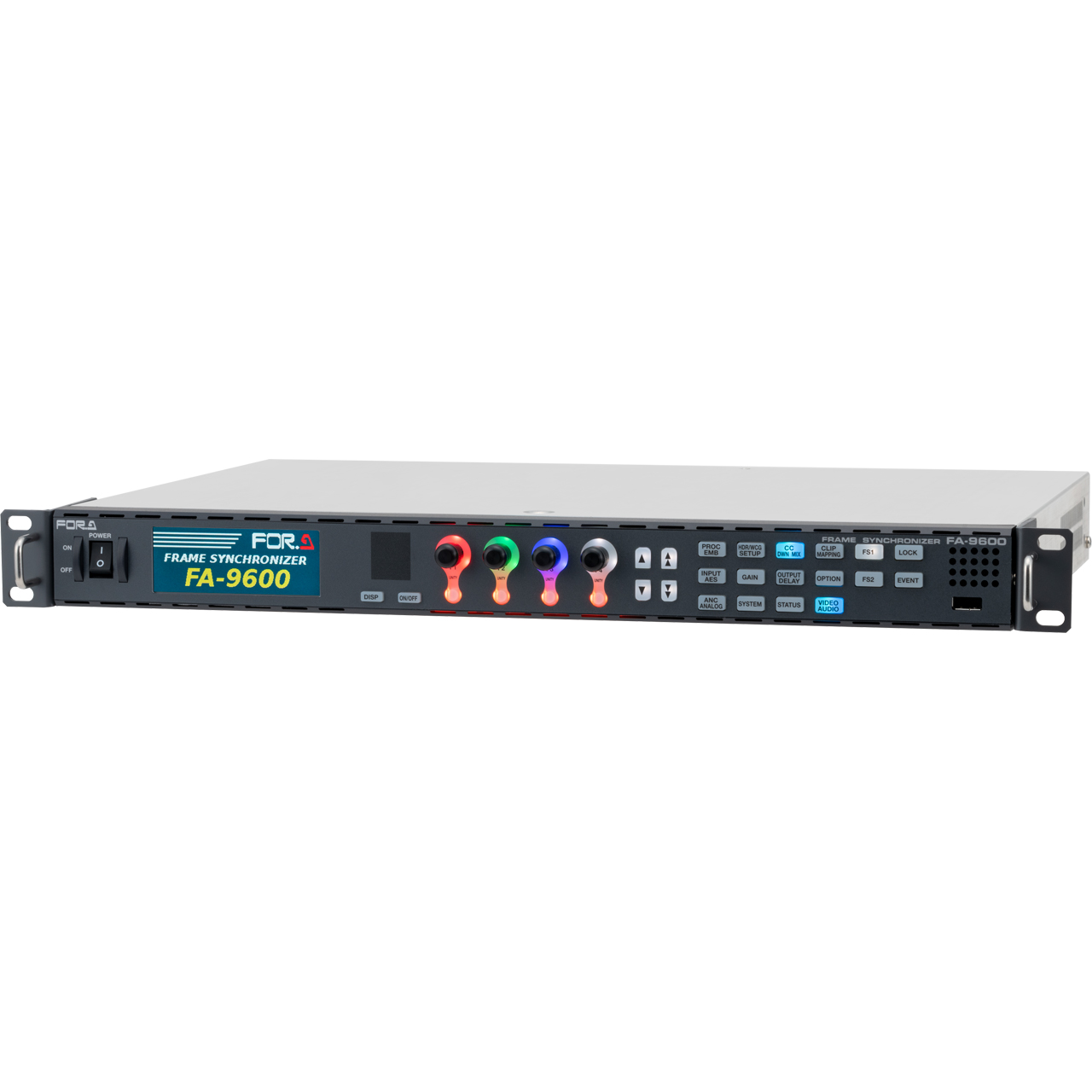

FOR-A FA-9600 Type 1A Multi Purpose Signal Processor & Frame Synchronizer - Dual Channel/SDR/HDR - Front Panel Control

ITEM #: FORA-FA-9600-1A MFG #: FA-9600 TYPE 1A

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
FOR-A
Free Shipping with $49 Minimum Order

List Price:

$6,900.00

Our Price:

$6,555.00

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

FA-9600 TYPE 1A - Overview

The FOR-A FA-9600 is much more than a basic frame synchronizer. It simplifies all types of video conversion. A newly developed color processing circuit supports the latest gamut and dynamic range specifications, and an optional converter circuit is available for up/down/cross conversion. Offering a wide range of audio processing, core features of remapping and gain adjustment, the FA-9600 can be expanded with optional cards that make it an ideal standalone solution at transmission centers, in mobile production trucks, production studios, news stations, and other nonlinear editing and playout production environments.

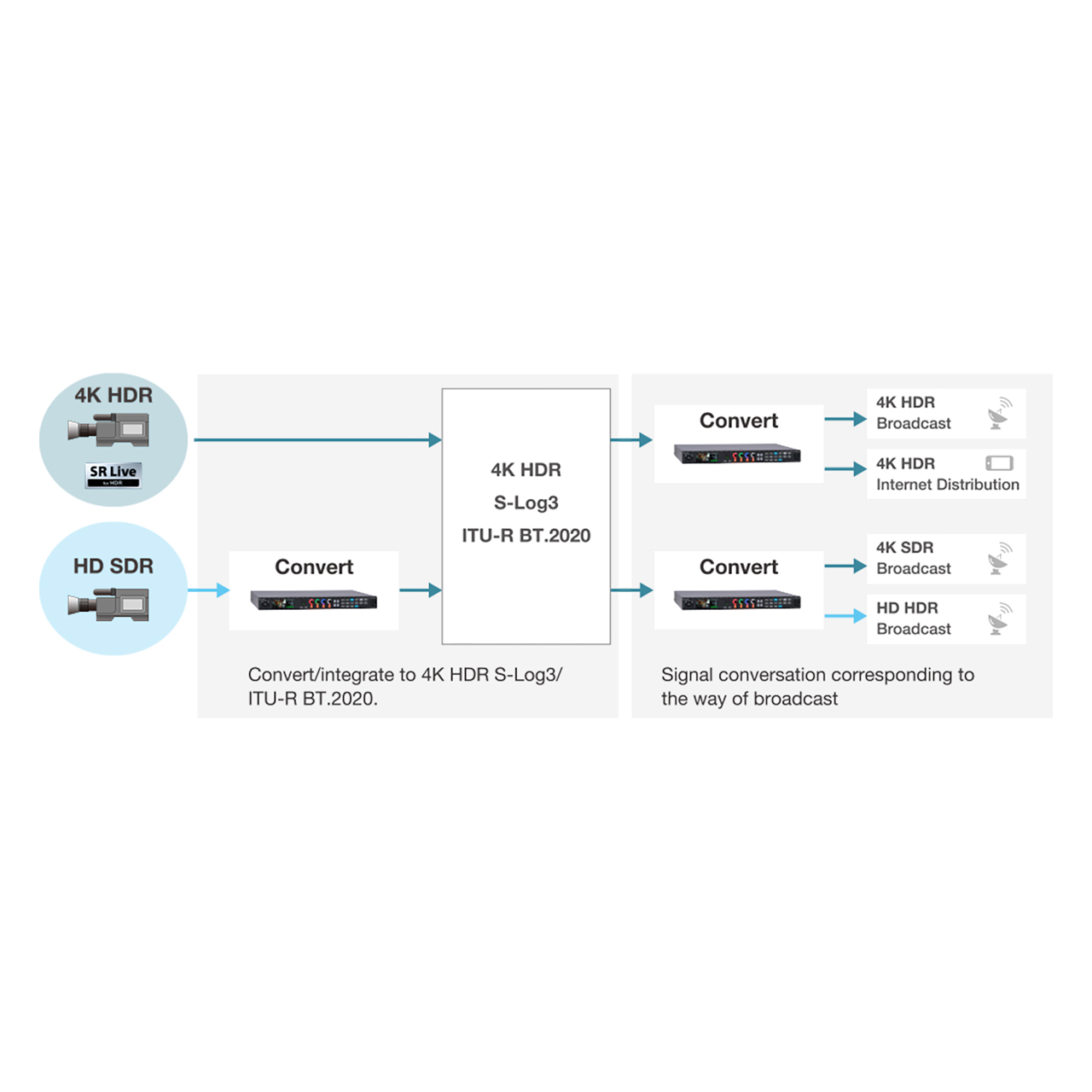

Provides HDR and Wide Color Gamut Support. Offers Exceptional Conversion Format Delivery, Including 12G, 4K (UHD), 1080p and HD/SD.

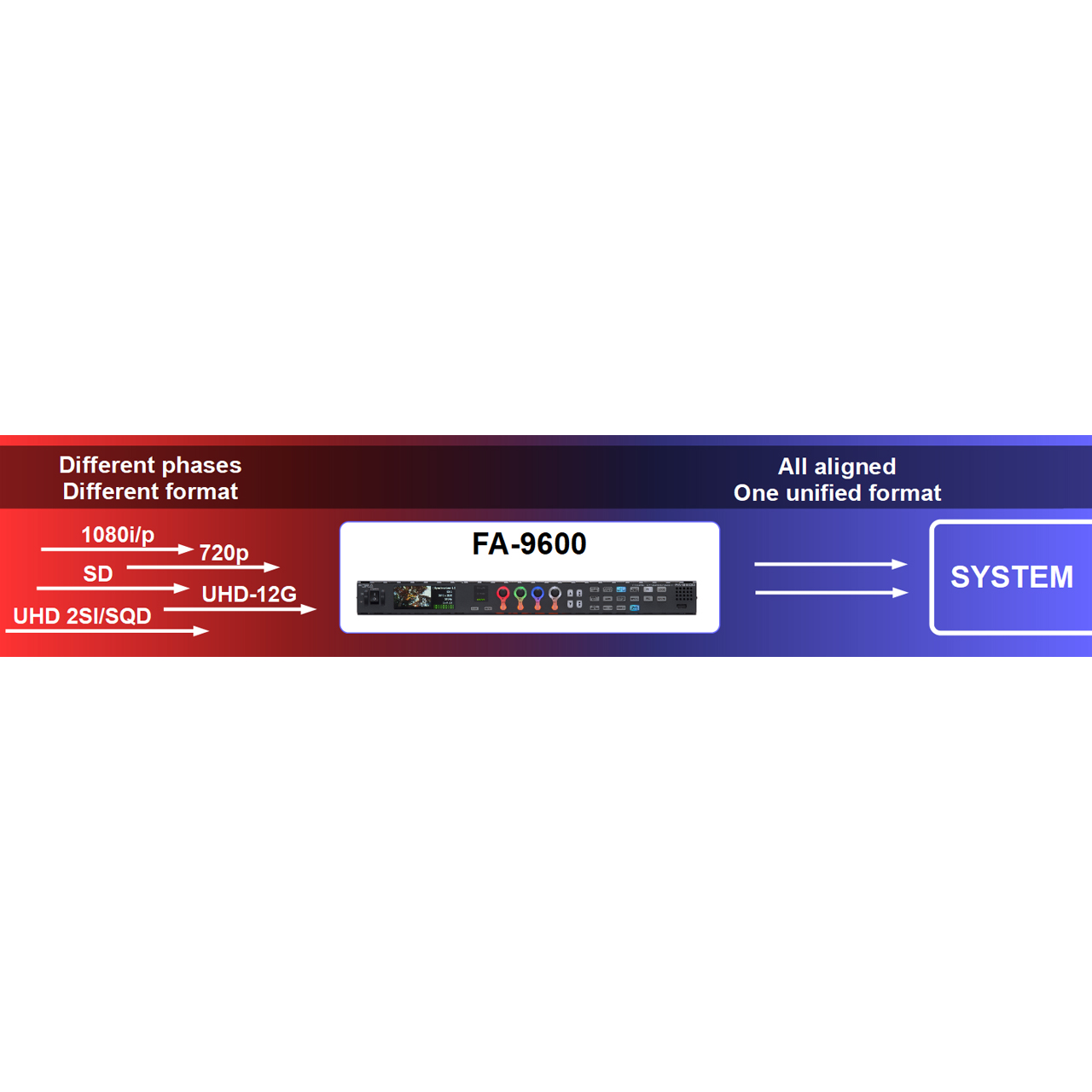

Each of the FA-9600 processor's two HD/SD inputs includes a frame synchronizer. Because the signal processor features 12G-SDI terminals, optional software opens the door to 4K(UHD) production. Adding an optional expansion card provides four more channels of 3G-SDI input/output or six channels of 12G-SDI distributed output.

The FA-9600 features various synchonization modes such as Frame Mode, Line Mode, AVDL Mode and Line(Min) Mode.

The FA-9600 Type 1A comes with the following options:
- FA-96UDC Up/Down/Cross Conversion Option
- FA-964K 12G-SDI Signals Option
- FA-96EX3G44-R Quad Link 3G/1.5G-SDI In/Out Option
- FA-96PS Redundant Power Supply

  • Features:

    • Synchronization Mode
    • Flexile Timecode Management
    • Powerful Color Processing
    • High Quality Conversion
    • Versatile Input/Output
    • Bradcast Style Operation
    • Frame Rate Conversion


  • Specifications:

      General
    • Temperature: 32°F - 104°F (0°C - 40°C)
    • Humidity: 30% - 90% (no condensation)
    • Power AC: 100V - 240V ±10% 50/60Hz
    • Max. Consumption w/ Options:
      - 110VA (107W) (at AC 100V - 120V)
      - 110VA (102W) (at AC 220V - 240V)
    • Dimensions (WxHxD):
      - 16.9" x 12.2" x 1.7" (430mm x 310mm x 44mm)
      - 18.9" 480 (W) (Including rack mount brackets)
    • Weight: 7.7lbs (3.5kg)(w/ full options)
    • Consumables (at 24-hour operation):
      - Power Unit: Recommended replacement period: 5 years
      - Cooling Fan: Recommended replacement period: 6 years
      - (FAN1) FPGA (Arria10) blower fan: P-1588 (109BC12GC7-1 SANYO DENKI CO., LTD)
      - (FAN2) Front fan on the left-hand side: P-1608 (9GA0412P3H01 SANYO DENKI CO., LTD)
      - (FAN3) Front fan on the right-hand side: P-1586-2 (9GA0412P7G001 SANYO DENKI CO., LTD.)

      Technical
    • SDI Video Format:
      - 1080/60p, 59.94p, 50p, 30p, 29.97p, 25p, 24p, 23.98p
      - 1080/60i (30PsF), 59.94i (29.97PsF), 50i (25PsF), 24PsF, 23.98PsF
      - 720/60p, 59.94p, 50p, 30p, 29.97p, 25p, 24p, 23.98p
      - 525/59.94i, 625/50i
      - Single-Link 3G-SDI
      - Dual-Link HD-SDI
      - Single-Link HD-SDI
    • SDI Optional Video Format (FA-964K):
      - 3840 x 2160/60p, 59.94p, 50p, 48p, 47.95p, 30p, 29.97p, 25p, 24p,
      - 23.98p, 30PsF, 29.97PsF, 25PsF, 24PsF, 23.98PsF
      - Single-Link 12G-SDI
      - Single-Link 6G-SDI
      - Dual-Link 6G-SDI (output)
      - Dual-Link 3G-SDI
      - Quad-Link 3G-SDI (output) (FA-96EX3G44-R or 96SFPC4 required for input)
      - Quad-Link HD-SDI (output) (FA-96EX3G44-R or 96SFPC4 required for input)
    • FA-964K/FA-96EX3G44-R:
      - 3840 x 2160/60p, 59.94p, 50p, 48p, 47.95p, 30p, 29.97p, 25p, 24p, 23.98p,
      - 30PsF, 29.97PsF, 25PsF, 24PsF, 23.98PsF
      - Quad-Link 3G-SDI (Level-A/B, SQD/2SI)
      - Dual-Link 3G-SDI (Level-A/B, SQD/2SI)
      - Quad-Link HD-SDI (SQD)
    • HDMI Video Format:
      - 1080/60p, 59.94p, 50p, 30p, 29.97p, 25p, 24p, 23.98p(If output format is set to 3G-SDI Level-B, HDMI is not supported so it cannot be used.)
      - 1080/60i (30PsF), 59.94i (29.97PsF), 50i (25PsF), 24PsF, 23.98PsF
      - 720/60p, 59.94p, 50p
      - 525/59.94i, 625/50i
    • HDMI Optional Video Format (FA-964K): 3840 x 2160/60p, 59.94p, 50p, 30p, 29.97p, 25p, 24p, 23.98p (If output format is set to SQD or Level-B, HDMI is not supported so it cannot be used.)

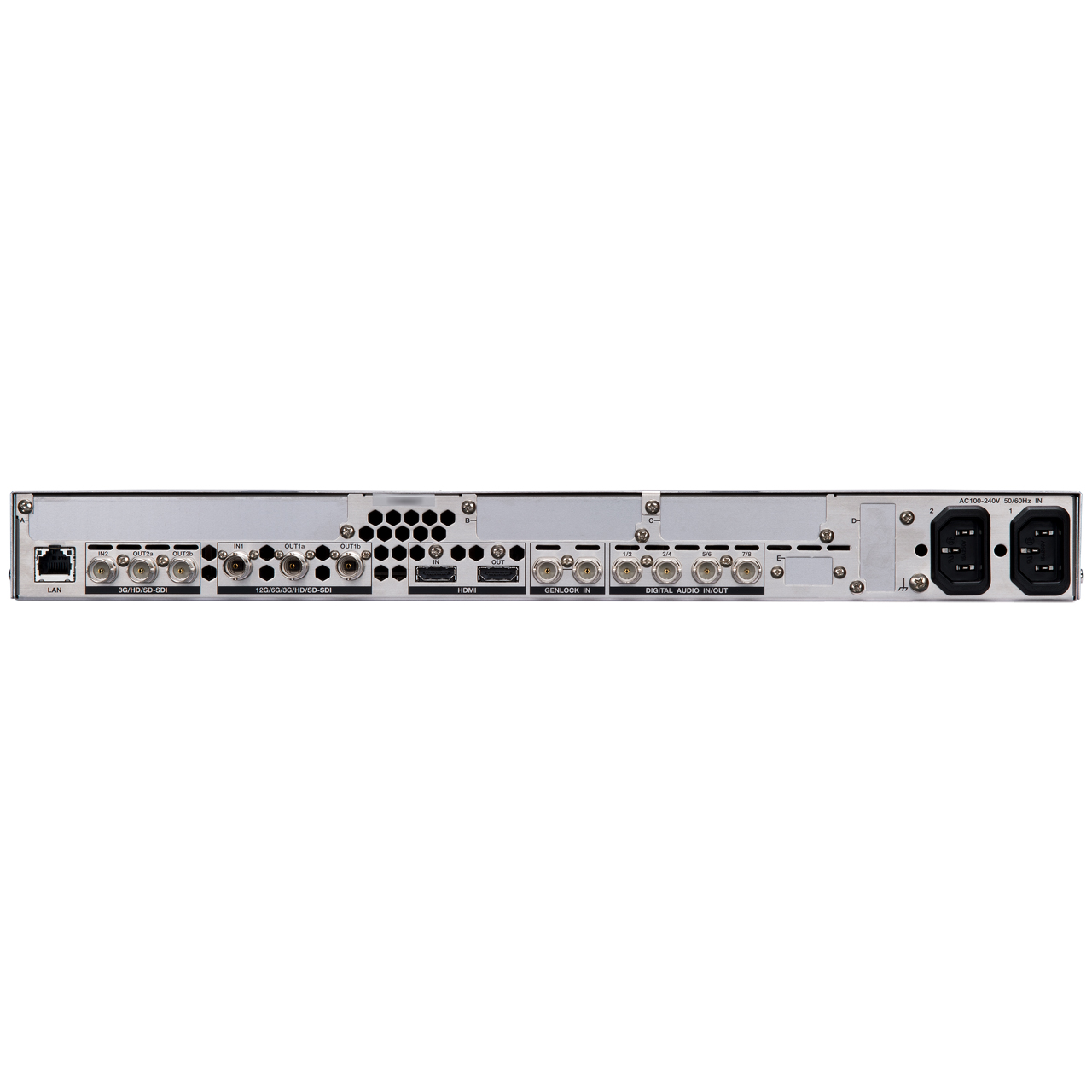

    • Video input:
      - 3G-SDI: 3Gbps (Level-A/B)
      - HD-SDI: 1.5 Gbps or SD-SDI: 270 Mbps
      - 2x 75Ω BNC (IN2 to OUT2a pass-through possible)
    • FA-96EX3G44-R: 3G/HD/SD-SDI: 4x 75Ω BNC (Input expansion)
    • FA-964K: 12/6G/3G/HD/SD-SDI: (IN1 only)
    • HDMI:
      - HDMI 2.0b Type-A connector x 1
      - YCbCr color sampling: 8/10/12-bit 4:2:2 (Internal processing: 10-bit)
      - YCbCr color sampling: 8-bit 4:4:4 (Internal processing: 10-bit)
      - RGB color sampling: 8-bit 4:4:4 Limited Range / Full Range
      - HDCP unsupported
    • Video Output:
      - 3G-SDI: 3Gbps (Level-A/B)
      - HD-SDI: 1.5 Gbps or SD-SDI: 270 Mbps
      - 4x 75Ω BNC (2 with each distribution output)
    • FA-96EX3G44-R: 3G/HD/SD-SDI: 4x 75Ω BNC (output expansion)(Input to output pass-through possible)
    • FA-964K: 12G/6G-SDI: (OUT1a/1b only)(OUT1a/1b and all FA-96EX12G06 outputs)
    • HDMI:
      - HDMI 2.0b Type-A connector x 1
      - YCbCr color sampling: 10-bit 4:2:2
      - RGB color sampling: 8-bit 4:4:4 Limited Range
    • Resolution: 4:2:2 digital component
    • Genlock input:
      - BB: NTSC: 0.429 Vp-p/PAL: 0.45 Vp-p or Tri-level Sync: 0.6 Vp-p
      - 1x BNC 75Ω or loopthrough (75Ω termination required if unused)

      For the list of full specs, please see the attached Spec Sheet


  • Item Includes:

    • 1x FA-9600 Multi Purpose Signal Processor
    • 1x FA-96UDC Up/Down/Cross Conversion Option
    • 1x FA-964K 12G-SDI Signals Option
    • 1x FA-96EX3G44-R Quad Link 3G/1.5G-SDI In/Out Option
    • 1x FA-96PS Redundant Power Supply


  • Warranty:

    • 5 Year Warranty
