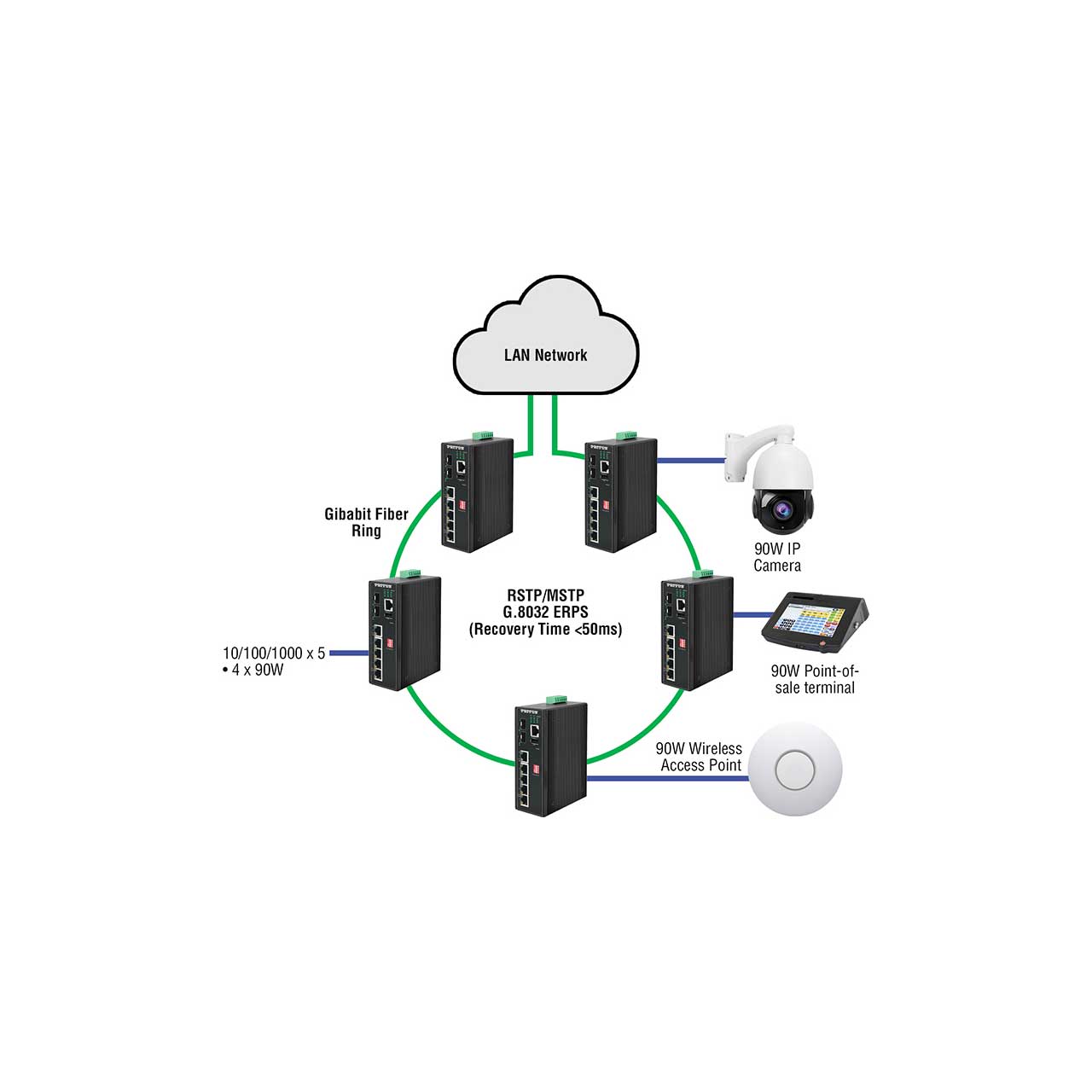

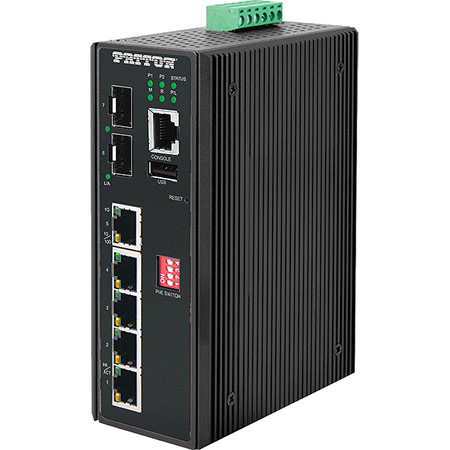

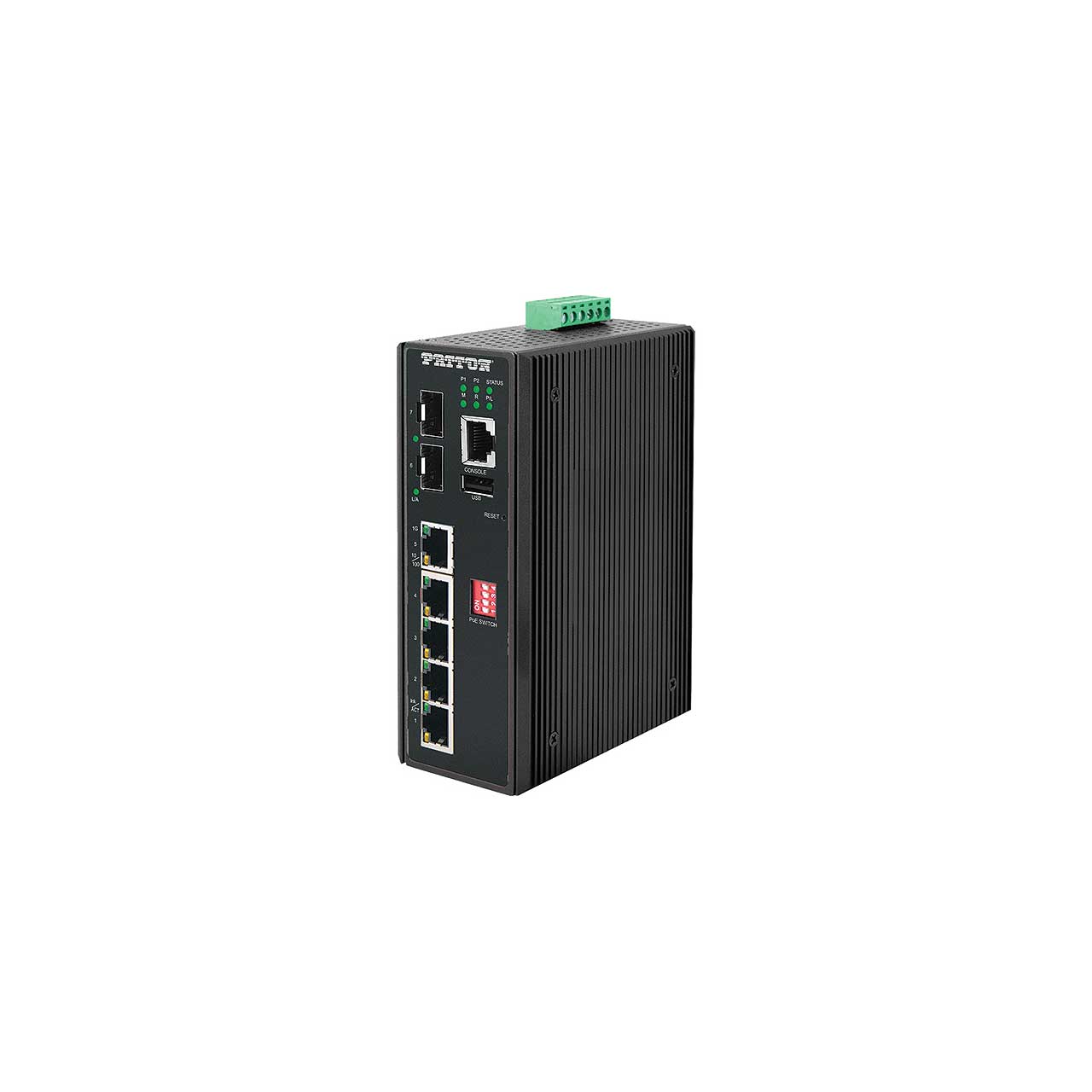

Patton's FP2005E/2SFP/4BT/24DC is a 7-port industrial Gigabit PoE++ managed Ethernet switch embedded with 4x 10/100/1000Tx Ethernet ports that support IEEE802.3at/af/bt for a maximum of 90W/port, 2x 10/100/1000Tx gigabit Ethernet port, and 2x 100/1000 dual rate SFP slots for fiber connection, and 12-55VDC input. The FP2005E/BT is a fully manageable Light Layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market's open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.
The FP2005E/BT is IP30 rated and DIN-rail mountable. It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment.
