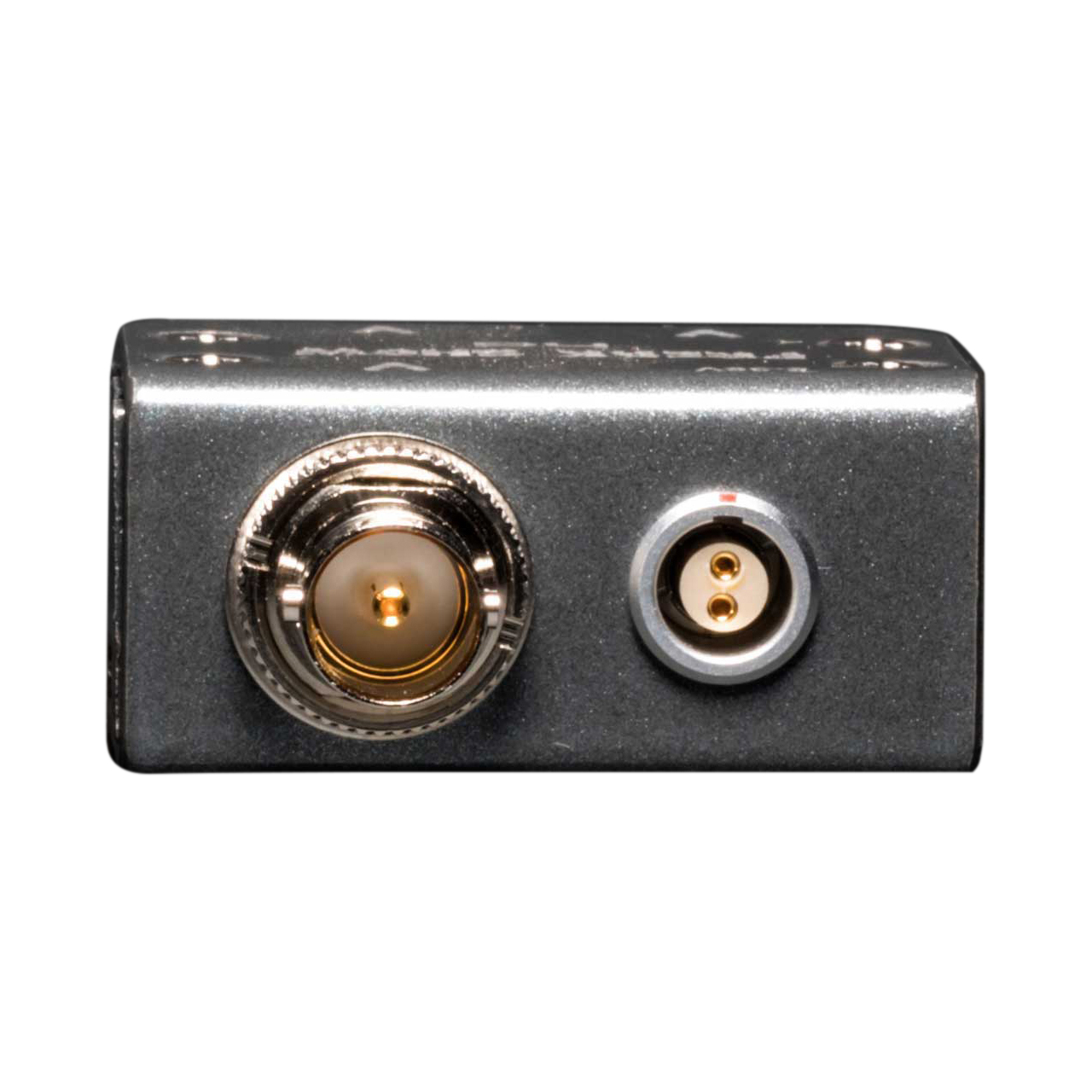

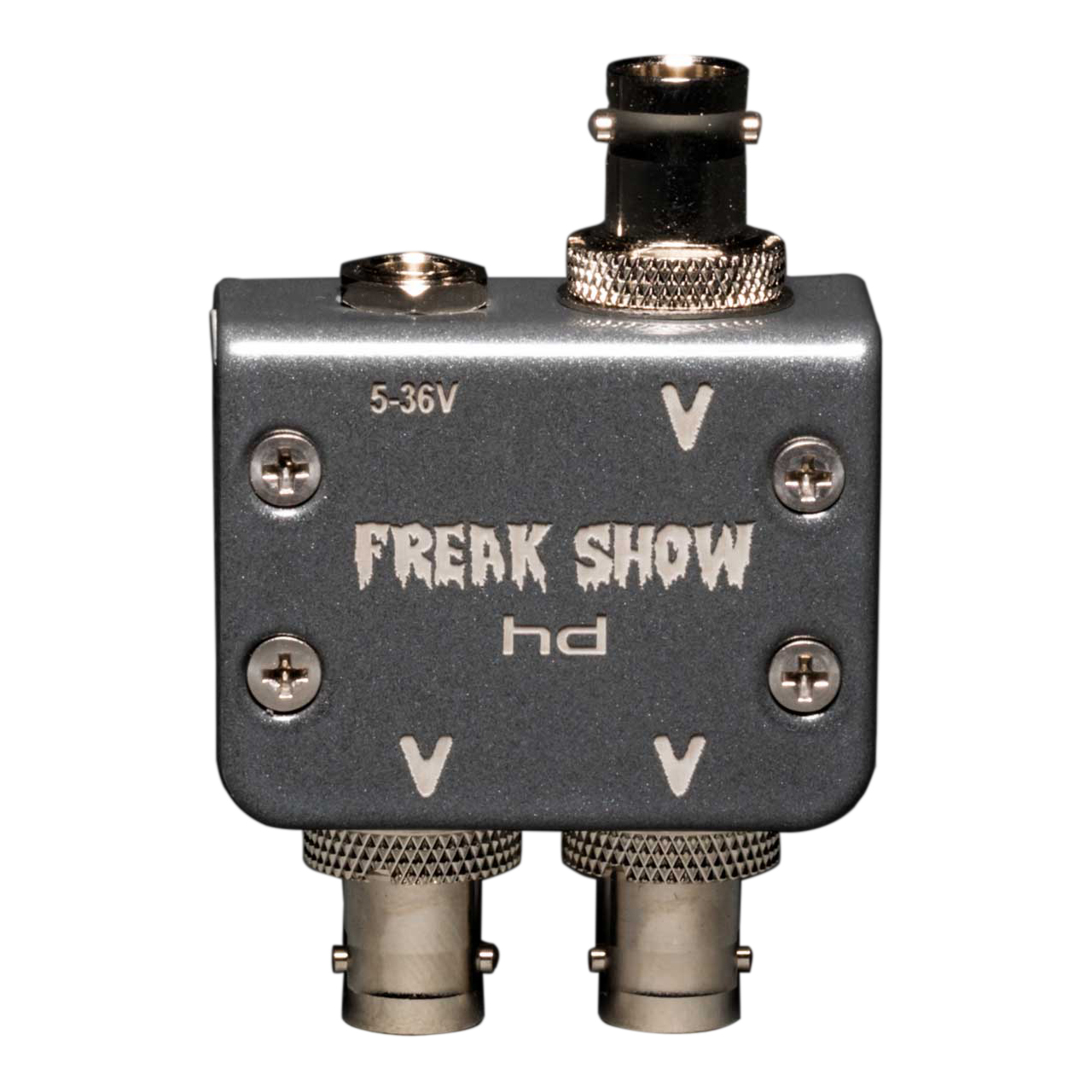

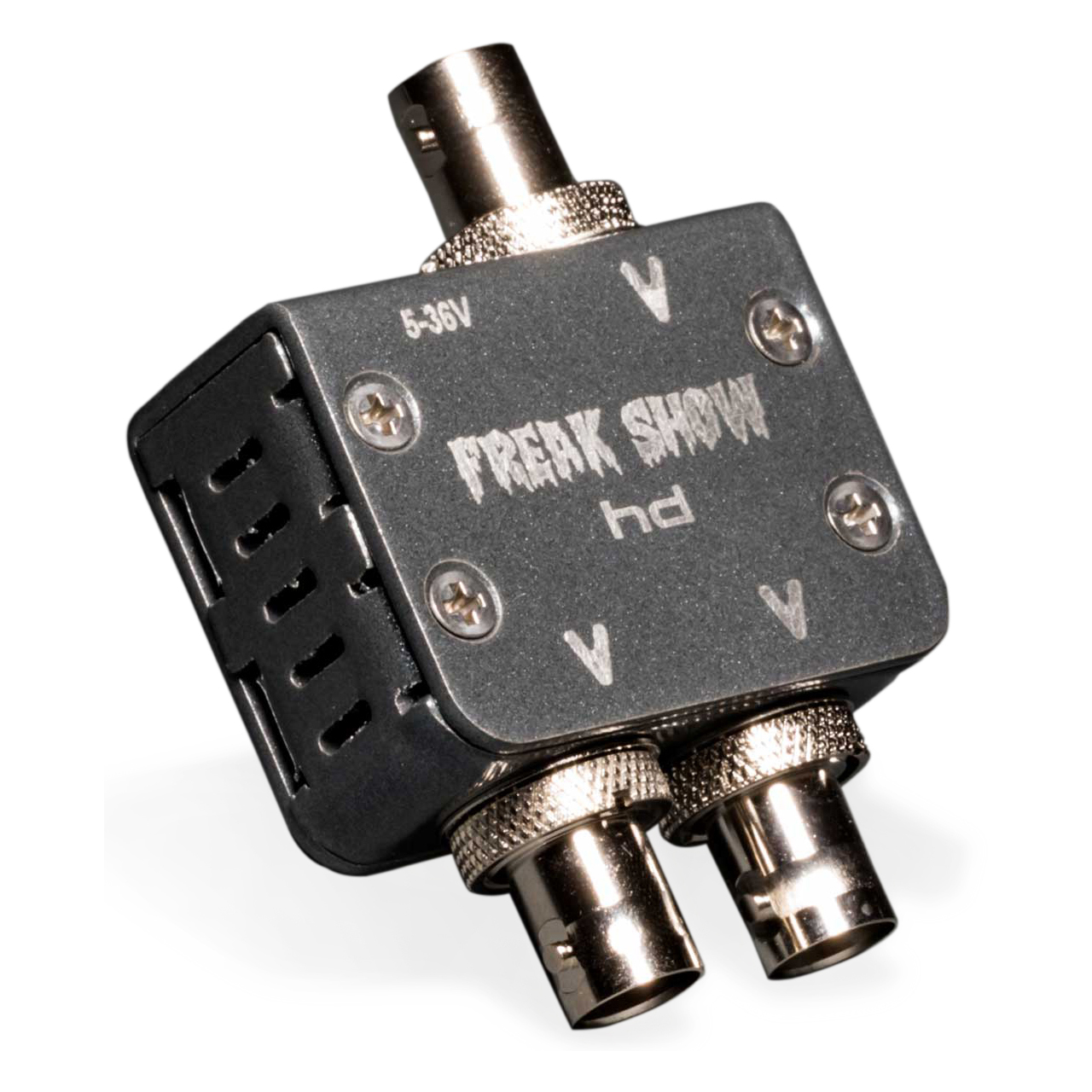

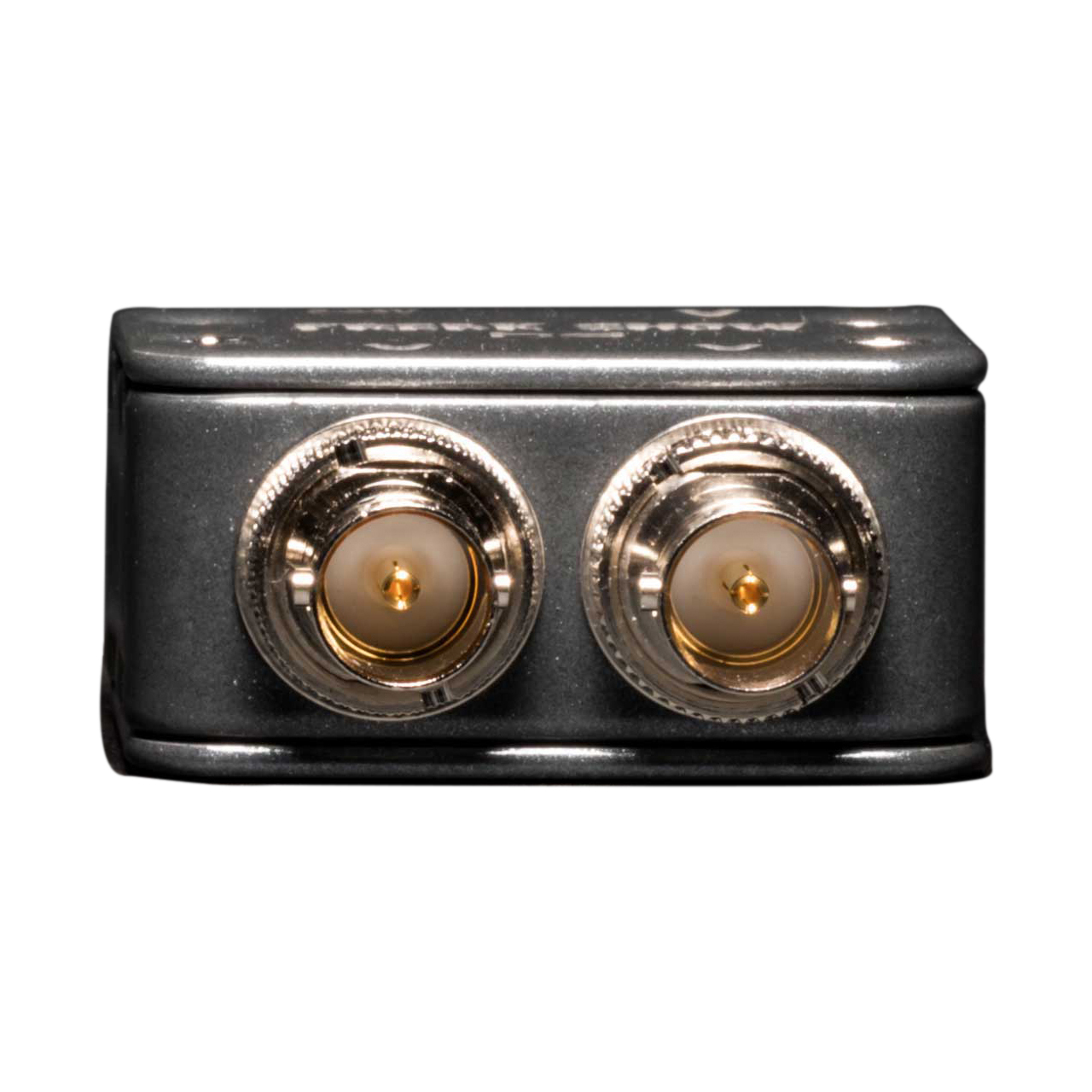

Freakshow HD MSX2-L 1x2 Microsplit Reclocking DA 12G/3G SDI Splitter - LEMO Power Connector

ITEM #: FREAKS-MSX2-L MFG #: MSX2-L

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$419.00

Our Price:

$378.03

Availability: In Stock
iAvailability Description Popup


MSX2-L - Overview

Freakshow, the company with the biggest ideas in 4k/12G distribution, introduces the smallest product yet. Meet the Freakshow HD Micro Split MSX2-L, the worlds most compact 4k/12G Reclocking DA. The Microsplit is available in O-series with a standard locking connector or in L-series with a locking Lemo connector. The latest in reclocking and cable EQ technology extends cable runs up to 700 feet! The Micro Split's 12G/HD/SD-SDI flexibility is future proof, and exceeds previous generations' performance.

Freakshow products are proudly made in the USA and now come with a One Year Manufacturer's Warranty.

  • Features:

    • 4K 12G-SDI, Ultra 4K 6G-SDI, 3G-SDI, 1.5G-SDI, 270Mb-SDI. Meets and exceeds SMPTE-424, SMPTE-292, SMPTE-259

  • Specifications:

    • Formats: 4K 12G-SDI, Ultra 4K 6G-SDI, 3G-SDI, 1.5G-SDI, 270Mb-SDI. Meets and exceeds SMPTE-424, SMPTE-292, SMPTE-259
    • Inputs: 1x12G/ 6G/ 3G/ 1.5G/ 270Mb - Auto-selectable SDI, 1xBNC
    • Outputs: 2x12G/ 6G/ 3G/ 1.5G/ 270Mb, equalization and re-clocking

      Cable Re-clocking and Equalization (all with Belden 1694A - divide by half for Belden 1505):
    • 75 meters (246ft) at 12G
    • 100 meters (328ft) at 6G
    • 220 meters (722ft) at 3G
    • 265 meters (870ft) at HD
    • 530 meters (1740ft) at SD

    • Input return loss: -8dB at 12G, -9dB at 6G, -13dB at 3G, -18dB HD/SD
    • Output return loss: Return loss -6dB at 12G, -8.5dB at 6G, -15dB at 3G, -23dB at HD/SD 5-36v operation

  • Item Includes:

    • 1x Freakshow HD MSX2-L 4K 12G-SDI - 1x2 Microsplit Reclocking DA
    • 1x Power Supply with Locking LEMO Connector
