Gepco GA61806GFC 6-Pair 22 AWG Mic/Line Level Analog Snake Cable - 1000 Foot

ITEM #: GA61806GFC-1000 MFG #: GA61806GFC-1000

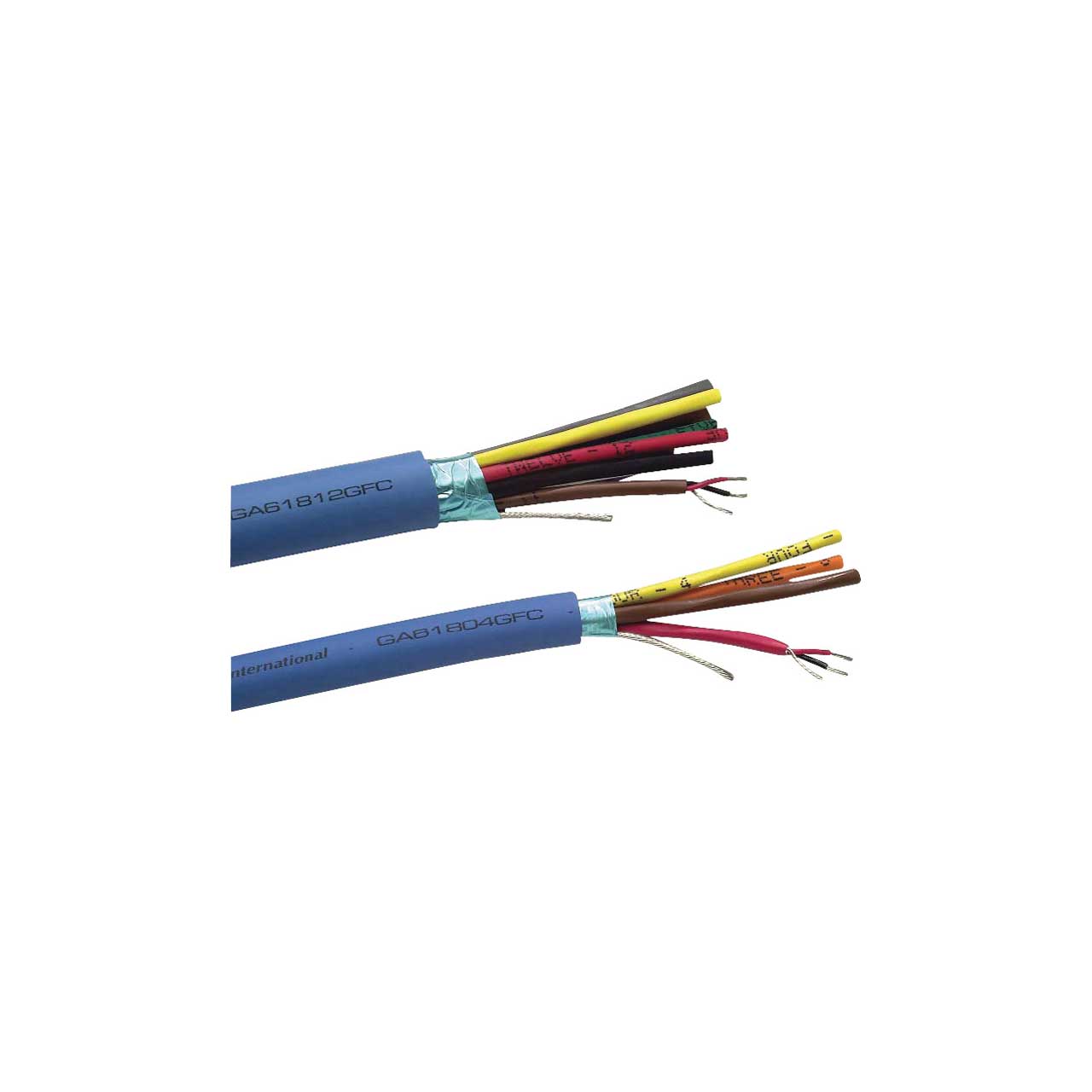

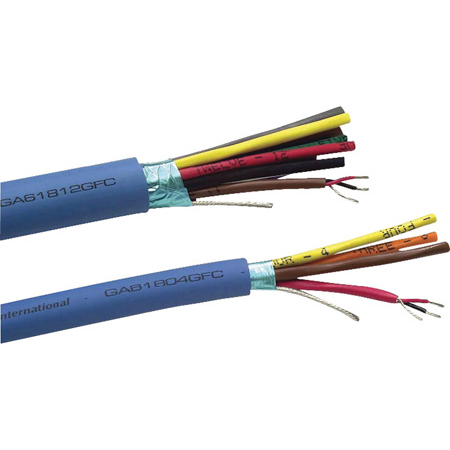

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$4,523.90

Our Price:

$2,978.15

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipped truck freight.


GA61806GFC-1000 - Overview

The original Gepco Brand multi-pair cable, the GA618 series multi-pair, was designed for low noise and attenuation and is durable, easy to terminate and UL listed. A high-grade polyethylene dielectric minimizes high-frequency attenuation, while excellent process control and tight pair twisting achieve superior noise rejection. Color coded and alphanumerically printed pairs facilitate easy channel identification, and the riser rated Gepco Brand GEP-FLEX master jacket is both flexible and easy to pull through conduit. The 22-gauge conductors offer the lowest DCR available in any of the Gepco Brand multi-pair products, making the GA618 series ideal for extended distance runs of mic level signals.

  • Features:

    • Low Attenuation & Crosstalk
    • Flexible
    • Easy to Terminate
    • Microphone or Line Level Balanced Analog Audio
    • Studio Interconnect, Portable Snakes or Permanent Installation
    • Ideal for Extended-Distance Runs
    • Polyethylene Dielectric
    • Individually Shielded & Jacketed Pairs
    • Color Coded & Alphanumeric Pair Identification
    • Additional Overall Foil Shield
    • All-Weather GEP-FLEX Master Jacket
    • CMR Riser Rated

  • Specifications:

    • Nominal OD 0.475"
    • Conductors: 22 AWG (7x30) Stranded TC
    • Insulation/Color Code: PE, 0.010" Wall/Red & Black
    • Pair Shield:100% Foil
    • Pair Drain: 22 AWG (7x30) Stranded TC
    • Pair Jacket (Type, OD)/ Color Code: PVC, 0.140"/Black
    • Overall Shield: 100% Foil
    • Overall Common Drain: 16 AWG (19x29) Stranded TC
    • Master Jacket: Riser GEP-FLEX TPE, Blue
    • UL Type: CMR

  • GTIN:

    0612825389309
