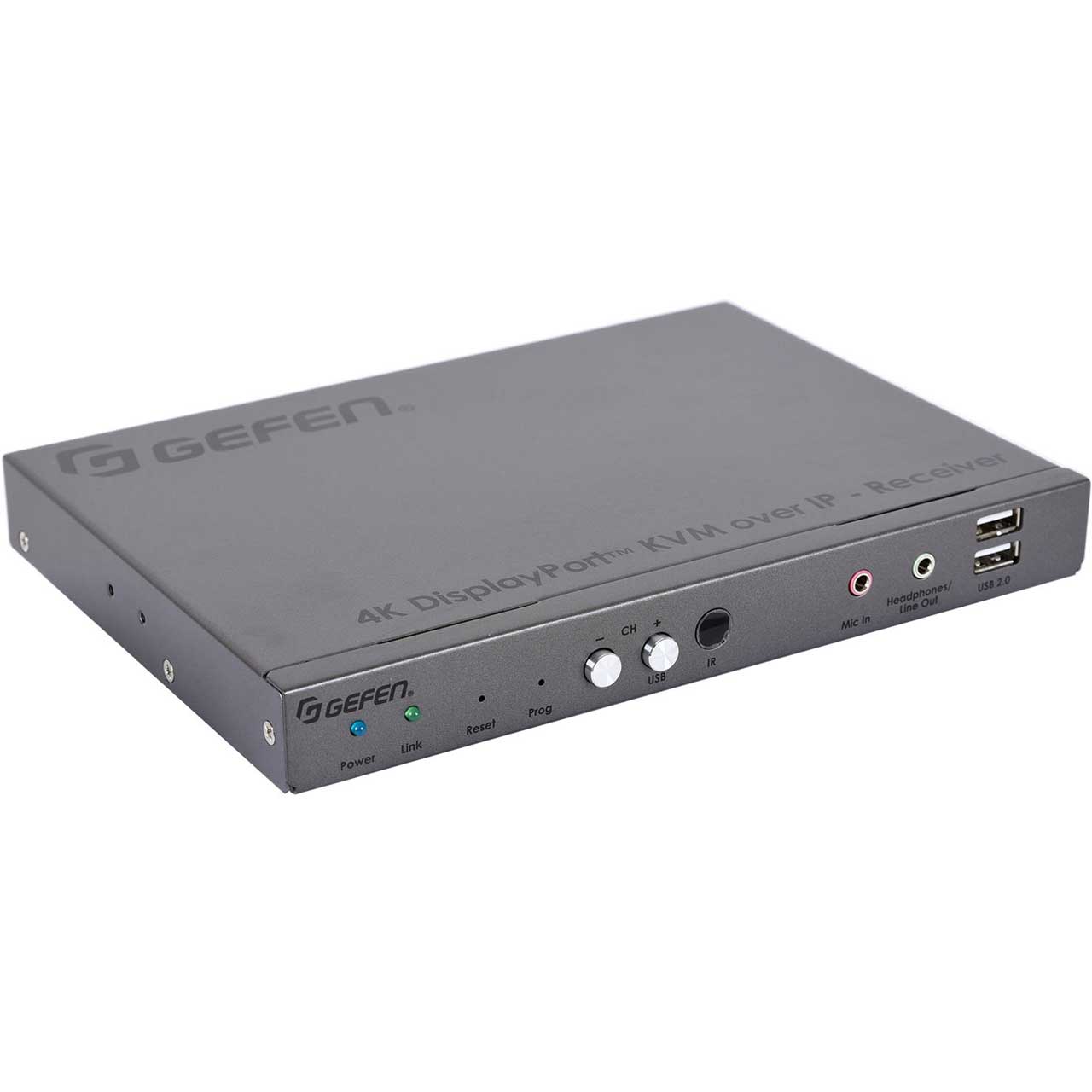

Gefen EXT-DPKA-LANS-RX 4K DisplayPort KVM over IP Extender - Receiver Package

ITEM #: GEF-EXTDPKALANRX MFG #: EXT-DPKA-LANS-RX

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Gefen Inc
Free Shipping with $49 Minimum Order

List Price:

$893.55

Our Price:

$737.10

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

EXT-DPKA-LANS-RX - Overview

Extend and Distribute DisplayPort™, USB, RS-232, IR, and 2-way audio over a Local Area Network. Gefen's AV over IP solutions continue their tradition of providing high performance, scalable, expandable, and secure AV routing and distribution over a standard Gigabit Local Area Network. The Gen 2.0 KVM products offer enhanced performance, features, and functionality such as 4K Ultra HD with HDR support, built-in scalers, video-wall control, independent USB, RS-232, IR, and audio routing**, and backward-compatibility with our first-generation products.

The EXT-DPKA-LANS-RX & TX feature maximum input resolution of 4K 60 Hz 4:2:0, and maximum output resolution of 4K 30 Hz 4:4:4. HDCP 2.2 and 1.4 are also supported. USB, RS-232 2-way IR, and audio can be routed independently** between any Sender and Receiver unit, allowing end-users to control any of the sources and the displays within their network. With this greatly expanded array of new cutting-edge features and performance, the new Gefen AV over IP products fully address the ever-growing needs of systems integrators.

  • Features:

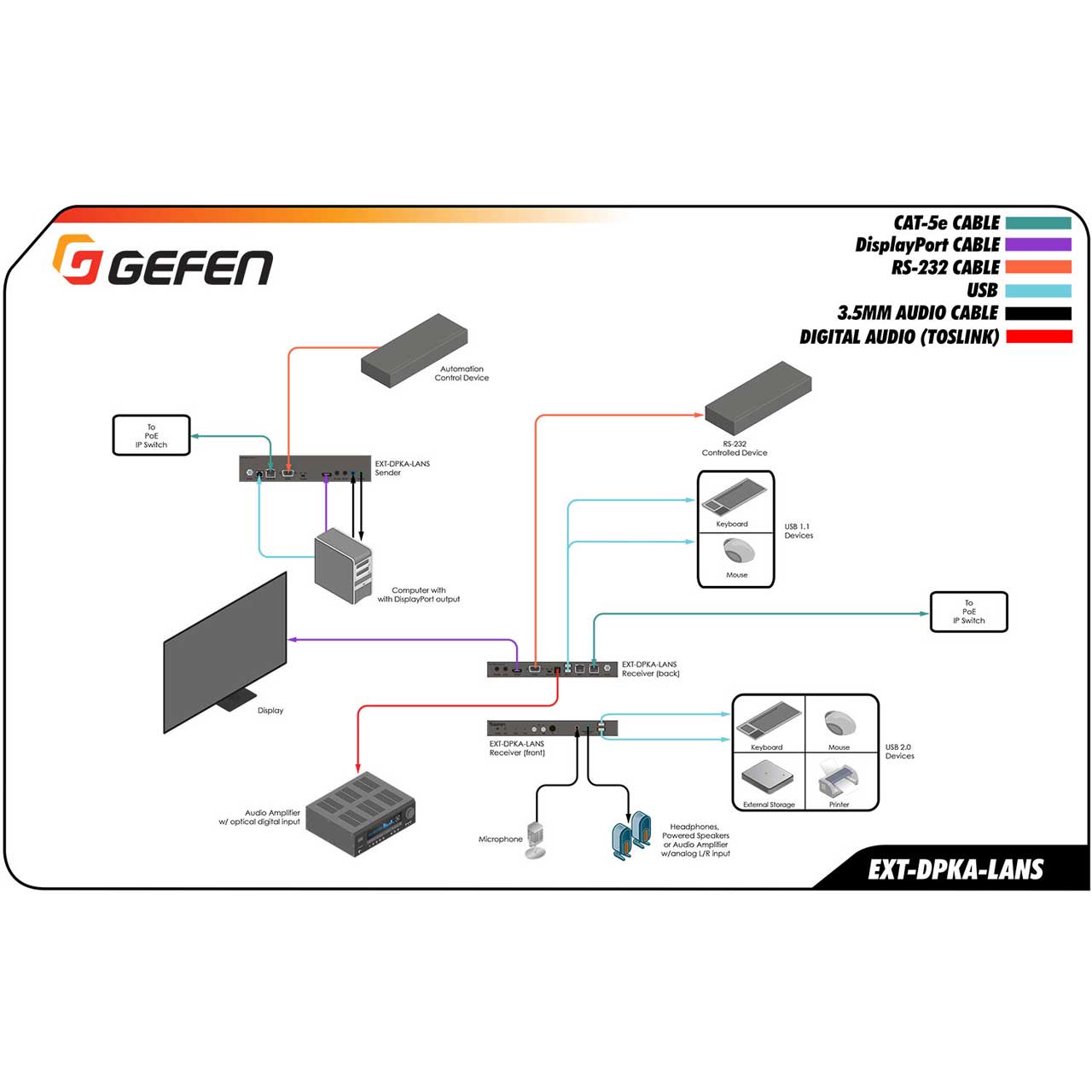

    • Extends DisplayPort™, USB, RS-232, 2-way analog audio, and IR, using a Gigabit Local Area Network
    • Independent video, USB, RS-232, IR, and audio routing (future firmware update)
    • Backward-compatible with first generation Gefen AV over IP products
    • Supports input resolutions up to 4K 60Hz 4:2:0
    • Supports output resolutions up to 4K 30Hz 4:4:4
    • Supports HDCP 2.2 and 1.4
    • KM Emulation feature facilitates real-time, simultaneous Keyboard and Mouse control of each source from all connected workstations
    • Integrated scaler ensures maximum compatibility and best possible viewing experience with different contents and displays
    • Built-in video wall controller accommodates any number of rows and columns up to 16x16
    • Built-in Audio De-Embedder on Receiver breaks out 2 channel analog, 2 channel PCM, and up to 5.1 channels of Bitstream audio from the HDMI signal, allowing the audio content to be sent to external amplifiers and music distribution systems for added impact
    • MFU (Mass-Firmware-Update), quick and automated configuration, and enhanced control capabilities and system security when used with the Gefen EXT-CU-LAN Matrix Controller
    • Enhanced API for added functionality with third-party control systems
    • Built-in web interface, Telnet, and UDP
    • Compatible with the Gefen Keyboard Switching Controller software, available for download at www.gefen.com
    • Supports 39,900 Senders and a combination of over 65,000 Sender and Receiver units, depending on the network bandwidth and number of ports on your network switch
    • Two USB 2.0 ports with data rates up to 480 Mbps and backward-compatibility with USB 1.1
    • Two USB 1.1 ports with KM Emulation, for use with Human Interface Devices (H.I.D.)
    • 802.3af standard Power-over-Ethernet allows the new Sender and Receiver units to be powered through a standard PoE-enabled IP network switch, without the need for external power supplies
    • Two-port Gigabit Ethernet switch built into the Receiver unit
    • Mode switch on Sender for sharpness or motion-optimization of image
    • Field-updatable firmware via EXT-CU-LAN controller or the built-in web server interface
    • Locking power supply connectors
    • Half-rack width Sender and Receiver enclosures are rack-mountable using EXT-RACK-1U-GRY
    • Sender and Receiver can also be surface-mounted using the included L-brackets
    • Low profile Receiver enclosure features an IR Extender port and can be hidden away behind the display


  • Specifications:

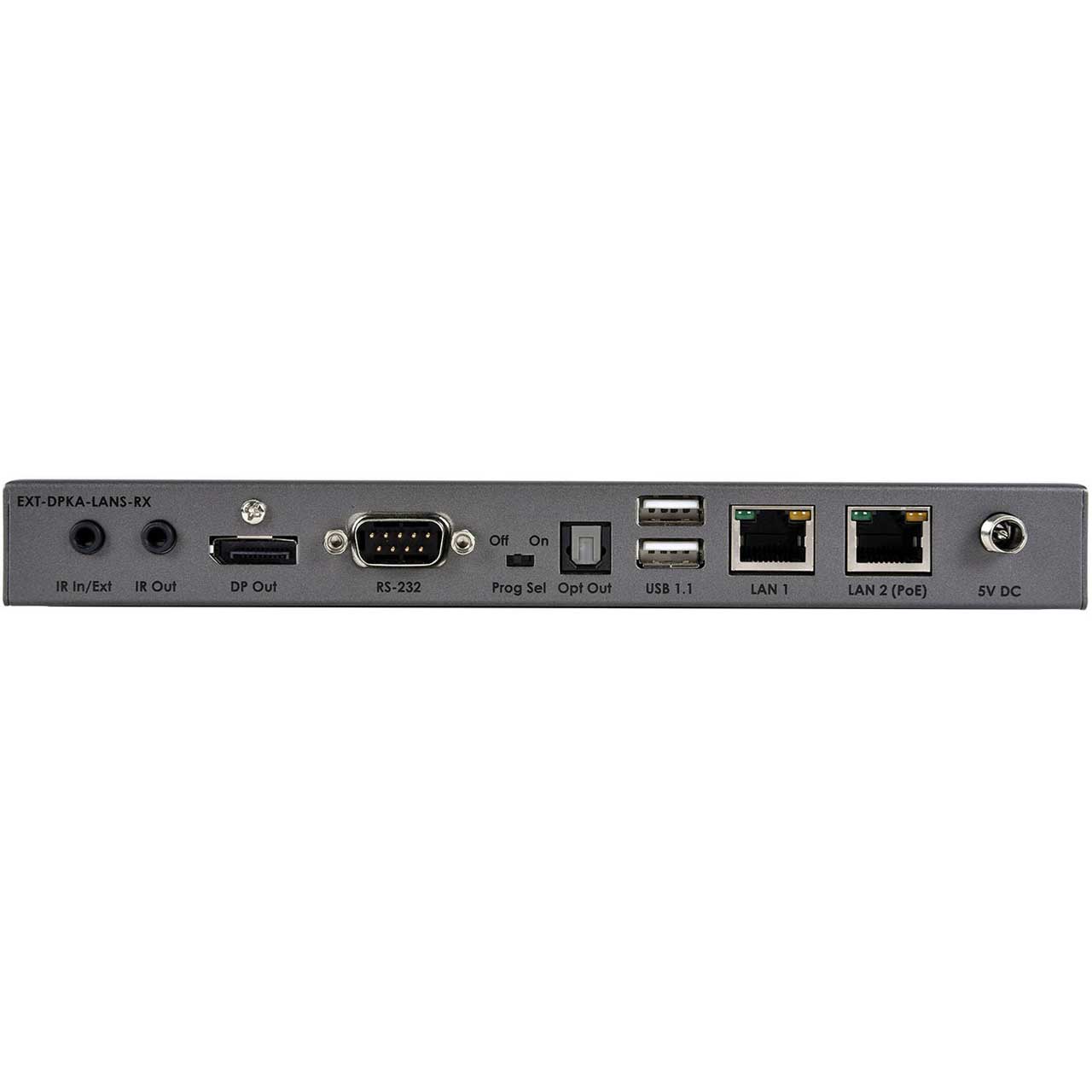

    • Video Input connector (Sender): (1) DP-20-pin, female
    • Video Output connector (Receiver): (1) DP-20-pin, female
    • Line Input (Sender): (1) 3.5mm mini-stereo jack
    • Line Output (Sender): (1) 3.5mm mini-stereo jack
    • Mic Input (Receiver): (1) 3.5mm mini-stereo jack
    • Headphones/Line Output (Receiver): (1) 3.5mm mini-stereo jack
    • Optical Digital Audio Output (Receiver): (1) TOSLINK®
    • USB Host Interface port (Sender): (1) USB Type B, female
    • USB Device ports (Receiver): (2) USB 2.0 Type A, female; (2) USB 1.1 Type A, female
    • RS-232 port (Sender): (1) DB-9, female
    • RS-232 port (Receiver): (1) DB-9, male
    • IR Sensor (Receiver): (1) Located on front panel
    • IR In/Ext (Sender/Receiver): (1) 3.5mm mini-stereo jack
    • IR Out (Sender/Receiver): (1) 3.5mm mini-mono jack
    • IR Extender type: EXT-RMT-EXTIRN
    • Ethernet port (Sender): (1) RJ-45, shielded, PoE
    • Ethernet ports (Receiver): (2) RJ-45, shielded, one with PoE

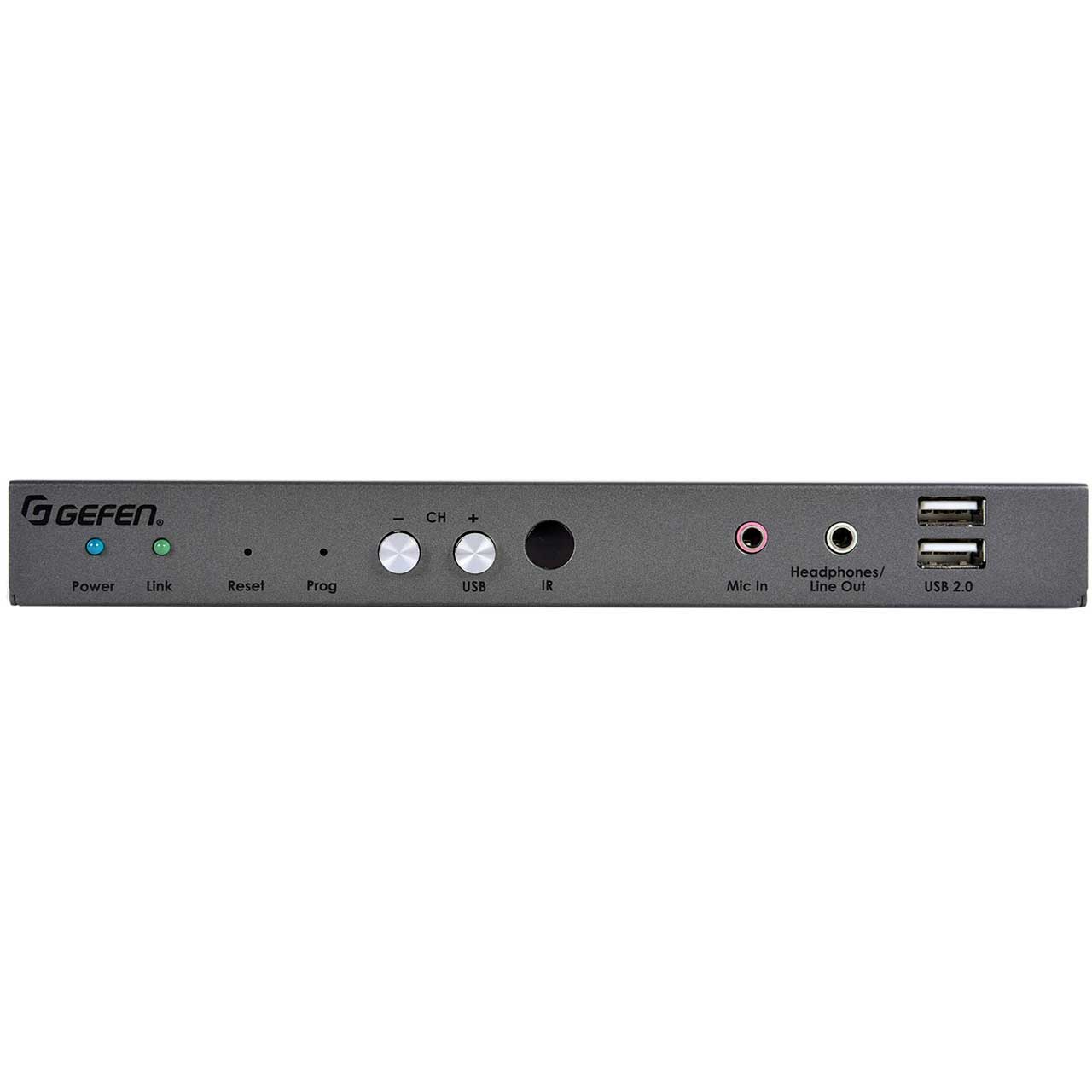

    • Channel Up/USB-Request button (Receiver): (1) tact-type
    • Channel Down button (Receiver): (1) tact-type
    • Mode button (Sender): (1) tact-type, recessed
    • Reset button (Sender/Receiver): (1) tact-type, recessed
    • Program button (Sender/Receiver): (1) tact-type, recessed


  • Item Includes:

    • 1 Receiver unit (EXT-DPKA-LANS-RX)
    • 1 5V 4A Power Supply (EXT-PS54AULPN-6)
    • 1 AC Power Cord (CAB-POWERCORD-xx)
    • 4 Self-Adhesive Rubber Feet
    • 2 L-Shaped Mounting Brackets
    • 4 Machine screws for L-Shaped Mounting Brackets
    • 1 Quick-Start Guide


  • Warranty:

    • 3 year


  • GTIN:

    0888814999815
