Galaxy Audio ASD-700B5 Digital 15-Channel UHF Plug & Play Wireless In-Ear Monitor System - 550 - 569MHz

ITEM #: GXY-ASD-700B5 MFG #: ASD-700B5

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$344.99

Our Price:

$229.99

Availability: Preorder
iAvailability Description Popup


ASD-700B5 - Overview

Introducing the Galaxy Audio ASD-700 Plug and Play Digital UHF Wireless In-Ear Monitor System - your ideal solution for a reliable, ultra-compact wireless IEM system designed to meet the needs of performers on the move. With 15 UHF channels, this affordable in-ear monitor system is small enough to fit in your pocket yet powerful enough to deliver a pristine personal mix that is easy for a band on the move to set up and perform at their best.

Because, as a musician, protecting your hearing from loud stage volumes is essential to your musical future and life in general. The Galaxy Audio ASD-700 helps you reduce stage volume, protect your hearing, and hear your music more clearly, reducing vocal fatigue and ensuring a cleaner, more accurate mix. Made for any stage performer, whether you're a singer, vocalist, guitarist, or drummer, this system is tailored to help you easily hear your own personal mix on stage.

The ASD-700 wireless in-ear monitor system is designed for live sound gigs, allowing you to freely move around the stage without the hassle of wires or the bulkiness of heavy monitors. Space matters, and the ASD-700 gives you more of it by reducing the equipment you need to set up at each gig. Plus, it's easy to use, making it an excellent choice for both seasoned professionals and beginners alike.

The Galaxy Audio ASD-700 is more than just a compact digital UHF wireless in-ear monitor system - it's an investment in your musical success going forward and backed by a Galaxy Audio 3-Year Warranty for added peace of mind.

  • Features:

    • Easy Plug & Play Ultra Compact IEM System
    • Over 150 feet of operating range
    • 15 Channel UHF Wireless
    • Crystal-clear audio with 24-bit/48kHz resolution for professional sound quality
    • Works with Ear Buds or Headphones. High-Definition Ear Buds Included.
    • Up to 8-Hour Battery Life
    • Affordable and Durable

  • Specifications:

    • ASD-700 System
    • Band: UHF, 15 Channels
    • Frequency Range: CODE B5 550 - 569MHz
    • Sample Rate: 24bit/48kHz
    • Operating Range: Under Typical Conditions 150' (45m)
      Note: Actual range depends on RF signal absorption, reflection, interference, and battery characteristics
    • Audio Frequency Response: +/-3dB 20Hz - 20kHz
    • Dynamic range: 101dB
    • S/N: 98.d dB
    • Operating Temperature Range: 14°F - 122°F (-10° C - 50° C)
      Note: Battery characteristics may limit this range

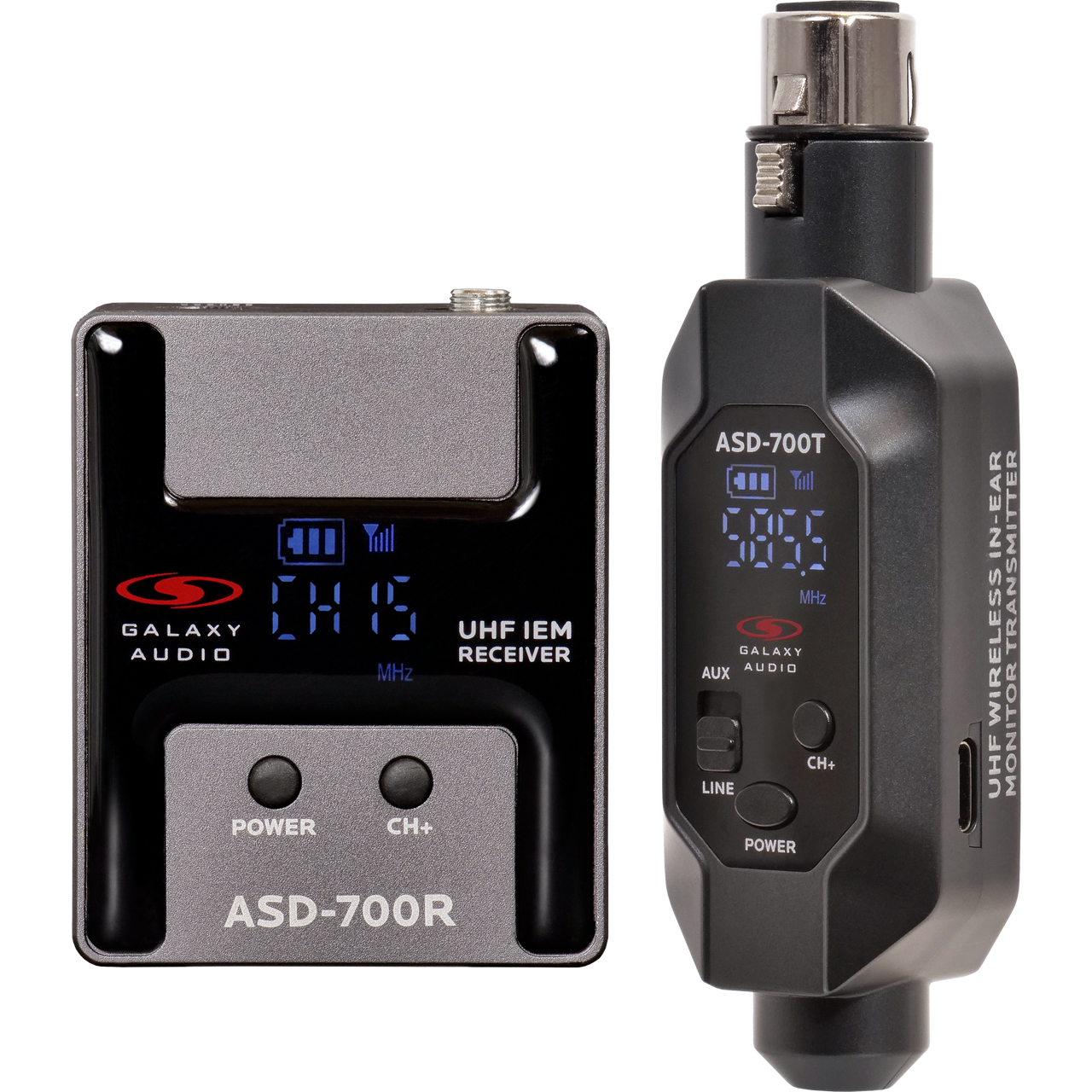

      ASD-700T Transmitter
    • Transmitter Output Level: 10mW
    • Max Audio Input Level: Aux +10dBu, Line +19dBu
    • Controls: Power, channel select, input sensitivity
    • Display: Channel, frequency, battery level
    • XLR Input: Impedance balanced
      - Pin: 1 Ground (cable shield)
      - Pin: 2 Audio +
      - Pin: 3 No Audio -
    • Dimensions (HxWxD): 4.18" x 1.4" x 1" (106mm x 35mm x 25mm)
    • Weight: 2oz (55g)
    • Power Supplied By: 3.7V 800mA Lith-Ion internal battery
    • Battery Life: Up to 8 hours

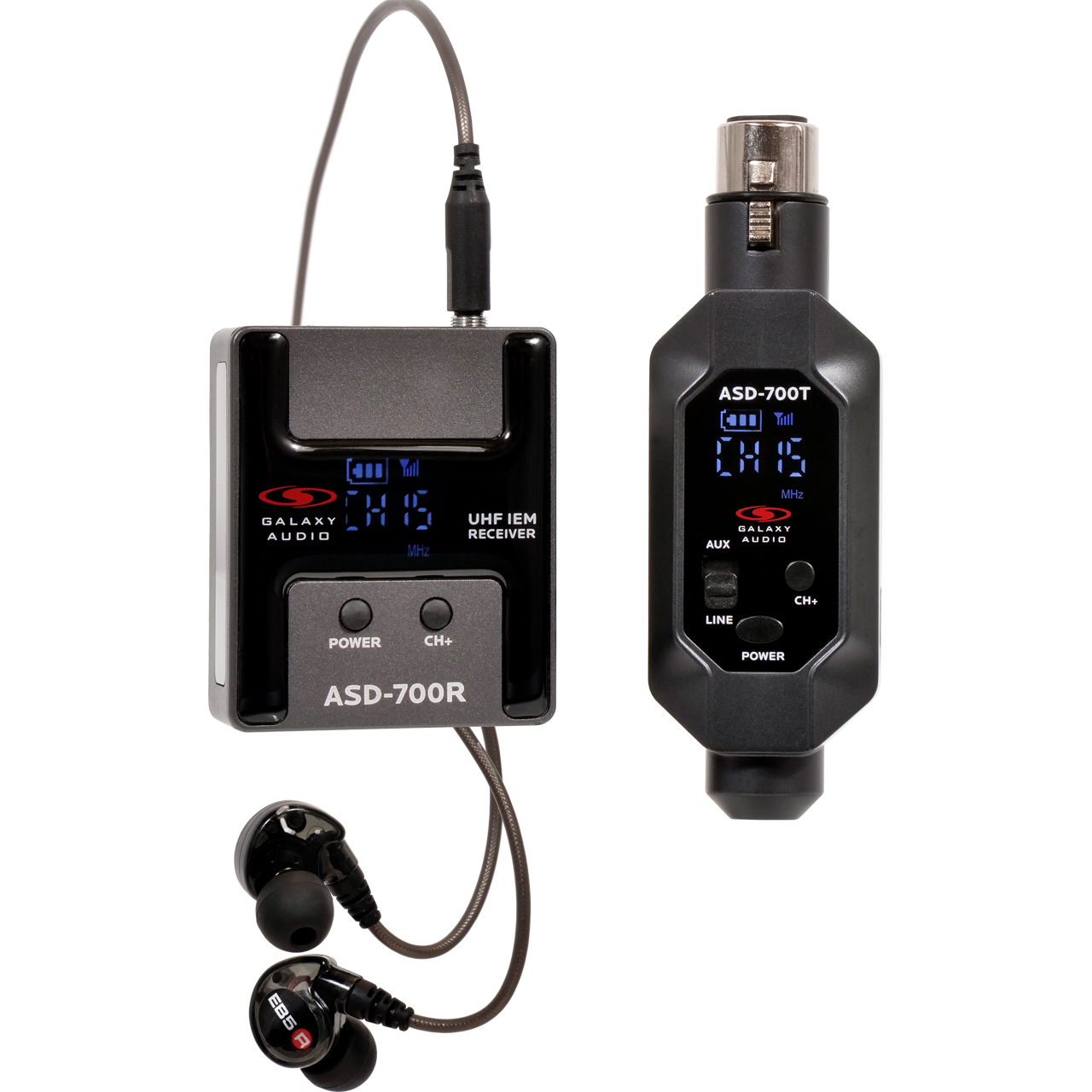

      ASD-700R Body Pack Receiver
    • Audio Output Level: 2x 50mW
    • Output Connector: 3.5mm Stereo Earphone Connector
    • Controls: Power, Volume, Channel Up/Down
    • Display: Channel, frequency, RF level, battery level
    • Dimensions (HxWxD): 2.36" x 1.93" x 1.47" (60mm x 49mm x 37.33mm)
    • Weight: 3.6oz (105g)
    • Power Supplied By: 3.7V 1000mA Lith-Ion internal battery
    • Battery Life: Up to 8 hours

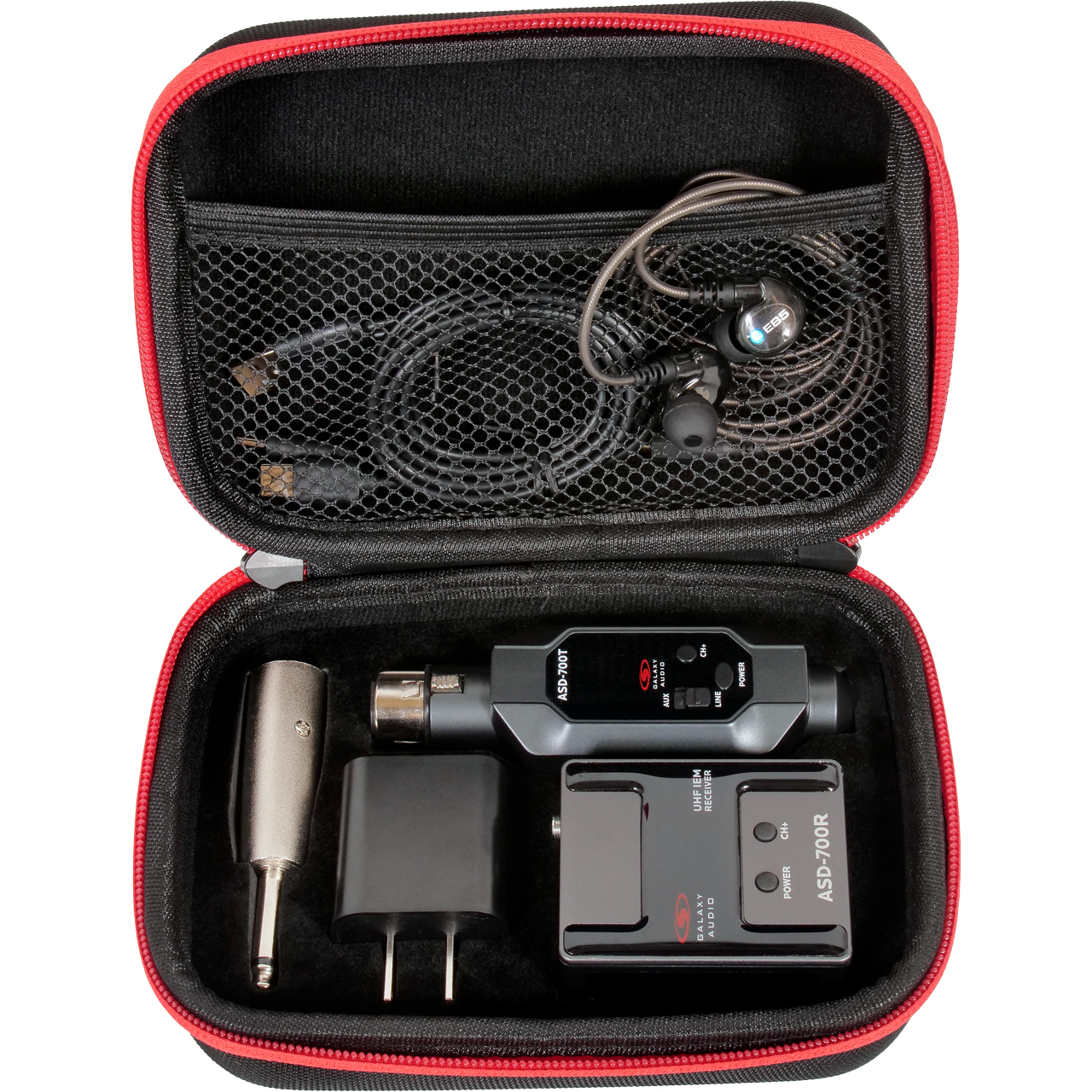

  • Item Includes:

    • 1x ASD-700T Transmitter
    • 1x ASD-700R Body Pack Receiver
    • 1x EB5 Earbuds
    • 1x Earbud Pouch
    • 1x XLRM to 1/4" Adapter
    • 1x Dual USB-C Charging Cable and Charger

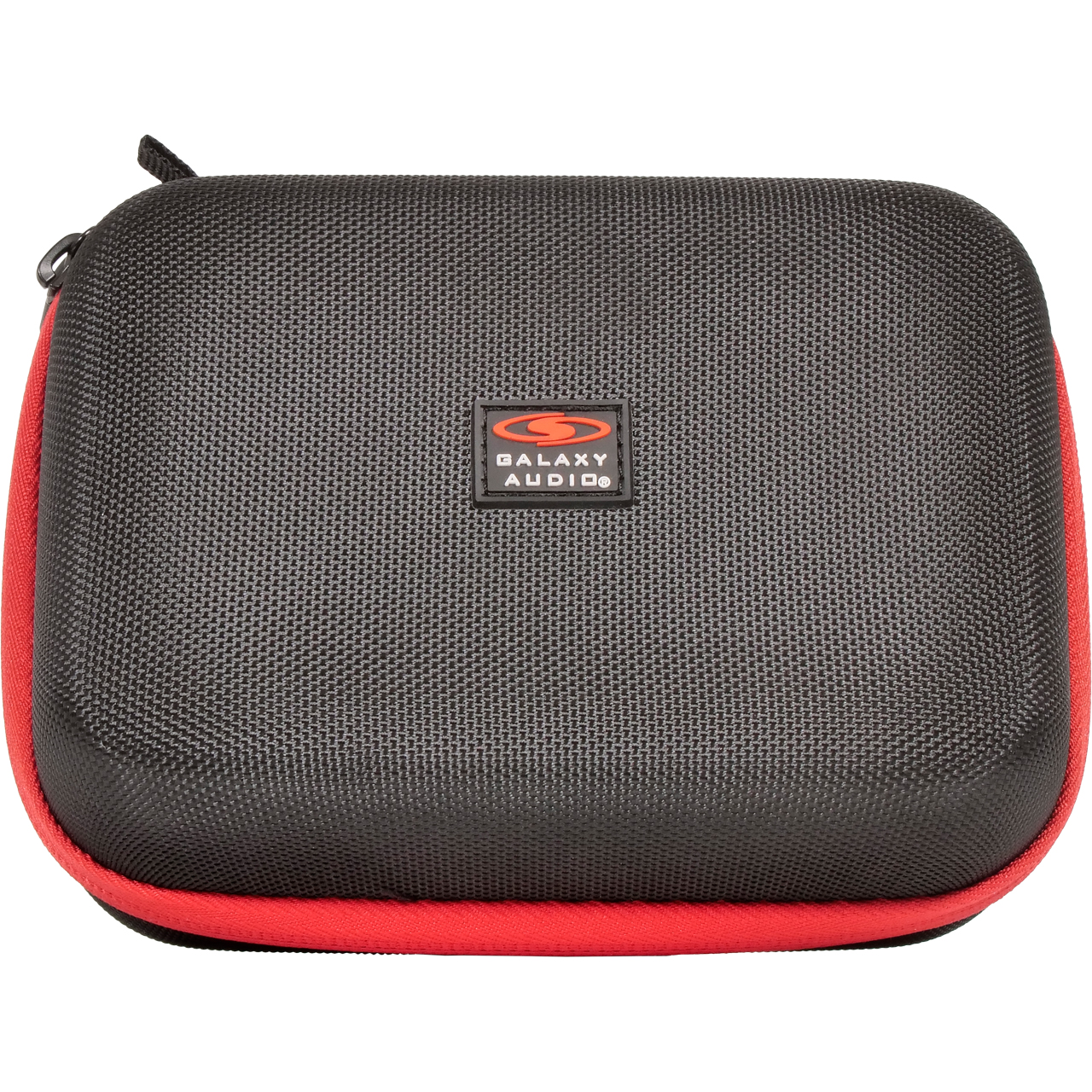

    • 1x Soft Shell Hard Case

  • Warranty:

    • 3 Year Warranty

  • GTIN:

    0691281017339
