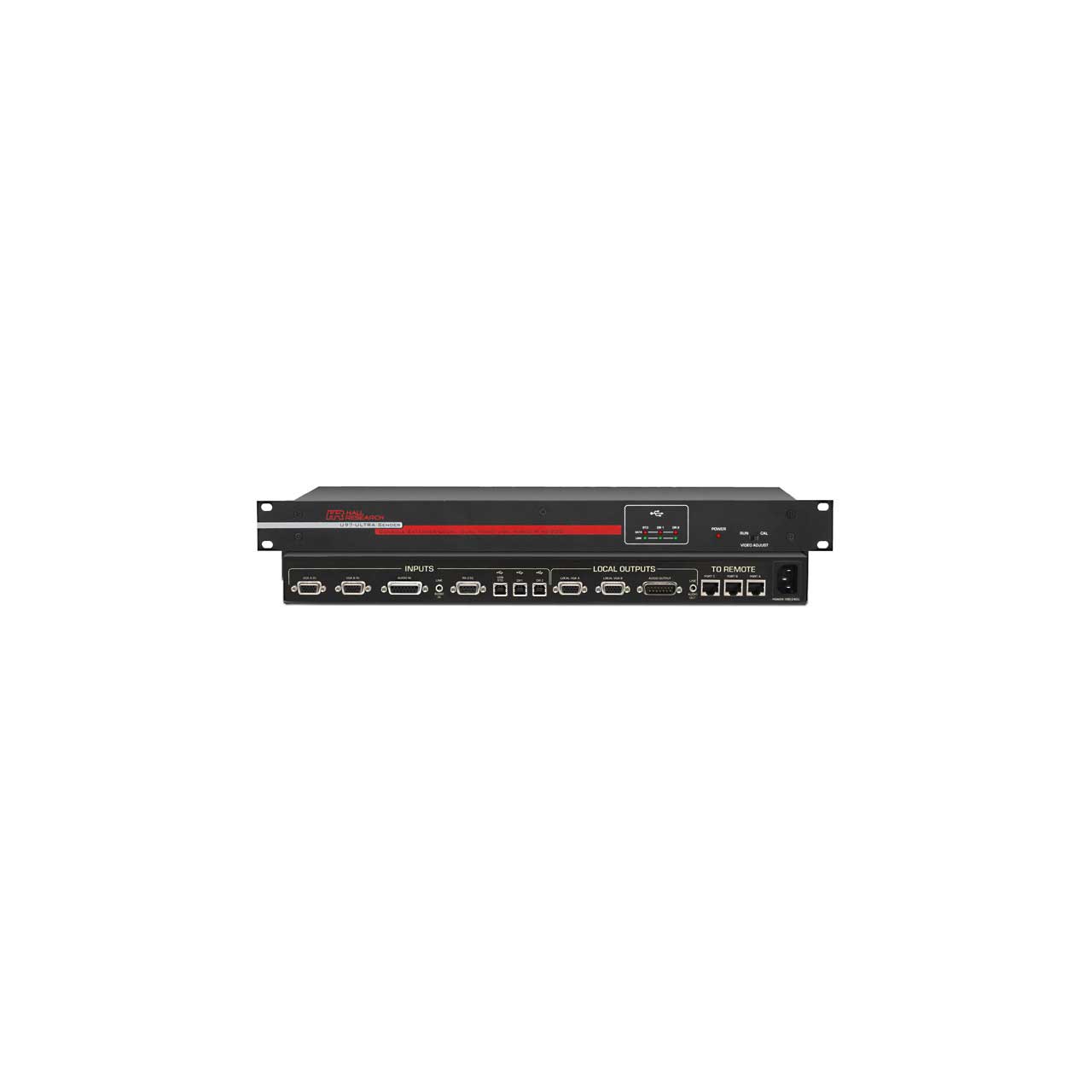

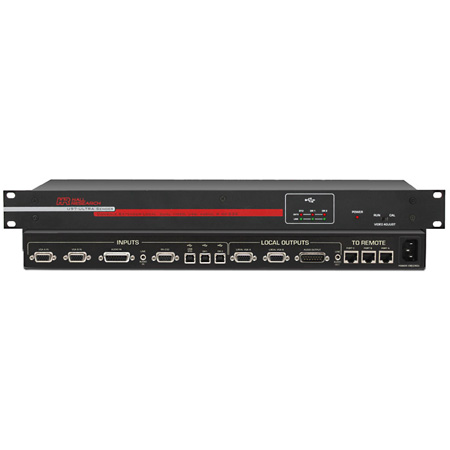

Hall Technologies U97-ULTRA-2B-S All-In-One Console Extender - Sender

U97-ULTRA-2B-S - Overview

• Features:

  • Combines the functions of U97-H2, UU2X4, two SKU-RGB, DVC-3 video test pattern generator and more
  • Eliminates the need for Utility Box (Receiver includes a guard plate that goes over all the connectors with zip-tie provisions)
  • Does not require external power supply (built-in supply with standard 110~240 VAC IEC320 jack)
  • Includes 2 “Direct" USB ports (DR1 & DR2), and a Standard with Hub at receiver.
  • DB15 connector for Amplified audio input and loop output at the sender as well as DB15 output at the receiver to directly drive passive speakers
  • Built-in video Skew Correction on both video channels. This corrects the lacks of RGB convergence when long Cat6 cables are used. Eliminates the need to use special low-skew UTP cables for long runs.
  • Built-in Test pattern generator for long cable compensation (High Frequency Gain) and Skew correction.
  • Supports DDC channel with EDID (Extended display ID)


• Specifications:

  • Video Inputs: PC outputs (VGA to WQHD)
  • Resolutions: PC resolutions up to 2560x1440 @ 60 Hz
  • Video Levels: 0 to 0.7v p-p
  • Dimensions:
  • - Sender (H x W x D) - 1.5 x 19 x 5.06
  • - Receiver (H x W x D) - 1.75 x 14 x 4.06
  • Weight:
  • - Sender - 4 Lbs
  • - Receiver - 3 Lbs
  • USB Support:
  • - High Speed devices (12Mb/s)
  • - Low Speed devices (1.5Mb/s)
  • - High Speed devices on DR1 and DR2 only (480Mb/s)
  • UTP Cable: Up to 330 feet using any Cat5e or 500 ft using Cat6
  • Temperature: Operating: 32 to 122 DegF (0 to 50 DegC); Storage: -40 to +185 DegF (-40 to +85 DegC)
  • Enclosure: Steel
  • MTBF: 90,000 hours (calculated estimate)
  • Power: 100VAC to 240VAC 50/60Hz
