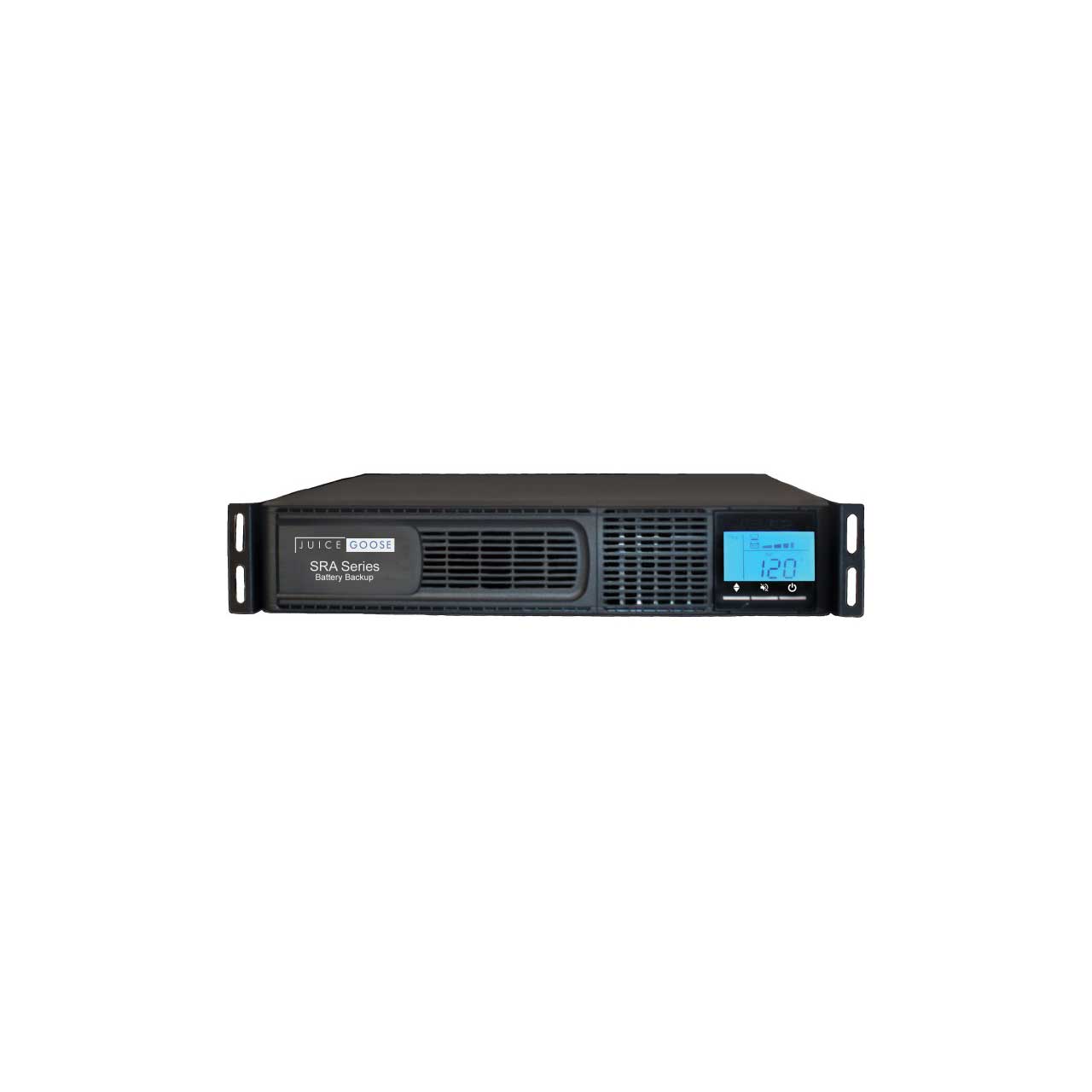

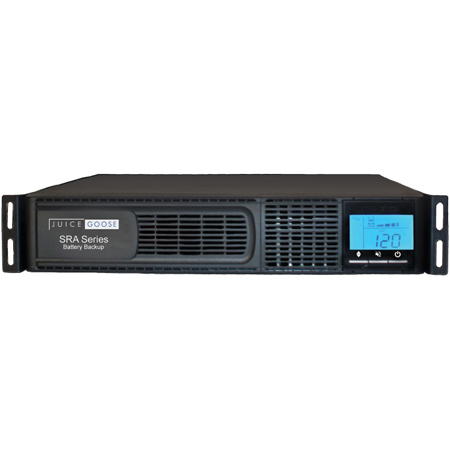

Juice Goose SRA 10000 Line Interactive/Voltage Regulating Rackmount Battery Backup UPS - 1000 VA/700 Watt

SRA-10000 - Overview

• Features:

  • Voltage Regulation - provides support during low voltage sags. When utility power ranges between 90 and 150 VAC, voltage output stabilizes between 103 and 136 VAC.
  • Emergency Power Off (EPO) - immediately remove power from UPS outlets in case of an emergency.
  • Hot Swappable Battery Design - ensures uninterrupted performance during battery replacement.
  • Rack, Tower or Wall Installation - installation options for a variety of power continuity applications.
  • Easy to View LCD Panel - displays UPS and electric power status. Rotating design can orient the front panel display to suit rack, tower or wall installation.
  • Maintenance Free Batteries - last 3 - 5 years under normal operations and conditions. Replacement batteries are available.


• Specifications:

  • Rating VA: 1,000
  • Capacity Watts: 700

    Input
  • Rated Operating Voltage (VAC) 120 = Nominal, 90 to 150 = Min and Max Range
  • Low Voltage Transfer To Battery 89 VAC
  • Return To Utility Power 94 VAC
  • High Voltage Transfer To Battery 151 VAC
  • Return To Utility Power 146 VAC
  • Power Cord 10 Foot, NEMA 5-15P (NEMA 5-20P for SRA 20000)

    Output
  • Output Voltage - Line Interactive Mode 103 - 136 VAC
  • Output Voltage - Battery Mode 120 VAC +/- 5%
  • Frequency Range 60 Hz +/- 0.8%
  • Overload Capacity 110% 20 - 60 Seconds, 150% Immediate Shutdown
  • Harmonic Distortion (THDU) 30.3 % to 37.2 % = Total, 14.5 % to 18.7 % = Single
  • Transfer Time AC to DC 6 - 10 ms (Typical)
  • Topology (Design) Line Interactive - Simulated Sine Wave

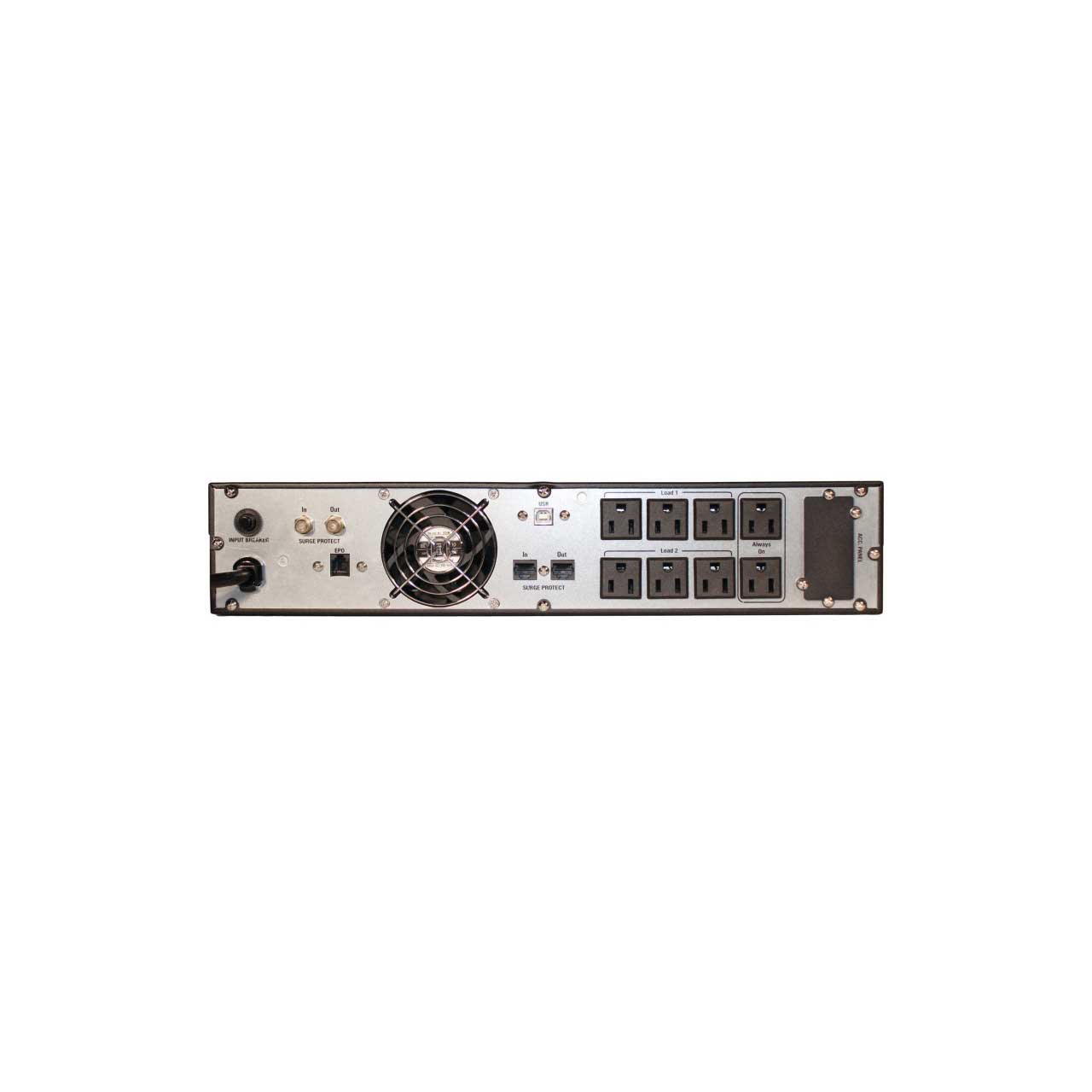

  • Receptacles 8 x NEMA 5-15R
  • Load Shedding (Outlet Control)
  • Requires third-party software 2 Banks of 3 Outlets and 2 Unswitched. SRA 20000 has 1 Unswitched L5-20R

    Battery
  • Battery Type Sealed, Non-Spillable, Valve Regulated, Maintenance Free, Lead Acid
  • Run Time (Full Load / Half Load) 4 Minutes / 14 Minutes
  • Typical Recharge Time 8 Hours to 90% from Full Discharge
  • Typical Service Life 3 to 5 Years With Proper Operation

    Surge Protection
  • Surge Energy Rating 960 Joules
  • Surge Capacity 6,500 Amps Total (One Time)
  • EMI/RFI Noise Filtration >45dB Normal and Common Mode

    Display, Control And Alarms
  • Status Indications Battery Capacity, Load Percentage, Input Power Source, External Power Line, Fault Indications
  • Control Select Buttons On/Off/Test, Alarm Silence, Display Control (Scroll)
  • Warning Indicators Low or Bad Battery, Current Overload, Site Wiring Fault, Over Temperature, UPS Failure

    Physical
  • Dimensions, Net (L x W x H): 20.1" x 18.9" x 3.4"
  • Weight Lbs (Net / Shipping): 48.7 / 56.4

    Environment
  • Operating Temperature 32 F to 104 F
  • Storage Temperature -13 F to 104 F
  • Humidity 20 to 90% RH (non-condensing)
  • Audible Noise Output @ 3 ft < 45 dBA


• Item Includes:

  • 1x Juice Goose SRA 10000 Line Interactive/Voltage Regulating Rackmount Battery Backup UPS - 1000 VA/700 Watt
