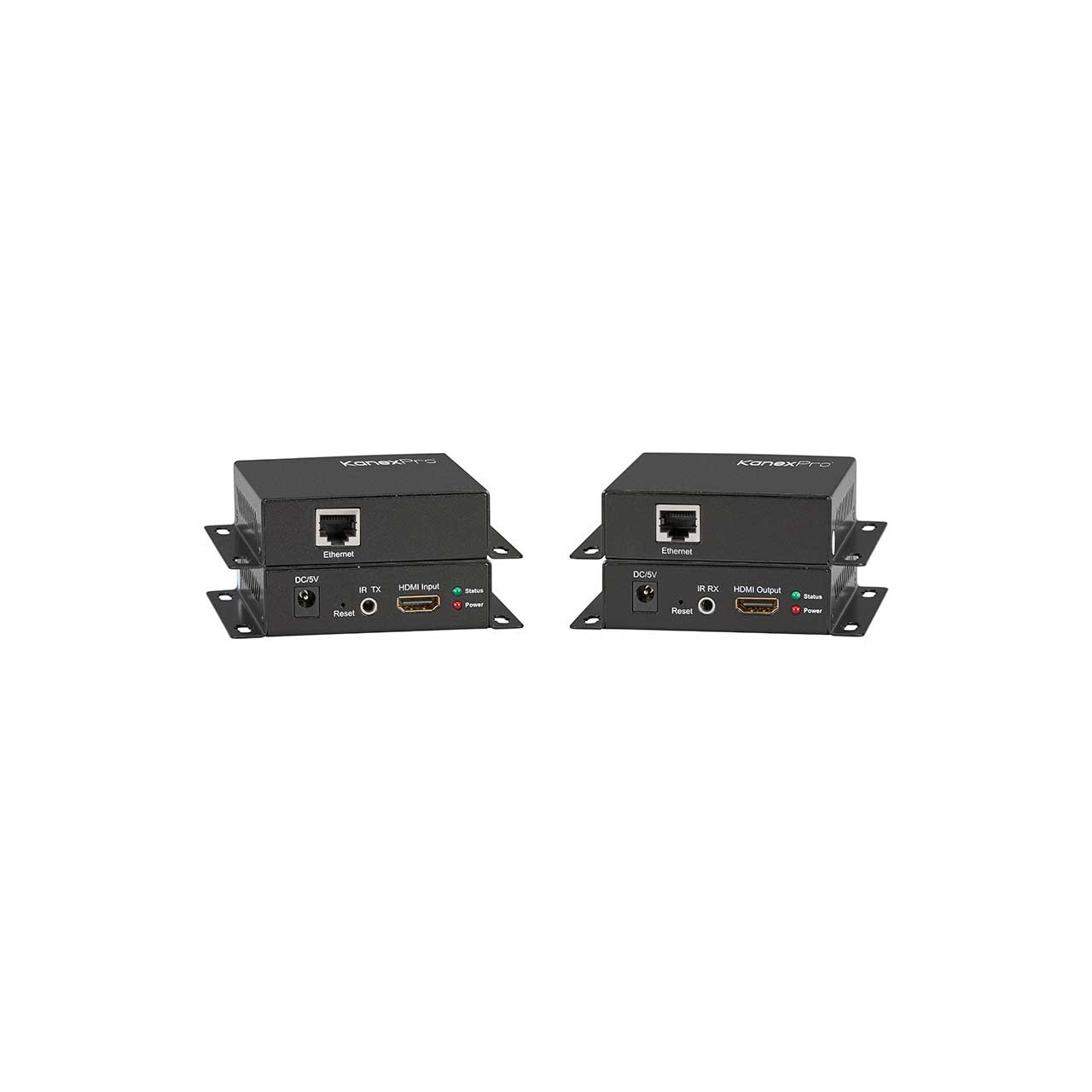

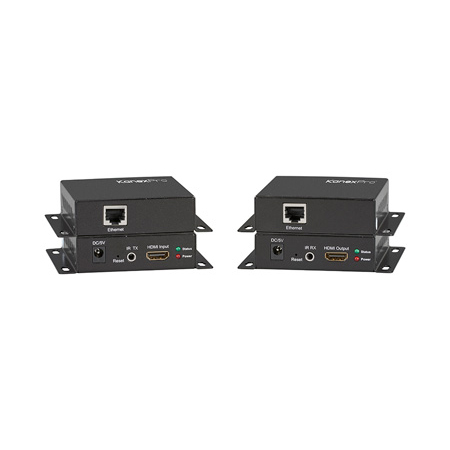

KanexPro EXT-AVIP120M HDMI Video Over IP Encoder - Decoder Kit up to 120m

EXT-AVIP120M - Overview

• Features:

  • Extends 1080p HDMI signals up to 120m over a single UTP CATx cable
  • Uses MJPEG compression technology

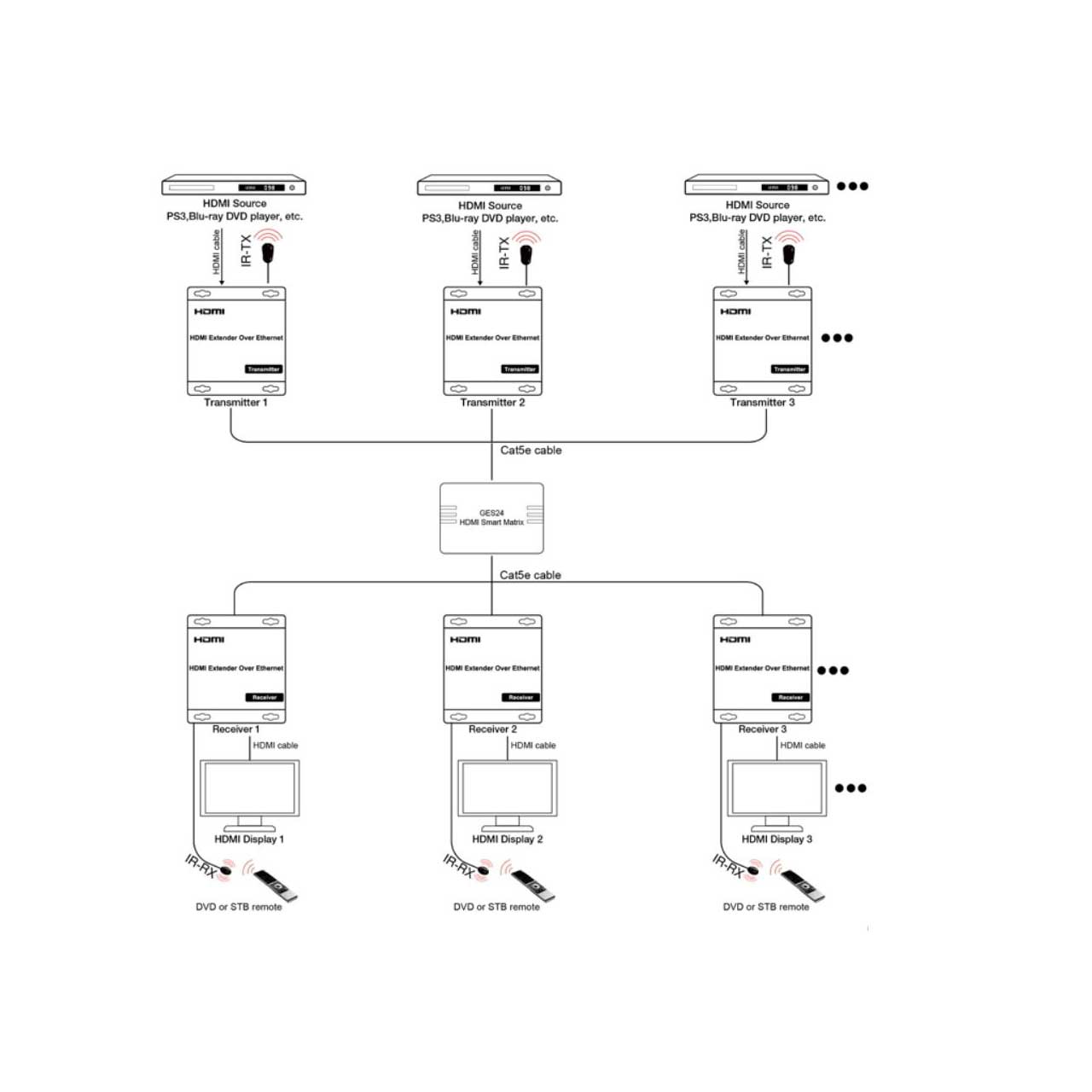

  • Supports Point-to-Point, Point-to-Many and Many-to-Many network configurations
  • Many to many requires set up of VLAN
  • Control via IR (Kit included)
  • Can be cascaded for many layers by adding 10G more Ethernet switches
  • Wiideband IR control (38-56kHz) to the source
  • HDCP compliant
  • Supports TCP/IP protocol
  • Metal enclosure built with mounting ears
  • 5 V DC power supplies included


• Specifications:

  • Operating Temperature Range: +23°F to +95°F
  • Operating Humidity Range: 5 to 90%RH (No Condensation)
  • Input Video Signal: 0.5-1.0 Volts P-P
  • Input DDC Signal: 5 volts p-p(TTL)
  • Support Video Format: DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P
  • Video Output: HDMI
  • Transmission Distance: 1080P 8-bit 120m(Maximum) over single CAT5E/6 /24AWG/Solid
  • Power consumption: TX:3watts; RX:3watts((Maximum)
  • IR Frequency: 38kHz-56kHz
  • Dimension (LxWxH): 103.5x93.5x24.6mm
  • Net Weight: Receiver:220g, Transmitter:220g


• Item Includes:

  • 1x - Main Unit Transmitter & Receiver
  • 1x - IR-TX Cable & IR-RX Cable
  • 1x - Power adapter (DC 5V @ 1A x2 PCS)
  • 1x - User manual


• GTIN:

  0813982021174
