KanexPro EXT-AVIPH264RX NetworkAV H.264 HDMI Receiver over IP with POE & RS-232

EXT-AVIPH264RX - Overview

• Features:

  • Decode & extend pure 1080p resolutions up to 394' / 120 meters
  • Features real-time AV coding and decoding to broadcast 1080p
  • H.264 Compression technology
  • Can be used with DVI connection
  • Supports one to many, many to many and point to point broadcasting
  • Dual power input: 802.3af compliant w/ POE & DC 5V
  • No power needed when connecting through a POE network switch
  • Can be cascaded to multiple extenders
  • Supports LPCM audio format
  • Smart IP Address Setting: Dynamic Host Configuration Protocol (DHCP)
  • Wide-band IR pass through to control the source (38khz to 56khz)
  • Bi-directional UART/RS232 (Up to 115200), use remote controller to select 8 group Baud rate

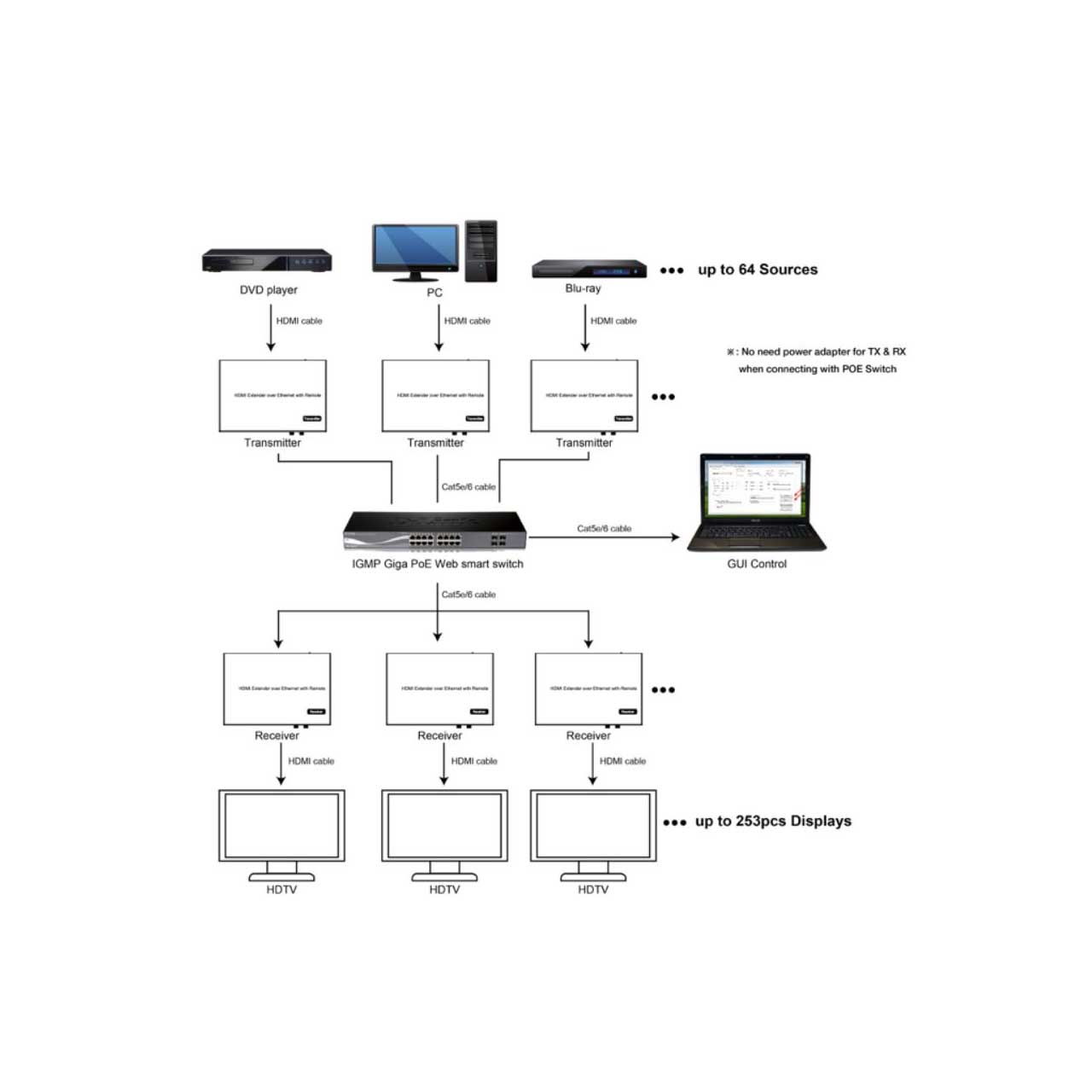

  • Supports one to one, one to many, many to one, many to many modes, with large cascading


• Specifications:

  • Performance
  • Protocol: H.264 encoder over TCP/IP
  • Supported Video formats: 480i/480p/576i/576p/720p/1080i/1080p@60HZ
  • Supported Audio formats: LPCM, Audio sampling rate 48KHz
  • Streaming Bit Rate: 15Mbps
  • HDCP Compliant
  • IR Frequency: 38 -56 KHz
  • RS232 Baud rate: Default 2400bps, total 8 options

    Default IP
  • TX: 192.168.1.11
  • RX: 192.168.1.12
  • Group ID: Group 00 ~ group 63
  • Request for Switch/Router Support: IGMP, supports DHCP

    Connectors on Transmitter
  • Input: 1x HDMI Female port
  • Output: 1x RJ45 output, 1x HDMI looping output
  • RS232 Phoenix RS232 port IR IR TX port (Support 38K-56KHz)
  • IR Ext port (Support 38KHz)

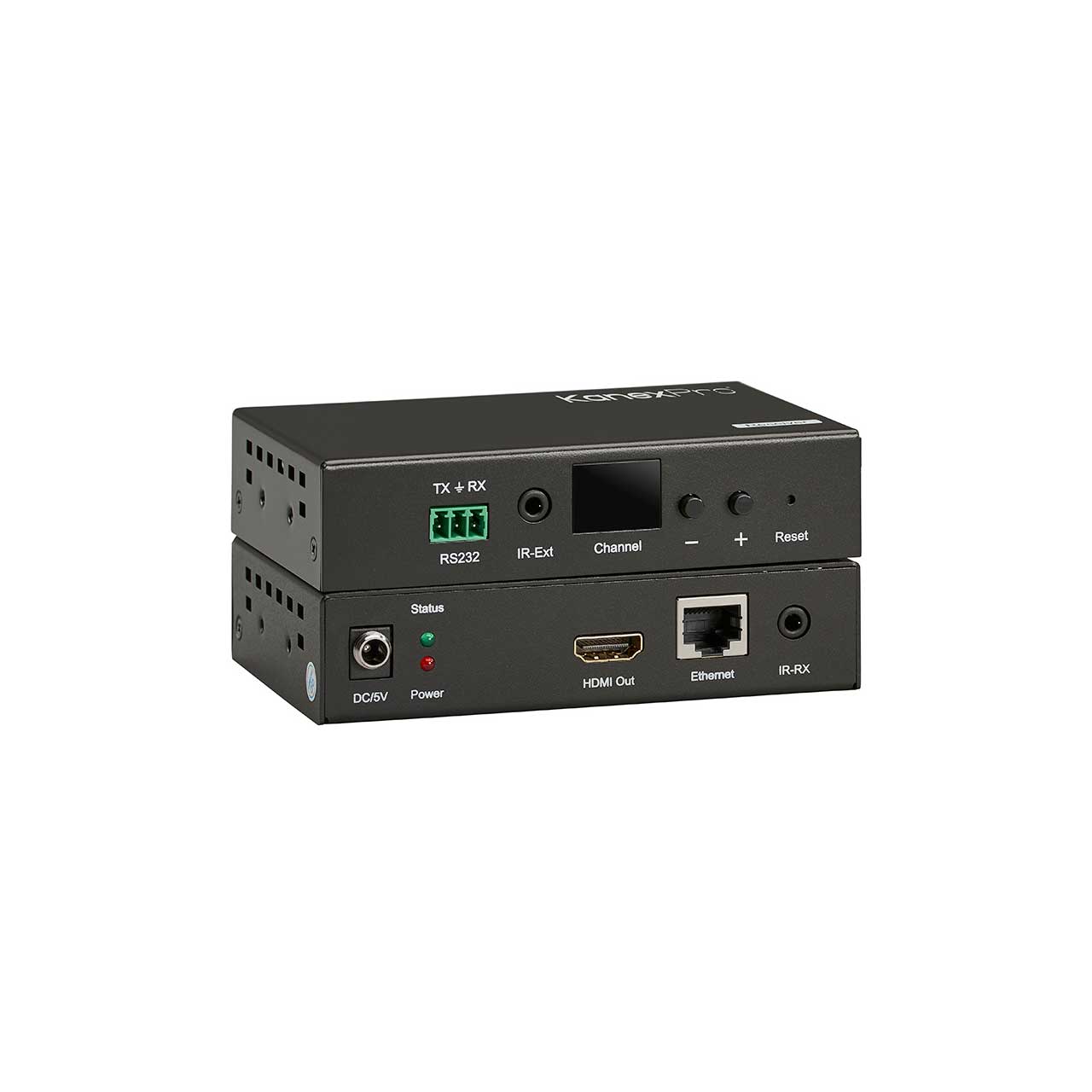

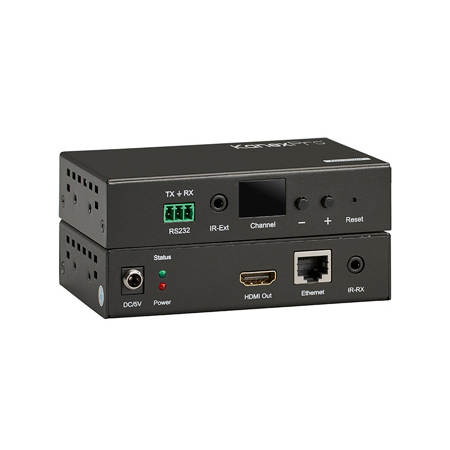

    Connectors on Receiver
  • Input: 1x RJ45 input
  • Output: 1x HDMI Female port looping output
  • RS232 Phoenix RS232 port
  • IR IR RX port (Support 38K-56KHz)
  • IR Ext port (Support 38KHz)

    Environmental & Power Requirements
  • Operating temperature: +23°F to +95°F
  • Operating Humidity Range: 5 to 90%RH (No Condensation)
  • Power supply: DC 5V 1A
  • Power consumption: Max 3 watts
  • Physical Dimensions: 119x79.5x28mm
  • Net Weight: 0.28Kg


• Item Includes:

  • Receiver
  • IR-RX cable
  • IR Ext Cable
  • Manual
  • Screws
  • Detachable mounting ears
  • Phoenix plugs for RS232 cable termination
  • Remote controller


• GTIN:

  0813982021204
