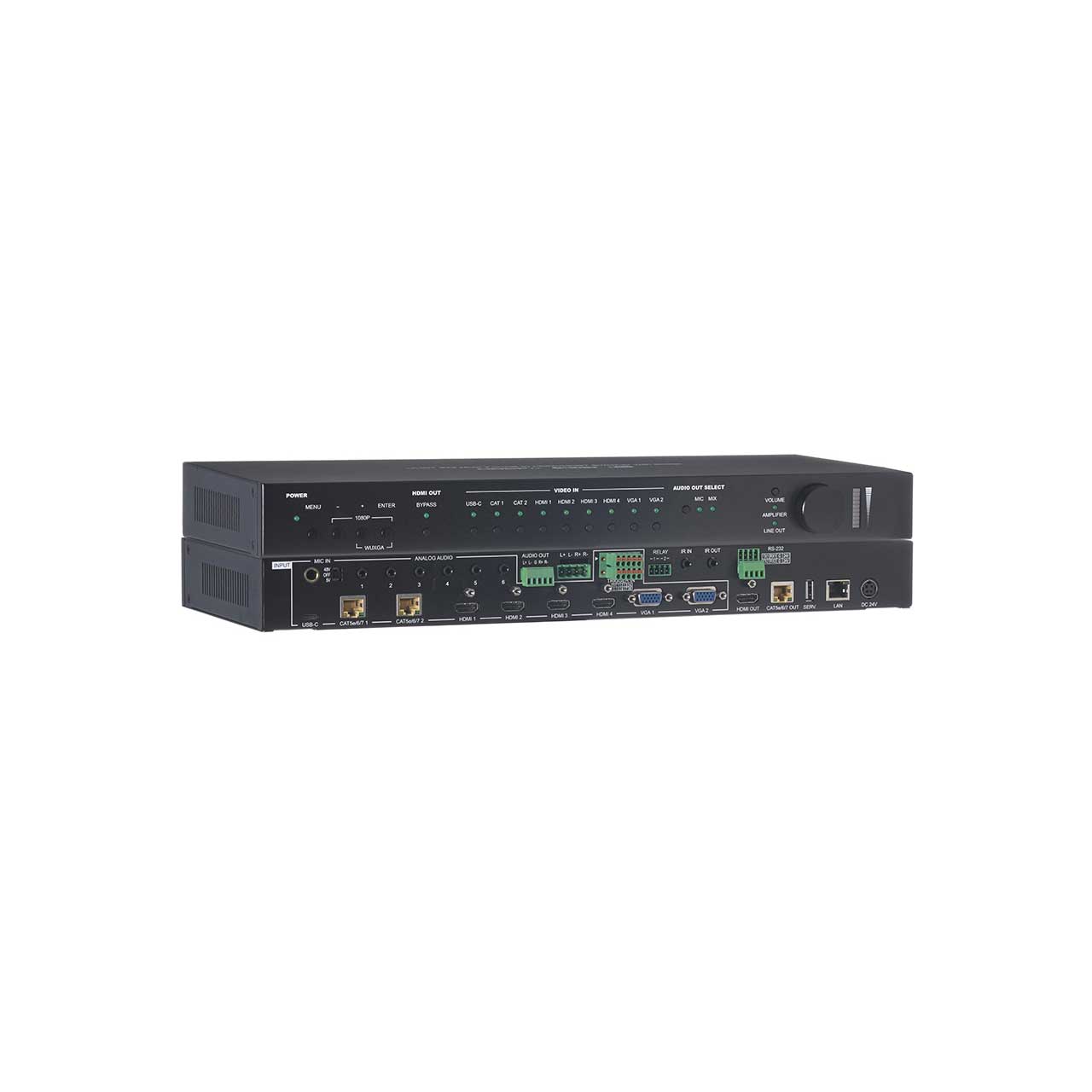

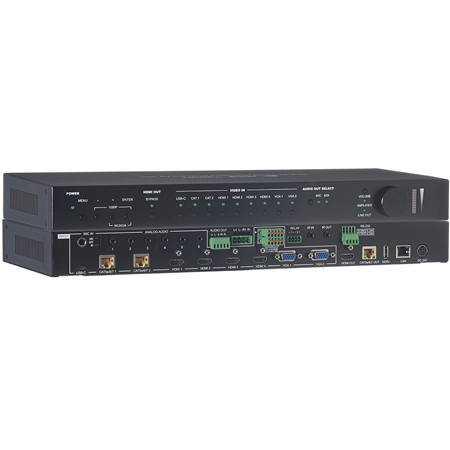

This KanexPro HDSC92D-4K is a 9 by 2 multi-format scaling switcher that provides HDMI, USB-C, HDMI Extender, and VGA inputs that can be freely selected for output at a scaled resolution of the user's choosing via the mirrored HDMI and HDMI Extender outputs. The HDMI and USB-C ports support resolutions up to 4K@60 (4:4:4, 8-bit) while the HDMI Extender output supports automatic color subsampling of 4K50/60(4:4:4) sources to 4K50/60(4:2:0). The VGA inputs support resolutions up to WUXGA. The HDMI Extender output provides a great solution to extend your audio and video up to 100 meters over a single run of Cat.6A cable as well as providing PoH power to compatible HDMI Extender Transmitters and Receivers.
This unit also includes multiple analog stereo audio inputs and a microphone input along with an amplifed analog stereo output to provide a range of audio routing and mixing fexibility. The built-in audio mixer function allows the user to mix audio from any LPCM 2.0 source with the microphone input for presentation or lecture usage. The ability to switch back and forth between mixed and non-mixed audio greatly simplifes the presentation experience.A trigger input interface is also provided to allow the easy addition of a remote control keypad, or other trigger-supporting products, which can be installed within a podium or within a table in a conference room or classroom. This interface can allow the user to activate functions with the simple press of a button. Standard control is available via front panel buttons with an On-Screen Display (OSD), WebGUI, Telnet, and RS-232 making it exceptionally versatile.
Applications
Lecture room display and control
Showroom display and control
Meeting room presentation and control
Classroom display and control
