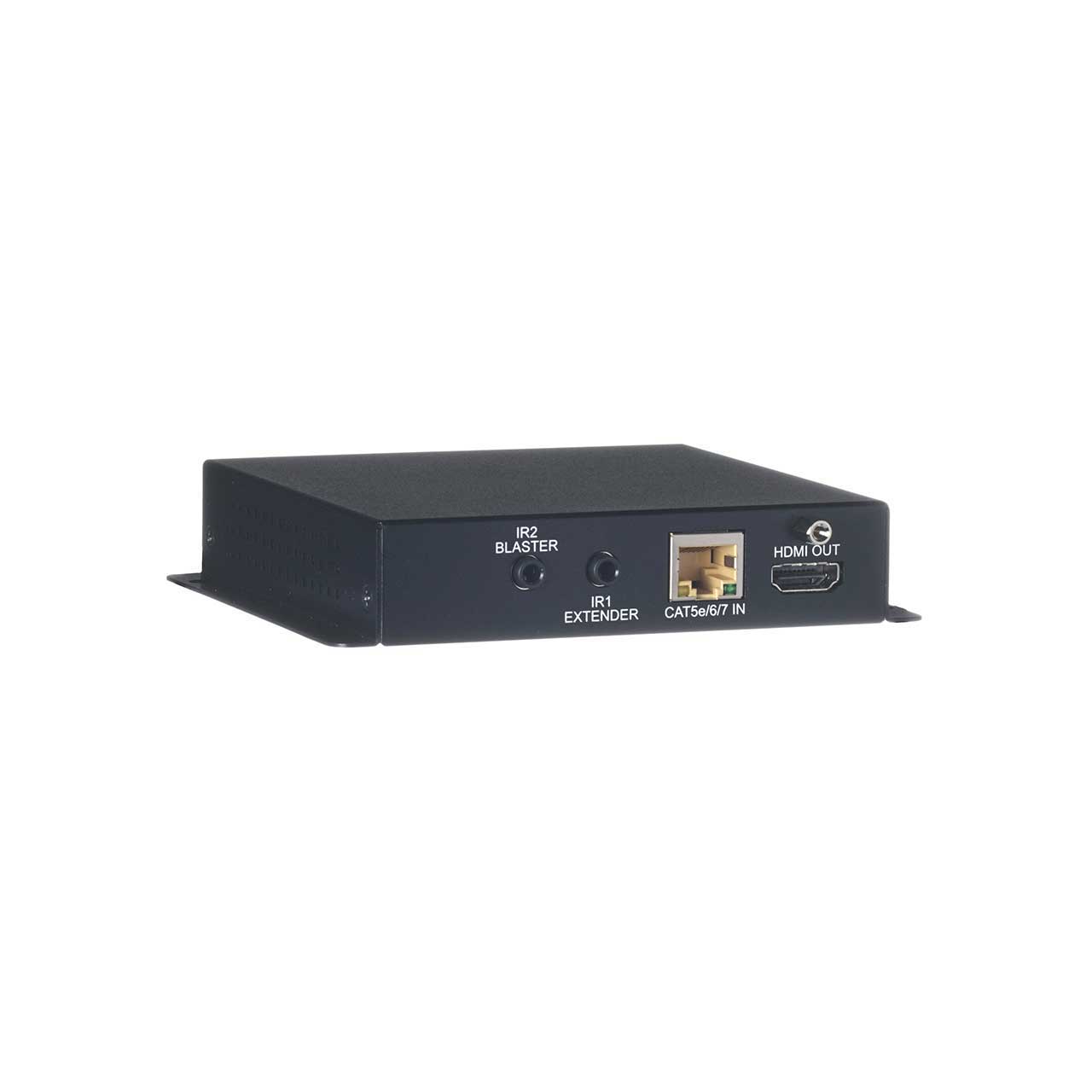

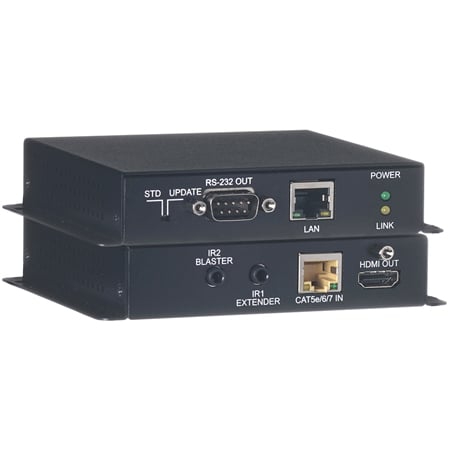

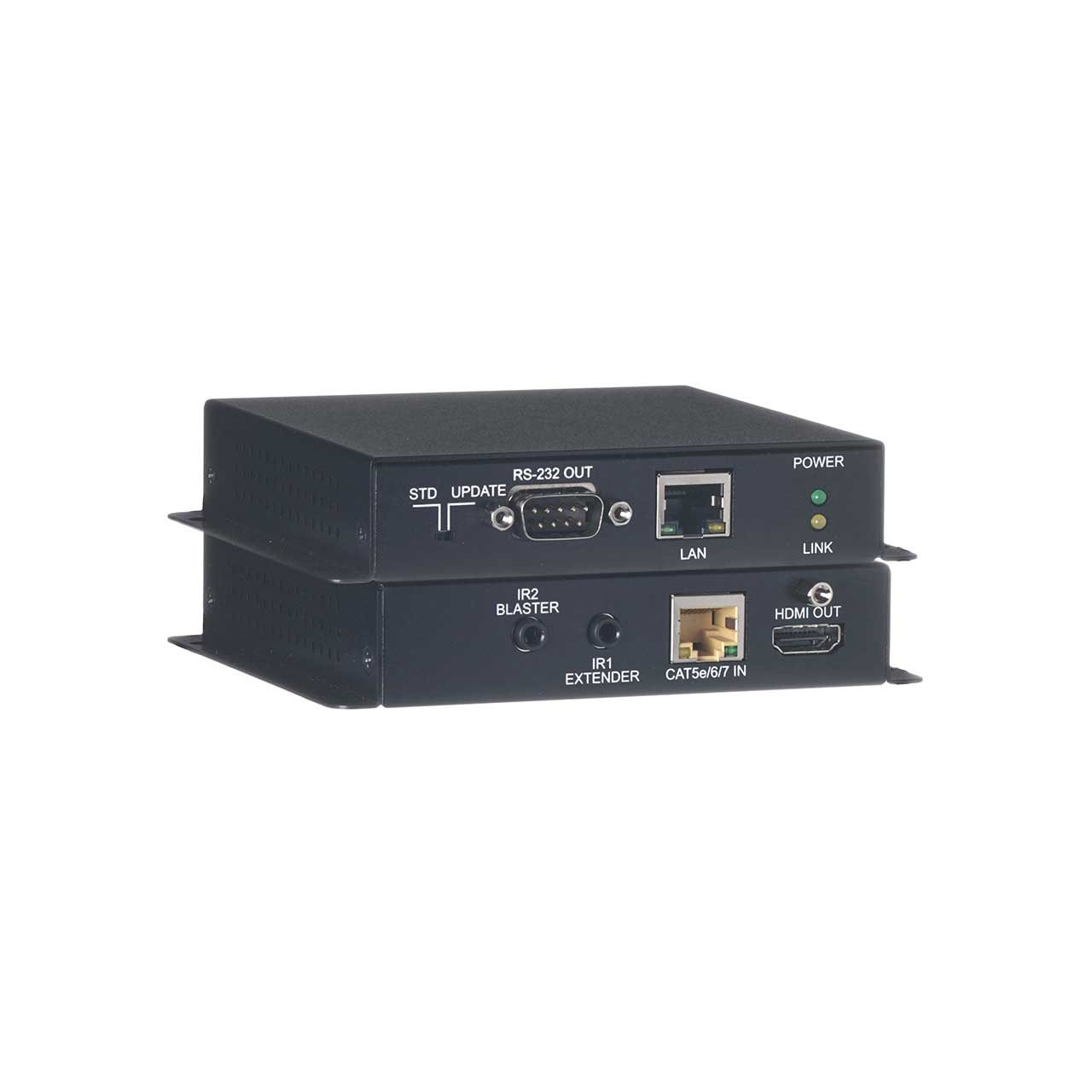

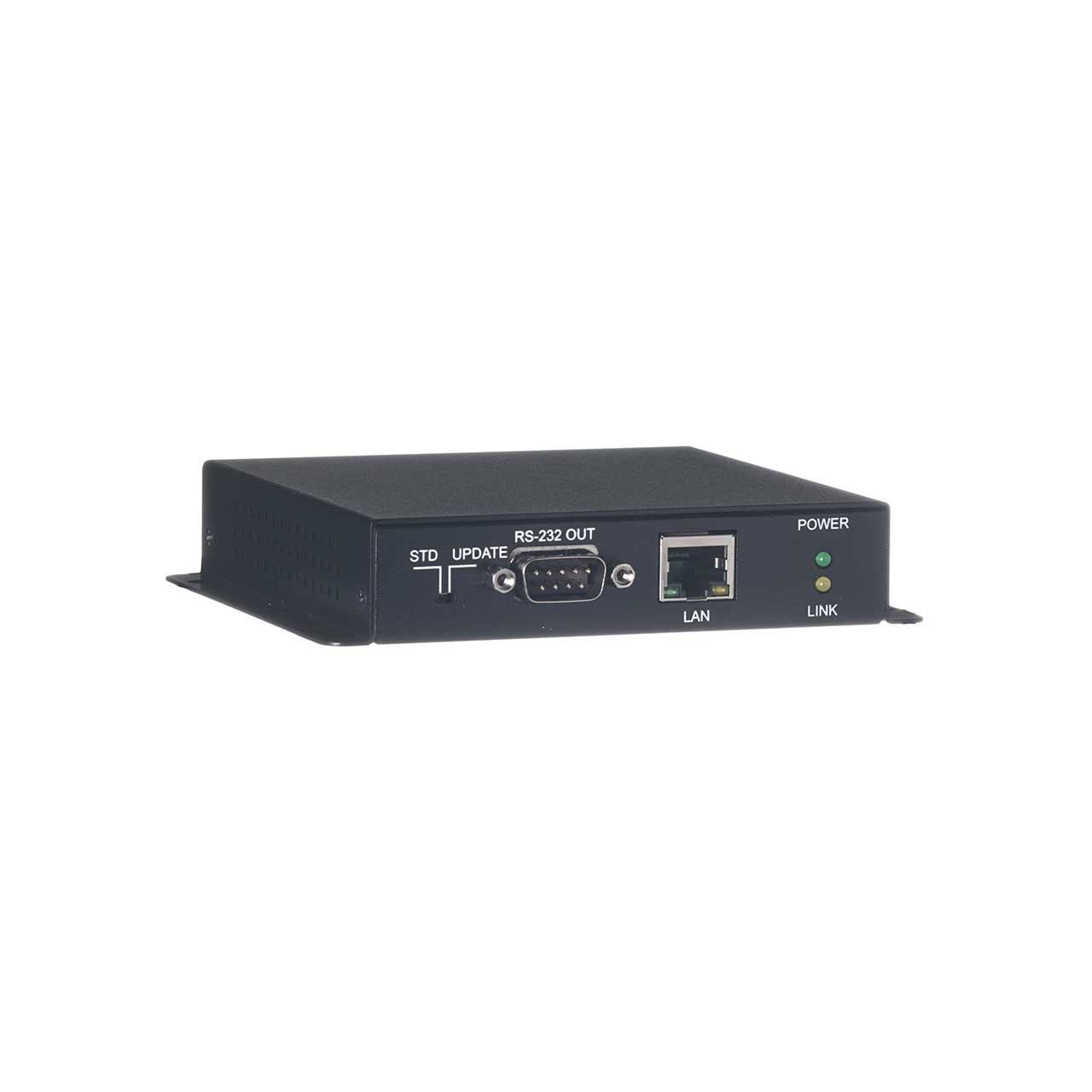

KanexPro Output (RX) Extender for HDSC92D-4K Scaler HDMI over CAT5e/6/6a Receiver LAN/IR/RS-232/PoE

HDSC92D-4KRX - Overview

• Features:

  • HDMI with 3D, 4K2K support, HDMI & DVICompliant
  • Supports CECbypass
  • Simultaneous reception of uncompressed data over a single100m/328ftCAT5e/6/6acable
  • HDMI, LAN, PoE & Control (IR &RS-2232)
  • Supports resolution up to 4K2K@50/60 & YUV_420 and21:9
  • Supports standard 48V from Transmitter to Receiver
  • Supports HDMI Output cable distance up to 5m at 4K2K@50/60& YUV_420


• Specifications:

  • Video Bandwidth: 340MHz /10.2Gbps
  • Inputs:
    1x CAT5e/6/7
    1x IR Extender
  • Outputs:
    1x HDMI
    1x RS-232
    1x IR Blaster
    1x LAN
  • HDMI I/O Resolution:
    HD: 480i~4K2K@24/25/30/50/60 & YUV_420
    PC: VGA ~ WUXGA(RB)
  • HDMI I/O Cable Distance:
  • In: 10m/1080p@8-bit or 12-bit and 5m@4K2K
    Out: 10m/1080p@8-bit or 5m/1080p@12-bit and 5m@4K2K
  • CAT5e/6/7 I/O Cable Distance: Up to 100m
  • IR Frequency: 30~50kHz
  • ESD Protection
  • Human Body Model:
    ±8kV(Air-Gap Discharge)
    ±4kV(Contact Discharge)
  • Power Supply: 48 V/0.83 ADC (US/EU Standards, CE/FCC/ULcertied)
  • Dimensions (WxDxH):
    No Ears: 4.25 x 4.25 x 0.98" (108 x 108 x 25mm)
    Ears: 4.25 x 4.56 x 1.14" (108 x 116 x 29mm)
  • Weight: 0.80Lbs (366g)
  • Chassis Material: Metal
  • Silkscreen Color: Black
  • Power Consumption: 13.5w(Max)
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Storage Temperature: -4° to 140°F (-20° to 60°C)
  • Relative Humidity: 20~90 % RH(non-condensing)


• Warranty:

  • Backed by KanexPro 3 -Year Parts & Labor Warranty


• GTIN:

  0813982022836
