Kramer KDS-USB2 USB 2.0 Over Ethernet High-Speed Extension Encoder/Decoder Kit

KDS-USB2 - Overview

Extend mobile devices, media players, hard drives and more

• Features:

  • High-Speed Extension - Extends USB 2.0 signals up to 100 m with CAT 5e/6/7 cables, and up to 10km with fiber optics cable. Achieves USB 2.0 throughput up to 480 Mbps point-to-point or over LAN.
  • Note: Use recommended Kramer cables for best performance.
  • Extend Multiple Devices - Connect to all 4 decoder ports simultaneously with 5 Volts, 500 mA available on each port.

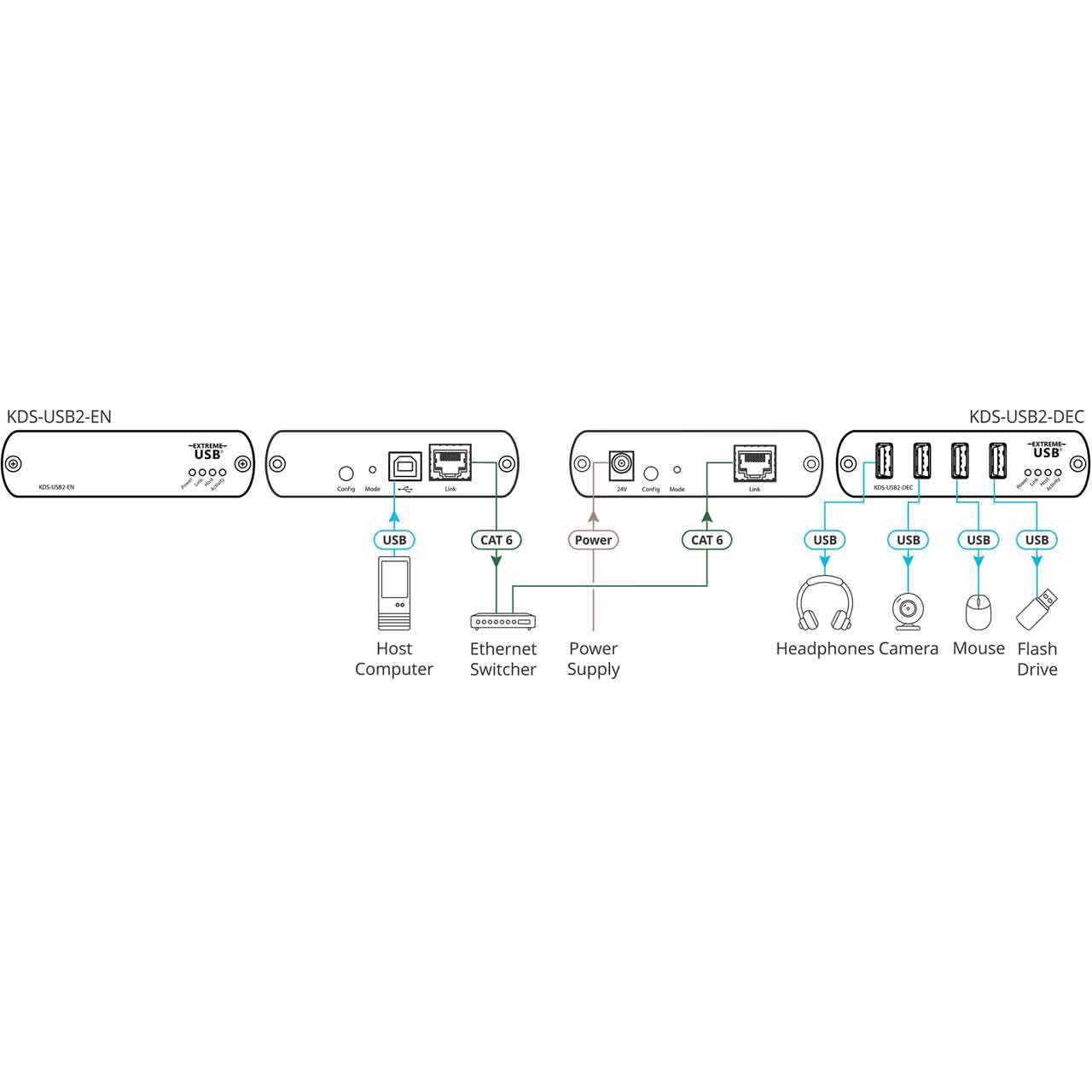

  • Collaboration - Pair up to seven decoders to one encoder/host computer for extended, multi-location collaboration.
  • SwitchableUSB™ - Construct one-to-many and many-to-many unit setups using Kramer's cloud-based control platform to manage the mapping and switch the connections.
  • Reliable and Certified - Passes all key USB-IF compliance tests and FCC/CE Class B certified.
  • True Plug and Play - No software drivers required.
  • Compatibility - Works with all major operating systems including Windows®, macOS™ and Linux®.


• Specifications:

  • PORTS

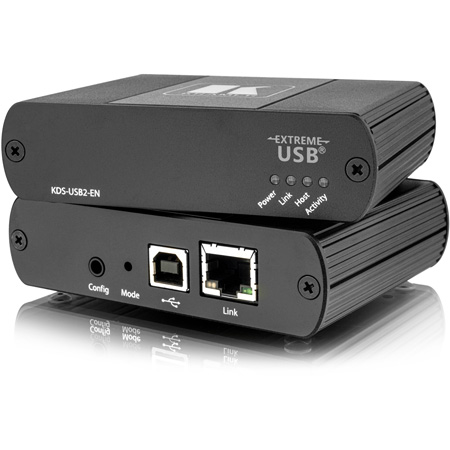

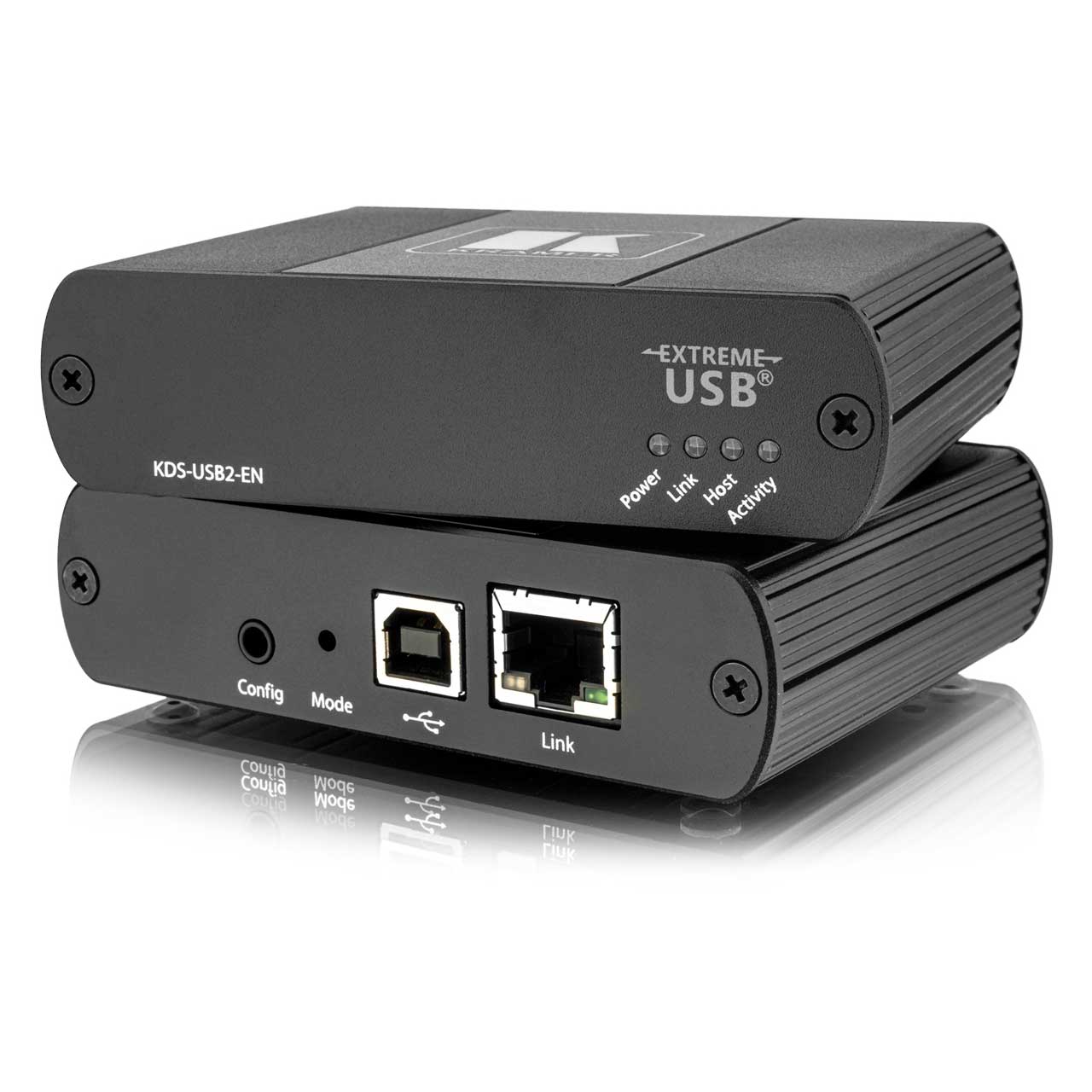

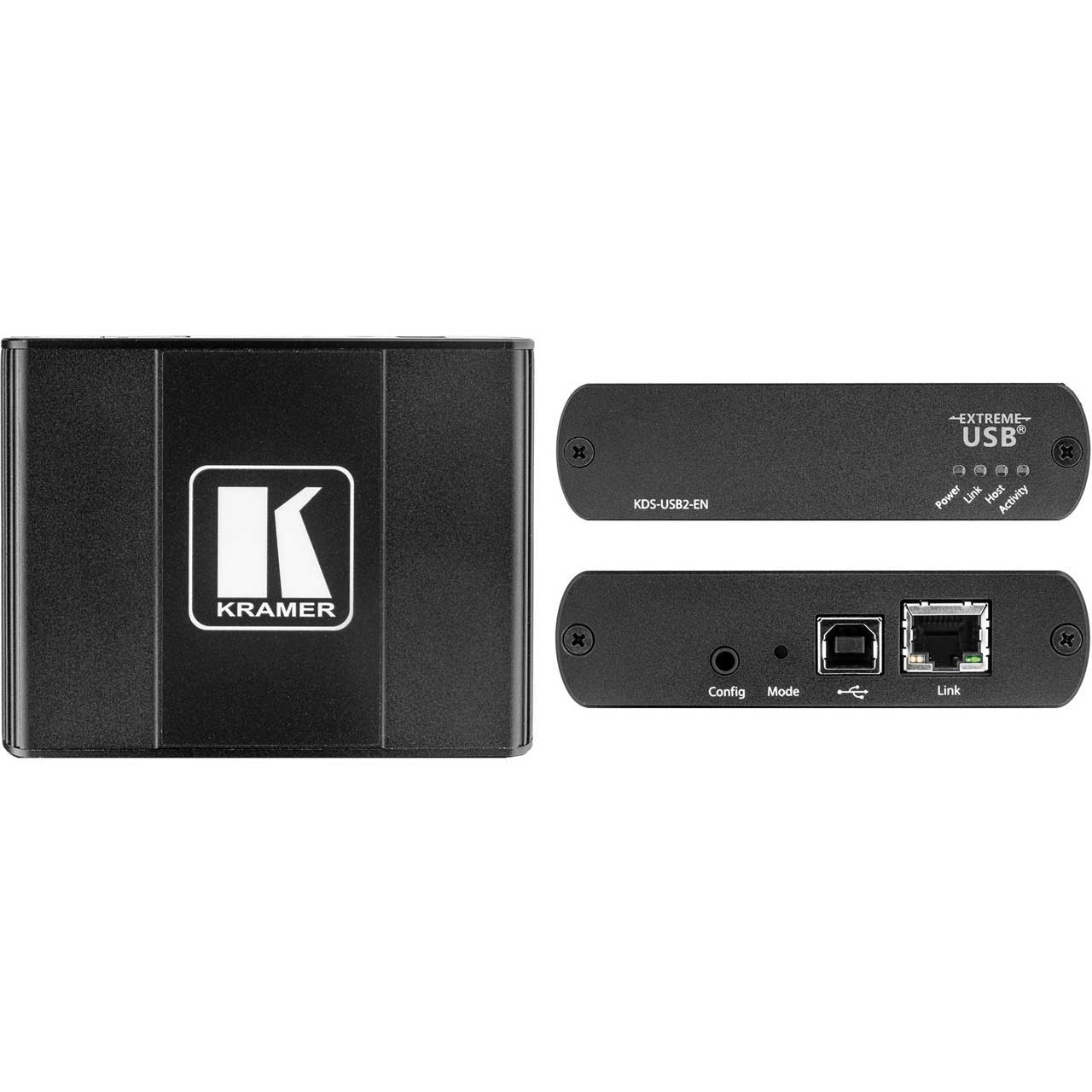

  • Encoder
  • 1 USB: On a USB type B connector for host computer
  • 1 CAT 5/6: On an RJ-45 connector

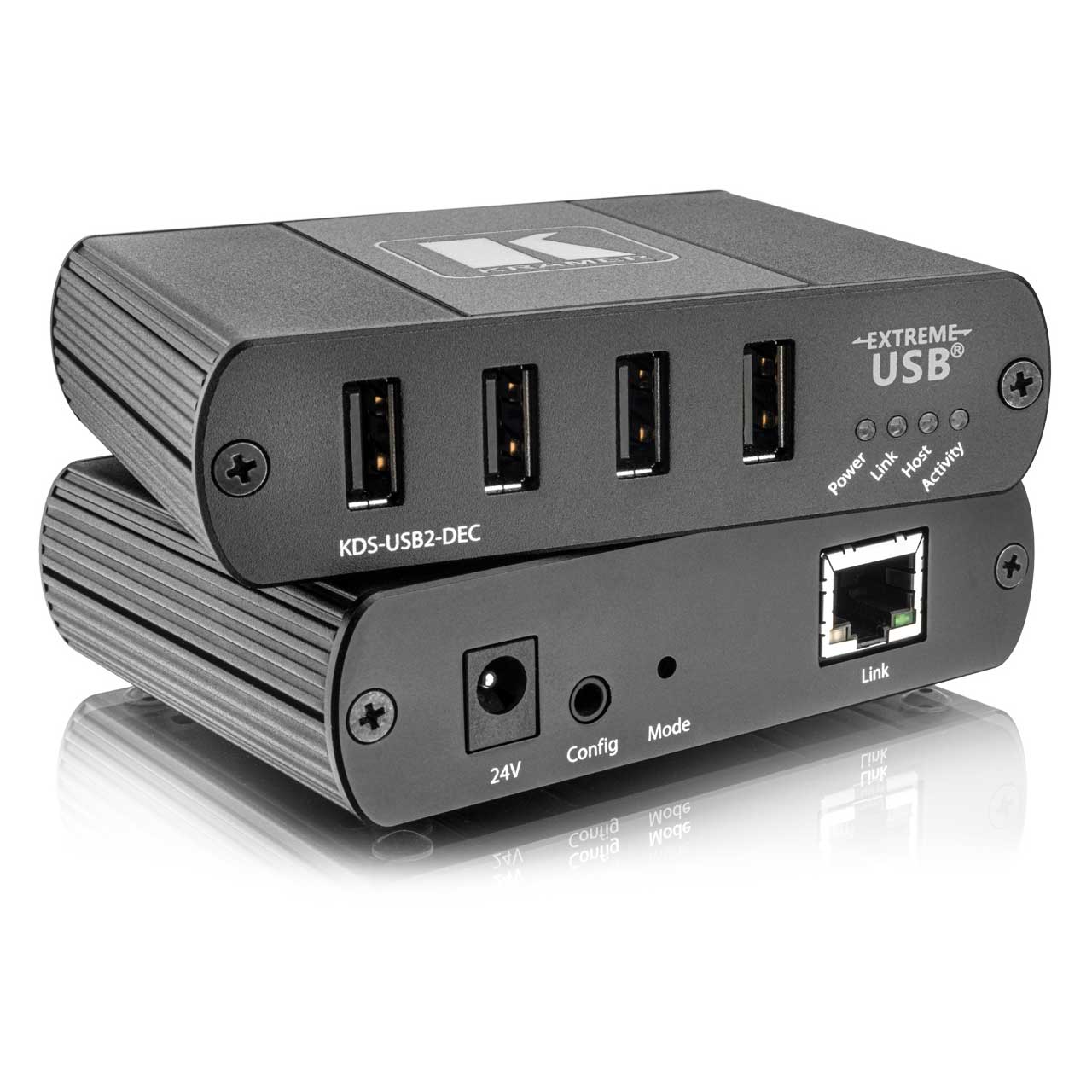

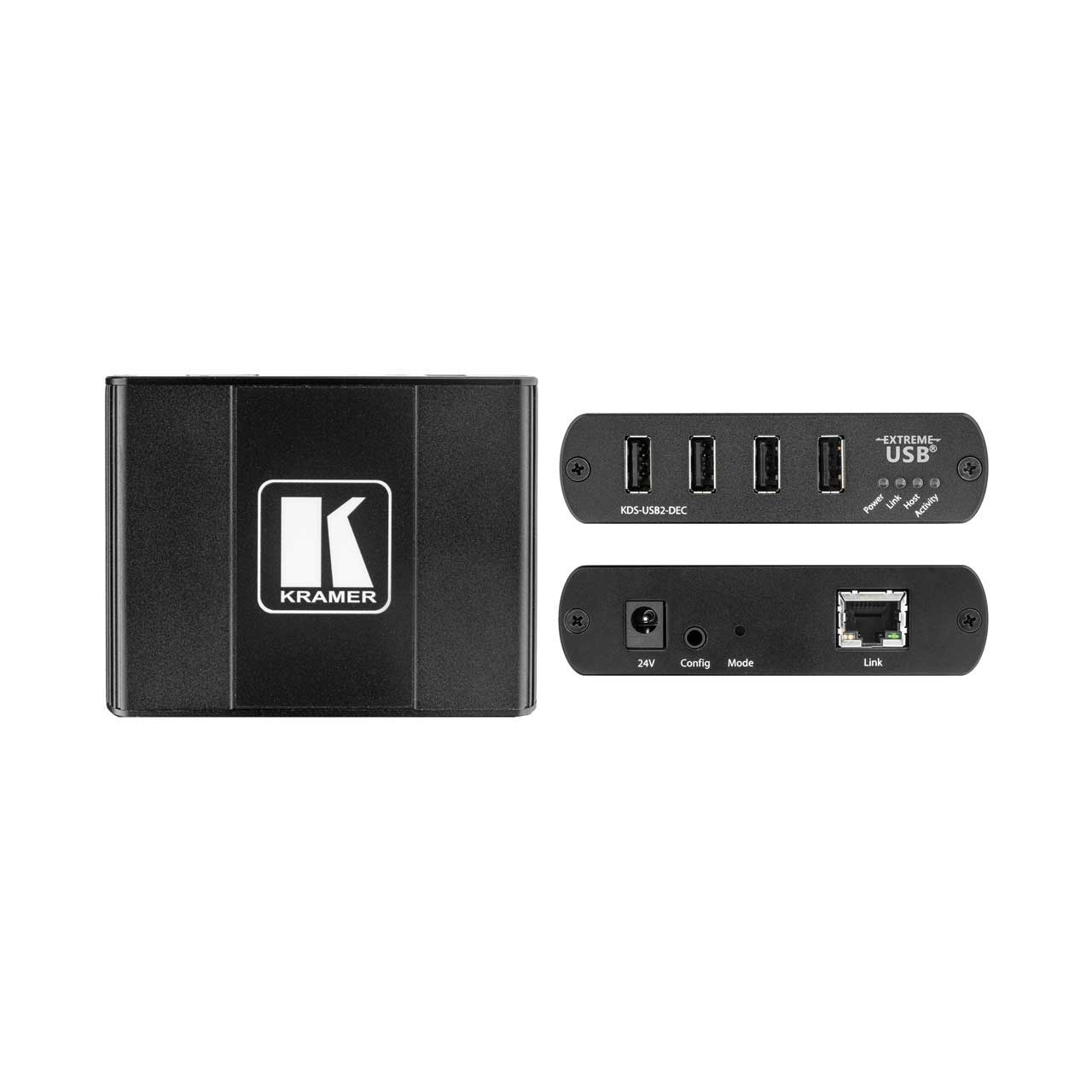

  • Decoder
  • 4 USB: On USB type A connectors
  • 1 CAT 5/6: On an RJ-45 connector


  • EXTENSION LINE
  • Direct Connect: Up to 100m (330 ft) over solid core Cat 5e/6/7 cable
  • Network Connect: Up to 100m (330 ft) between switches over solid core CAT 5e/6/7 cable (One local to seven remote pairings supported for Simultaneous Users Interaction)


  • GENERAL
  • Maximum Throughputs: USB 2.0 - Up to 480 Mbps*
  • Maximum Throughputs: USB 1.1 - Up to 12 Mbps
  • Traffic Types: All USB 2.0 and 1.1 Traffic Types (Control, Interrupt, Isochronous and Bulk)
  • Device Types: All USB 2.0 and 1.1 Device Types and Classes
  • Maximum Number of Connected USB Devices: 30
  • Networking Standards: 1000BASE-T
  • Networking Data Traffic: Layer 2
  • Networking Control Traffic: Layer 3
  • *Note: For best performance use recommended Kramer cables

    USER INTERFACE
  • Controls: Front panel pairing button
  • Indicators: Power, link, host, activity LEDs


  • POWER
  • Encoder Source: Host computer
  • Decoder Source: 24V DC adapter
  • Consumption: 780mA


  • ENCLOSURE
  • Type: Black anodized aluminum
  • Cooling: Convection ventilation


• Item Includes:

  • Encoder (KDS-USB2-EN)
  • Decoder (KDS-USB2-DEC)
  • Power adapter and cord
  • USB2 type A male to type B male cable


• Warranty:

  • Standard three (3) year warranty


• GTIN:

  7291063092542
