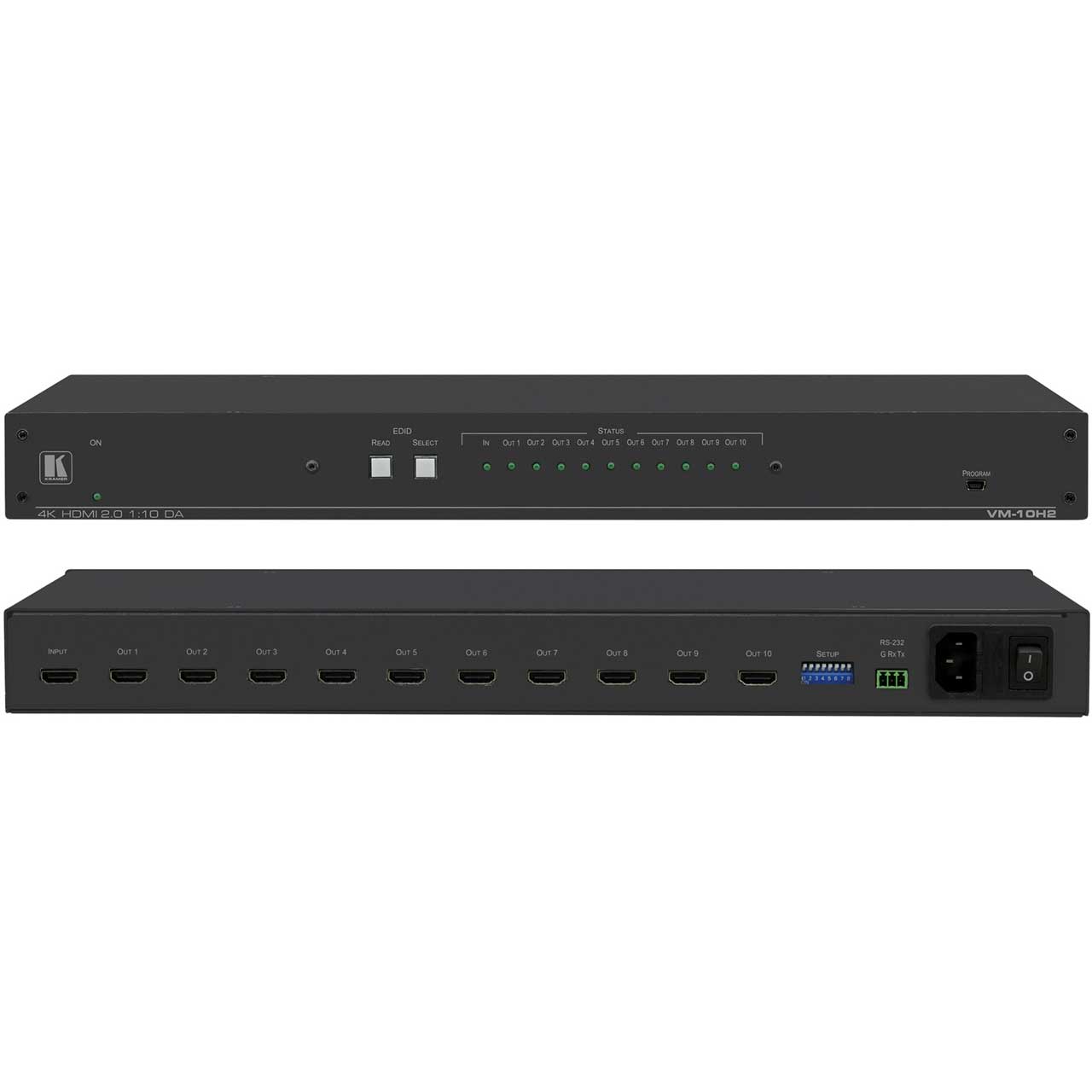

Kramer VM-10H2 1:10 4K HDR HDMI Distribution Amplifier

VM-10H2 - Overview

1:10 4K HDR HDMI DA

• Features:

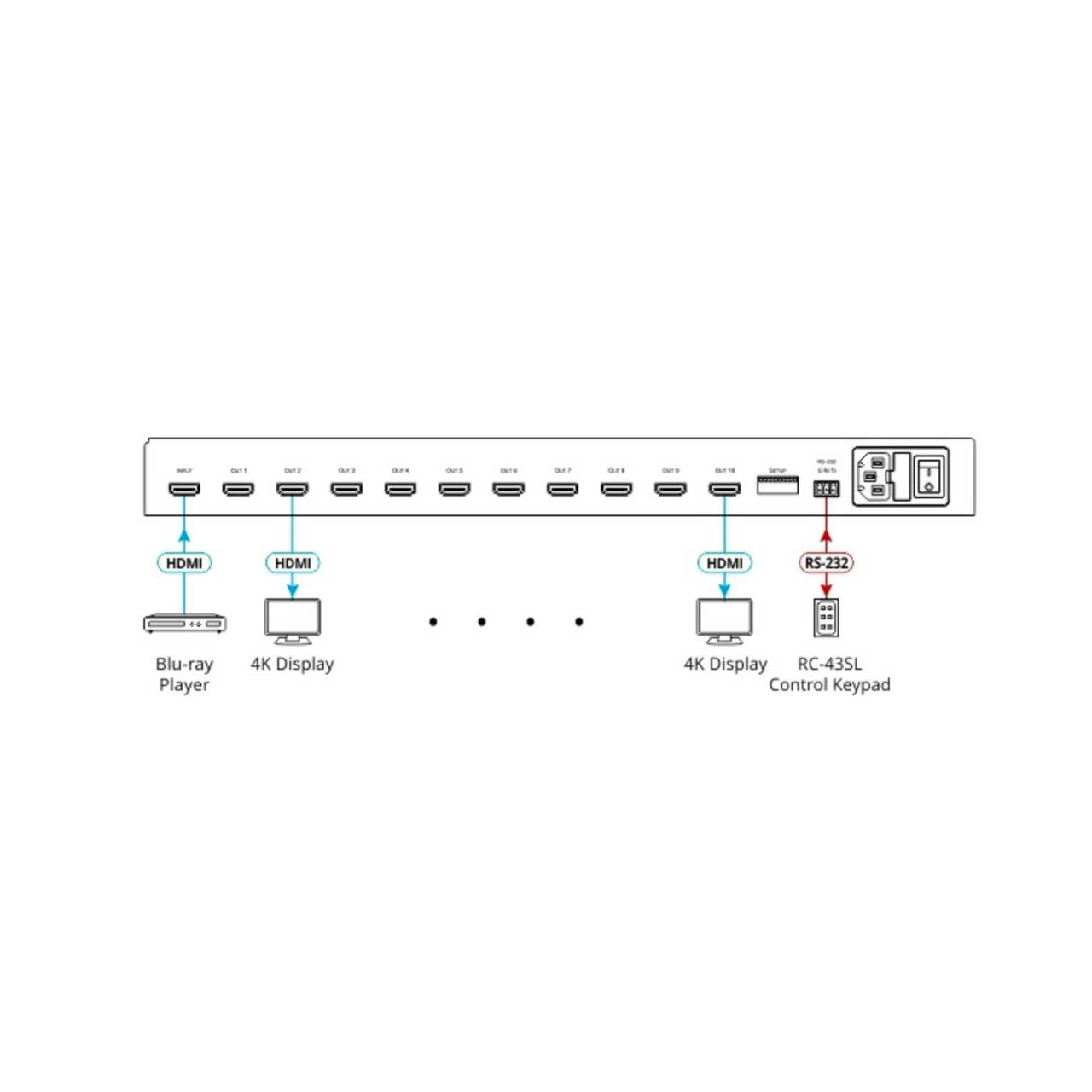

  • High Performance Distributor - Professional 1:10 HDMI distributor for up to 4K@60Hz (4:4:4) video resolution signals. One HDMI HDCP 2.2 input signal is amplified and distributed to ten identical output signals, with signals rebuilt using Kramer Equalization & re-Klocking™ Technology to gain longer distances.
  • HDMI Signal Transmission - HDR, HDCP 2.2 compliant signal, supporting deep color, x.v.Color™ , lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC (OUT 1 only) signals are passed through from the source to the displays.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
  • User-Friendly Operation - Comprehensive signal distribution features and signal mode-forcing options such as RGB forcing, HDCP authorization, and video-wall synced-operation control. Intuitive EDID acquisition, selection, and setting using front panel buttons and LED indications. Auto-EDID feature for even simpler EDID operation.
  • Cost-Effective Field Maintenance - Mini-USB connection for simple field firmware upgrade and easy EDID handling using the Kramer EDID-Designer tool. Selectable distributor maintenance options and status indicators for fast and effective troubleshooting.
  • Easy Installation - 19" enclosure for rack mounting a unit in a 1U rack space with included rack ears and universal 100-240V AC power connection.


• Specifications:

  • INPUT
  • 1 HDMI on HDMI female connector


  • OUTPUTS
  • 10 HDMI on HDMI female connectors


  • PORTS
  • 1 RS-232 on 3-pin terminal block connector for device control
  • 1 Mini-USB female connector for firmware upgrade


  • VIDEO
  • Up to 17.82Gbps bandwidth (5.94Gbps per graphic channel)
  • Up to 4K@60Hz (4:4:4) resolution
  • HDR10, HDCP 2.2 signal compliance
  • Supports deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0


  • CONTROLS
  • EDID SELECT and READ buttons, DIP switches


  • INDICATION LEDS
  • OUTPUTS 1 to 10, ACTIVE input and power ON LEDs


  • POWER SOURCE
  • 100-240V AC, 50/60Hz 55VA


  • POWER CONSUMPTION
  • 100-240V AC, 50/60Hz 15VA


  • ENCLOSURE
  • Full 19" 1U rack size, aluminum type


  • COOLING
  • Fan ventilation


• Item Includes:

  • VM-10H2 Distribution Amp
  • Rack Ears (1 set)
  • Power Cord (1x)
  • Rubber Feet (4)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063083304
