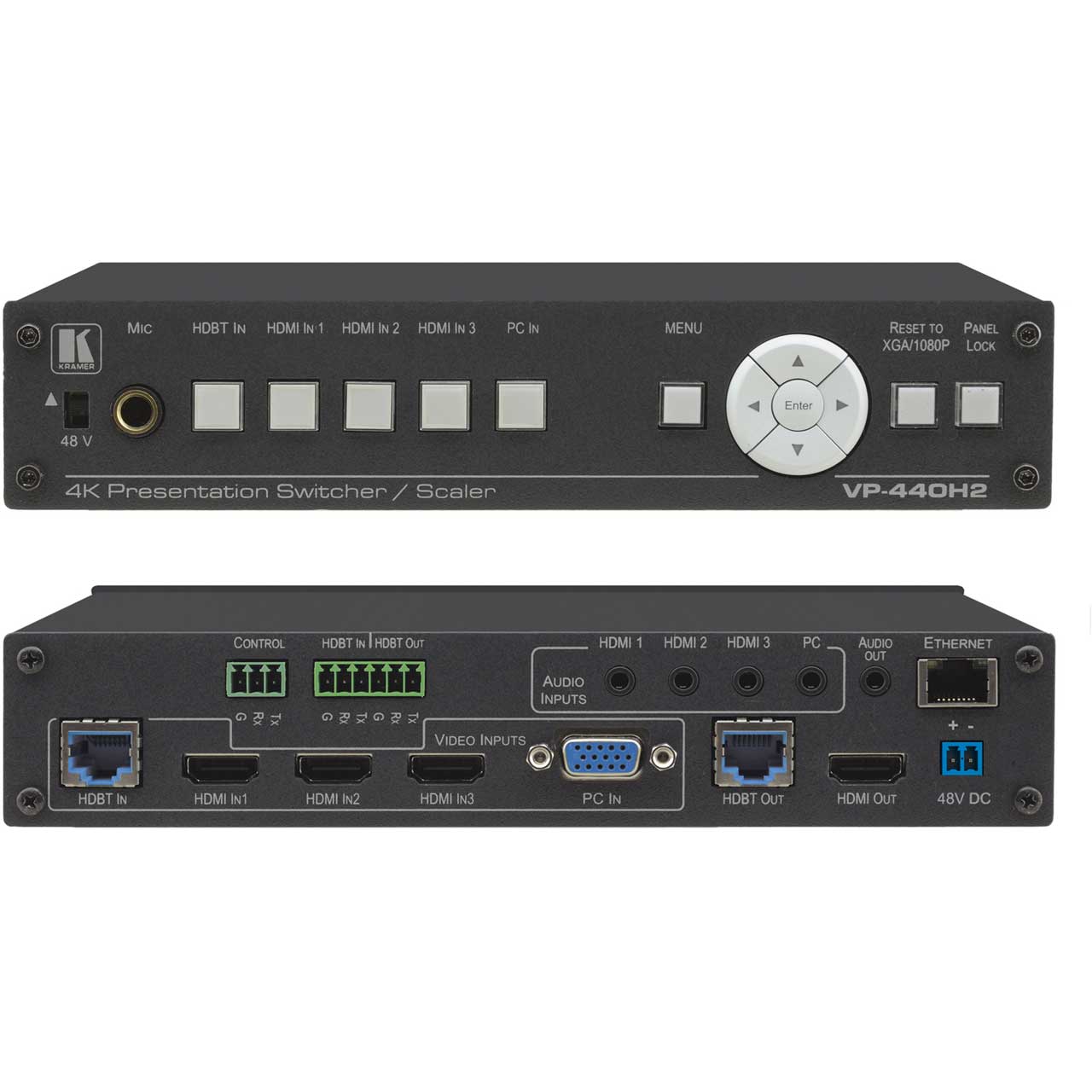

Kramer VP-440H2 Compact 5-Input 4K60 4:4:4 Presentation Switcher/Scaler with HDBaseT/HDMI

VP-440H2 - Overview

HDBaseT and HDMI Simultaneous Outputs!

• Features:

  • PixPerfect™ Scaling Technology - Kramer's precision pixel mapping and high-quality scaling technology.
  • HDMI Support - 4K@60 (4:4:4) and xvYCC color (on input) as specified in HDMI 2.0.
  • HDCP 2.2 Compliant.
  • HDBaseT Certified.
  • System Range - For the HDBT inputs and outputs, extended reach of up to 100m (330ft) using Kramer recommended cables.
  • Provides Power (PoE) on HDBaseT Input to Compatible Devices.
  • Max. VGA Resolution - 1920 x 1200 @60Hz.
  • Max. Resolutions - 4K@60Hz (4:4:4).
  • Multiple Aspect Ratio Selections - Full, best fit, overscan, underscan, letter box and panscan.
  • Built-in ProcAmp - Color, hue, sharpness, noise, contrast and brightness.
  • Constant Output Sync - No output disruption while switching between inputs when no video is detected.
  • Powerful Audio Features - Via DSP technology including audio equalization, mixing, delay, etc.
  • Auto Input Switching - Last connected & auto-scan, selectable.
  • Audio - Unbalanced stereo and embedded audio for HDMI/HDBT with individual input level controls.
  • Companion AFV (Audio-Follow-Video) - Stereo audio for HDMI and PC inputs, on 3.5mm mini jacks.
  • Microphone Input - For mixing, switching or talk-over.
  • HDBaseT Tunneling - Supports full HDBT tunneling of Ethernet and RS-232 data.
  • Front Panel Lockout.
  • Non-Volatile Memory - Saves final settings.
  • Flexible Control Options - Front panel push buttons, RS-232, OSD (on-screen display) menu with front panel navigation buttons, Ethernet with built-in Web pages.


• Specifications:

  • INPUTS

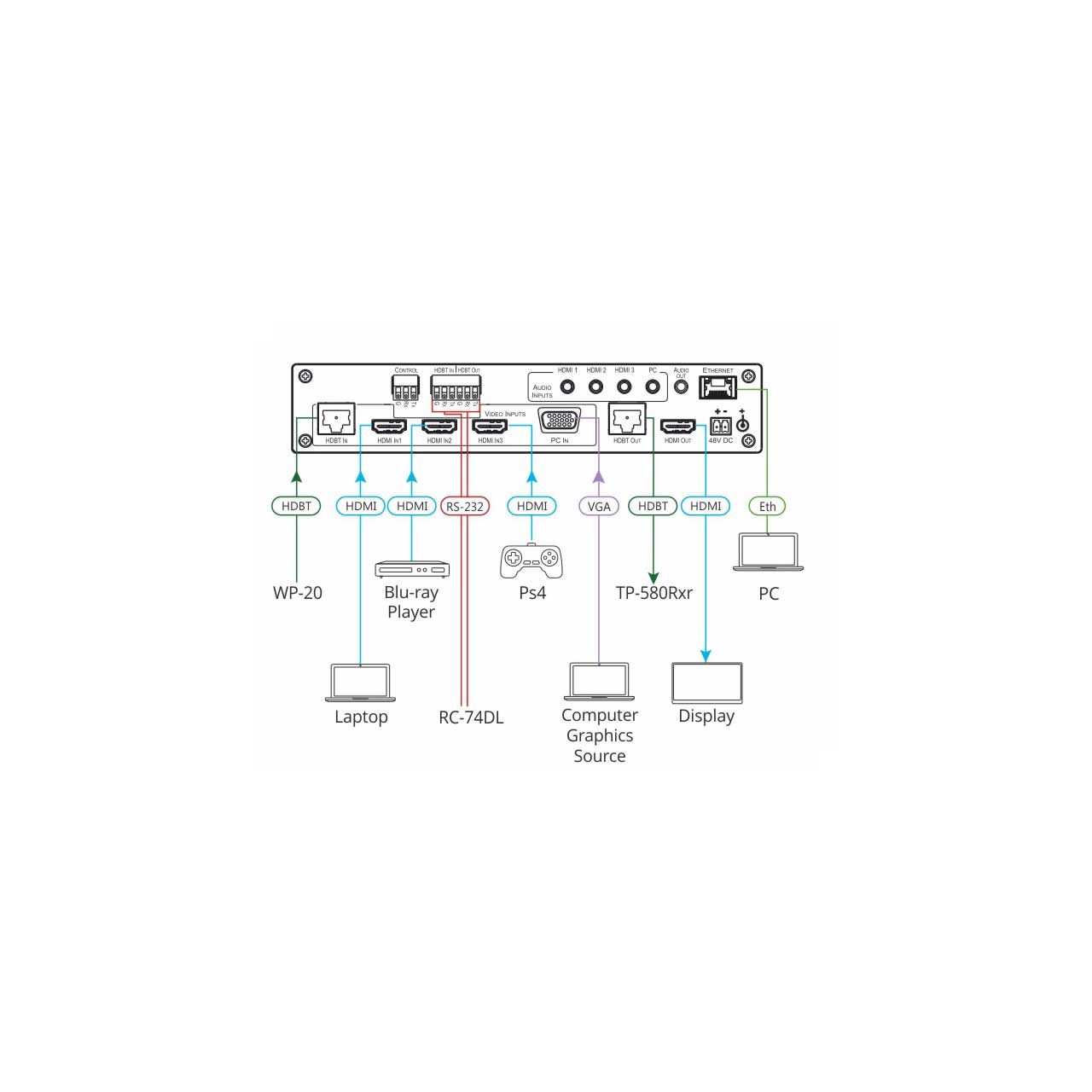

  • 3 HDMI connectors (HDCP 2.2), 1 VGA on a 15-pin HD connector, 1 HDBT on an RJ-45 connector
  • 4 unbalanced stereo audio on 3.5mm mini jack connectors
  • 1 microphone on a 6.3mm jack connector (with selectable 48V phantom power)


  • OUTPUTS
  • 1 HDMI connector (HDCP 2.2)
  • 1 HDBT on an RJ-45 connector
  • 1 unbalanced stereo audio on a 3.5mm mini jack connector


  • MAX RESOLUTION
  • 4K@60Hz (4:4:4)


  • SWITCHING TIME BETWEEN INPUTS
  • 2 to 3 seconds


  • VIDEO LATENCY
  • Less than 2 frames


  • INPUT RESOLUTIONS HDMI/HDBT
  • 480i, 480p, 576i, 576p, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz, 640x480@60/67/72/75/85Hz, 800x600@56/60/72/75Hz, 1024x768@60/70/75Hz, 1280x1024@60/75Hz, 1280x720@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1920x1080@60Hz, 1600x1200@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1600x900RB@60Hz, 1680x1050@60Hz, 1920x1200RB@60Hz, 4K@24/25/30Hz, 4K(4:2:0)@50/60Hz, 4K(4:4:4)@50/60Hz*
  • *Note: 4K(4:4:4)@50/60Hz is supported on the HDMI inputs only


  • INPUT RESOLUTIONS PC
  • 640x480@60/67/72/75/85Hz, 800x600@56/60/72/75Hz, 1024x768@60/70/75Hz, 1280x1024@60/75Hz, 1280x720@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1920x1080@60Hz, 1600x1200@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1600x900RB@60Hz, 1680x1050@60Hz, 1920x1200RB@60Hz


  • OUTPUT RESOLUTIONS
  • 480p, 576p, 720p@50/60Hz, 1080p@24/25/30/50/60Hz, 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x720@60Hz, 1280x800@60Hz, 1360x768@60Hz, 1280x1024@60Hz, 1440x900@60Hz, 1400x1050@60Hz, 1680x1050@60Hz, 1600x1200@60Hz, 1920x1080@60Hz, 1920x1200RB@60Hz, 4K@24/25/30Hz, 4K(4:2:0)@50/60Hz, 4K(4:4:4)@50/60Hz*
  • *Note: When outputting HDMI 4K 4:4:4@50/60Hz , the color sampling on the HDBT output is set to 4:2:0


  • HDMI SUPPORT
  • 4K@60 (4:4:4) and xvYCC color (on input) as specified in HDMI 2.0


  • CONTROLS
  • Front panel push buttons


  • RS-232
  • OSD (on-screen display) menu with front panel navigation buttons
  • Ethernet with built-in Web pages


  • POWER CONSUMPTION
  • 48V DC, 850mA


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


• Item Includes:

  • VP-440H2 4K Presentation Switcher / Scaler
  • 48V DC Power Supply (1)
  • Power Cord (1)
  • Rubber Feet (4)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063085643
