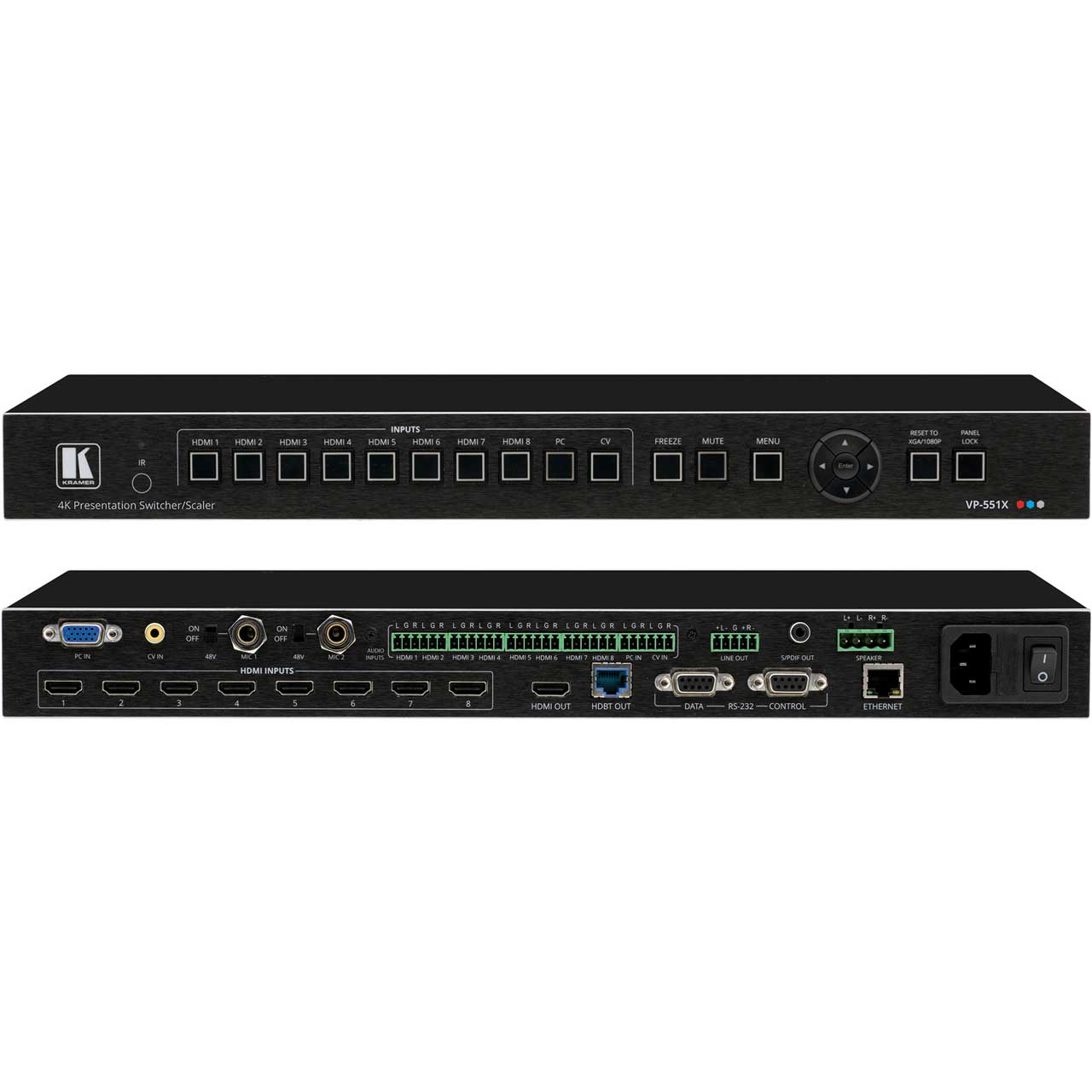

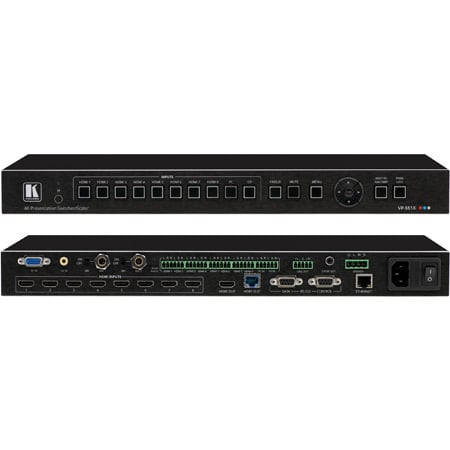

Kramer VP-551X 10-Input 18G 4K Presentation Switcher/Scaler HDMI/VGA/Composite

VP-551X - Overview

High-Resolution Video

• Features:

  • High-Performance Switcher/Scaler - Scales HDMI, VGA and Composite video signals for output to two mirrored outputs: HDMI and HDBaseT. Constant output sync prevents signal disruption when switching between inputs and when no video is detected.
  • High-Resolution Video - Supports and scales to/from resolutions up to 4K@60Hz (4:4:4) on the HDMI inputs and output, and 4K@60Hz (4:2:0) on the HDBaseT output. Complies with HDCP 2.2. Supports HDR10, CEC, xvYCC color (on input), Dolby TrueHD/DTS-HD Master Audio (by-pass), as specified in HDMI 2.0.
  • Professional Video Quality - Provides selectable aspect ratios (full, best fit, over scan, under scan, letter box and pan scan). Includes built-in ProcAmp for color, hue, sharpness, noise, contrast and brightness control. Supports PixPerfect™, Kramer's precision pixel mapping and high-quality scaling technology. High-quality 3:2 and 2:2 pull-down de-interlacing and full up-scaling and down-scaling of all video input signals.
  • Versatile Audio Options - Includes a companion analog audio input for each of the 10 video inputs, enabling the user to embed a separate analog audio channel into each video signal or to bypass an embedded audio input (for example, to support multi-channel, compressed audio formats like Dolby and DTS). Provides 2 independent microphone inputs on 6.3mm connectors (each with optional 48V phantom power) for mixing, switching or talk-over. On the output, besides the audio embedded on HDMI and HDBaseT outputs, the audio signal is also extracted (de-embedded) and output as balanced stereo analog audio, and as digital audio through an S/PDIF connected device, as well as amplified to 20W per channel for connection to loudspeakers.
  • Powerful Audio Features - Includes DSP with audio equalization, mixing, delay and more.
  • Versatile Powering Options - Receives power from a universal power supply (100-240V AC) and provides PoE power to a compatible HDBaseT device.
  • HDTV Compatible.
  • 4K and Legacy Inputs - 8 4K@60 (4:4:4) HDMI inputs, 1 VGA input, and 1 CV (composite video) input.
  • Non-Volatile Memory - Saves final settings before shutdown and retains them for next power up.
  • Convenient Control Options - Local control via front panel buttons (input selection, audio mute, freeze and front panel lock), RS-232, IR remote, and OSD. Long-distance control via Ethernet using embedded web pages.
  • Easy Installation - 19" enclosure for rack mounting a unit in a 1U rack space with included rack ears and universal 100-240V AC power connection.


• Specifications:

  • INPUTS
  • 8 HDMI: On female HDMI connectors
  • 1 Computer Graphics: On a 15-pin HD connector
  • 1 Composite Video: On an RCA connector
  • 8 Unbalanced Stereo Analog Audio: On 3-pin terminal blocks (1 for each HDMI inputs)
  • 1 Unbalanced Stereo Analog Audio: On a 3-pin terminal block (for Computer Graphics input)
  • 1 Unbalanced Stereo Analog Audio: On a 3-pin terminal block (for the CV input)
  • 2 Microphone: On 6mm jacks

    OUTPUTS
  • 1 HDBaseT: On an RJ-45 connector
  • 1 HDMI: On a female HDMI connector
  • 1 Balanced Analog Stereo Audio: On a 5-pin terminal block
  • 1 Digital Audio: On a female S/PDIF connector
  • 1 Speaker: On a 4-pin terminal block

    PORTS
  • 1 RS-232 (Data): On a 3-pin terminal block
  • 1 RS-232 (Control): On a 3-pin terminal block
  • 1 Ethernet: On an RJ-45 connector

    VIDEO
  • Input HDMI Resolutions: 480i/576i, 480p/576p, 640x480@60/72/75/85Hz, 720p@60/50Hz, 800x600@56/60/72/75Hz, 1024x768@60/70/75Hz, 1080i@60/50Hz, 1080p@24/25/30Hz, 1080p@60/50Hz, 1280x1024@60/75Hz, 1280x720@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1600x1200@60Hz, 1600x900@60Hz RB, 1680x1050@60Hz, 1920x1080@60Hz, 1920x1200@60Hz RB, 4K2K@24/25/30/50/60Hz (4:4:4), 4K2K@50/60Hz (4:2:0)
  • Input Computer Graphics Resolutions: 640x480@60/72/75/85Hz, 800x600@56/60/72/75Hz, 1024x768@60/70/75Hz, 1280x1024@60/75Hz, 1280x960@60Hz, 1280x720@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@60Hz, 1920x1200@60Hz RB
  • Input CV Resolution: 480I/576i
  • Output HDMI Resolutions: 480p@60Hz, 576p@50Hz, 720p@50/60Hz, 1080p@24/25/30/50/60Hz, 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x720@60Hz, 1280x800@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@60Hz, 1920x1200@60Hz RB, 4K/2K@50/60Hz (4:2:0), 4K/2K@24/25/30/50/60Hz (4:4:4)
  • Output HDBaseT Resolutions: Same as HDMI, except for 4K/2K@50Hz, 4K/2K@ 60Hz, which are not supported
  • Max. Input Resolution:HDMI: 4K@60Hz (4:4:4)
  • Max. Input Resolution: VGA: 1080p60 / UXGA
  • Max.Output Resolution: HDMI: 4K@60Hz (4:4:4)
  • Max. Output Resolution: HDBaseT: 4K@60Hz (4:2:0)
  • Content Protection: Up to HDCP 2.2
  • HDMI Support: HDR10, CEC, xvYCC color (on input), Dolby TrueHD/DTS-HD Master Audio (by-pass), as specified in HDMI 2.0
  • Latency: 1-2 frames


  • ANALOG AUDIO
  • Speaker Output: 2x20W into 4Ω

    USER INTERFACE
  • Controls: IR remote, Input selection, freeze, mute, XGA/1080p reset, and panel lock buttons, OSD menu
  • Indicators: IR, selected input LEDs

    POWER
  • Source: 100-240V AC 50/60Hz
  • Consumption: 130VA

    ENCLOSURE
  • Size: 19"
  • Type: Aluminum
  • Cooling: Convection ventilation

    ENVIRONMENTAL
  • Operating Temperature: 32° - 104°F
  • Storage Temperature: -40° - 158°F
  • Humidity: 10% to 90%, RHL non-condensing

    REGULATORY COMPLIANCE
  • Standards: UL, CE, FCC

    GENERAL
  • Dimension (WxDxH): 21.65 x 10.87 x 4.21"
  • Weight: 7.5Lbs approx.


• Item Includes:

  • VP-551x Switcher/Scaler
  • Power Cord (1)
  • Rubber Feet (4)
  • Rack Ears (1 set)
  • IR Remote Control (1)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063086701
