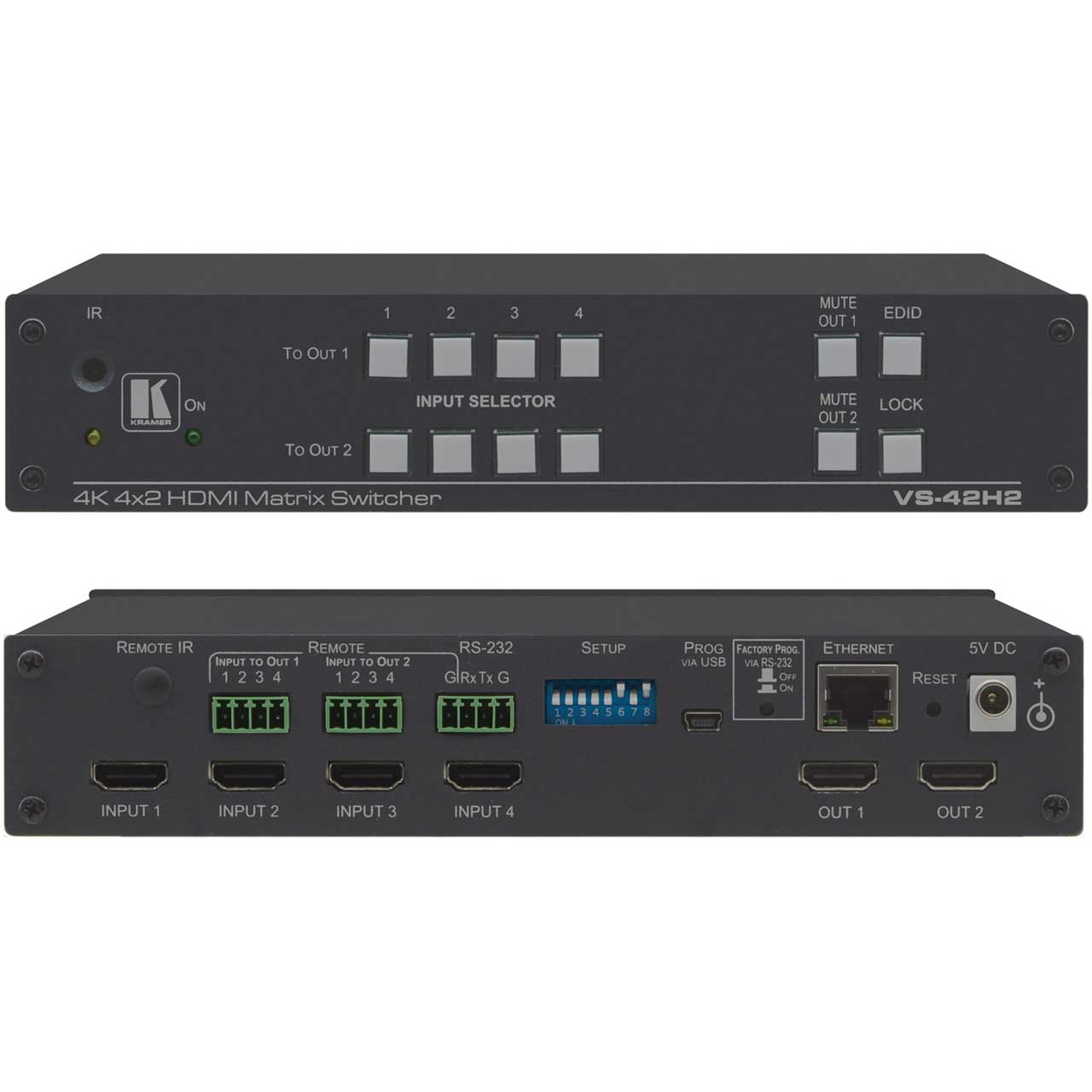

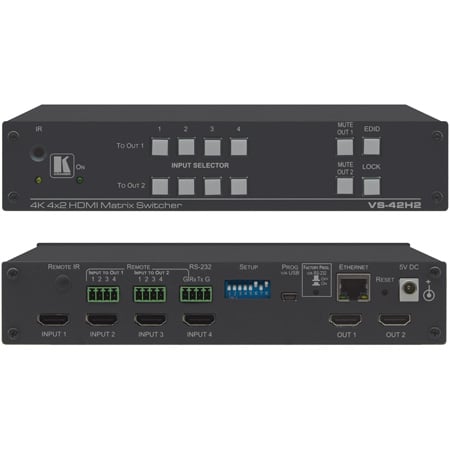

Kramer VS-42H2 4x2 4K HDR HDMI HDCP 2.2 Matrix Switcher

VS-42H2 - Overview

HDCP 2.2/1.4 compliant

• Features:

  • High-Performance AV Matrix - Switches 4 4K@60Hz (4:4:4) HDR HDMI HDCP-compliant signals to 2 18G 4K@60Hz (4:4:4) HDR HDMI HDCP-compliant outputs at up to 18G data rate. Signals are HDCP 2.2/1.4 compliant.
  • Kramer Equalization & reKlocking™ Technology - Rebuilds the digital signal to travel longer distances.
  • EDID Management - Individual EDID management per input. Captures and stores the EDID from a display device.
  • Flexible Content Protection - Selectable HDCP per input.
  • Quick Access to Common Configurations - Save up to six preset configurations.
  • Convenient Unit Control and Configuration - Local control via front panel switching, mute, lock and EDID buttons, and IR remote control. Distance control via user-friendly embedded web pages via the Ethernet, Protocol 3000 API, and RS-232 serial commands transmitted by a PC, touch screen system or other serial controller.
  • Cost-Effective Maintenance - Power status, IR and Input Selection indicators facilitate easy local maintenance and troubleshooting. Local firmware upgrade via USB or RS-232 connection ensures lasting, field-proven deployment.
  • Easy Installation - Half-19" size enables mounting in a 1U rack space with the recommended rack adapter.


• Specifications:

  • INPUTS
  • 4 HDMI: On female HDMI connectors


  • OUTPUTS
  • 2 HDMI: On female HDMI connectors


  • PORTS
  • 1 Ethernet: On an RJ-45 female connector
  • 1 RS-232: On a 3-pin terminal blocks
  • 1 USB: On a mini USB connector
  • 8 Remote Selection Contact-Closure Switches: On 9 terminal block pins


  • VIDEO
  • Max. Resolution: 4K@60Hz 4:4:4
  • Max. Data Rate: 18Gbps (6Gbps per graphic channel)
  • Compliance: HDCP 2.2/1.4


  • USER INTERFACE
  • Control: Input selector, output mute, EDID capture, and panel lock buttons. DIP switch HDCP configuration
  • Indicators: Switching, IR, and power LEDs


  • POWER
  • Source: 5V DC
  • Consumption: 2.5A


  • ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -40° to +70°C (-40° to 158°F)
  • Humidity: 10% to 90%, RH non-condensing


  • STANDARDS COMPLIANCE
  • Safety: CE
  • Environmental: RoHs, WEEE


  • ENCLOSURE
  • Size: Half-19" 1U
  • Type: Aluminum
  • Cooling: Convection ventillation


• Item Includes:

  • 1x Power adapter
  • 4x Rubber Feet
  • 1x IR remote control transmitter


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063085834
