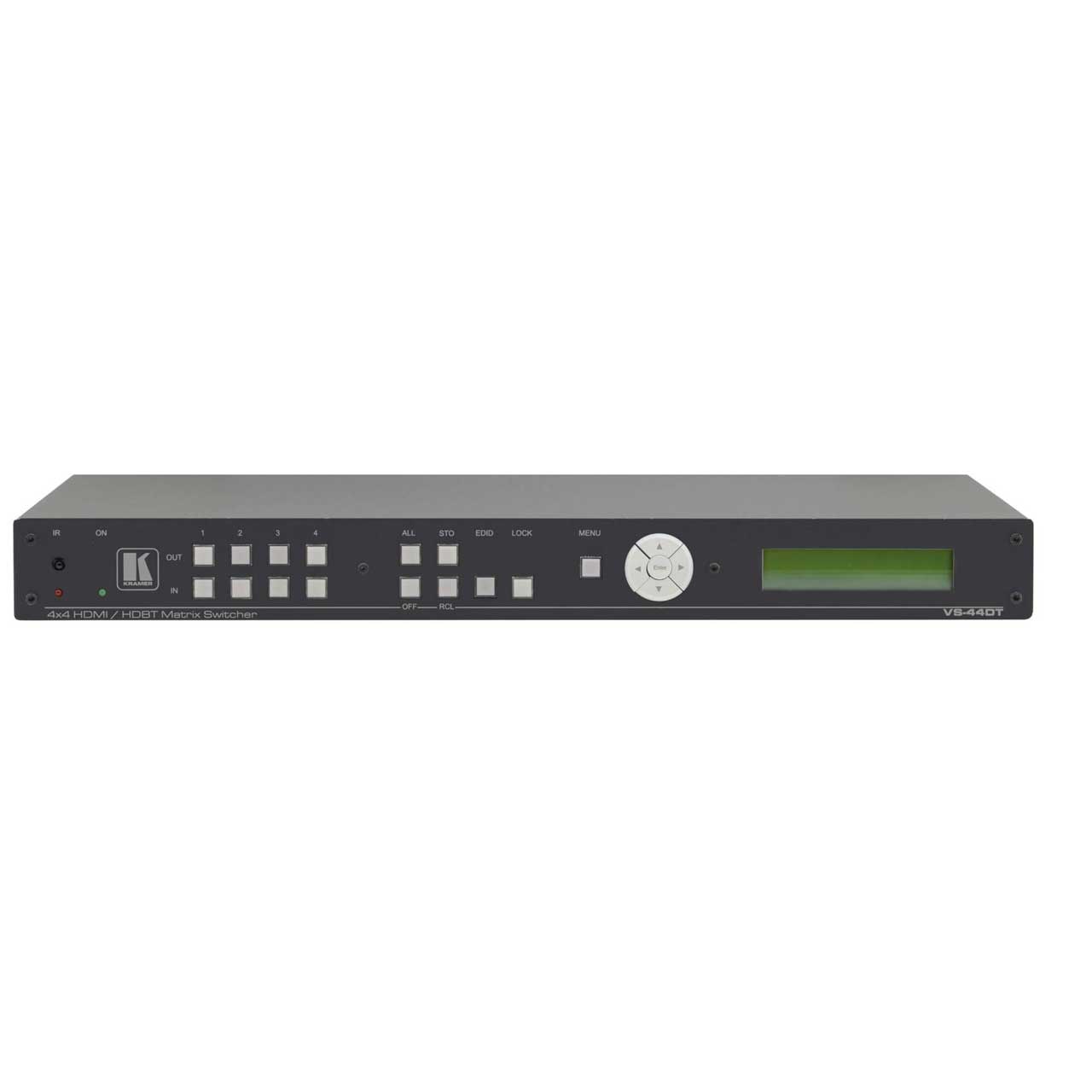

Kramer VS-44DT 4x4 4K60 4:2:0 HDMI/HDBaseT Extended-Reach PoE Matrix Switcher

VS-44DT/110V - Overview

• Features:

  • Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
  • Max. Resolution - 4K@60Hz (4:2:0) and WUXGA.
  • HDBaseT Range - Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC-UNIKAT cables.
  • Cables - For optimum range and performance, use the recommended Kramer cables available at www.kramerav.com/product/VS-44DT.

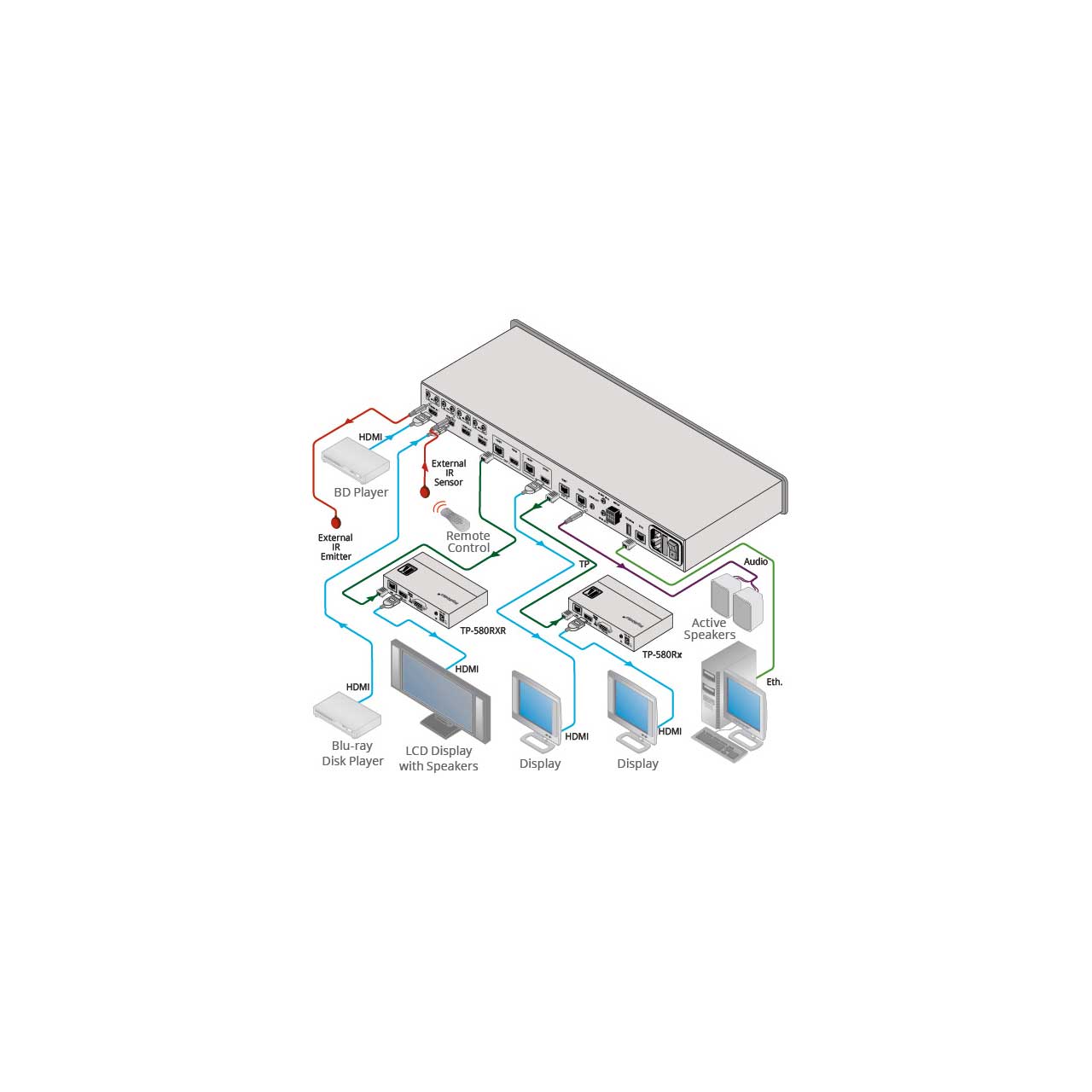

  • HDBaseT Extension - Includes Video, Audio, Ethernet, RS-232 and IR signals.
  • Outputs - 4 HDBaseT with outputs 1 and 2 having simultaneous HDMI outputs.

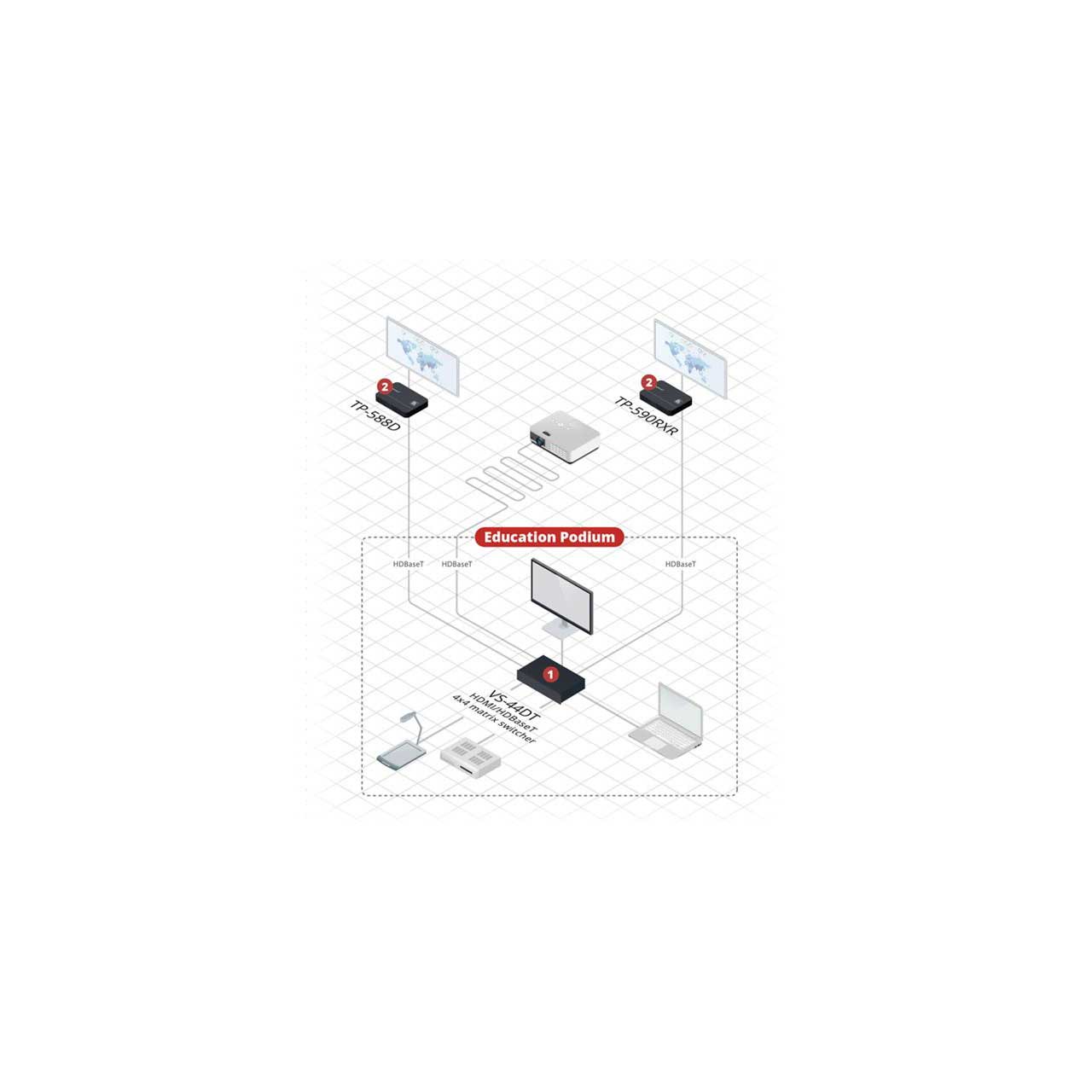

  • PoE Support - PoE provider to HDBaseT receivers such as the TP-588D and TP-780RXR.
  • HDTV Compatible.
  • HDCP Compliant.
  • EDID Capture - Copies and stores the EDID from a display device.
  • HDMI Support - 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS-HD® and 7.1 PCM.
  • Non-Volatile Memory - Stores and recalls preset matrix configurations.
  • Automatic Output Shutdown - If no input signal is detected after a configurable idle period.
  • Kramer Protocol 3000 Support.
  • Lock Button - Prevents unwanted tampering with the settings.
  • Flexible Control Options - Embedded Web server, RS-232, IR remote (available upon request) .
  • Worldwide Power Supply - 100-240V AC.
  • Zoom Rooms Compatible.


• Specifications:

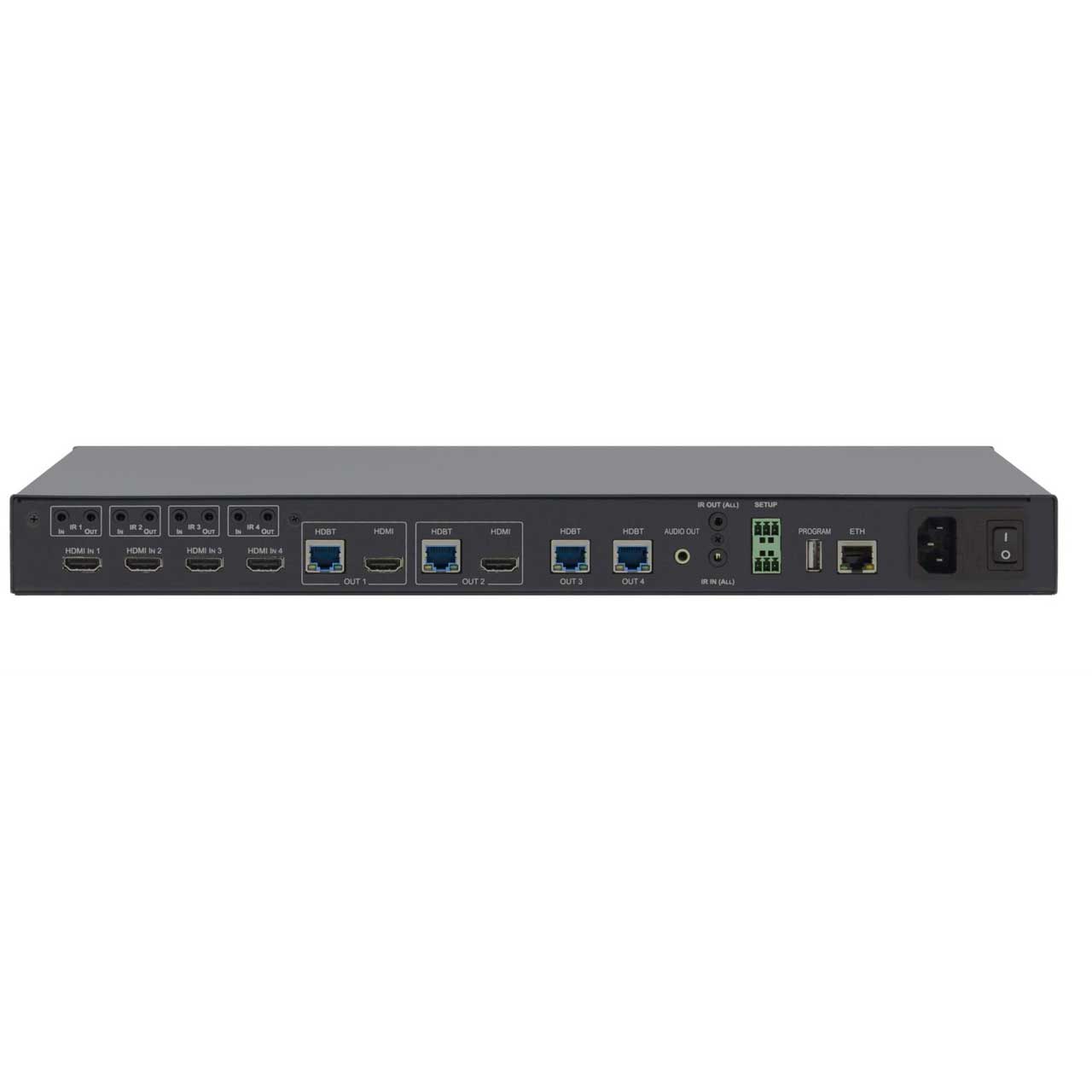

  • INPUTS
  • 4 HDMI on HDMI connectors, 5 IR on 3.5mm mini jack connectors


  • OUTPUTS
  • 2 HDMI connectors, 4 HDBaseT on RJ-45 connectors, 5 IR on 3.5mm mini jack connectors, 1 unbalanced stereo audio on a 3.5mm mini jack connector


  • PORTS
  • 1 Ethernet on an RJ-45 connector, 1 program on a USB connector, 1 RS-232 control on a 3-pin terminal block, 1 RS-232 data on a 3-pin terminal block


  • MAX. DATA RATE
  • 10.2Gbps (3.4Gbps per graphic channel)


  • SUPPORTED RESOLUTIONS
  • VGA to WUXGA (reduced blanking), 4Kx2K @30Hz with Deep Color up to 36bpp


  • HDMI RANGE
  • 15m (49ft) @ 8bit resolution, 10m (33ft) @ 12 bit resolution


  • HDBASET RANGE
  • 100m (328ft) 4K @30Hz 180m (590ft) 1080 @60Hz@24bpp


  • POWER CONSUMPTION
  • 100-240V AC, 50/60Hz, 60VA


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


  • COOLING
  • Fan


  • ENCLOSURE TYPE
  • Aluminum chassis


  • VIBRATION
  • ISTA 1A in carton (International Safe Transit Association)


  • SAFETY REGULATORY COMPLIANCE
  • CE


  • ENVIRONMENTAL REGULATORY COMPLIANCE
  • Complies with appropriate requirements of RoHs and WEEE


• Item Includes:

  • Rack Ears (1 set)
  • IR blaster
  • Power Cord
  • 4 Rubber Feet
  • Quick Start guide


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063073671
