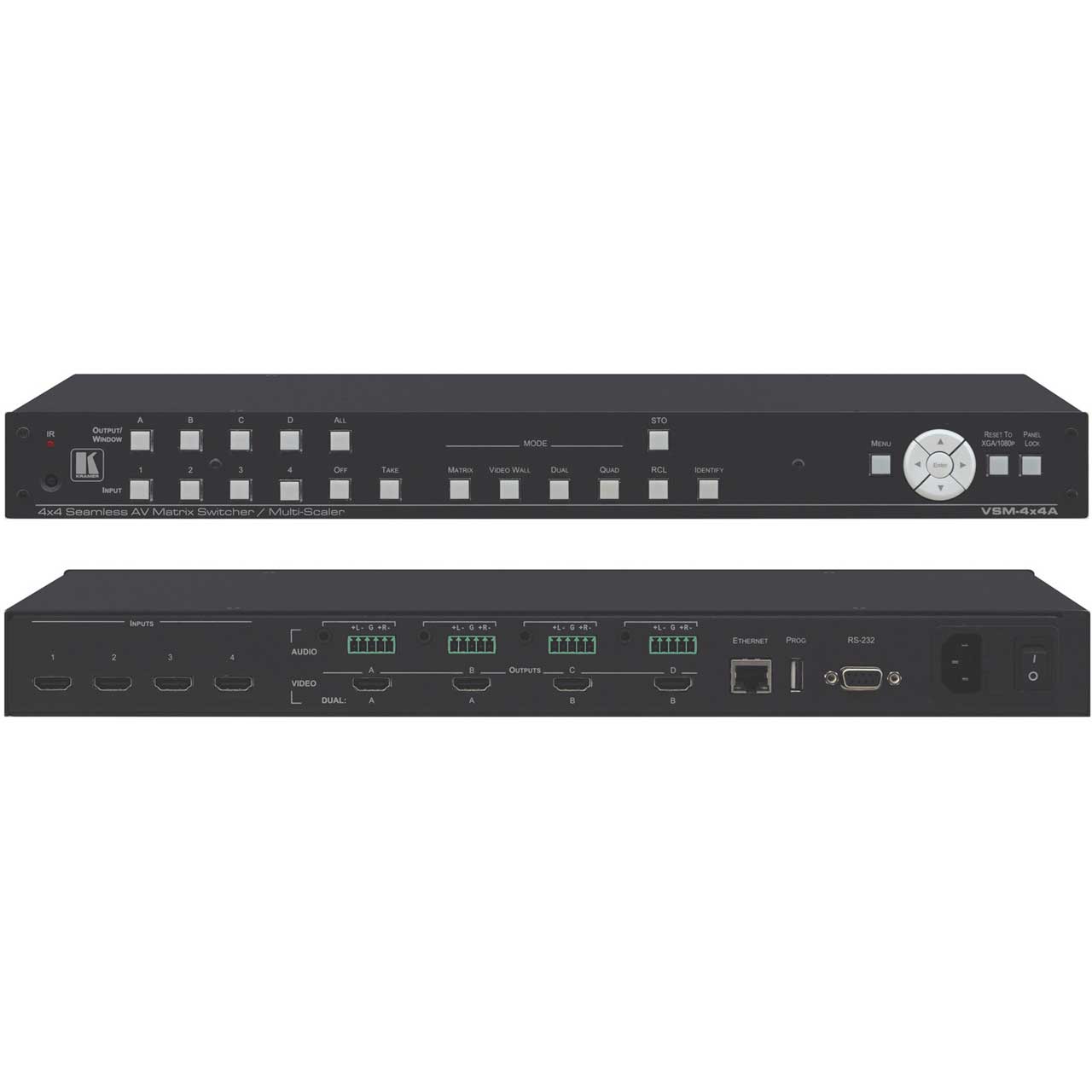

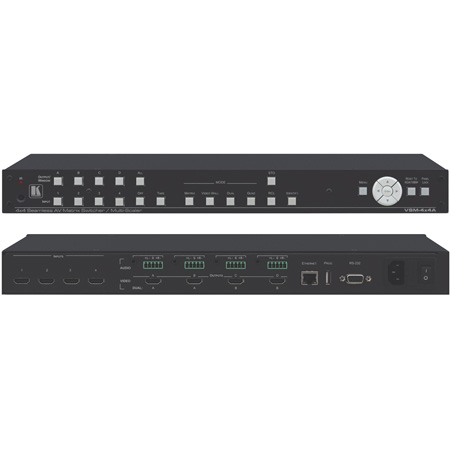

Kramer VSM-4x4A 4x4 Seamless AV Matrix Switcher/Multi-Scaler

VSM-4X4A - Overview

HDTV Compatible & HDCP Compliant

• Features:

  • PixPerfect™ Scaling Technology - Kramer's precision pixel mapping and high-quality scaling technology.
  • HDTV Compatible.
  • HDCP Compliant.
  • 4 HDMI Inputs & 4 Scaled HDMI Outputs.
  • Audio - 4 balanced and 4 unbalanced audio outputs with independent volume settings per output, embedded audio on the HDMI inputs and outputs.
  • Selectable Operation Modes - 4x4 matrix switcher, video wall (2x2 or 1x4 configuration), dual display (Split/PIP/POP) or quad display.
  • Bezel Correction Options - In video wall mode.
  • Matrix Switching Modes - Seamless switching mode (zero-time video cuts), or fade-through-black mode (enabling independent output resolutions).
  • Constant Output Sync - For all modes of operation.
  • HDMI Support - Deep Color, Dolby Digital Plus, DTS, DTS-HD®, LPCM 2CH/6CH/8CH, AC3.
  • Per Port HDCP and EDID Settings
  • Input Resolution Range - VGA to WUXGA and 480i to 1080p.
  • Output Resolution Range - 480p to 1080p.
  • Multiple Aspect Ratio Selections - Full, 4:3, 16:9 and best fit.
  • Built-in ProcAmp - Color, hue, sharpness, noise, contrast and brightness.
  • Front Panel Control - Operation mode, TAKE button and menu buttons.
  • 4 Preset Memory Locations - For each operation mode for quick access to common IN-OUT configurations.
  • Front Panel Lockout.
  • Non-Volatile Memory - Saves final settings.
  • Additional Internal Memory - Supports larger firmware code.
  • Firmware Upgrade - Via Ethernet or the program mini USB connector.
  • Varied Control Options - Front panel buttons, RS-232 serial commands transmitted by a touch screen system, PC, or other serial controller; infrared remote control transmitter with OSD (on-screen display), Ethernet with built-in web pages.


• Specifications:

  • INPUTS
  • 4 HDMI connectors (HDMI, HDCP version 1.1)


  • OUTPUTS
  • 4 HDMI connectors (HDMI, HDCP version 1.1), 4 balanced stereo audio on terminal block connectors, 4 unbalanced audio on 3.5mm mini jacks


  • PORTS
  • 1 RS-232 on 9-pin connector, 1 Ethernet on RJ-45 connector, 1 USB on Type-A connector


  • OUTPUT RESOLUTIONS
  • NATIVE, 480p, 576p, 720p50, 720p59, 720p60, 1080p24, 1080p50, 1080p60, 1024x768, 1280x800, 1280x1024, 1366x768, 1440x900, 1600x900, 1680x1050 or 1920x1200


  • VIDEO LATENCY
  • Progressive input: 30ms (typical)


  • CONTROLS
  • Front panel buttons, IR with customized remote control, RS-232, Ethernet with built-in Web pages, USB port for programming


  • POWER SOURCE
  • 100-240V AC, 27VA max


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


• Item Includes:

  • VSM-4X4A Switcher/Scaler
  • Power cord
  • Rack ears
  • IR remote control


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063083007
