6012L - Overview

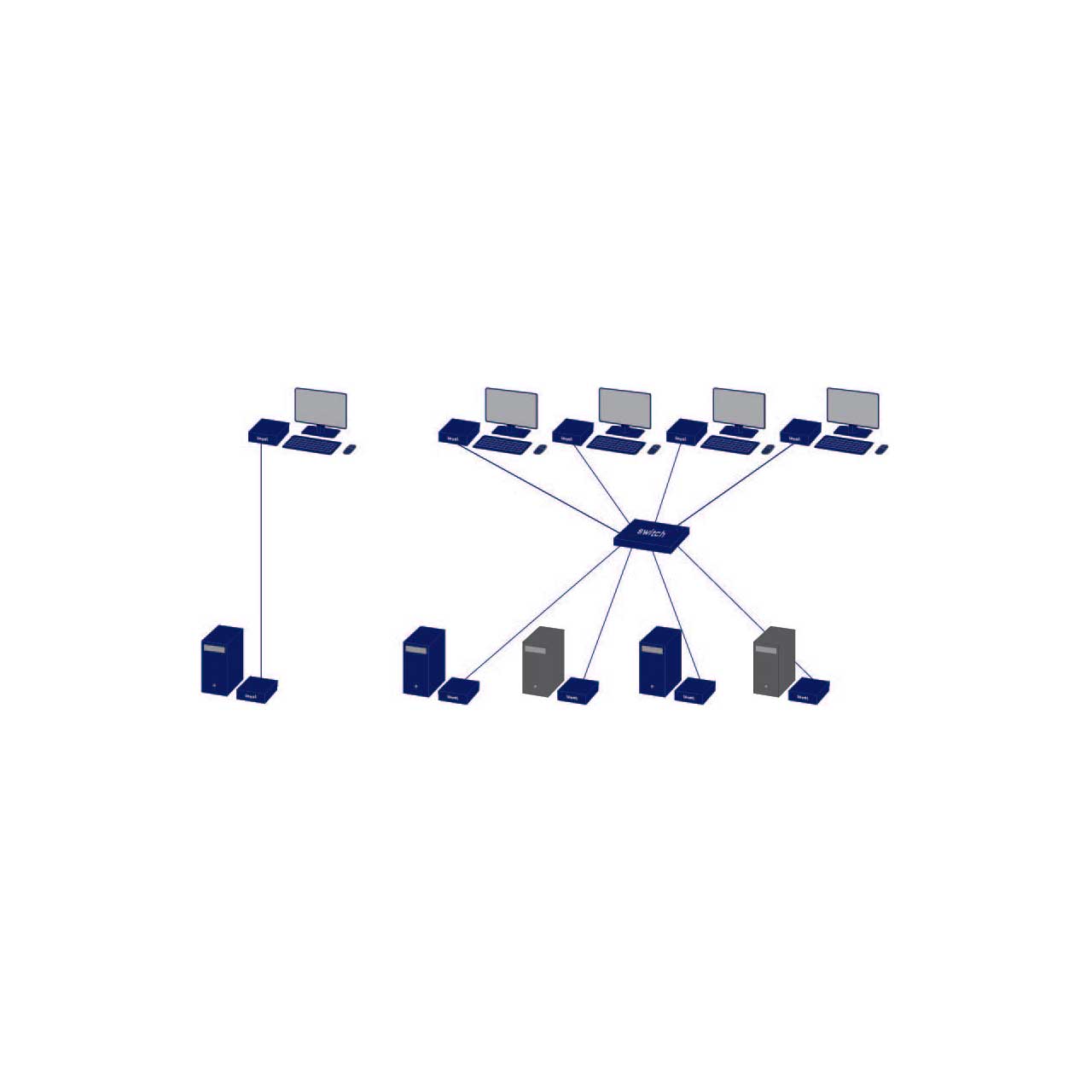

MASTERflex single redundant is a highly optimized KVM Extender over IP for distances of up to 150m/492ft with a resolution of 1920x1200@60Hz and is available in copper. For point to point connection or in matrix switching systems up to 100 endpoints.

Redundant for High Security in Critical Applications
The perfect video compression enables a low latency (<1.38ms) and a delay-free transmission. USB and video are transmitted over a CAT5e/6/7 cable.

The in-house development of USB 2.0 transparent is extremely flexible and supports USB devices such as tablets, touch screens, sound modules, printers. The USB upgrade supports USB sticks and USB hard drives. The kvm-tec feature "USB save" prevents viruses from penetrating via the USB interface by deactivating mass storage devices. USB memory upgrade is pre-installed and can be activated.

  • Features:

    • DVI-D/DVI-I/USB2.0 Extender Over IP
    • Single Redundant in Copper
    • Max Resolution - 1920 x 1200 @60hz
    • Max Distance - 150m
    • Only One Cable For USB And Video
    • Sound Embedded & Sound Analog (Opt)
    • Full HD Videos In Real Time
    • PoE Version (PoE Capable Network Switch)


  • Specifications:

    • Interfaces:
    • Video: 1 x DVI in, 1x DVI out
    • USB 2.0: 1 x USB-B to PC
    • Audio: 1 x 3.5mm Jack (Line In), 1 x 3.5mm Jack (Line Out)

      Video:
    • Signal Type: DVI-D
    • Resolution (digital): Max. 1920 x 1200 @60Hz
    • Signal Type: DVI-I
    • Resolution (analog) (opt.): Max. 1920 x 1200 @60Hz
    • Color Mode: 24 Bit

      Audio:
    • Type: Analogue / Embedded
    • Bandwidth: 16 Bit, 44kHz, 2 Ch

      USB:
    • Specification: USB 2.0
    • Type: Transparent
    • Rate: Max. 480 Mbit/s, Mass Storage Devices & Camera Optional

      Casing:
    • Material: Anodized Aluminum
    • Dimensions: 108 x 43 x 107.5mm
    • Shipping Weight: 0.65 Lbs

      Power Supply:
    • Type: Wall Power Supply Unit, 12 VDC 2A Redundant Max 35V
    • Operating Temperature: 0 to +45 °C (32 to 113 °F)
    • Storage Temperature: -25 to 80 °C (-13 to 176 °F)


  • Item Includes:

    • 1x MV1 local (CPU)
    • 1x Plug-in Power Supply 12V 1A (EU plug)
    • 1x DVI - DVI Cable 1.8m
    • 1x USB Cable 1.8m
    • 4x Device Feet
    • 1x Quick Instruction


  • Warranty:

    • 2 Year Warranty (5 Year Optional)


  • GTIN:

    0051497112899
