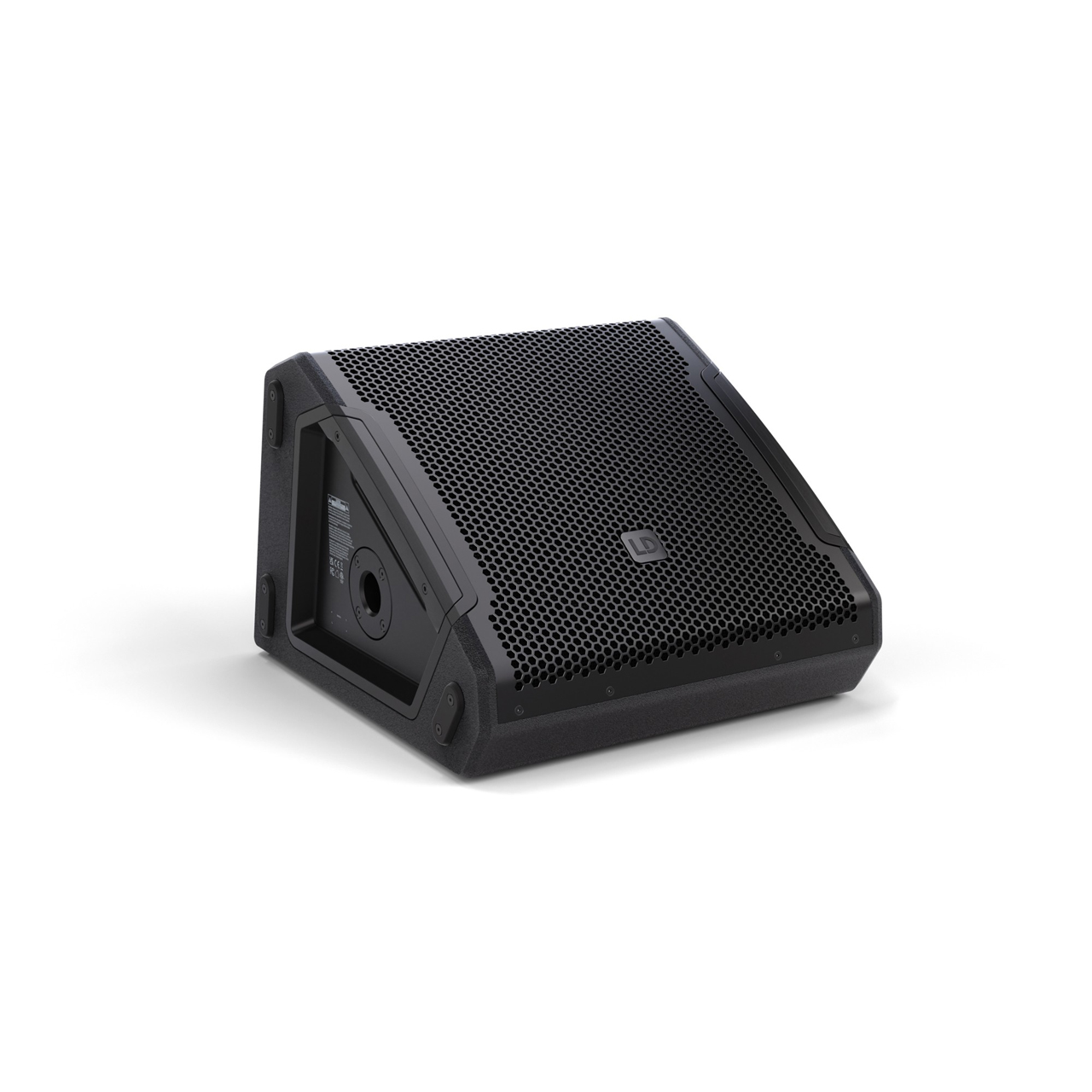

LD Systems STINGER MON 121 AG3 - 12 Inch Powered Coaxial Stage Monitor - PowerCON Compatible

ITEM #: LDS-MON121AG3 MFG #: LDS-MON121AG3(US)

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$599.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


LDS-MON121AG3(US) - Overview

Class-D power amplifier with 300 W RMS/1200 W peak and 127 dB max. SPL

The LD Systems MON 12 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

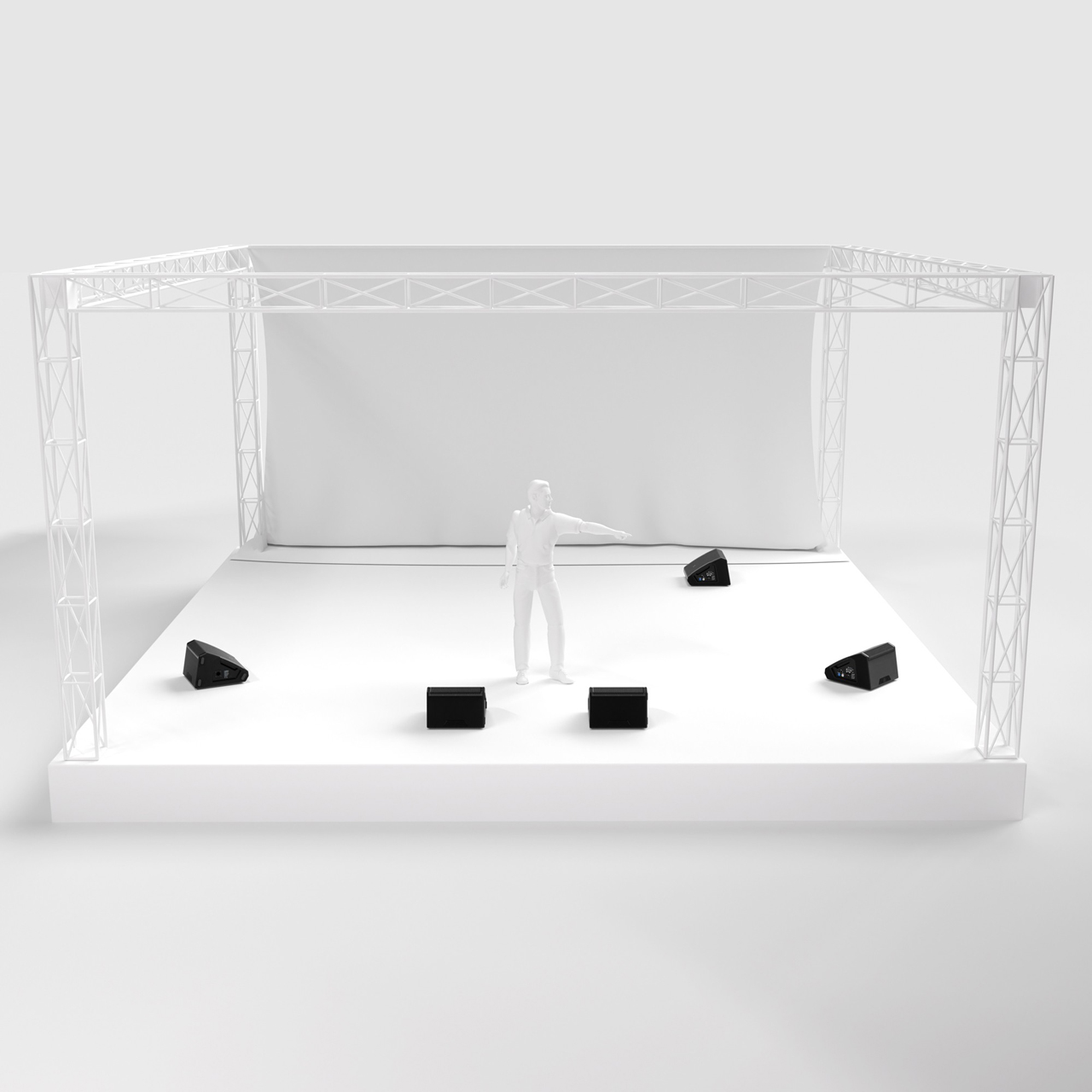

For decades, 12"/1" stage monitors have been the golden mean when it comes to sonority, sound pressure and portability. With coaxial design, smart electronics and a professional look, the MON 12 A G3 brings this concept into the "modern age". The ideal dispersion geometry of 50° x 90° for monitor use or 90° x 50° for FOH use make it a multi-talent that offers the right solution for a wealth of different tasks.

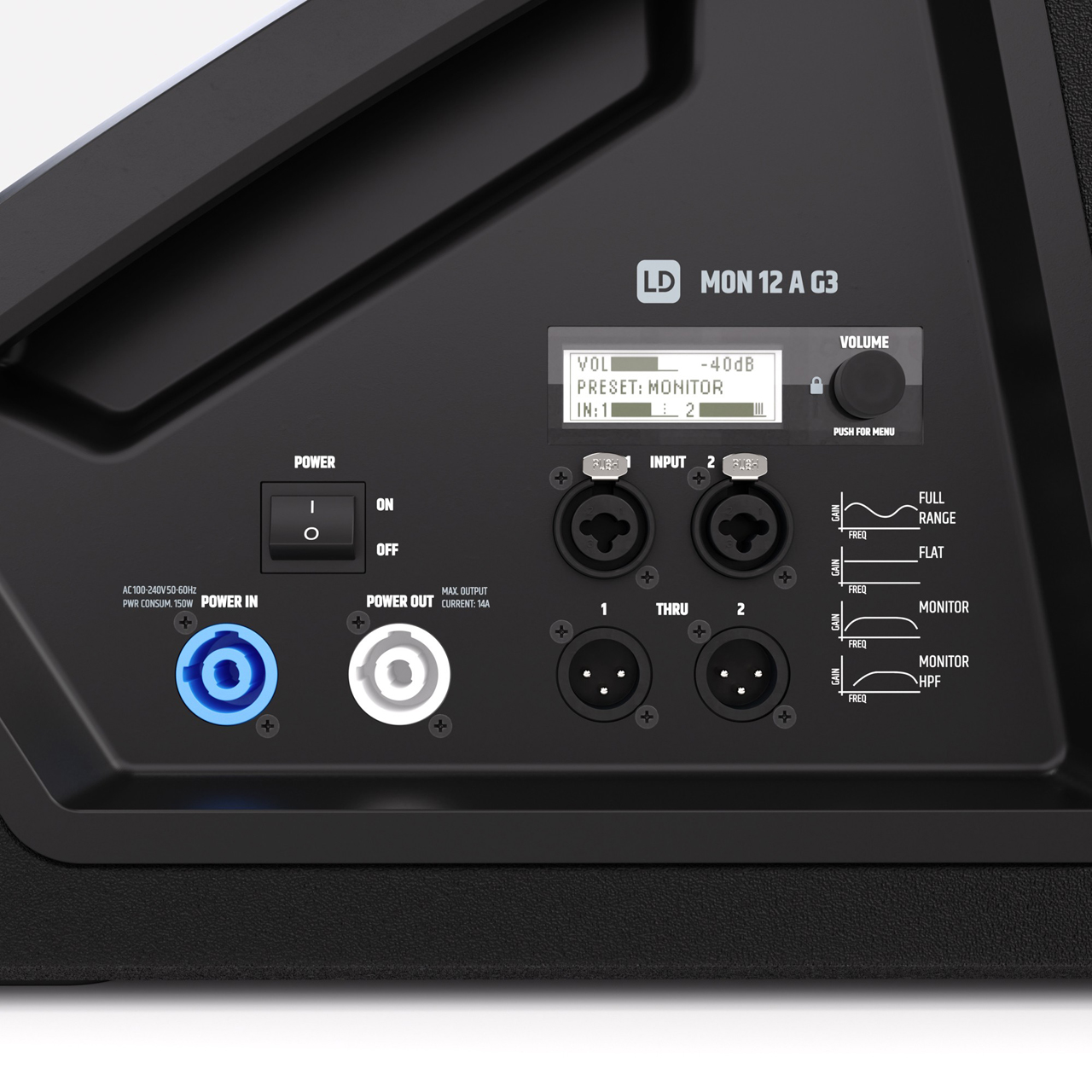

Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.

  • Features:

    • Compact high-performance stage monitor with top-of-the-range technologies
    • Class-D power amplifier with 300 W RMS/1200 W peak and 127 dB max. SPL

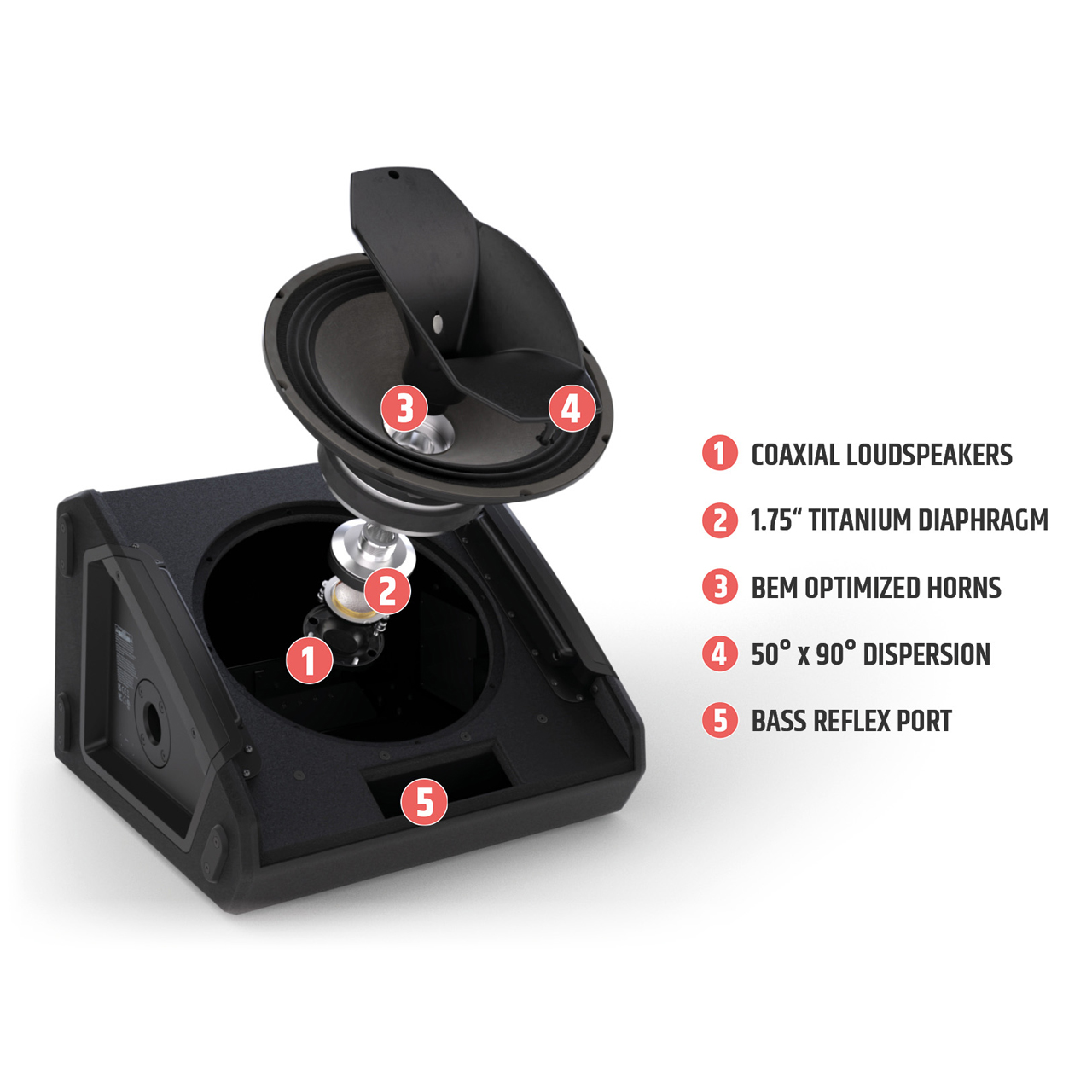

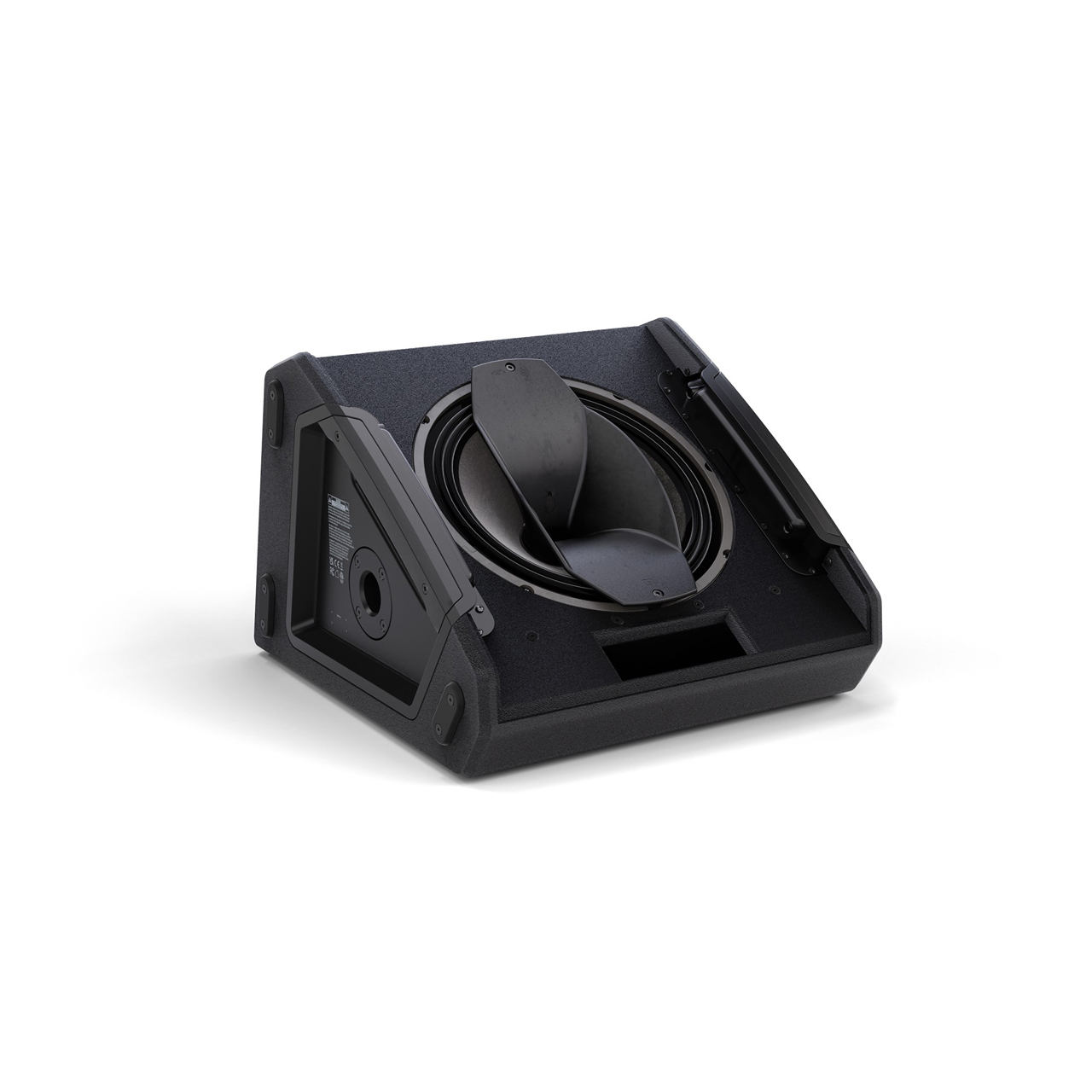

    • Coaxial design for true point source with a 1.75" titanium-diaphragm HF driver
    • 12" woofer with 2.5" voice coil
    • Optimised, practical radiation pattern due to 50° x 90° CD horn
    • DynXr DSP (Gen.2) for distortion-free sound even at maximum volume
    • 3-band EQ, Notch filter, 4 application presets and delay function
    • PowerCON compatible loop-through professional power connection
    • 35 mm speaker stand flange for FOH applications
    • Durable Polyurea coating and heavy-duty front grille

  • Specifications:

    • General
    • Product Type: Stage monitors
    • Type: Powered
    • Color: Black
    • System Output (RMS): 300 W
    • System Output (Peak): 1200 W
    • Max. SPL Average (Sine burst): 120 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
    • Max. SPL Peak (Sine burst): 127 dB (fullspace @1m, 10% THD)
    • Frequency Response (-3 dB): 68 - 18000 Hz
    • Frequency Response (-10 dB): 55 - 20000 Hz
    • Crossover Frequency: 1400 Hz
    • Monitor Angle: 33°
    • Dispersion (H x V): 50° x 90°
    • Width: 16.7" (425 mm)
    • Depth: 17.8" (453 mm)
    • Height: 12.4" (315 mm)
    • Features: 3-band EQ (High, Mid, Low), 4 Application presets, Delay line, Notch filter
    • Weight: 38.36 lbs (17.4 kg)

      Low/Mid Woofer
    • Low/Mid Woofer Dimensions: 12"
    • Woofer Dimensions (mm): 304.8 mm
    • Woofer Magnet: Ferrite
    • Woofer Brand: Custom-made
    • Woofer Type: Coaxial loudspeaker
    • Woofer Voice Coil (inch): 2.5"
    • Woofer Voice Coil (mm): 65 mm
    • Cabinet Construction: Bass Reflex
    • Cabinet Material: 15 mm Birch Plywood, 15 mm MDF

      HF
    • Horn: CD Horn
    • Tweeter Dimensions: 1"
    • Tweeter Dimensions (mm): 25.4 mm
    • Tweeter Magnet: Ferrite
    • Tweeter Brand: Custom-made
    • Tweeter Voice Coil: 1.75"
    • Tweeter Voice Coil (mm): 44.45 mm

      Amplifier Module (Integrated)
    • Amplifier: Class D
    • Protection Circuits: Multiband limiter, over voltage, over-current, thermal overload
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Humidity Range: < 80 % ( non-condensing )
    • Fuse: T4AL 250 V
    • Controls: On/Off switch, Rotary/push encoder
    • Indicators: LC display
    • Power Supply: SMPS
    • Operating Voltage: 100 V AC - 240 V AC, 50 - 60 Hz
    • Power Consumption: 150 W
    • Power In/Out: PowerCON compatible
    • Line Inputs: 2
    • Line Input Connectors: 6.3 mm jack, XLR - combo
    • Line Thru: 2
    • Line Through Connector: XLR

  • Item Includes:

    • 1x MON 12 A G3 powered coaxial stage monitor, black
    • 1x Power cord
    • 1x User manual

  • Warranty:

    • 1-year
