LD Systems LDMON12AG3W 12 Inch Powered Coaxial Stage Monitor - PowerCON Compatible - White

ITEM #: LDS-MON12AG3W MFG #: LDS-MON12AG3W

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$799.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


LDS-MON12AG3W - Overview

The LD Systems MON 12 A G3 W is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

For decades, 12"/1" stage monitors have been the golden mean when it comes to sonority, sound pressure and portability. With coaxial design, smart electronics and a professional look, the MON 12 A G3 W brings this concept into the "modern age". The ideal dispersion geometry of 50° x 90° for monitor use or 90° x 50° for FOH use make it a multi-talent that offers the right solution for a wealth of different tasks.

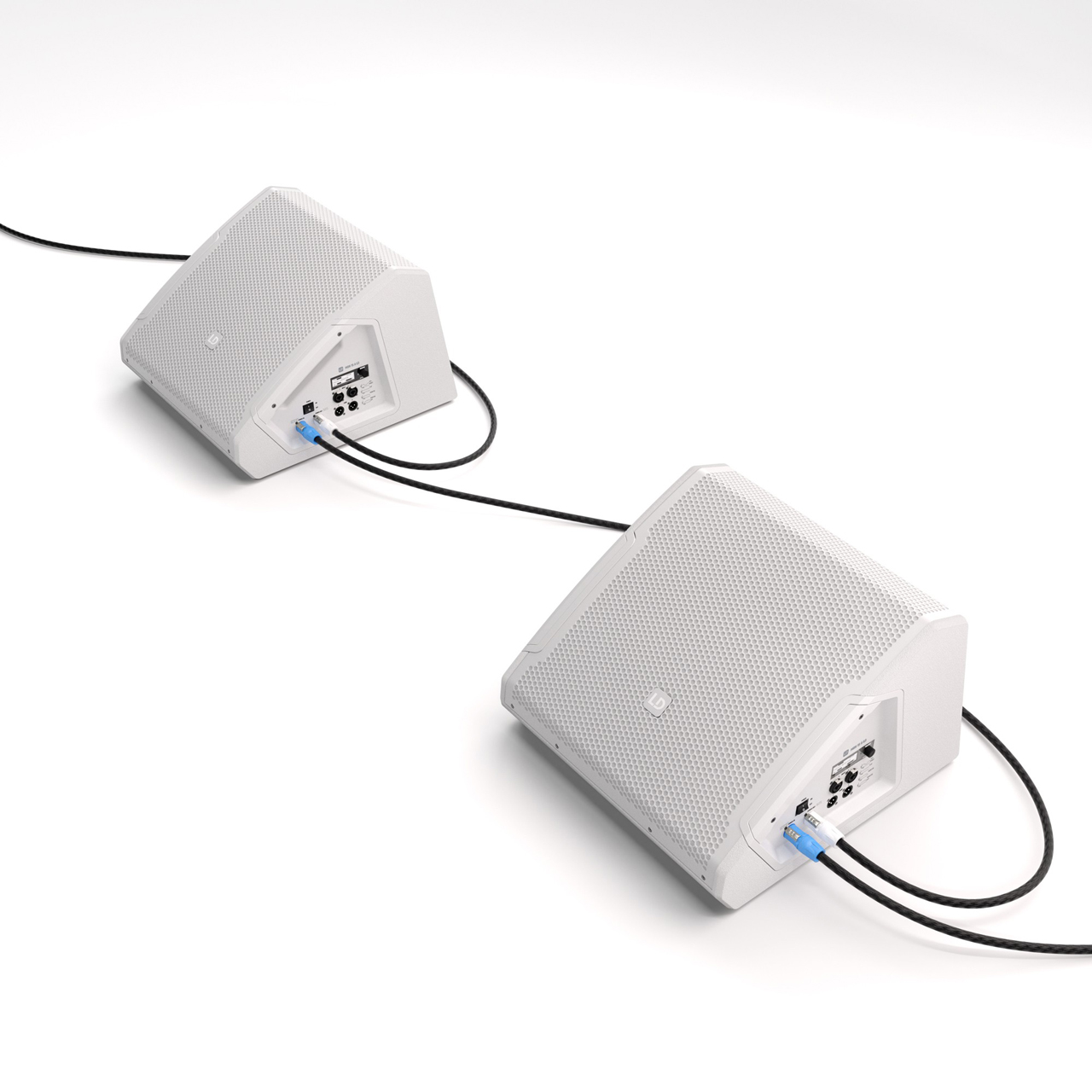

Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.

  • Features:

    • Compact high-performance stage monitor with top-of-the-range technologies
    • Class-D power amplifier with 300W RMS/1200W peak and 127dB max. SPL
    • Coaxial design for true point source with a 1.75" titanium-diaphragm HF driver

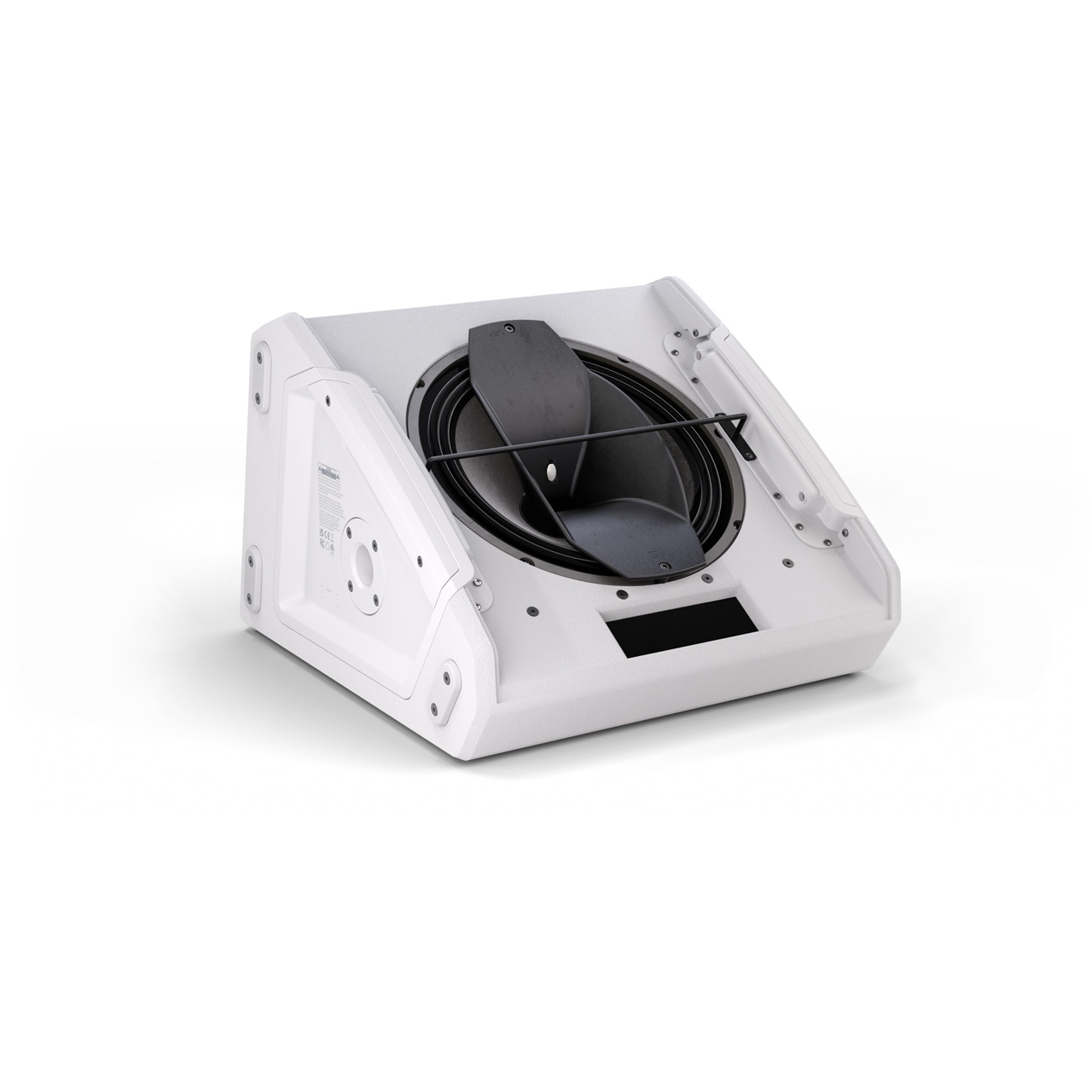

    • 12" woofer with 2.5" voice coil
    • Optimized, practical radiation pattern due to 50° x 90° CD horn
    • DynX DSP (Gen.2) for distortion-free sound even at maximum volume
    • 3-band EQ, Notch filter, 4 application presets and delay function
    • PowerCON compatible loop-through professional power connection

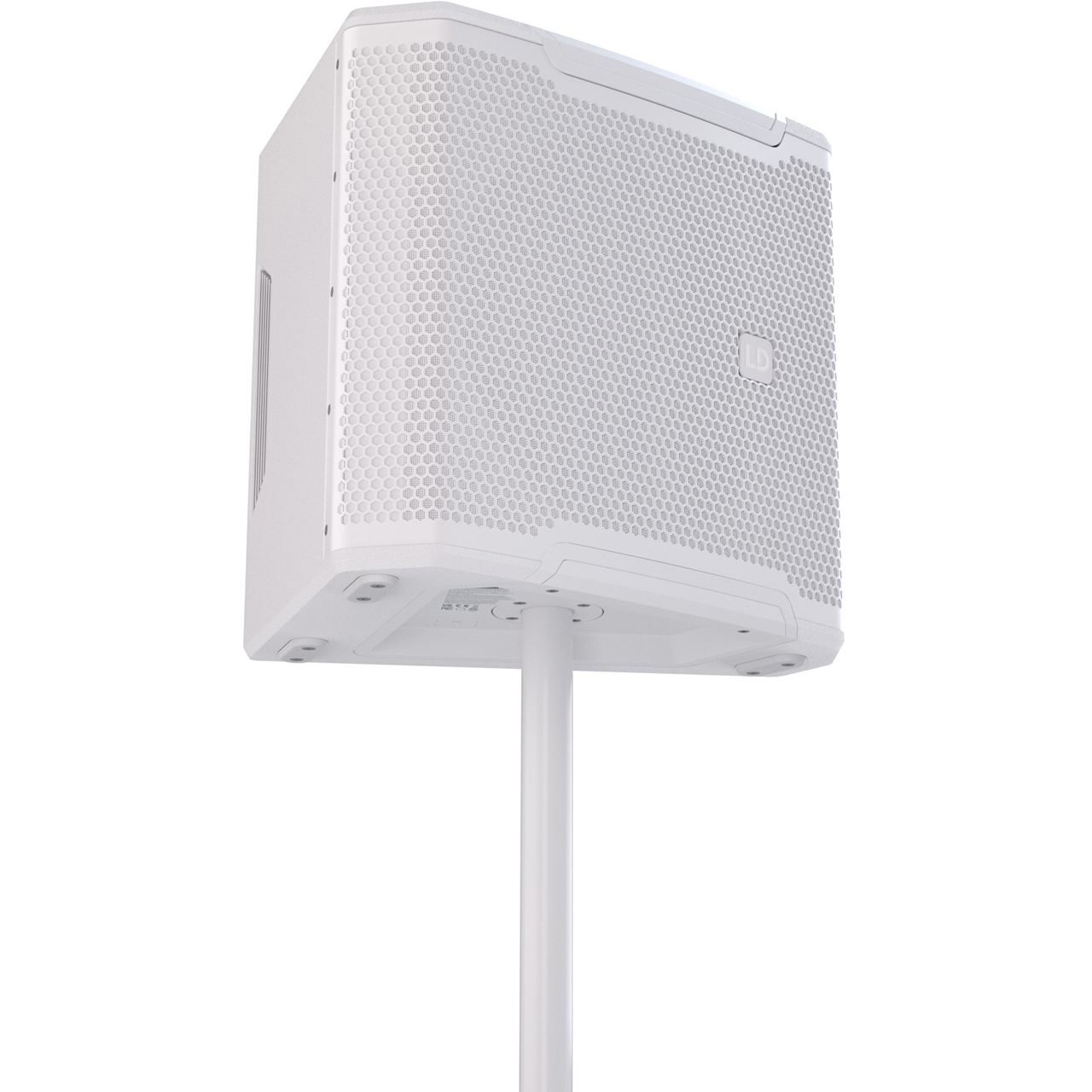

    • 35mm speaker stand flange for FOH applications
    • Durable Polyurea coating and heavy-duty front grille

  • Specifications:

    • General
    • Color: White
    • System Output (RMS): 300W
    • System Output (Peak): 1200W
    • Max. SPL Average (Sine burst): 120dB (100Hz - 12kHz, fullspace @1m, 10% THD)
    • Max. SPL Peak (Sine burst): 127dB (fullspace @1m, 10% THD)
    • Frequency Response (-3dB): 68Hz - 18kHz
    • Frequency Response (-10dB): 55Hz - 20kHz
    • Crossover Frequency: 1400Hz
    • Monitor Angle: 33°
    • Dispersion (HxV): 50° x 90°
    • Dimensions (HxWxD): 12.4" x 16.73" x 17.83" (315mm x 425mm x 453mm)
    • Features: 3-band EQ (High, Mid, Low), 4 Application presets, Delay line, Notch filter
    • Weight: 38.36lbs (17.4kg)

      Low/Mid Woofer
    • Low/Mid Woofer Dimensions: 12" (304.8mm)
    • Woofer Magnet: Ferrite
    • Woofer Brand: Custom-made
    • Woofer Type: Coaxial loudspeaker
    • Woofer Voice Coil: 2.5" (65mm)
    • Cabinet Construction: Bass Reflex
    • Cabinet Material: 15mm Birch Plywood, 15mm MDF

      HF
    • Horn: CD Horn
    • Tweeter Dimensions: 1" (25.4mm)
    • Tweeter Magnet: Ferrite
    • Tweeter Brand: Custom-made
    • Tweeter Voice Coil: 1.75" (44.45mm)

      Amplifier Module (Integrated)
    • Amplifier: Class D
    • Protection Circuits: Multiband limiter, over voltage, over-current, thermal overload
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Humidity Range: < 80 % (non-condensing)
    • Fuse: T4AL 250 V
    • Controls: On/Off switch, Rotary/push encoder
    • Indicators: LC display
    • Power Supply: SMPS
    • Operating Voltage: 100V AC - 240V AC, 50 - 60Hz
    • Power Consumption: 150W

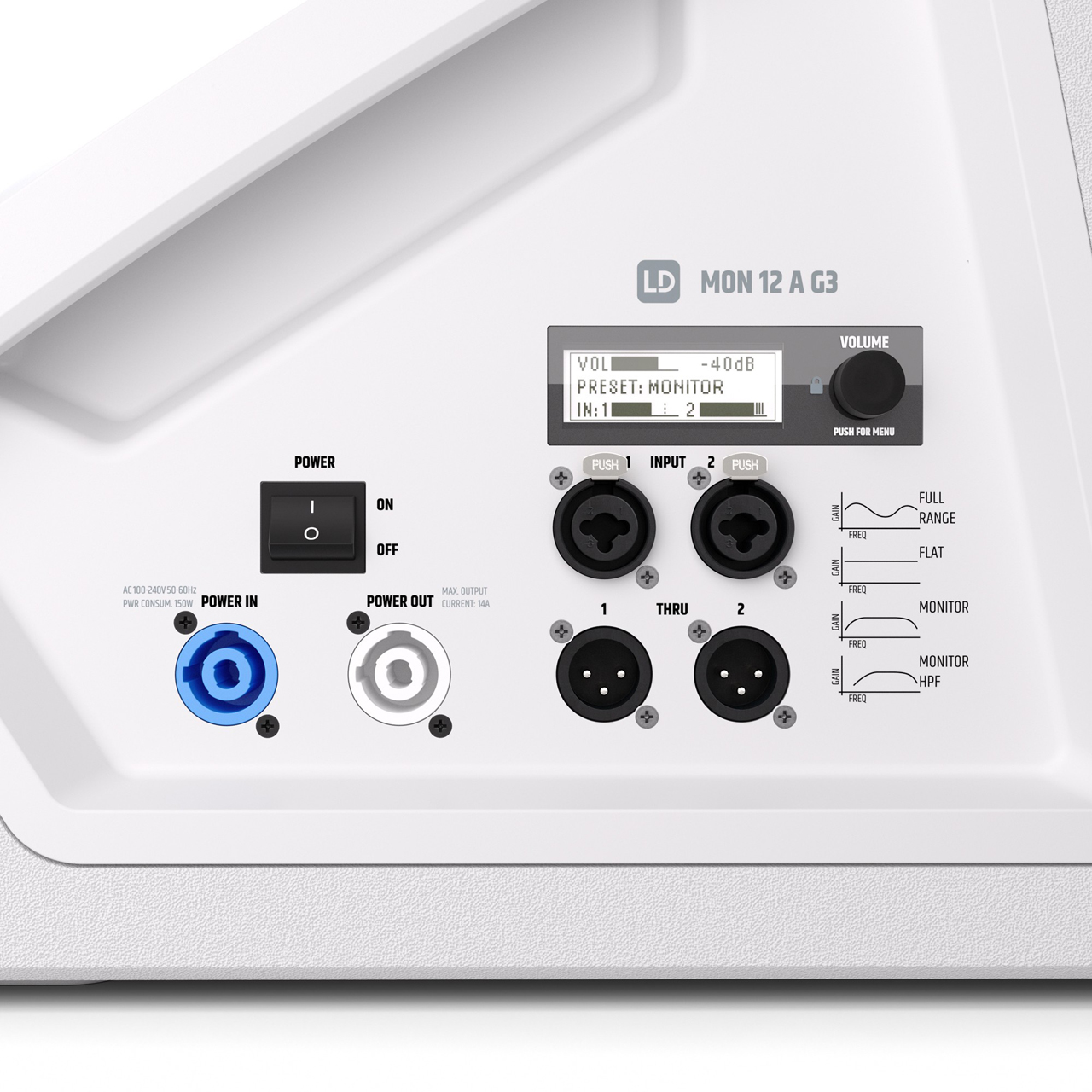

    • Power In/Out: PowerCON compatible
    • Line Inputs: 2
    • Line Input Connectors: XLR/TRS combo
    • Line Thru: 2
    • Line Through Connector: XLR

  • Item Includes:

    • 1x MON 12 A G3 powered coaxial stage monitor, white
    • 1x Power cord
    • 1x User manual

  • Warranty:

    • 2 Year Warranty
