LD Systems LDMON8AG3W 8 Inch Powered Coaxial Stage Monitor - PowerCON Compatible - White

ITEM #: LDS-MON8AG3W MFG #: LDS-MON8AG3W

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$599.99

Our Price:

$499.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    LDS-MON8AG3W - Overview

    The LD Systems MON 8 A G3 W is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

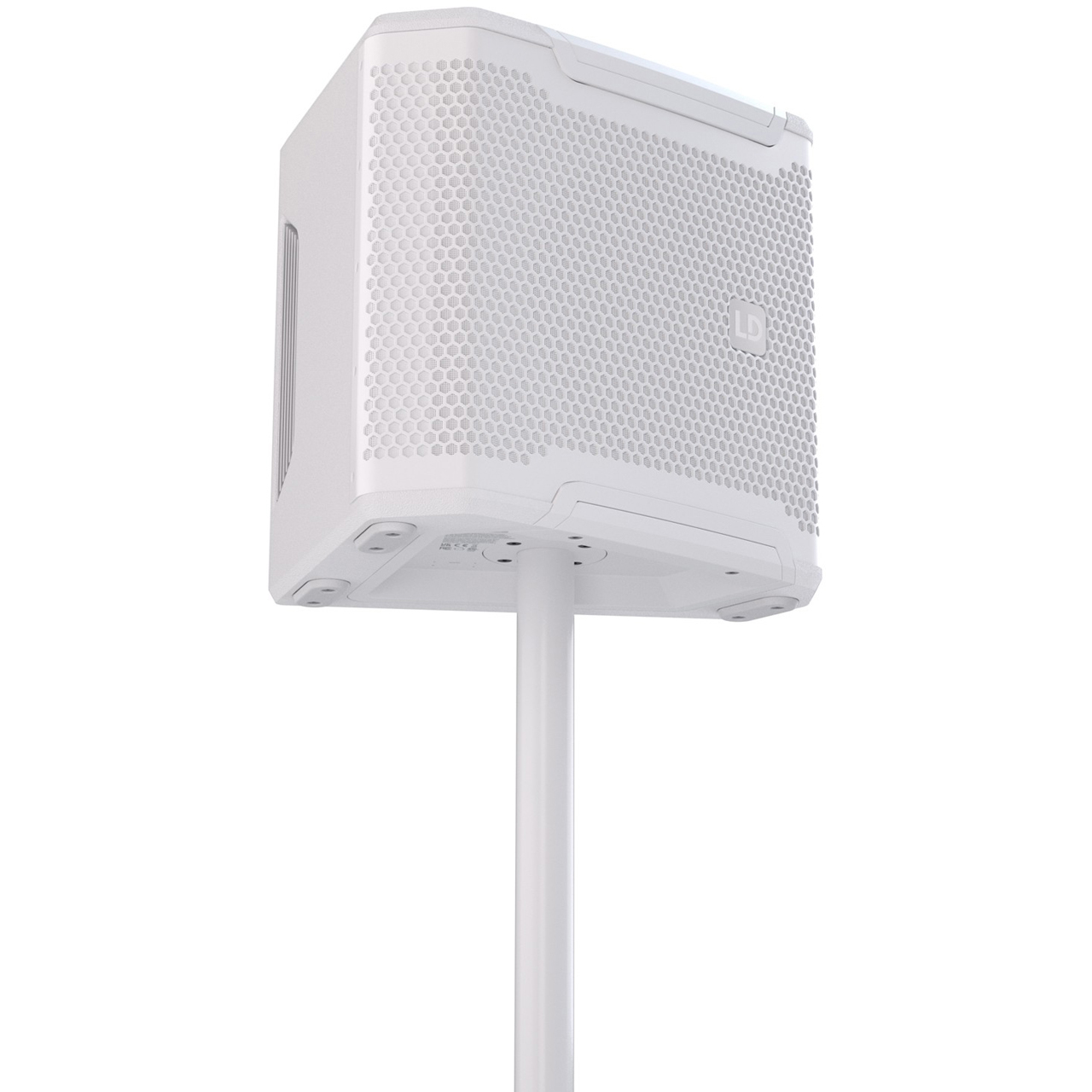

    As the smallest member of the new stage monitor family, the MON 8 A G3 W is particularly inconspicuous and flexible in use: as a stage monitor, in a DJ setup or on a speaker stand as a FOH speaker, as a satellite in 2.1 systems or as a delay line speaker. At the same time, the MON 8 A G3 W offers a frequency response of up to 59 Hz, which is unusually low for its size, and thus full-range sound.

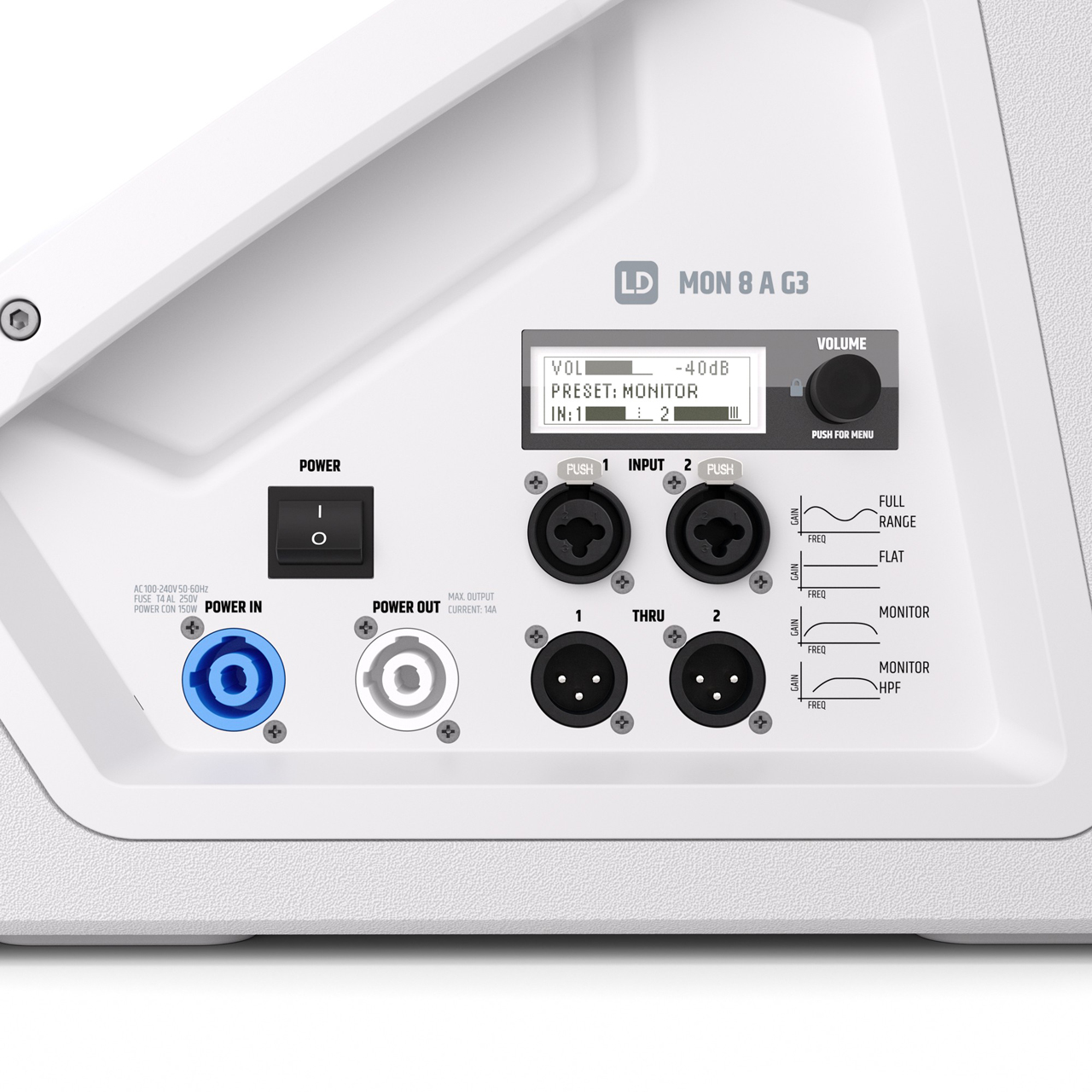

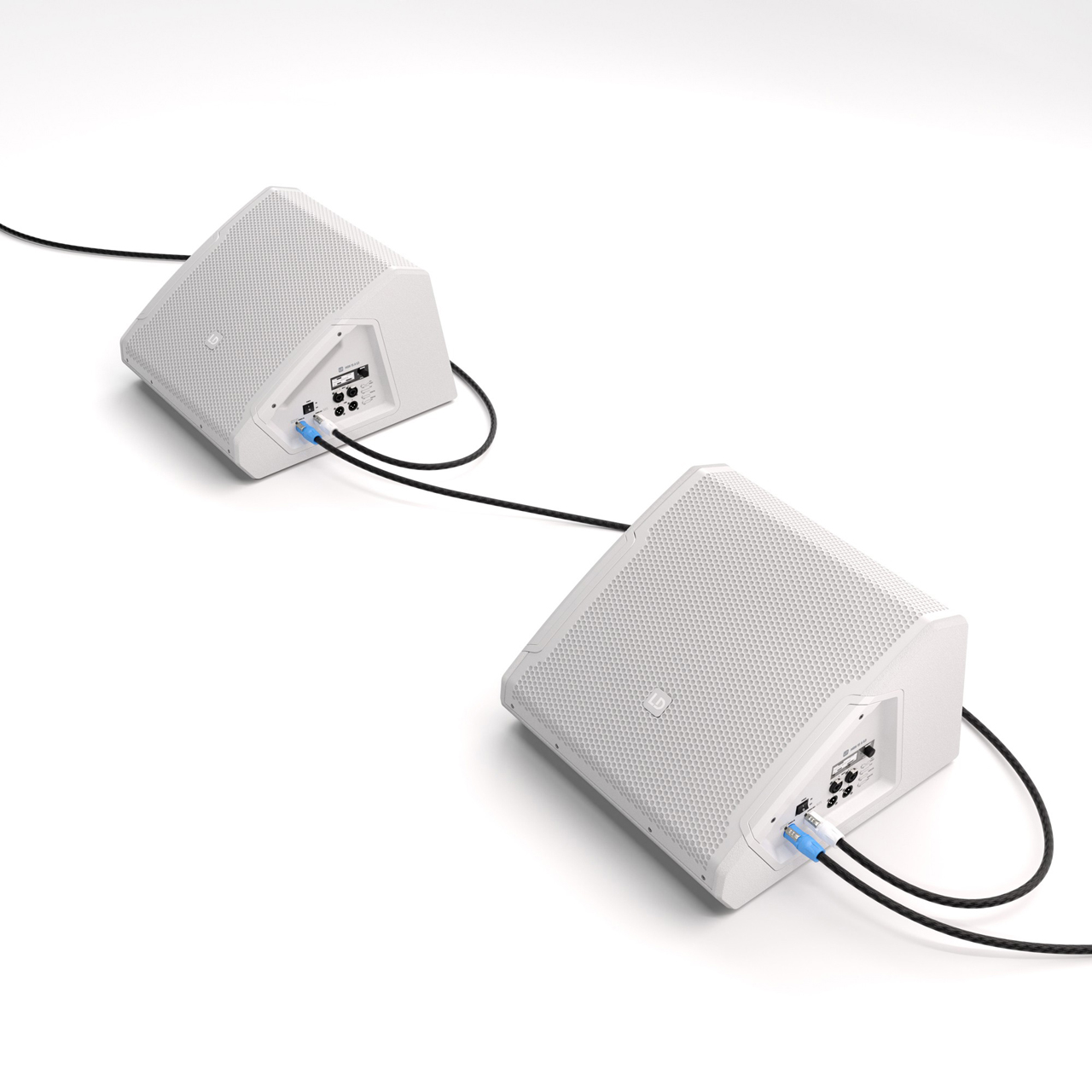

    Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.

    • Features:

      • Compact high-performance stage monitor with top-of-the-range technologies
      • Class-D power amplifier with 300W RMS/1200W peak and 121dB max. SPL
      • Coaxial design for true point source with a 1.75" titanium-diaphragm HF driver
      • 8" woofer with 2.5" voice coil
      • Optimized, practical radiation pattern due to 50° x 90° CD horn
      • DynX DSP (Gen.2) for distortion-free sound even at maximum volume
      • 3-band EQ, Notch filter, 4 application presets and delay function
      • PowerCON compatible loop-through professional power connection
      • 35mm speaker stand flange for FOH applications
      • Durable Polyurea coating and heavy-duty front grille

    • Specifications:

      • General
      • Color: White
      • System Output (RMS): 300W
      • System Output (Peak): 1200W
      • Max. SPL Average (Sine burst): 116dB ( 100Hz - 12kHz, fullspace @1m, 10% THD )
      • Max. SPL Peak (Sine burst): 121dB ( fullspace @1m, 10% THD )
      • Frequency Response (-3dB): 68Hz - 18kHz
      • Frequency Response (-10dB): 59Hz - 20kHz
      • Crossover Frequency: 2500Hz
      • Monitor Angle: 33°
      • Dispersion (HxV): 50° x 90°
      • Dimensions (HxWxD): 10.94" x 13.39" x 14.49" (278mm x 340mm x 368mm)
      • Weight: 29.1lbs (13.2kg)
      • Features: 3-band EQ (High, Mid, Low), 4 Application presets, Delay line, Notch filter

        Low/Mid Woofer
      • Low/Mid Woofer Dimensions: 8" (203.2mm)
      • Woofer Magnet: Ferrite
      • Woofer Brand: Custom-made
      • Woofer Type: Coaxial loudspeaker
      • Woofer Voice Coil: 2.5" (65mm)
      • Cabinet Construction: Bass Reflex
      • Cabinet Material: 15mm Birch Plywood, 15mm MDF

        HF
      • Horn: CD Horn
      • Tweeter Dimensions: 1" (25.4mm)
      • Tweeter Magnet: Ferrite
      • Tweeter Brand: Custom-made
      • Tweeter Voice Coil: 1.75" (44.45mm)

        Amplifier Module (Integrated)
      • Amplifier: Class D
      • Protection Circuits: Multiband limiter, over voltage, over-current, thermal overload
      • Operating Temperature: 32°F - 104°F (0°C - 40°C)
      • Humidity Range: < 80 % (non-condensing)
      • Fuse: T4AL 250 V
      • Controls: On/Off switch, Rotary/Push encoder
      • Indicators: LC display
      • Power Supply: SMPS
      • Operating Voltage: 100V AC - 240V AC, 50 - 60Hz
      • Power Consumption: 150 W
      • Power In/Out: PowerCON compatible
      • Line Inputs: 2
      • Line Input Connectors: XLR/TRS combo
      • Line Thru: 2
      • Line Thru Connector: XLR

    • Item Includes:

      • 1x MON 8 A G3 powered coaxial stage monitor, white
      • 1x Power cord
      • 1x User manual

    • Warranty:

      • 2 Year Warranty
