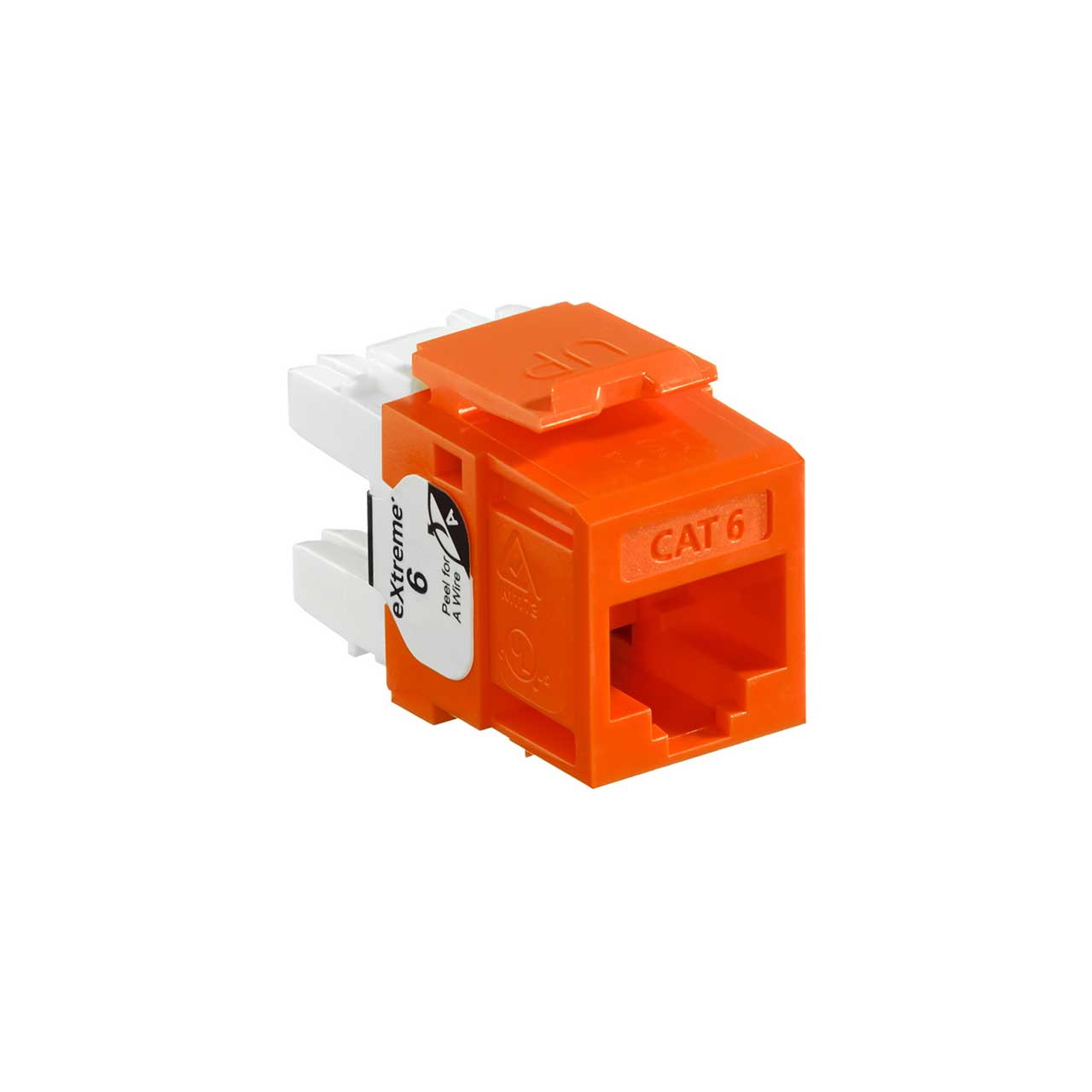

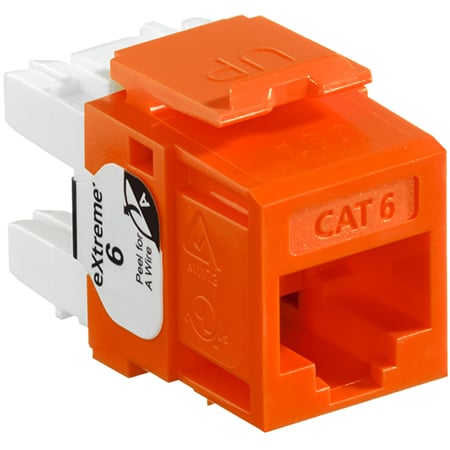

Leviton 61110-RO6 eXtreme 6+ QuickPort Cat6 Jack - Orange

61110-RO6 - Overview

• Features:

  • Terminates 26 to 22 AWG solid conductors and 24 to 22 AWG stranded conductors
  • Terminates 26 AWG stranded conductors up to 5 times
  • Capable of multiple re-terminations
  • Gas-tight IDC jacks prevent corrosion
  • Dual-layer T568B/T568A wiring label simplifies punchdown
  • Patented Retention Force Technology protects tines from damage and increases system longevity
  • Pair Separation Tower design facilitates separation of conductors and minimizes untwisting
  • 180-degree configuration allows for rear termination
  • Available in 13 ANSI/TIA-606-C compatible colors for color coding or organization
  • Available individually, in bulk packages of 25, and in bulk packages of 150 with a JackRapidT Punchdown Tool
  • Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor (100 watts) continuously
  • ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) applications


• Specifications:

  • Product Features
  • Body Color: Orange
  • Brand: eXtreme
  • Cable Type: 8-Conductor UTP Copper Cat 5, 5e and 6
  • Category Rating: Cat 6
  • Color: Orange
  • Connector Feature: Channel/Component Rated
  • Contact Base Material: Phosphor Bronze
  • Contact Sub-Surface Material: 100 microinches thick Nickel-Plated
  • Contact Surface Material: 50 microinches thick Gold-Plated
  • Flammability: Rated V-0 per UL 94
  • Module Style: Connector
  • Module Type: Category 6
  • Packaging: Single Pack 1/bag
  • Position / Conductor: 8P8C
  • Shielding: UTP
  • Standards and Certifications: TIA/EIA cULus Listed
  • Termination Type: 110 Punchdown
  • Warranty: 1 Year Limited

    Material Specifications
  • Body Color: Orange
  • Body Material: High-Impact Fire-Retardant Plastic
  • Contact Base Material: Phosphor Bronze
  • Contact Sub-Surface Material: 100 microinches thick Nickel-Plated
  • Contact Surface Material: 50 microinches thick Gold-Plated

    Mechanical Specifications
  • Cable Type: 8-Conductor UTP Copper Cat 5, 5e and 6
  • Connector Feature: Channel/Component Rated
  • Position / Conductor: 8P8C
  • Product ID: Permanently laser-engraved
  • Style Name: eXtreme
  • Termination Type: 110 Punchdown
  • Wiring Standard: T568A T568B

    Performance Specifications
  • Module Type: Category 6

    Standards and Certifications
  • CSA: Certified
  • FCC: Part 68 Compliant
  • NEC: Article 800 Compliant
  • TIA/EIA: TIA-568-B
  • UL: cULus Listed


• Item Includes:

  • 1x Leviton 61110-RO6 eXtreme 6+ QuickPort Cat6 Jack - Orange


• GTIN:

  0078477144640
