Lex LDP1.8K 1800W Slim Dimmer Plus - DMX or Manual Control - 5-15

ITEM #: LEX-LDP1-8K MFG #: LDP1.8K

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,684.45

Our Price:

$1,471.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    LDP1.8K - Overview

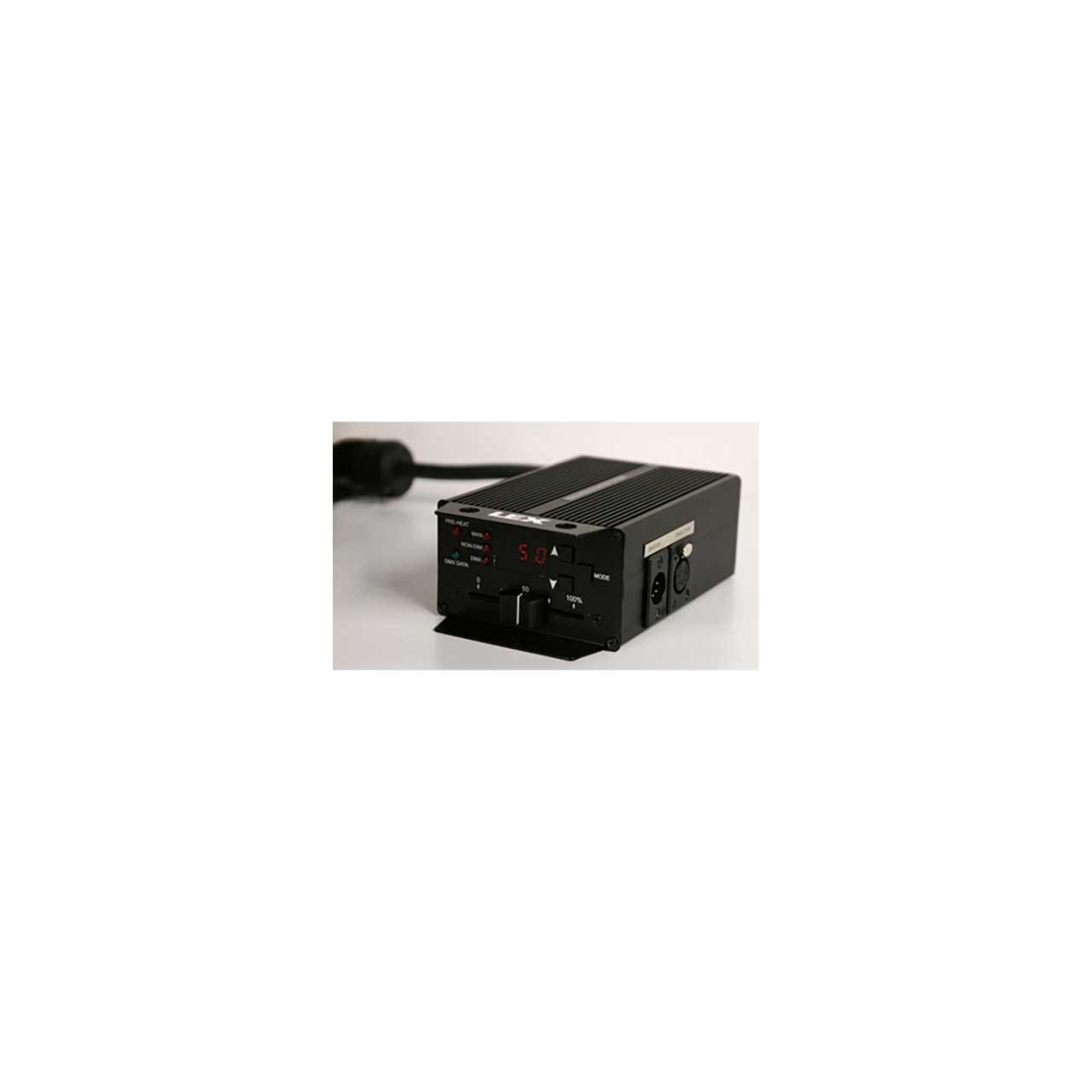

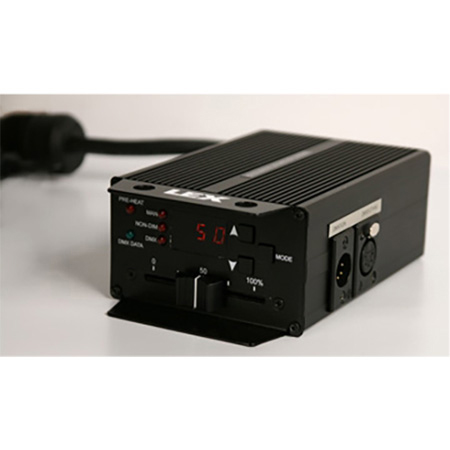

    The Lex LDP1.8K Slim Dimmer Plus is a compact, feature-rich 1800W dimmer, which employs DMX512 communication. This dimmer can be controlled locally and used as a part of a location lighting kit to balance the lighting from several sources. It can also be controlled from a lighting console using DMX, and used to augment an entertainment lighting system.

    Application:
    Use one or more Slim Dimmer Plus to balance location lighting or to dim entertainment lighting. The Slim Dimmer can also be used in last minute situations where "one more dimmer" is needed.

    • Features:

      • Control using both DMX and a front panel fader for maximum versatility
      • Large display showing dimmer level and DMX address for easy setup
      • Can configure as a DMX controlled electronic non-dim to switch loads on and off remotely
      • Durable, compact construction for long life and reliability
      • Variety of mounting options available with optional hardware

    • Specifications:

      • Rating: 15 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC
      • Input: (1) NEMA 5-15, 15 Amp plug on an 18 inch 12/3 SO cable
      • Output: (1) NEMA 5-15, 15 Amp receptacle
      • Minumum/Maximum Load: 60W/1.8 kW
      • Overcurrent Protection: 15 Amp push to reset circuit breaker
      • Dimensions: 7.3"L x 4.15"W x 2.5"H
      • Weight: 2.1 lbs.
