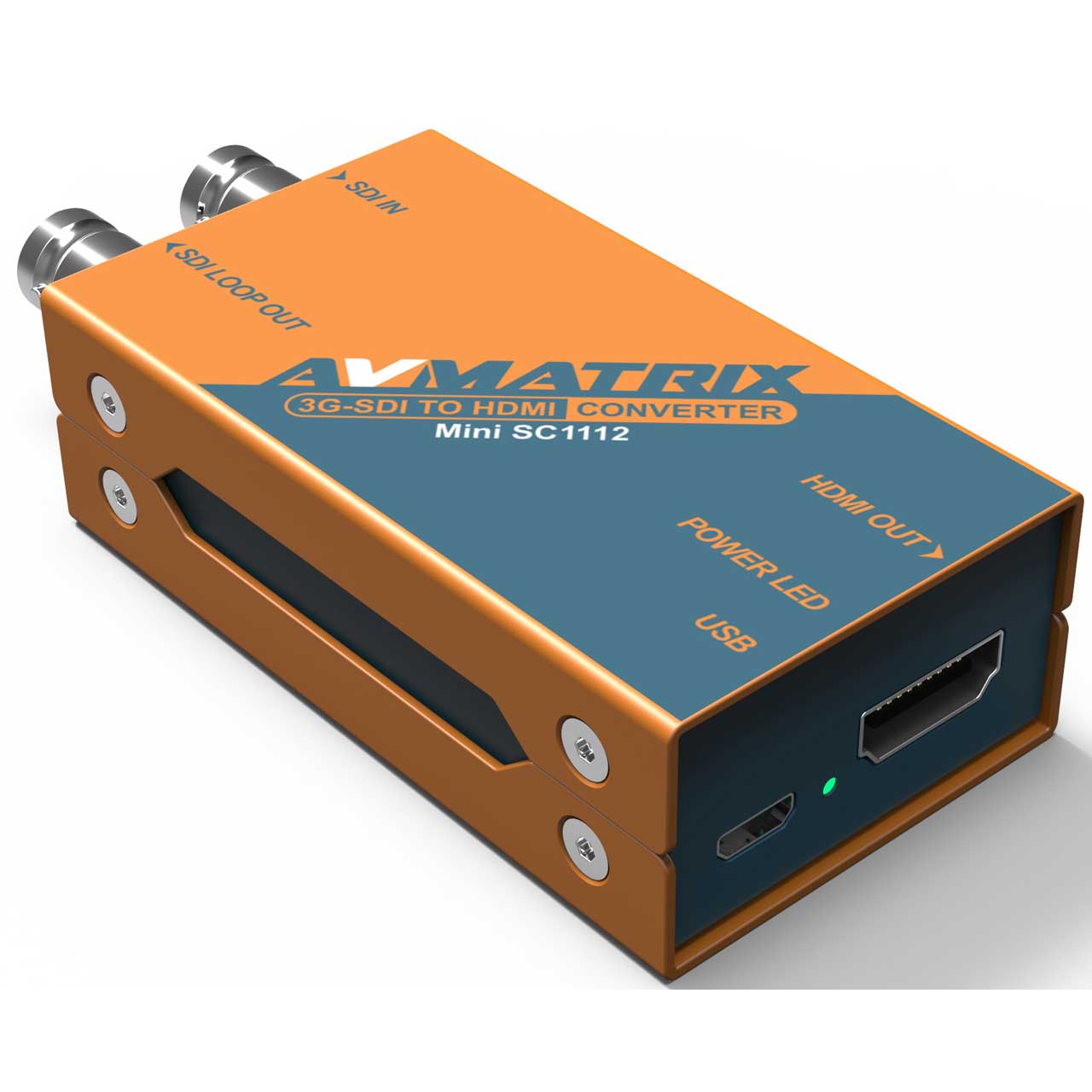

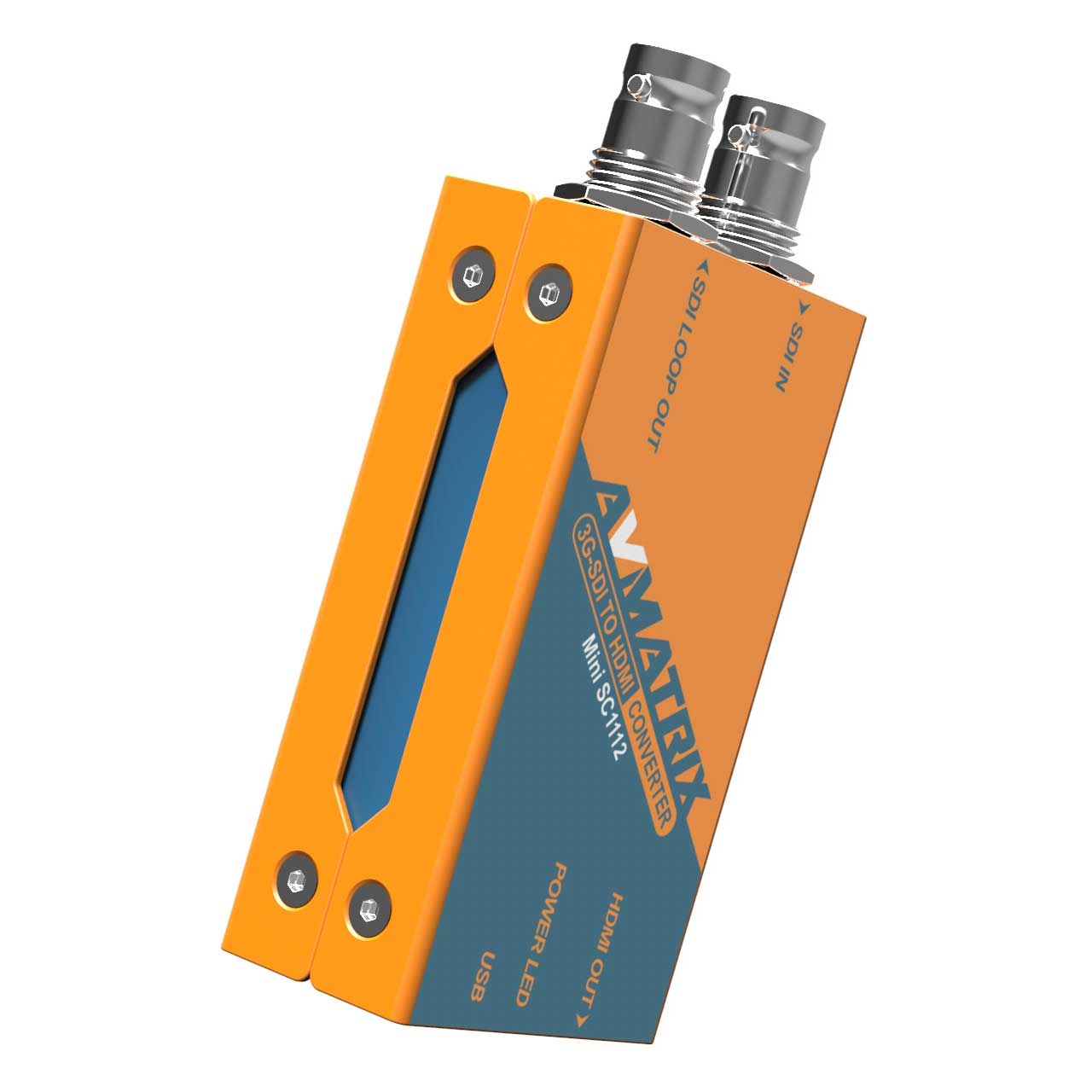

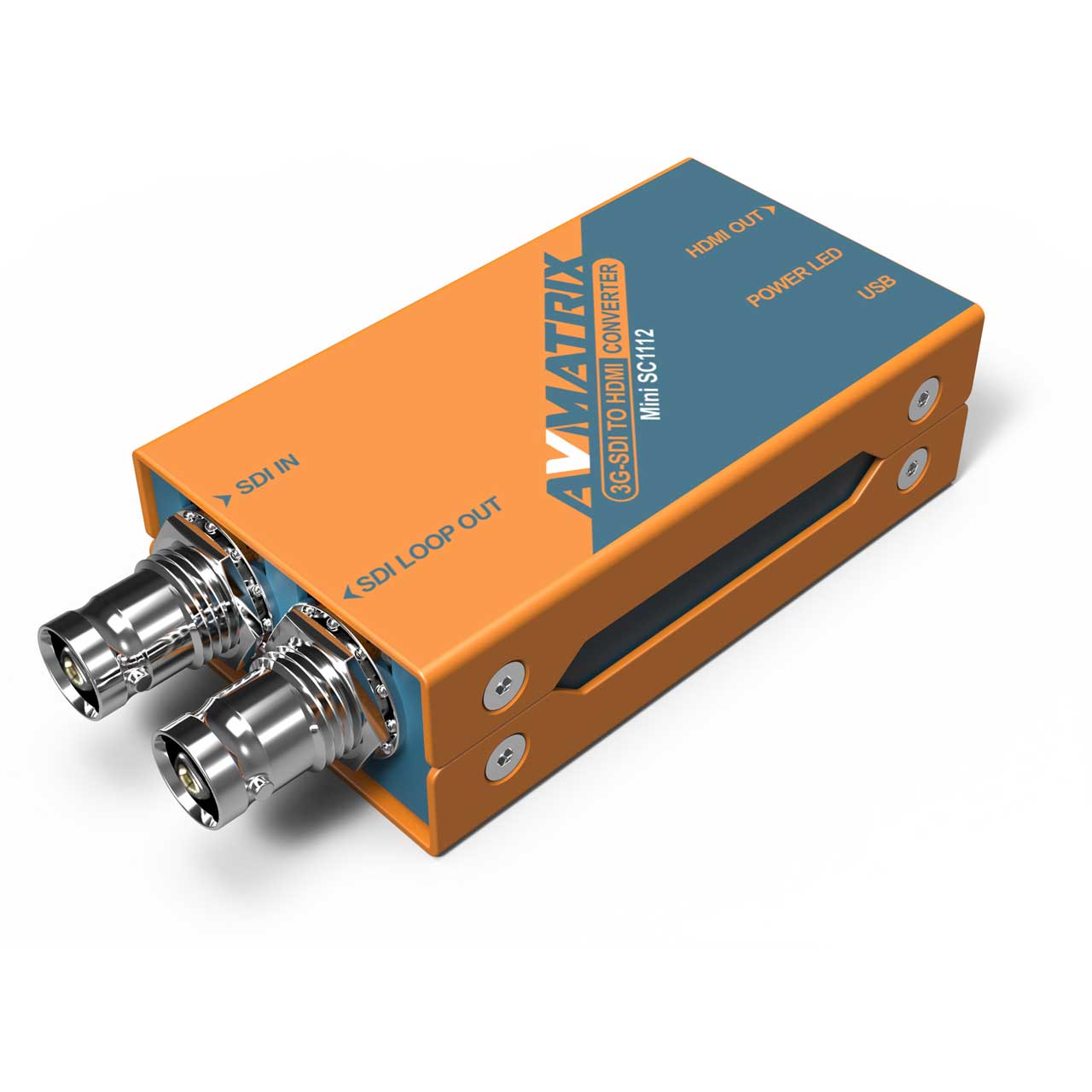

AVMATRIX SC1112 3G-SDI to HDMI Mini Converter

SC1112 - Overview

• Features:

  • Born for Broadcast
  • Although it's a pocket-size converter, it has full size SDI and HDMI connectors; SD/HD/3G-SDI formats as well as level A and level B are also supported, up to 1080P 60Hz. Complying with EMC test, the steady and reliable performance makes it support 7x24h uninterrupted working without any lag or delay.
    Powered Anywhere
  • Featured with universal USB power solution design, avmatrix mini converter can be powered by Micro USB connection; it can not only connect with DC power plug pack, but also get power from power bank, laptop or computer. The low power consumption is incredible, such as a 10,000mAh power bank can supply a more than 24-hours of uninterrupted working time.
    Pocket Size and Easy to Mount
  • Miniature design makes it portable for indoors and outdoors. It's possible to put into pocket and take to anywhere. With a convenient and detachable mounting bracket, it is also available in different application scenarios.


• Specifications:

  • Input: 1x SD/HD/3G-SDI
  • Output:
    - 1x SD/HD/3G-SDI Loop Output
    - 1x HDMI type A

    SDI Formats
  • SD Format Support:
    - 525i 59.94
    - 625i 50
  • HD Format Support:
    - 720p 24/25/30/50/59.94/60
    - 1080i 50/59.94/60
    - 1080p 23.98/24/25/29.97/30
    - 1080psf 23.98/24/25/29.97/30
    - 1080p 50/59.94/60
  • SDI Video Rate: SD/HD/3G-SDI
  • SDI Compliance: SMPTE 292M/259M/424M
  • SDI Color Space and Precision: YUV 4:2:2
  • SDI Auto Switching: Auto selects SD-SDI, HD-SDI and 3G-SDI on input

    HDMI Formats
  • HDMI Format Support:
    - 480i 60
    - 576i 50
    - 720p 24/25/30/59.94/60
    - 1080i 50/59.94/60
    - 1080p 23.98/24/25/29.97/30
    - 1080p 50/59.94/60
  • HDMI Color Space and Precision: YUV 4:2:2


  • Power: Micro USB
  • Power Consumption: 1.5W
  • Voltage Range: 3.3V - 5V
  • Size (WxDxH): 2.91" x 1.61" x 0.90" (74mm x 41mm x 23mm)
  • Operating Temperature: -4°F - 140°F (-20°C - 60°C)
  • Storage Temperature: -22°F - 158°F (-30°C - 70°C)
  • Relative Humidity: 0% - 90% non-condensing


• Warranty:

  • 3 year limited warranty


• GTIN:

  6971118000012
