LYNX Technik Yellobrik PMV 1841 3G/HD/SD to HDMI Quad Split Multiviewer with 4K Monitoring

ITEM #: LNX-PMV-1841 MFG #: PMV 1841

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
LYNX Technik Inc
Free Shipping with $49 Minimum Order

List Price:

$1,250.00

Our Price:

$1,187.50

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

PMV 1841 - Overview

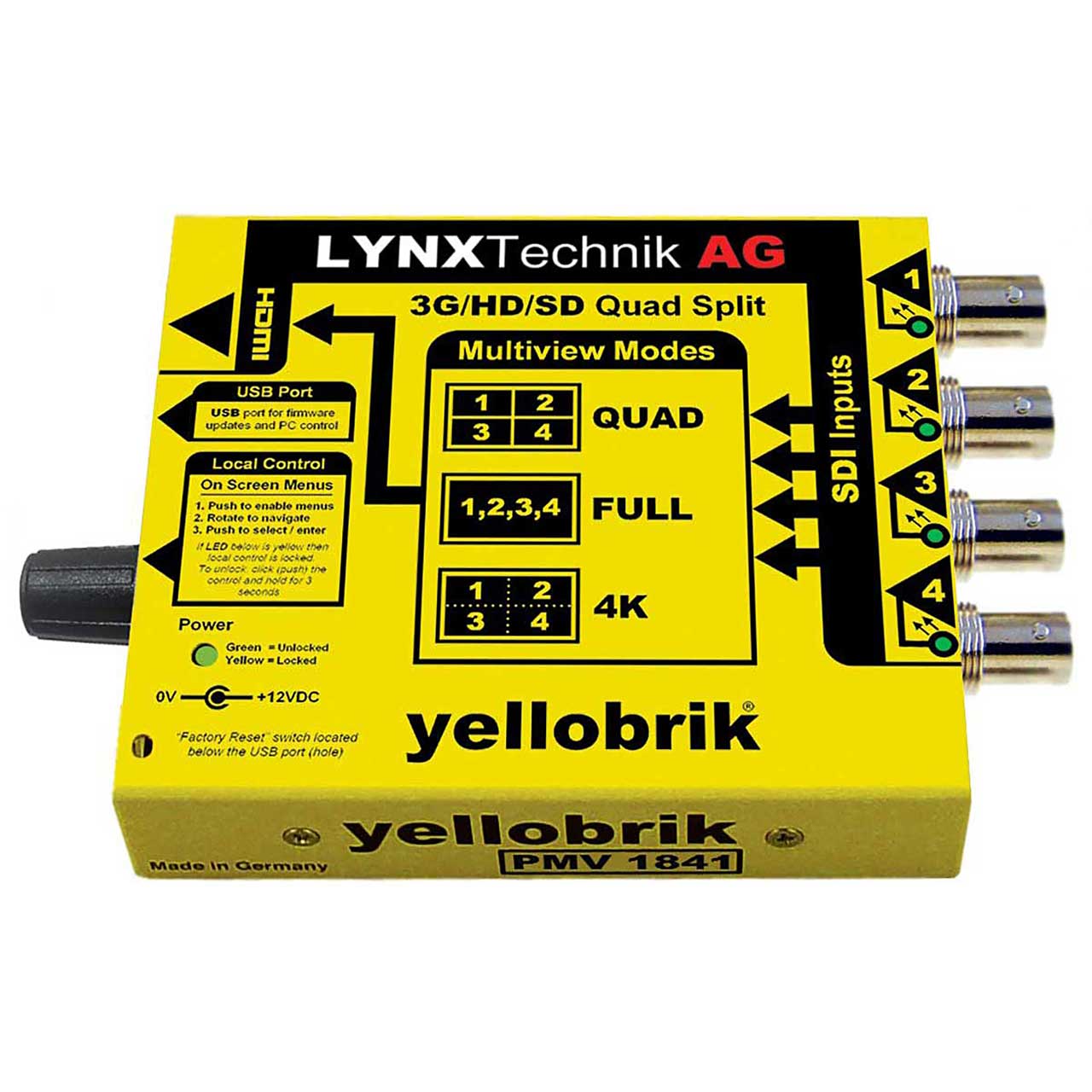

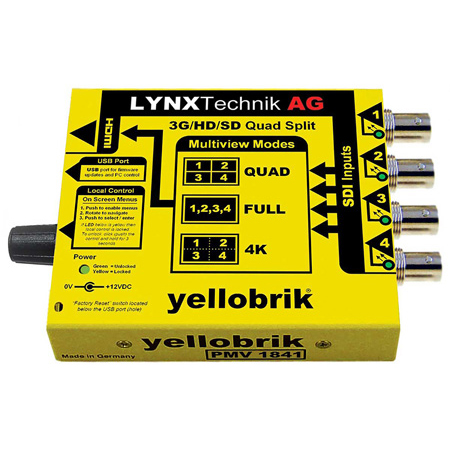

The LYNX Technik PMV 1841 is a compact quad split multiviewer ideal for applications needing basic quad split multiview capability into an HDMI monitor. Four SDI inputs are supported with a single HDMI output.

The module has three basic modes of operation:

Quad Split - All four inputs are arranged into a fixed quad display. Each input can have the monitoring tools (or on-screen overlays) individually configured.

Full Screen - One of the four inputs are displayed full screen with the user configured monitoring tools. In this mode 2 channels embedded audio from the selected SDI input is embedded into the HDMI output.

4K Monitoring - The module can be used to monitor 4K (12G) signals. The four SDI inputs are "stitched" together to make a full frame for monitoring. The 4K image is down converted to HD for display (4K monitor not required).

Note: There are no on screen monitoring tools available in 4K mode.

The module is simple to setup and configure using the integrated local control and on-screen menu system. All settings are automatically stored in flash RAM. USB is port is provided for firmware updates and PC/MAC control using the yelloGUI application.

  • Features:

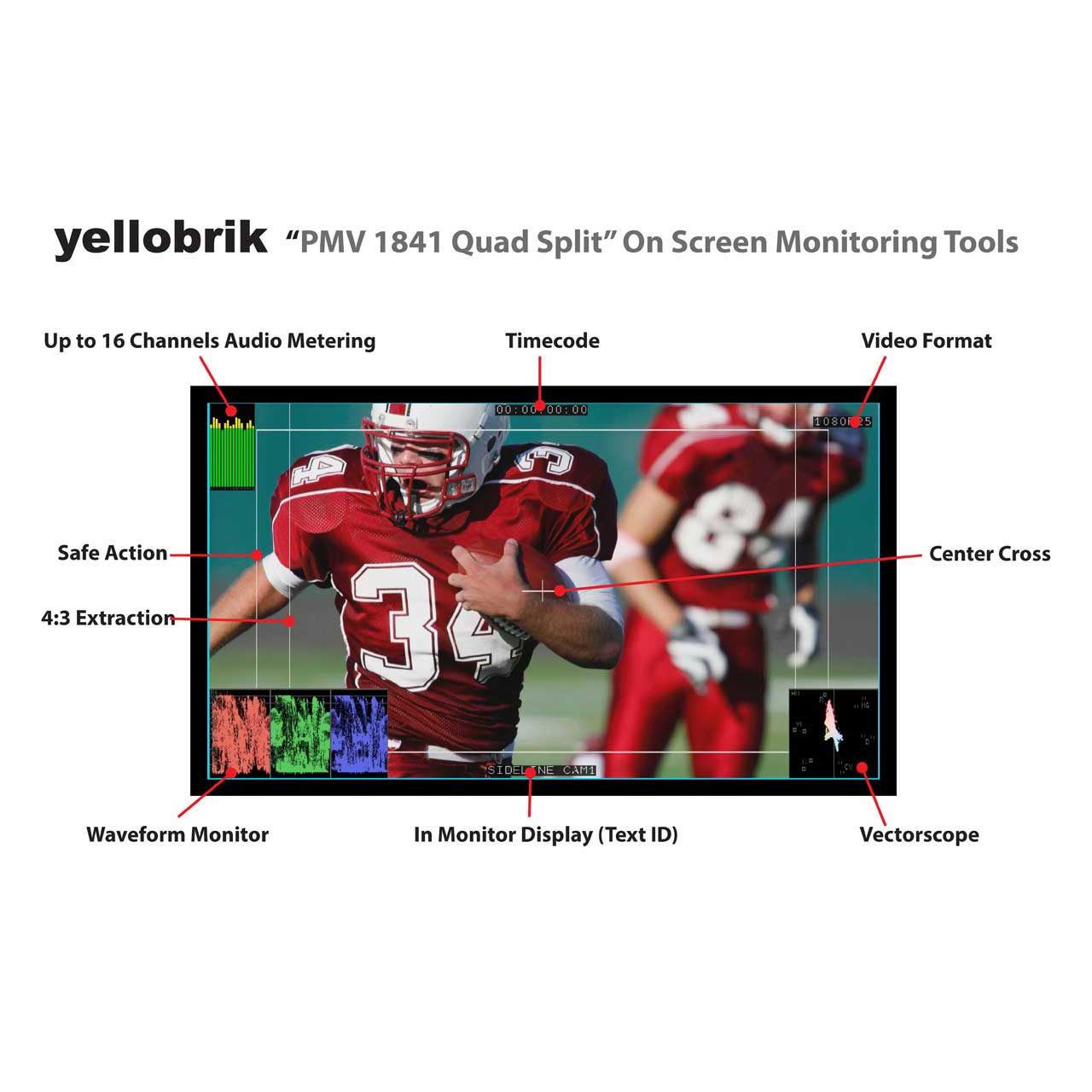

    • Multiple on screen monitoring tools for each input
    • Waveform Monitor
    • Vectorscope
    • Audio Level Meters (upto 16 Channels)
    • IMD (text ID)
    • Safe Area /4:3 Extraction / Center Cross markers
    • Video Standard
    • Time Code
    • Audio and Video Alarms

      Additional Features
    • 4 x SDI inputs and 1 x HDMI output
    • Support for 3G/HD/SD -SDI formats (auto-detect)
    • Full Screen, Quad Split and 4K (12G) monitoring modes
    • Integrated local control and on screen menus
    • Input present LEDs for each SDI input
    • 4K (12G) monitoring mode (down converted HD HDMI output)
    • yelloGUI compatible for PC/MAC


  • Specifications:

    • SDI Inputs
    • 4 x SDI inputs on 75Ω BNC connectors (LED for signal present)
    • SMPTE 424M, SMPTE 292M, SMPTE 259M
    • 3G Level A & B-DL according to SMPTE ST 425-1 with image formats
    • 1280 x 720 and 1920 x 1080
    • For a detailed list of supported formats please refer to the article in our knowledge base (www.lynx-technik.com > support > tech.support )
    • Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz
    • Cable EQ: 340m@270Mbits / [email protected] / 120m@3Gbits

      HDMI Output
    • 1 x HDMI output ( Type A Connector )
    • HDMI standard: 1.4a
    • 2 channels of embedded audio is passed for "full screen" selected input

      Local Control
    • On screen menu system accessed using rotary push encoder

      USB
    • Mini "Type B" USB port for firmware updates and yelloGUI control

      Physical
    • Power: +12VDC @ 4.9W nominal - ( supports 7 - 24VDC input range )
    • Size: 138 x 90 x 22mm (5.13 x 3.54 x 0.86") - including connectors
    • Weight: 230g (8.11oz)
    • Ambient: 41 - 104°F 90% Humidity (non condensing)


  • Item Includes:

    • Module
    • AC power supply
    • HDMI + USB cable


  • GTIN:

    4250479323506
