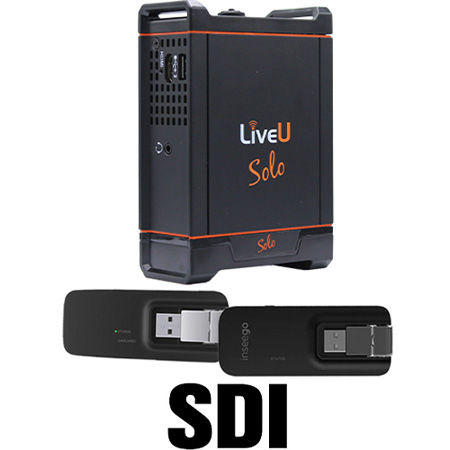

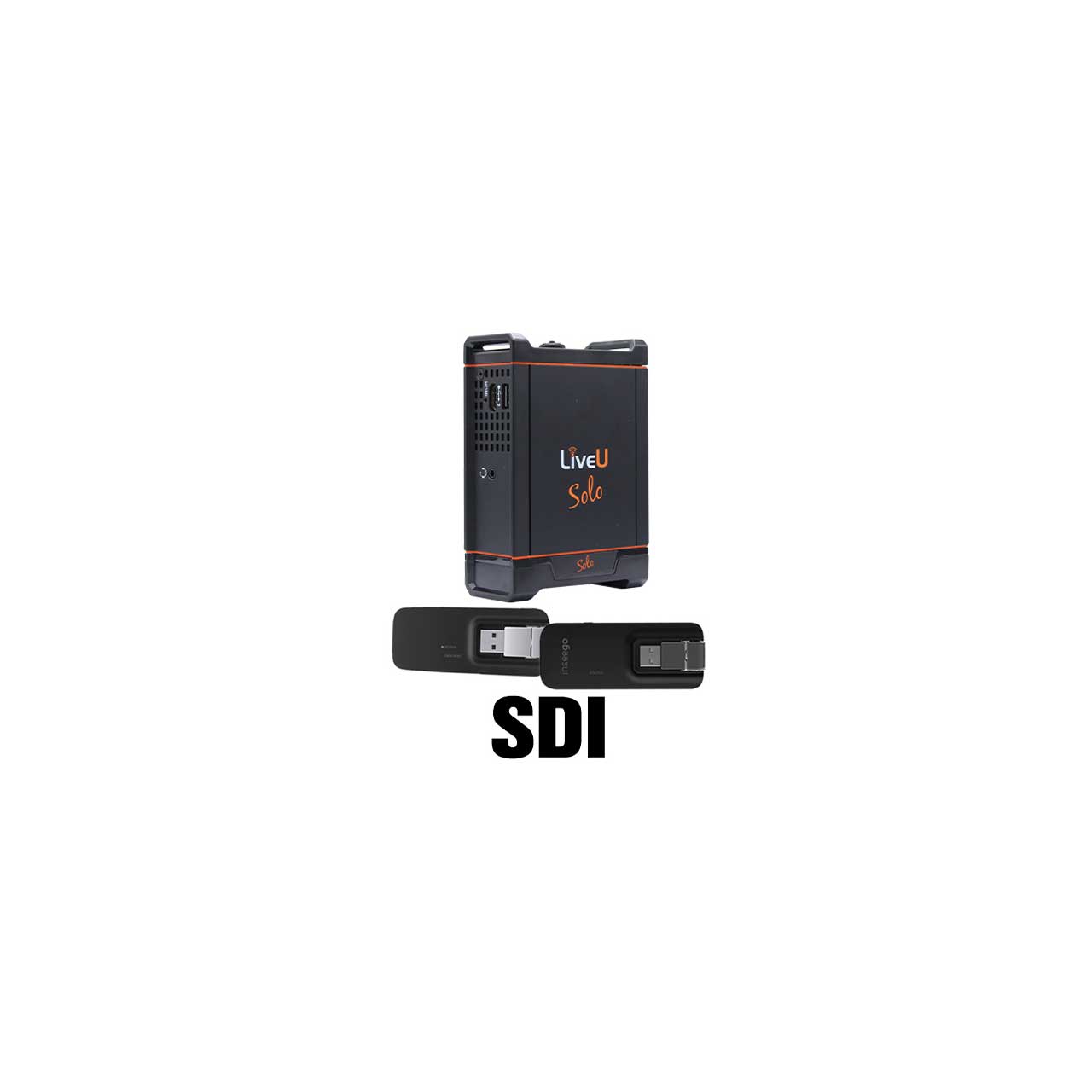

LiveU LUSOLOKIT2 Solo SDI Video Encoder with Solo Connect 2 Modem Bundle

LUSOLOKIT2 - Overview

LiveU Solo LUSOLOKIT2 SDI Encoder with Solo Connect 2 Modem Bundle

• Features:

  • Start streaming within seconds: just plug in your camera and go live at the push of a button
  • Keep more viewers engaged with a reliable, high-quality stream
  • Send a high-quality stream from remote locations or in congested network environments such as heavy crowds
  • Get out of the studio or away from your computer, or game system, and stream in HD from anywhere
  • Deliver HD live videos to all popular online platforms such as Facebook Live, YouTube and Twitch
  • Stream like a pro for an affordable price
  • H.264/AAC Full HD
  • Built-in Wi-Fi
  • Compact All-in-One Streaming Solution
  • SDI Video Inputs
  • Connect via Cellular, Wi-Fi & Ethernet
  • Uses LiveU's Cloud Services
  • Supports 2 3G/4G modems
  • 2 USB modems certified as compatible with LiveU Solo
  • MiFi supports LAN, Wi-Fi and USB connectivity to the Solo
  • LTE, compact devices w/ 3 simultaneous connections to ensure your stream is super robust, and the highest quality possible
  • USB-C cable and power adapter included for the MiFi


• Specifications:

  • LiveU Solo
  • Integrated Unit: Audio/video encoder, micro SD card, internal battery
  • Portability: Custom design, professional-grade side-pouch, belt-attachment or camera mounted
  • Video Input Resolutions: 1080p50/60/25/30/24, 1080i50/60, 720p50/60/25/30/24, PAL, NTSC
  • Hw Interfaces: 4G on the HW interfaces
  • Video Interfaces: 3G/HD/SD-SDI, auto input detection
  • Power Sources: Internal battery - 2 hours
  • Local Control: Full monitoring and control using local screen and joystick interface
  • Remote Control: Full web-based remote control from smartphones, laptops, tablets or web browsers
  • Preview: Video preview; per-network cellular connectivity status incl. throughput, network delay etc.
  • Data: 2 x USB 2.0, miniUSB, RJ-45 Ethernet, 3.5mm in/out audio jack, micro SD
  • Dimensions (W x H x D): 3.7" x 5.19" x 1.7"
  • Weight: 1lb with battery
  • Temperature: Operating: 23°F to 113°F

    Audio/Video Encoding
  • Video Encoder: H.264 AVC high profile up to 8 Mbps based on resolution and destination
  • Audio Encoder: AAC-LC
  • Video Transport: RTP
  • Simultaneous Bonding: Up to 2 x 4G LTE/3G cellular or WiMAX network links, additionally supports internal Wi-Fi and Ethernet connectivity
  • Supported Technologies: 4G LTE, HSPA+, HSUPA, HSDPA, UMTS, CDMA EVDO Rev 0/A/B, Mobile WiMAX, and internal Wi-Fi 802.11 a,b,g & n support

    Operational Modes
  • Multi-Profile Selection: Maximum Quality mode for increased resiliency in congested/noisy networks
  • Multi-Target Output: Diverse A/V output through SDI and H.264 streams including connectivity for CDNs

    Rich Feature Set
  • Resiliency & Quality LRT (Liveu Reliable Transport): Proprietary algorithms such as automatic Adaptive Bit Rate (ABR), automatic Forward Error Correction (FEC) and other lost packet recovery algorithms; video encoding bit rate is set automatically
  • Professional Features: End-to-end low latency mode; video and audio indicators


• Item Includes:

  • 1x LiveU Solo SDI Encoder
  • 1x AT&T Inseego USB800 USB Modem
  • 1x Verizon Novatel 730 USB Modem
