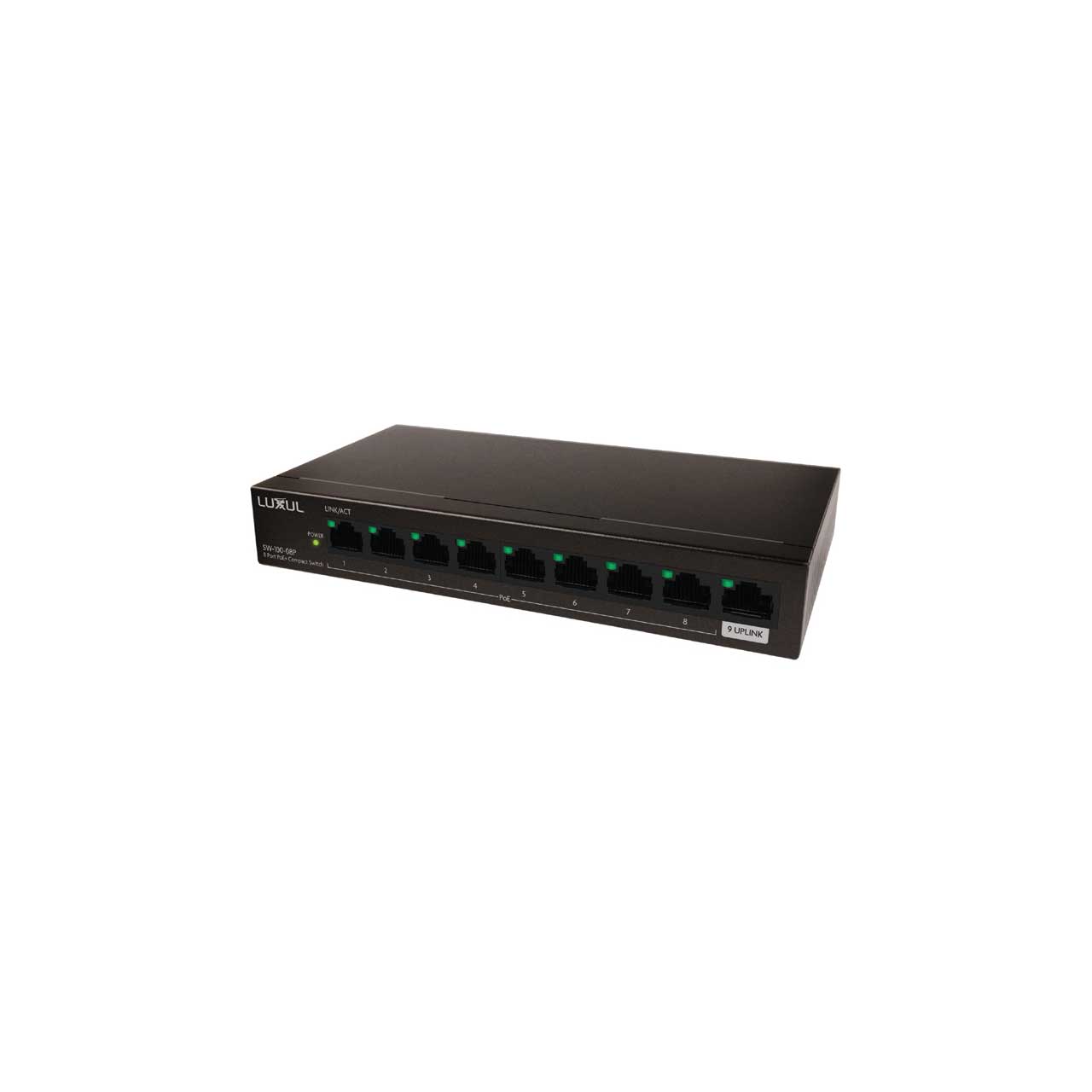

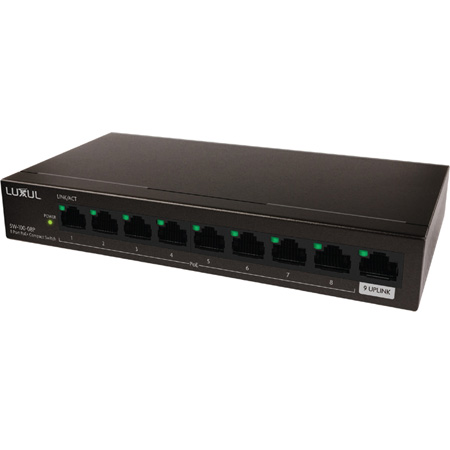

Luxul SW-100-08P 8-Port Gb PoE Unmanaged Ethernet Switch with Uplink - 92 Watt

ITEM #: LUXU-SW-100-08P MFG #: SW-100-08P

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the LUXU-SW-100-08P

SW-100-08P - Overview

The Luxul SW-100-08P is a compact Gigabit PoE+ switch that provides eight PoE+ capable ports of Gb Ethernet connectivity with a total power budget of 92 watts. It is an excellent choice for expanding your network when using PoE-enabled devices such as VoIP, IP cameras and wireless access points and fits easily into the widest range of environments. The durable metal case includes rubber feet and keyhole features for surface mounting options.

  • Features:

    • 8 port Gb PoE+ switch with uplink - 92 Watt total power budget
    • Durable compact metal case
    • Fanless for silent operation
    • Includes keyhole features for surface mounting options


  • Specifications:

    • Standards: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af, IEEE 803.at, IEEE802.3ab
    • Number of Ports: 8 port Gb PoE+ with uplink
    • LEDs: Power, Link/Act
    • Power Consumption: 5.8 watts (min), 117 watts (max)
    • Power Supply: External power supply
    • Input: 100-240VAC, 50/60Hz
    • Output: 51VDC, 1.25A
    • Power Budget: 92W
    • Switching Capacity: 18 Gbps
    • Surge Protection: 6 kV
    • Operating Temperature: 32°F to 104°F (0°C to 40°C)
    • Operating Humidity: 10% to 90% (non-condensing)
    • Dimensions (LxWxH) in. (mm): 7"(178) x 4.3"(108) x 1.1"(26)
    • Weight lbs (kg): 2.6 (1.2)
    • Certification: FCC, IC, RCM, CE-EMC, CE-LVD (IEC-62368-1), CB Report


  • Item Includes:

    • 1x 8 Port PoE Compact Switch
    • 1x Power Supply
    • 4x Rubber Feet
    • 1x Quick Install Guide


  • Warranty:

    • Three Year Limited Warranty


  • GTIN:

    0655003921670
