Liberty 18-2C-P-WHT Commercial-Grade General Purpose 18 AWG 2 Conductor Plenum Cable - 1000 Foot Roll White

ITEM #: LWC-18-2C-P-WHT MFG #: 18-2C-P-WHT

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Liberty AV Solutions
Free Shipping with $49 Minimum Order

List Price:

$378.84

Our Price:

$332.64

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

18-2C-P-WHT - Overview

2 conductor 18 AWG stranded, twisted, and unshielded cable NEC type CMP and CEC type CMP FT6. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.

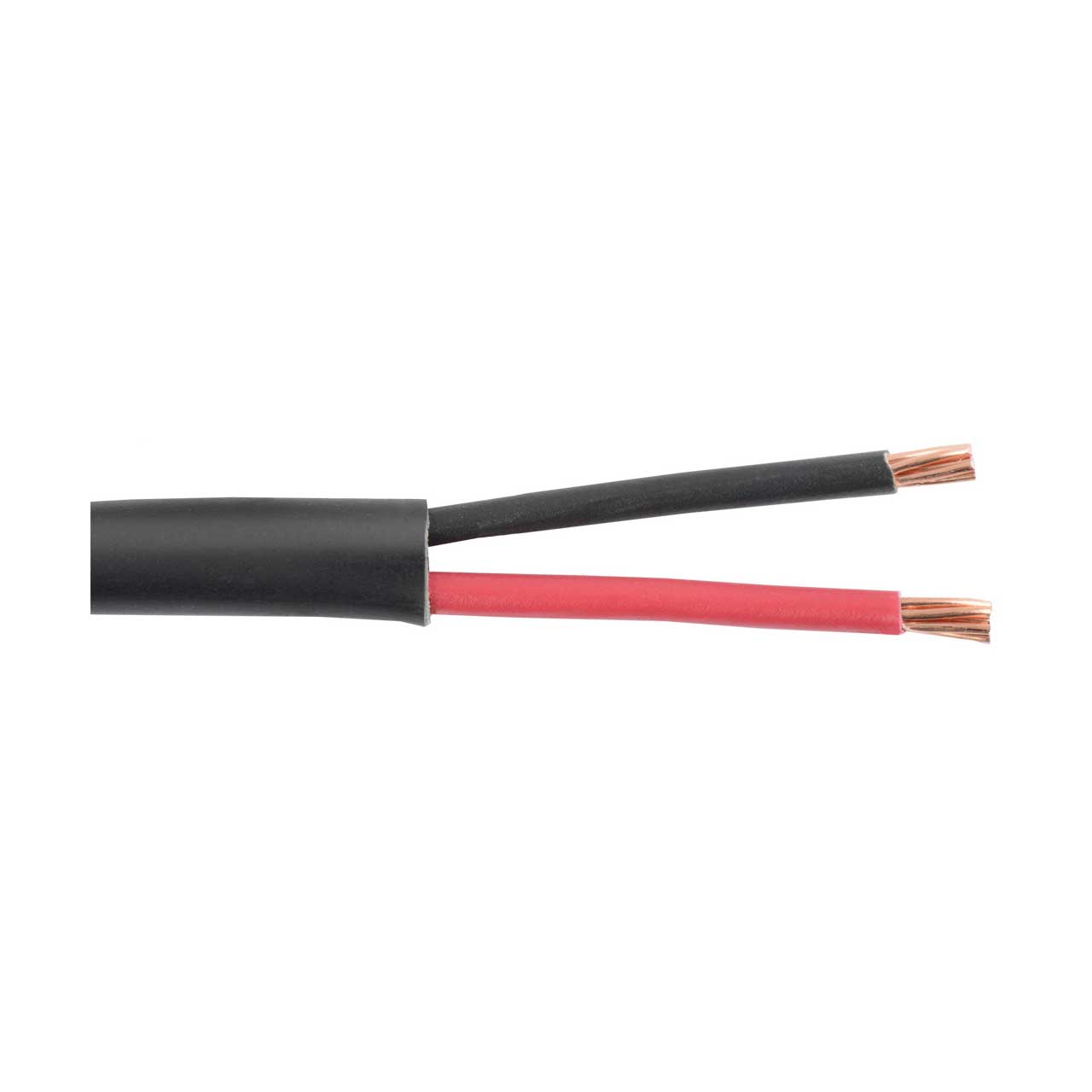

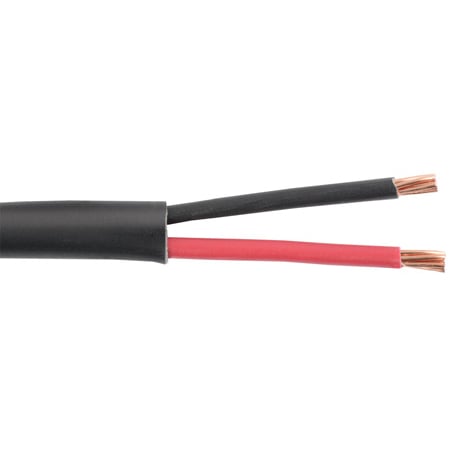

Shown in black.

  • Features:

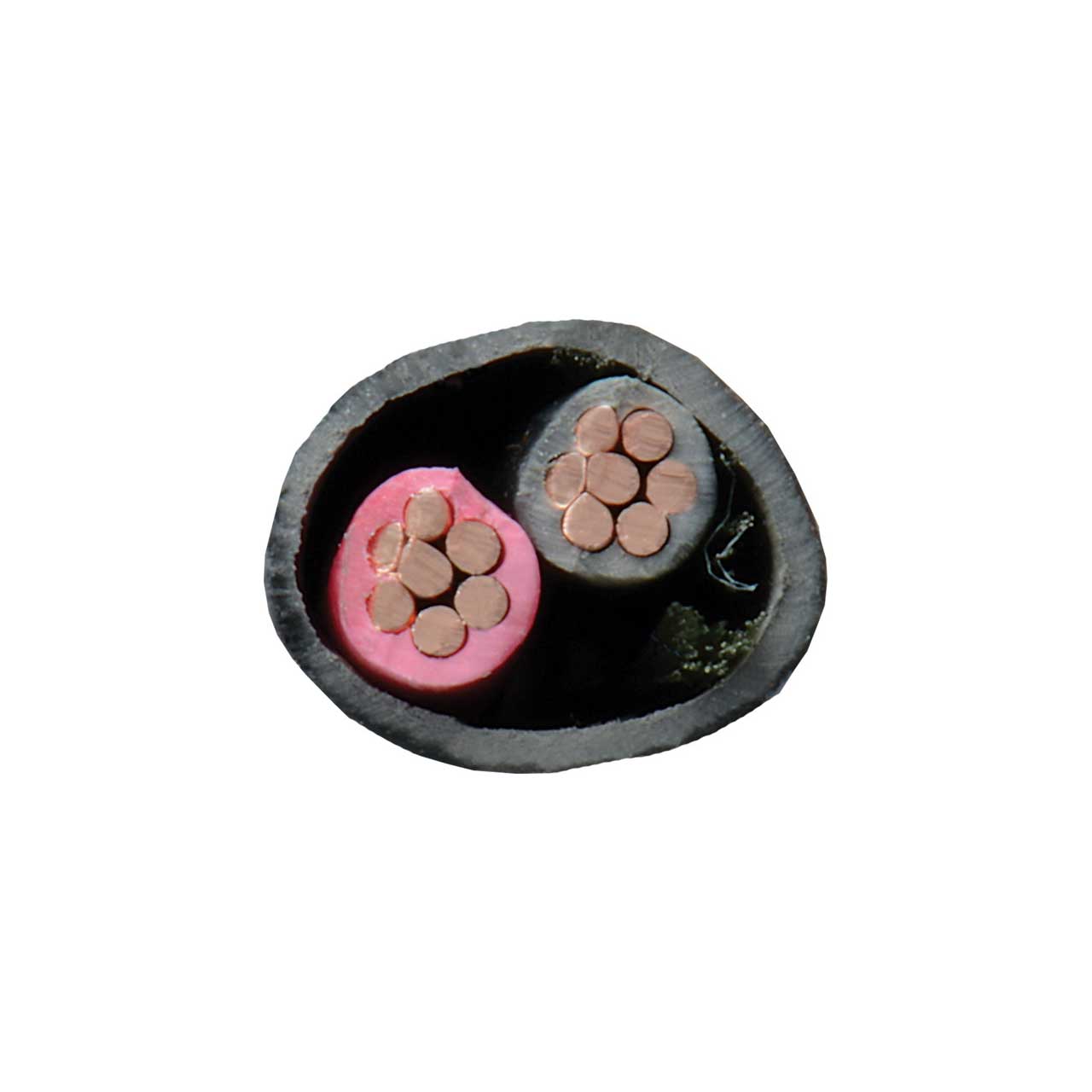

    • 7-strand annealed bare copper conductors
    • Plenum rated PVC insulation
    • Twisted, unshielded
    • Plenum rated PVC jacket
    • NEC CMP, CEC CMP FT6, RoHS compliant
    • 1000 foot spools

    • Applications
    • Speaker Level Audio
    • 70 volt Speaker cabling
    • Class 2 and Class 3 low voltage power
    • Instrumentation and Control


  • Specifications:

    • Conductor 18 AWG
    • 7-strand annealed bare copper conductors
    • Diameter: 0.0454" | 1.15mm
    • Electrical DC resistance: 6.92 O / 1000' | 22.7 O/KM
    • Mutual capacitance: 29.3 pF/FT | 96.11 pF/M
    • Impedance: 63 O
    • Inductance: 0.15æH/FT | 0.49æH/M
    • Velocity of Propagation: 55%
    • Voltage rating: 300V
    • Maximum current: 3.75A@25°C
    • Insulation Plenum rated polyvinyl chloride
    • Wall thickness: 0.008" | 0.20mm
    • Diameter: 0.061" | 1.56mm
    • Regulatory NEC: CMP 75°C
    • CEC: CMP FT6 60°C
    • EU RoHS-2 2011/65/EU Compliant
    • Color Code Black, Red
    • Packages Reel: 1000' | 305M
    • Weight: 20 Lbs/1000' | 30 Kg/KM
    • Assembly 2 conductors twisted
    • Lay length: 3.0" | 80mm
    • 4.0 twists per foot | 12.5 twists per meter
    • Installation Pull Tension: 26 Lbs | 116 N
    • Bend radius: 1.54" | 40mm unloaded
    • Bend radius: 3.08" | 80mm loaded
    • Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F | 0°C ambient temperature
    • Construct Ripcord under jacket
    • Applications Plenum security and low voltage power
    • Plenum commercial and residential speaker level audio
    • Plenum 70V commercial speaker audio
    • Plenum Class 2 and 3 power
    • Shield N/A
    • Performance Speaker level audio to 30 feet
    • Jacket Plenum rated polyvinyl chloride
    • Colors: Natural White, Yellow, Black, Green
    • Wall thickness: 0.014" | 0.36mm
    • Diameter: 0.154" | 3.92mm
    • Final Outside Diameter (inches) 0.154
