Liberty 22-2C-PSH-BLK 22 AWG 2 Conductor Plenum Shielded Cable - 1000 Ft. Roll

ITEM #: LWC-22-2CPSH-BK MFG #: 22-2C-PSH-BLK

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Liberty AV Solutions
Free Shipping with $49 Minimum Order

List Price:

$266.84

Our Price:

$235.44

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

22-2C-PSH-BLK - Overview

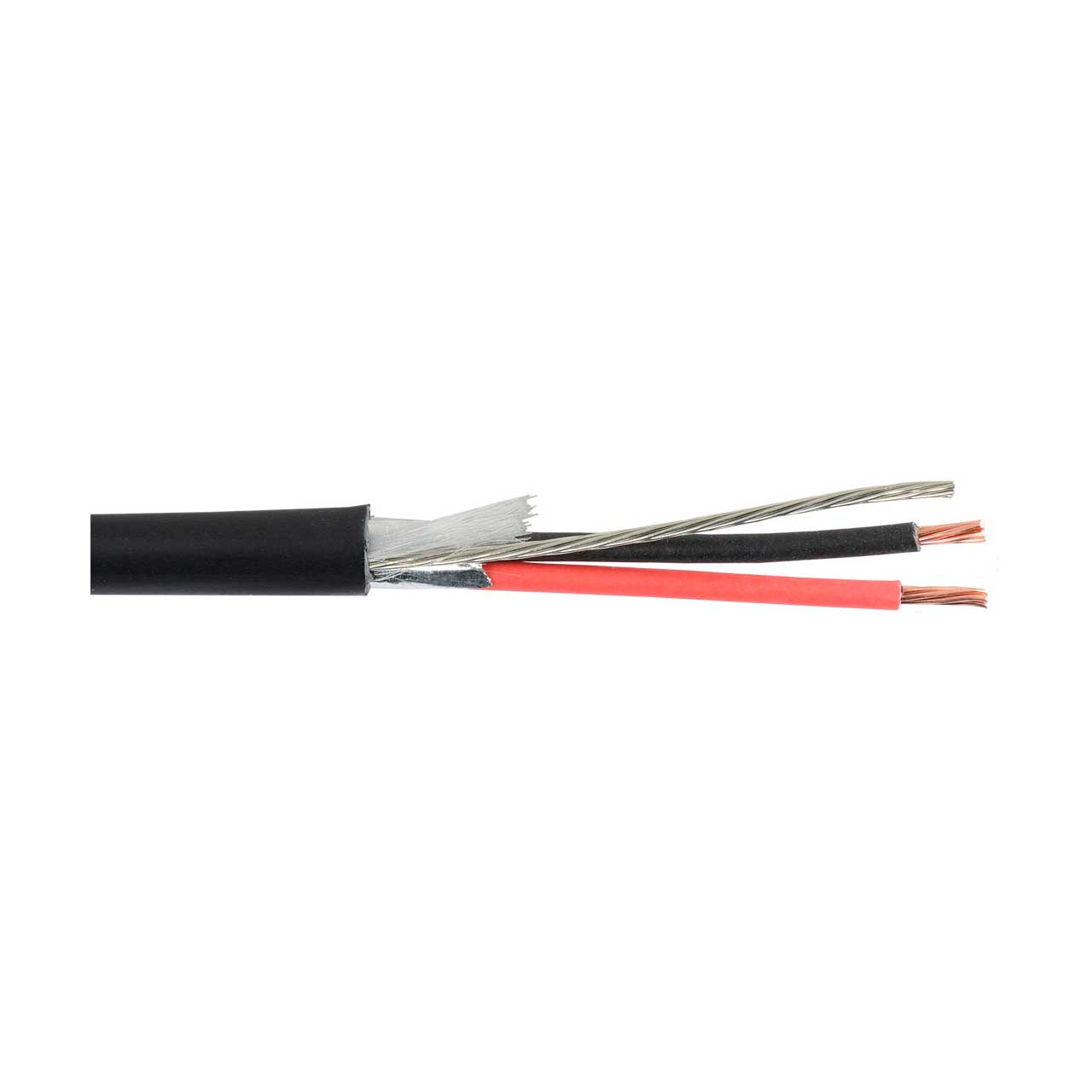

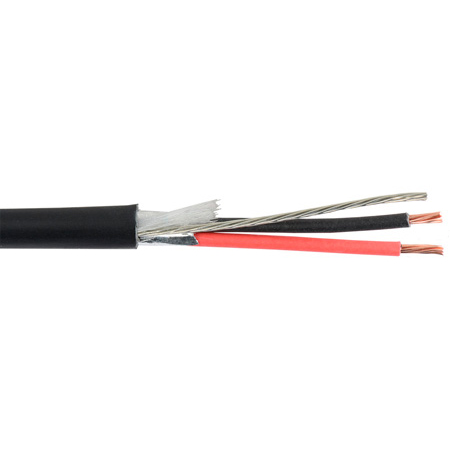

2 conductor 22 AWG stranded, twisted, and shielded cable NEC type CMP and CEC type CMP FT6. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.

  • Specifications:

    • 22 AWG
    • 7-strand annealed bare copper conductors
    • Diameter: 0.029" / 0.73mm
    • DC resistance: 16.4 Ohms / 1000' / 53.79 Ohms/KM
    • Mutual capacitance: 39.7 pF/FT / 130.22 pF/M
    • Impedance: 47 Ohms
    • Velocity of Propagation: 55%
    • Voltage rating: 300V
    • Maximum current: 2.8A@25°C
