Liberty LLINX-U-P PVC Control Cable 22 AWG 1 Pair Shielded and 18 AWG 2 Cond.

ITEM #: LWC-LLINX-U-P MFG #: LLINX-U-P

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Liberty AV Solutions
Free Shipping with $49 Minimum Order

List Price:

$1,000.22

Our Price:

$900.20

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

LLINX-U-P - Overview

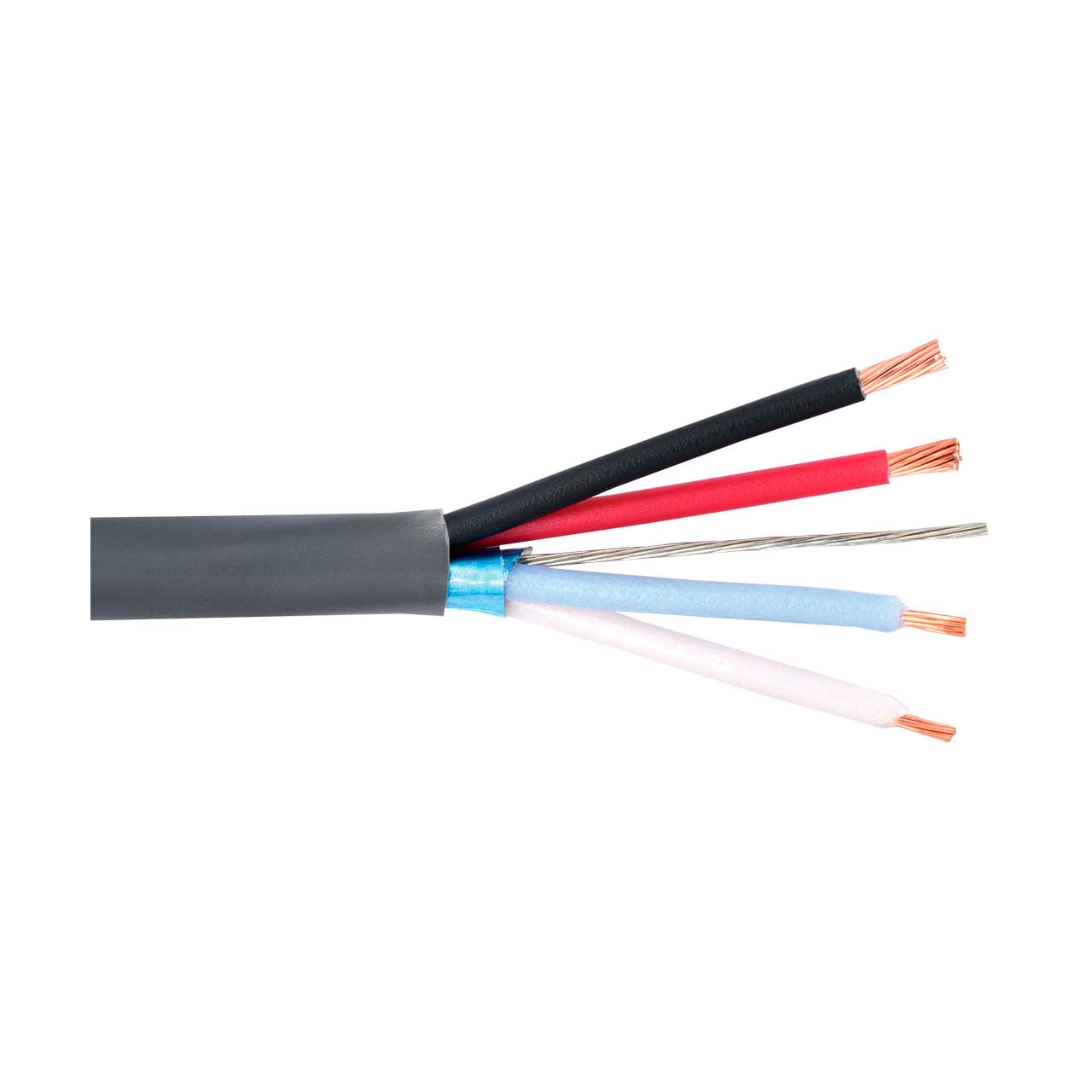

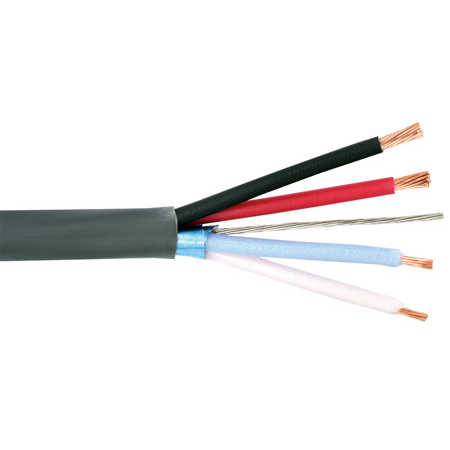

1000ft Composite cable consisting of a 22 AWG stranded, twisted and shielded data pair and an 18 AWG stranded, twisted, and unshielded power pair overall jacketed
NEC type CMP and CEC type CMP FT6. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.
Applications:
OEM RS-232C, RS-422, and RS-485 data control
Power pair for up to 300 watts
Class 2 and Class 3 low voltage power
Systems instrumentation and Control

  • Features:

    • Liberty Universal control and power cable
    • Twisted, shielded 22 AWG data pair
    • Twisted, unshielded 18 AWG power pair
    • 12.5 pF/FT 105 Ohm digital data pair
    • Plenum rated PVC jacket
    • NEC CMP, CEC CMP FT6, RoHS compliant
    • 1000 foot spools

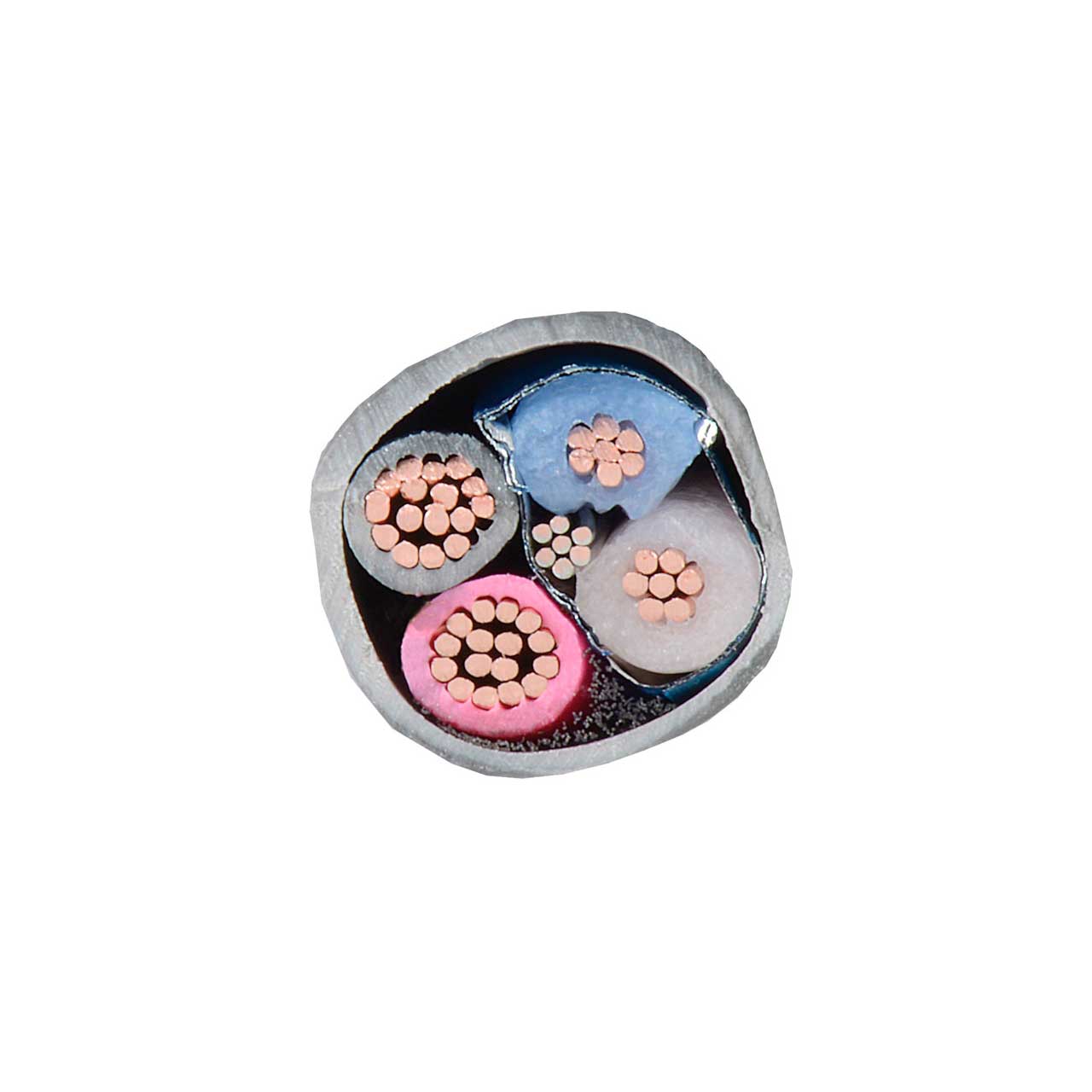

  • Specifications:

    • Component 1:
    • 22 AWG data pair
    • 7-strand annealed bare copper conductors
    • Foam fluorinated ethylene propylene
    • Wall thickness: 0.019" | 0.51mm
    • Diameter: 0.068" | 1.73mm
    • 100% aluminum/poly shield foil in
    • 24 AWG 7-strand tinned copper drain wire
    • Component 2:
    • 18 AWG power pair
    • 16-strand annealed bare copper conductors
    • Diameter: 0.068" | 1.73mm
    • Plenum rated polyvinyl chloride
    • Wall thickness: 0.009" | 0.23mm
    • Color Code:
    • Data pair: Blue, White
    • Power pair: Red, Black
    • Jacket Color - Grey
