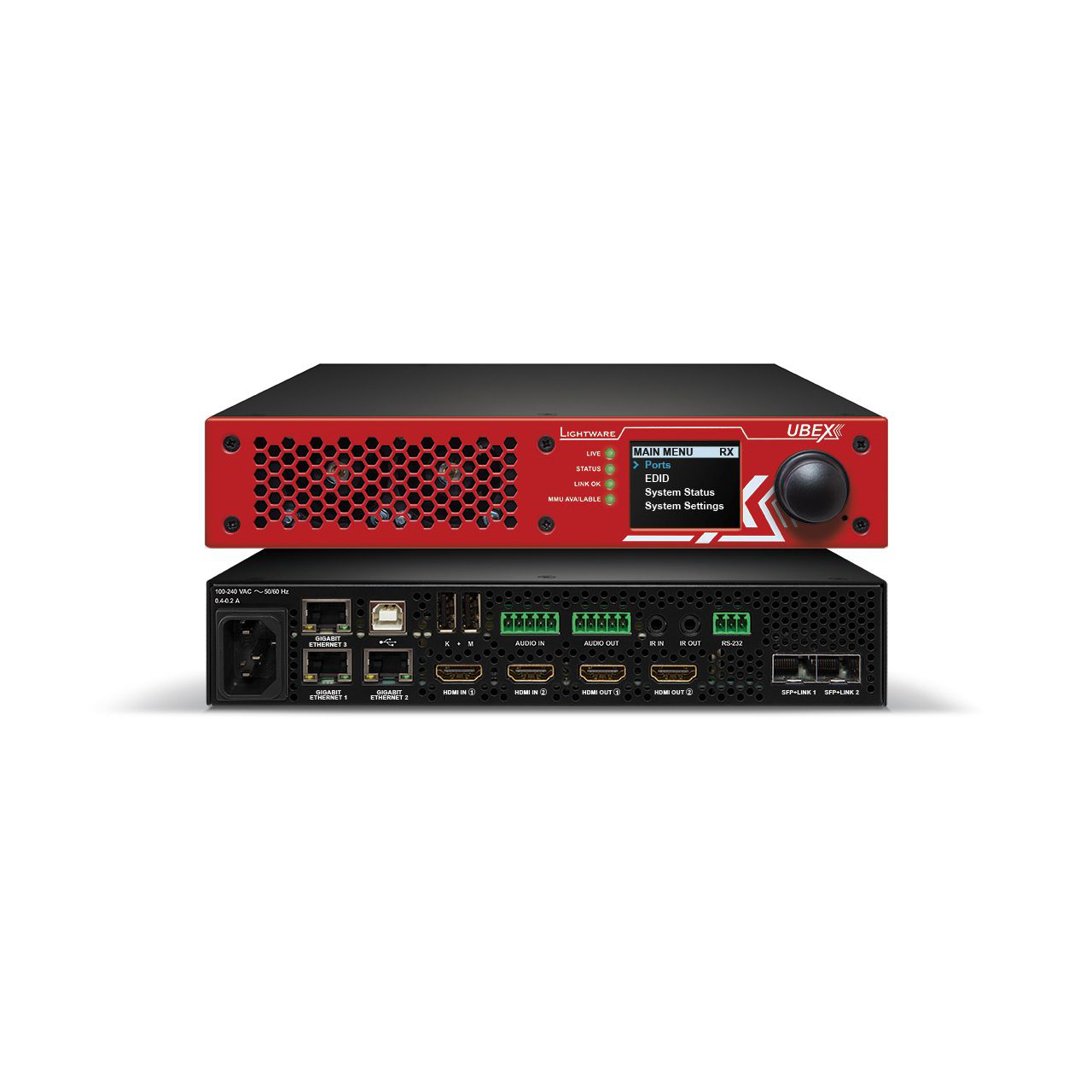

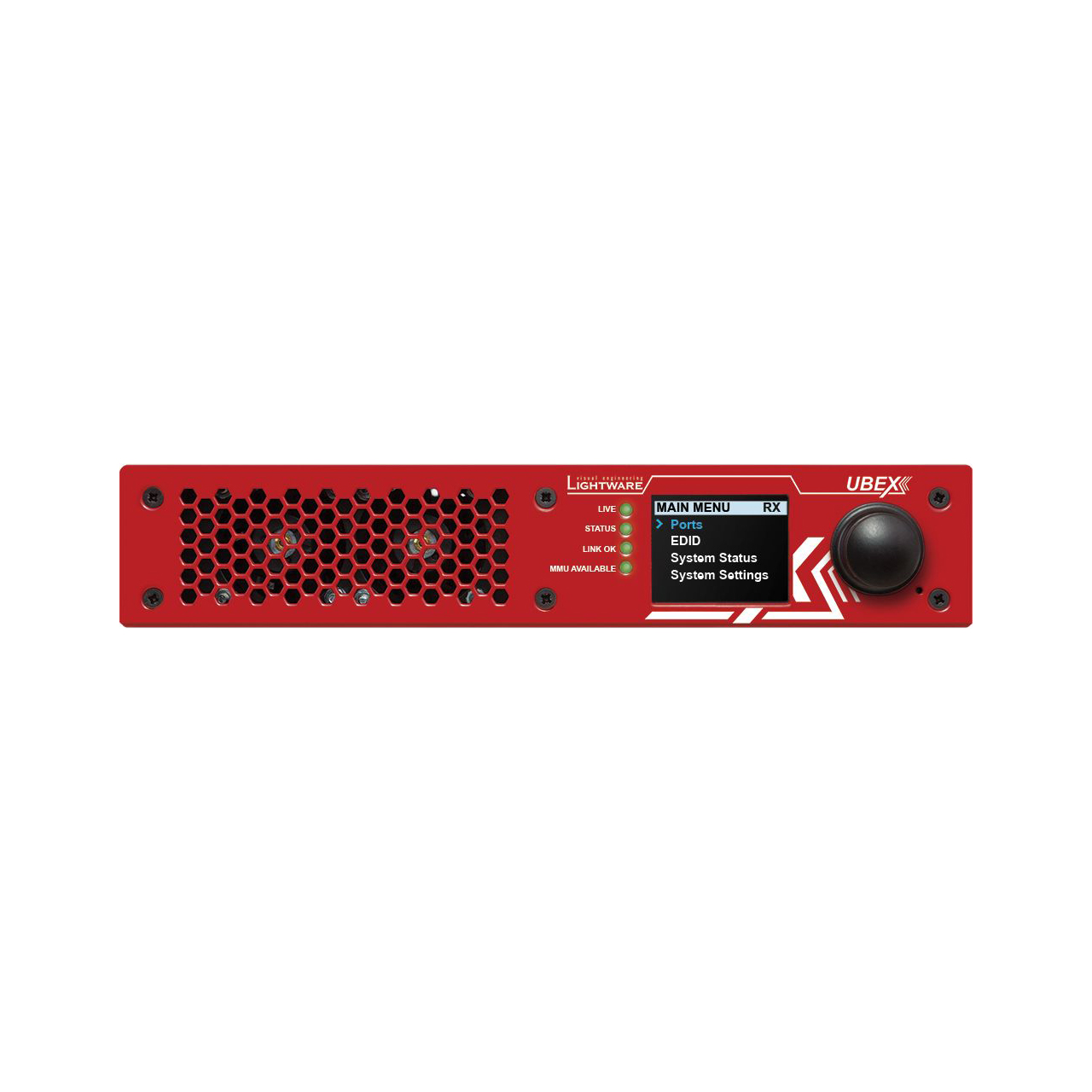

The Lightware UBEX-Pro20-HDMI-F120 is an optical scaling extender which allows 4K UHD@60Hz 4:4:4 uncompressed signal extension with latency-free multistreaming. The device is designed to use Video Over IP transmission on a 10G Ethernet network, it has standard, 10 Gbps SFP+ optical modules installed, which are field-exchangeable by the user.

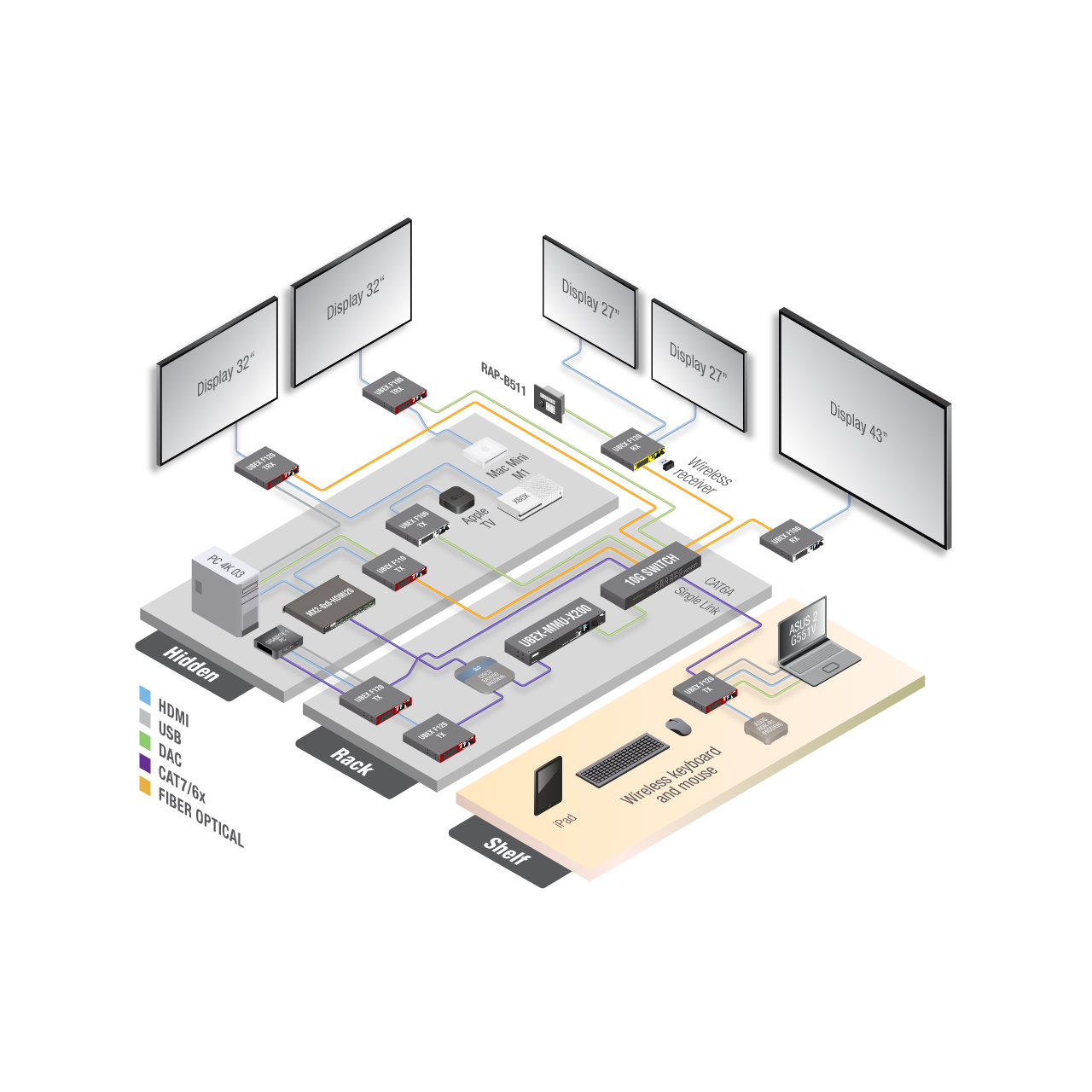

UBEX units can connect to create a complex network with the use of a standard Ethernet switch.

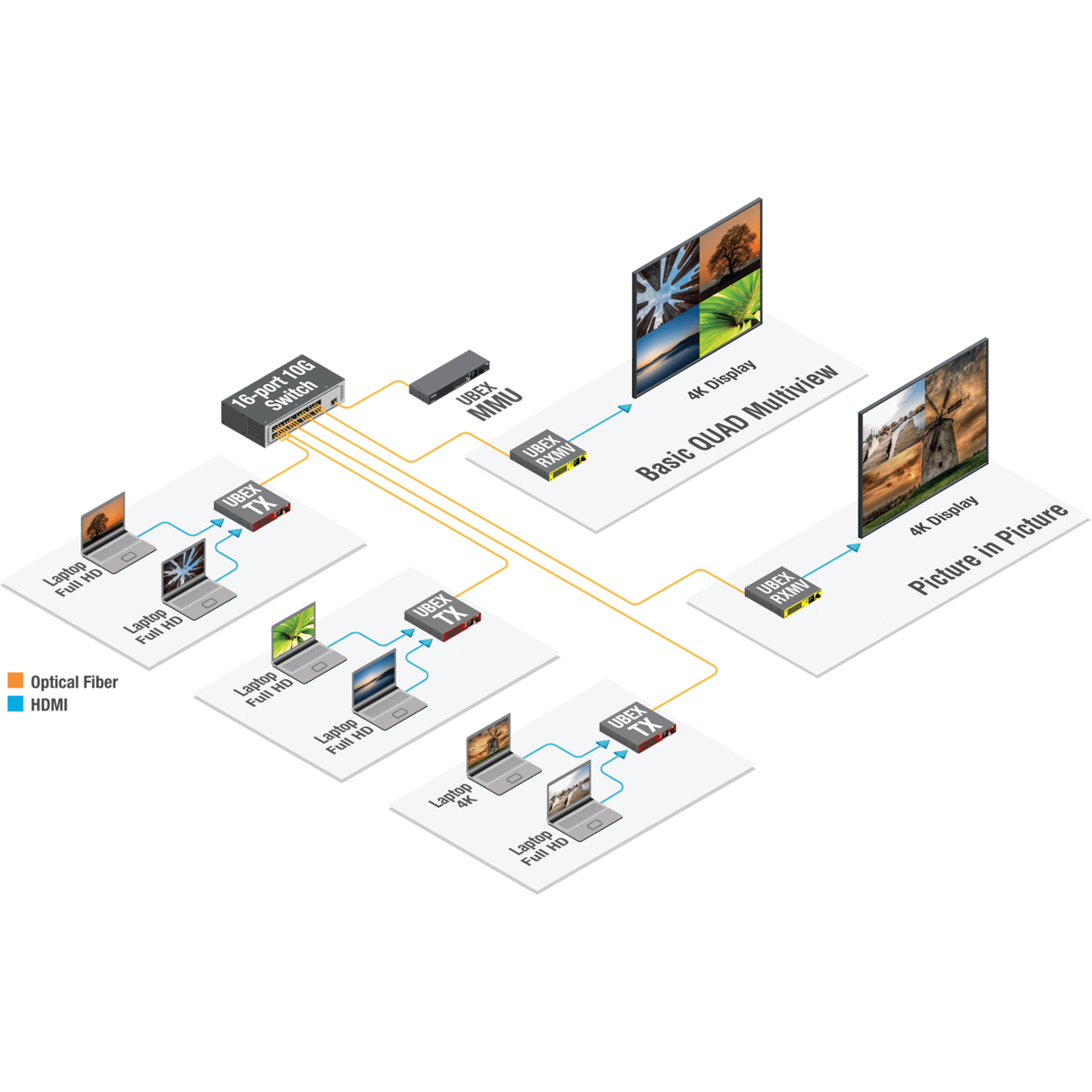

Please Note: An UBEX-MMU-X200 Matrix Management Unit (MMU) is required to control and supervise a virtual matrix, which can be created by connecting UBEX units as input and output endpoints to an Ethernet switch acting as crosspoint.The MMU device can update the firmware of endpoint UBEX units in a virtual matrix application simultaneously, without limitation for the number of devices in the setup.
One of the prime advantages of such new architecture is scalability: the virtual matrix created can have a virtually infinite number of endpoints, limited only by the number of open ports on the Ethernet switch used. Such a virtual matrix can be also extremely asymmetrical, as e.g. it could have only a few (or one) devices on the input side, while an almost unlimited number of output end units.
User-Installable Optical Modules

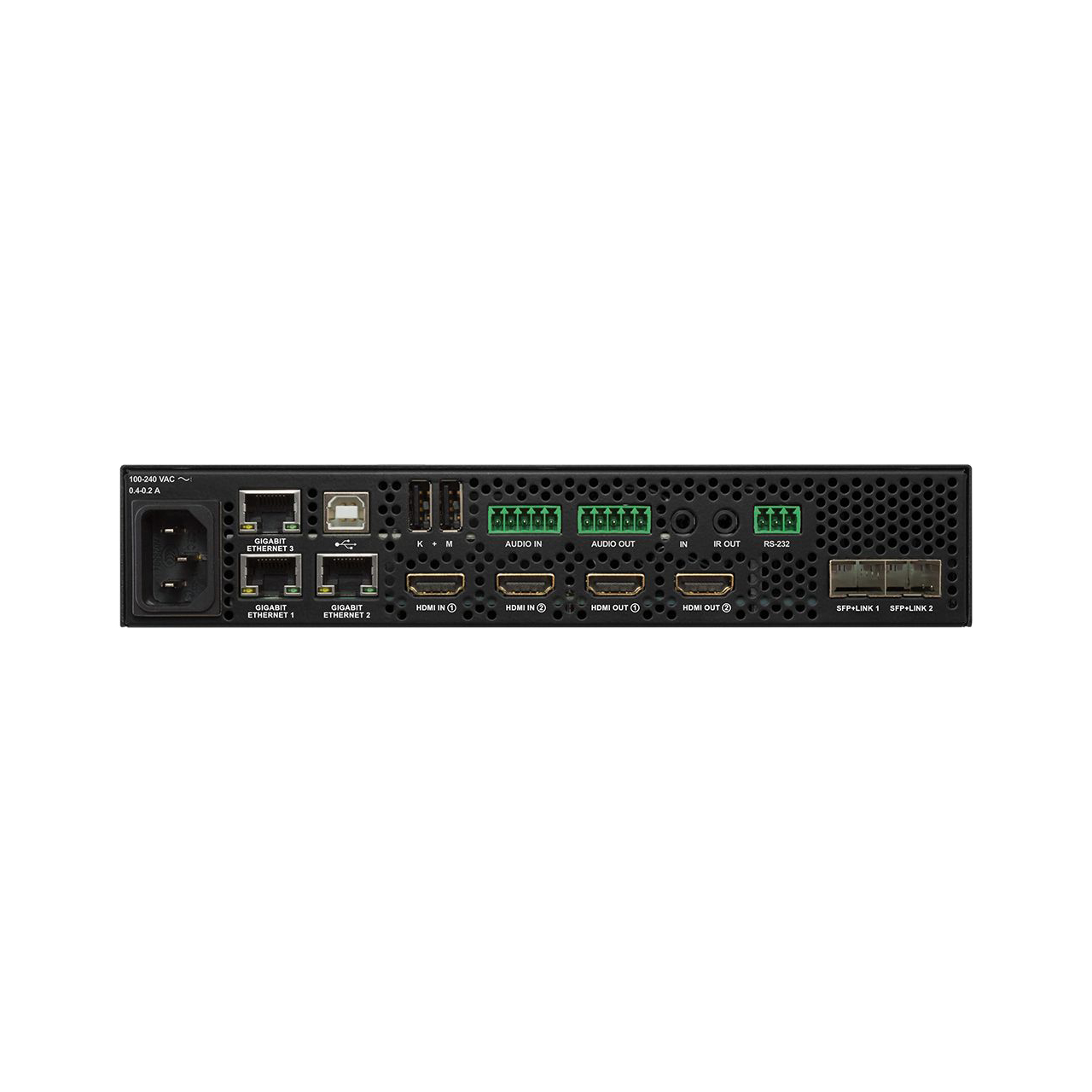

The device supports standard, certified 10 Gbps SFP+ optical modules, which are plug and play and interchangeable by the user (Sold Separately). Either LC duplex multimode/singlemode modules (one fiber for each direction per 10 Gbps link) or bi-directional singlemode modules (one fiber for both direction per 10 Gbps link) can be installed.
Variable Extension Distances
The maximum reachable distance is 400 m with multimode modules (OM4), and 10 km with short range singlemode modules, or 80 km with long range singlemode modules.
Traditional Point-to-Point Extension and Transceiver Mode
UBEX can operate as a traditional point-point extender too, with reliable optical extension linking directly to the UBEX device in receiver mode. The UBEX device can operate as transmitter, receiver or transceiver as well.
