Middle Atlantic Premium+ PDU with RackLink and Surge Protection - 9 Outlets - 20 Amps

ITEM #: MAP-RLNK-P920R MFG #: RLNK-P920R

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Middle Atlantic Products
Free Shipping with $49 Minimum Order

List Price:

$2,090.00

Our Price:

$1,881.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

RLNK-P920R - Overview

Middle Atlantic RLNK-P920R Unleash the maximum potential of Racklink™ technology -remotely manage your AV systems and provide best-in-class power and network security protection; Rackmount model featuring 2-stage surge protection.

More than power distribution, the Premium+ PDU with RackLink™ is the most advanced - yet simplest - to use IP control solution for Remote System Management in the industry. Developed around a platform that has been proven on the most secure networks in the world, this next-generation power distribution unit provides unmatched monitoring, control, logging, security and power protection capabilities available for demanding AV applications. The RackLink™ technology allows you to control locally or virtually through 3rd party AV control systems, cloud platforms and SNMP for flexible management that is smarter, faster and reduces service costs.

  • Features:

    • Simple system setup with advanced capabilities
    • Save programming with integrated scheduling, variable timed sequencing, ping sequencing, auto healing, thresholds, and multiple notification options.
    • Easily connect to control and IT systems with universal compatibility through custom drivers, SNMP v3/MIB, RESTful API, and 3rd party integrations.
    • Connecting via Wi-Fi with a 3rd party dongle dramatically reduces the number of Ethernet ports required
    • Configure one PDU or a thousand PDUs in a matter of moments with the ability to save your configuration files
    • Remotely update firmware without having to shut down the PDU, ensuring consistent system uptime

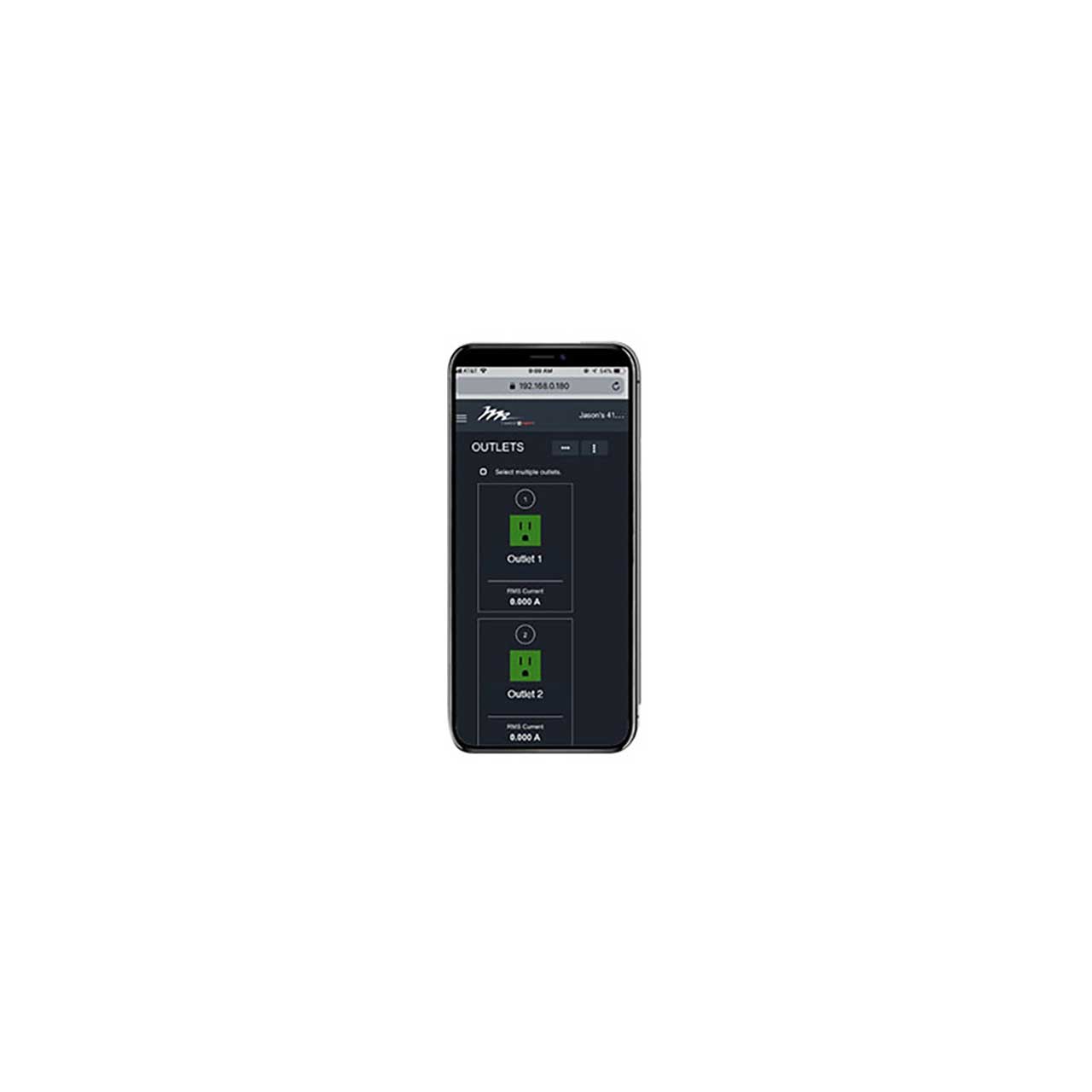

    • Best-in-class monitoring, logging, and data reporting for remote system management with a user-friendly interface.
    • Superior metering accuracy of total power draw down to outlet level including current, voltage, power, power factor and energy usage
    • Patent-pending IP sequencing sets user-defined delays and establishes that an IP device will not power on until its networked companion is powered on
    • Connect up to 32 environmental sensors to monitor the temperature and humidity and alert potential threats that could cause system downtime
    • Industry-leading network security and support of IT protocols for demanding end users
    • SSL/TLS Certificates
    • SSH
    • HTTPS
    • Self-signed certificates
    • Built in partnership with Raritan, a leader in the growing intelligent power market, using their Xerus platform to deliver robust security features and intelligence
    • Compliant with AVIXA Energy Management Standard to support energy efficient AV system design, monitoring and optimization.


  • Specifications:

    • General Info
    • Surge Protected: 2-Stage MOV

      Technical Information
    • AC Voltage Output: 16A
    • AC Voltage Input: 80-140VAC 60/50Hz
    • Amps: 20 Amps
    • Current Max: 120VAC 20A
    • Firmware Update: Yes
    • Graphical User Interfaces: RackLink™ Dashboard
    • LAN Ports: Yes
    • Max Surge Current: 30,000 Amps (one time), 19,500 Amps (two times within 5 minutes)
    • Mounting: Horizontal
    • Patent No: 19,500 Amps
    • Receptacle Type: NEMA 5-20R
    • Surge Suppression: 2-Stage MOV


  • GTIN:

    0656747321610
