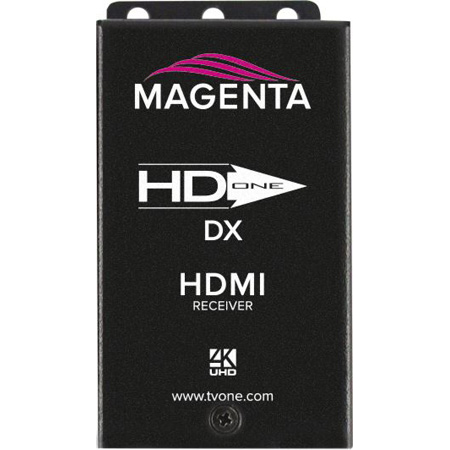

Magenta Research 2211079-03 HD-One DX HDMI Video & Audio Extension Kit

ITEM #: MGE-HD-ONE-DX MFG #: HD-ONE DX

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$620.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


HD-ONE DX - Overview

Tired of using HDMI extenders that are limited to 150 feet, and introduce green sparkles alongside horribly compressed or degraded video? Then it's time to step up to Magenta's HD-One Series.

Magenta's HD-One DX delivers reliable, uncompressed high-definition video over a single Cat5e/6/6e/7 cable, to a distance of 328 feet/100 meters. These fully HDCP-compliant devices feature plug-and-play functionality and require no adjustments to get up and running.

HD-One DX extends embedded HDMI audio in addition to video, with support for Dolby TrueHD and DTS-HD Master Audio. The DX is compliant with HDMI 1.3 and serves up 1080p resolution video at 60Hz, while also boasting support for today's 3D capable devices.

The 328 foot reach of HD-One DX is also impossible to replicate using HDMI cables, which are difficult to terminate, costly and can degrade picture quality, even at short distances. UTP cable is inexpensive and easy to terminate in the field, making HD-One products an easy decision for extending a HDMI or DVI source to any display.

  • Features:

    • HDMI 1.4 and HDCP compliant
    • HDBaseT
    • Uncompressed HD video to 1080p @ 60Hz at 328ft/100m
    • Single UTP cable transfers video, audio and HDCP signals
    • Audio transmission supports Dolby TrueHD, DTS-HD Master Audio
    • Supports today's 3D capable devices

  • Specifications:

    • Video Supported: HDMI/DVI Video Modes, HDMI 1.4, HDCP Compliant including standard formats @ 60Hz:640x480, 800x600, 1024x768, 1152x864,1280x768, 1280x960,1280x1024, 1360x760, 1366x768, 1600x1200,1680x1050, 1920x1080, 1920x1200 & HDTV: 480p,720p,1080i, & 1080p.
    • Video In: HDMI Type A (Transmitter)
    • Video Out: HDMI Type A (Receiver)
    • Audio In/Out: Embedded with video signal

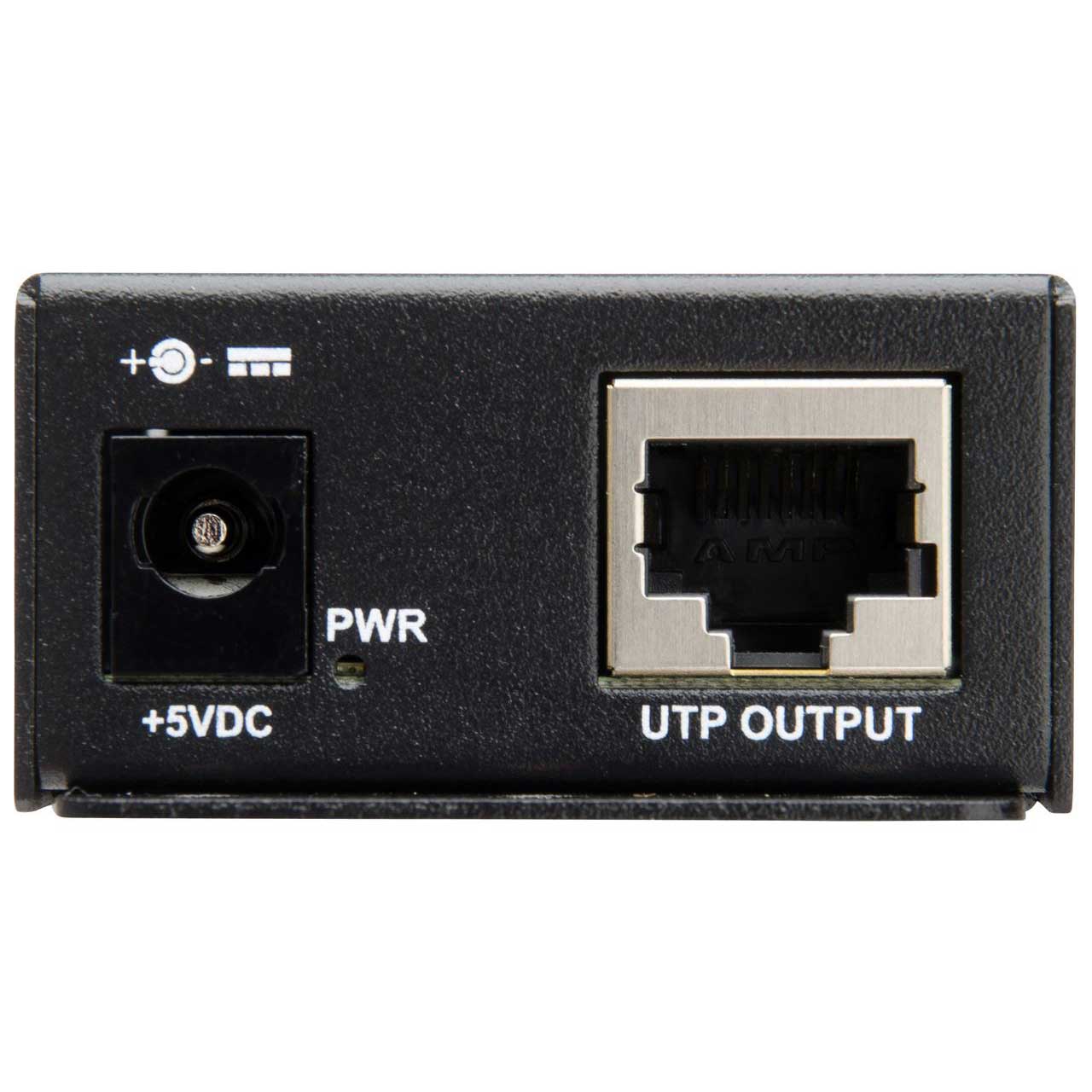

    • UTP In/Out: RJ45 Connector, HDBaseT format
    • Required UTP: CAT5e, CAT6, CAT6a, CAT6e, CAT7 UTP/STP/FTP (CAT6 or better is recommended)
    • Bandwidth: 3.4 Gbps
    • RS-232 Baud Rate (LX): To 115200bps; Full Duplex
    • RS-232 Connector (LX): DB9 Female / DB9 Female
    • IR Carrier (LX): 36.7, 38.0, or 56.8 kHz modulated emitter output; Bi-directional
    • Power: +5 VDC @ 2.6A max each unit
    • Consumption: 1200 mA max Consumption: 600mA(max) / 1200mA(max)
    • Dimensions (DX): 3.2" x 1.9" x 1.0" (82 mm x 48.6 mm x 24.8 mm)
    • Dimensions (LX): 5.1" x 3.5" x 1.2" (130mm x 88 mm x 30mm)
    • Weight: DX: 0.3 lb (0.14 kg) each LX: 0.6 lb (0.28 kg) each
    • Humidity Tolerance: Up to 95% non-condensing
    • Operating Temperature: 0 to 55 C
    • Storage Temperature: -20 to 85 C
    • Warranty: 3 years
