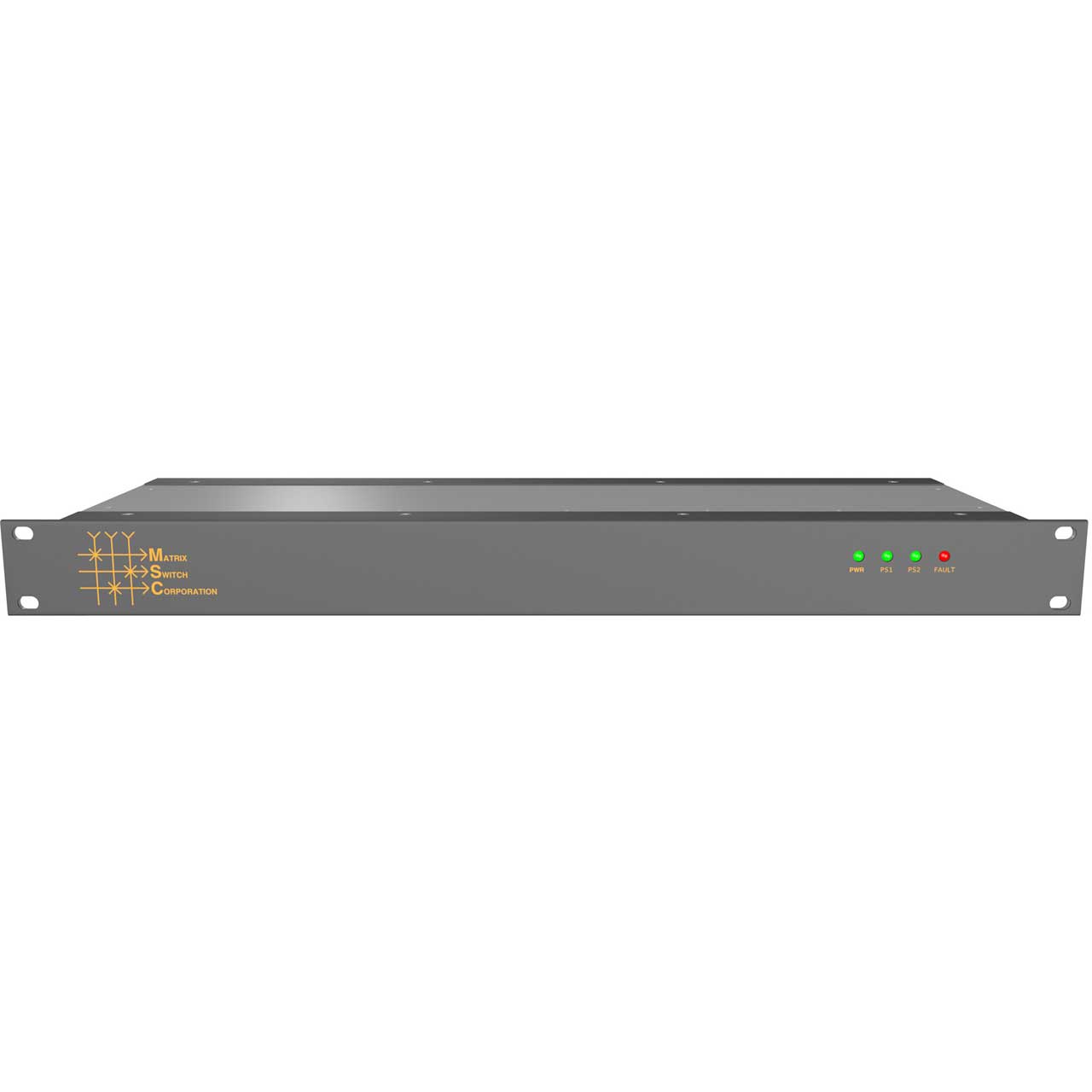

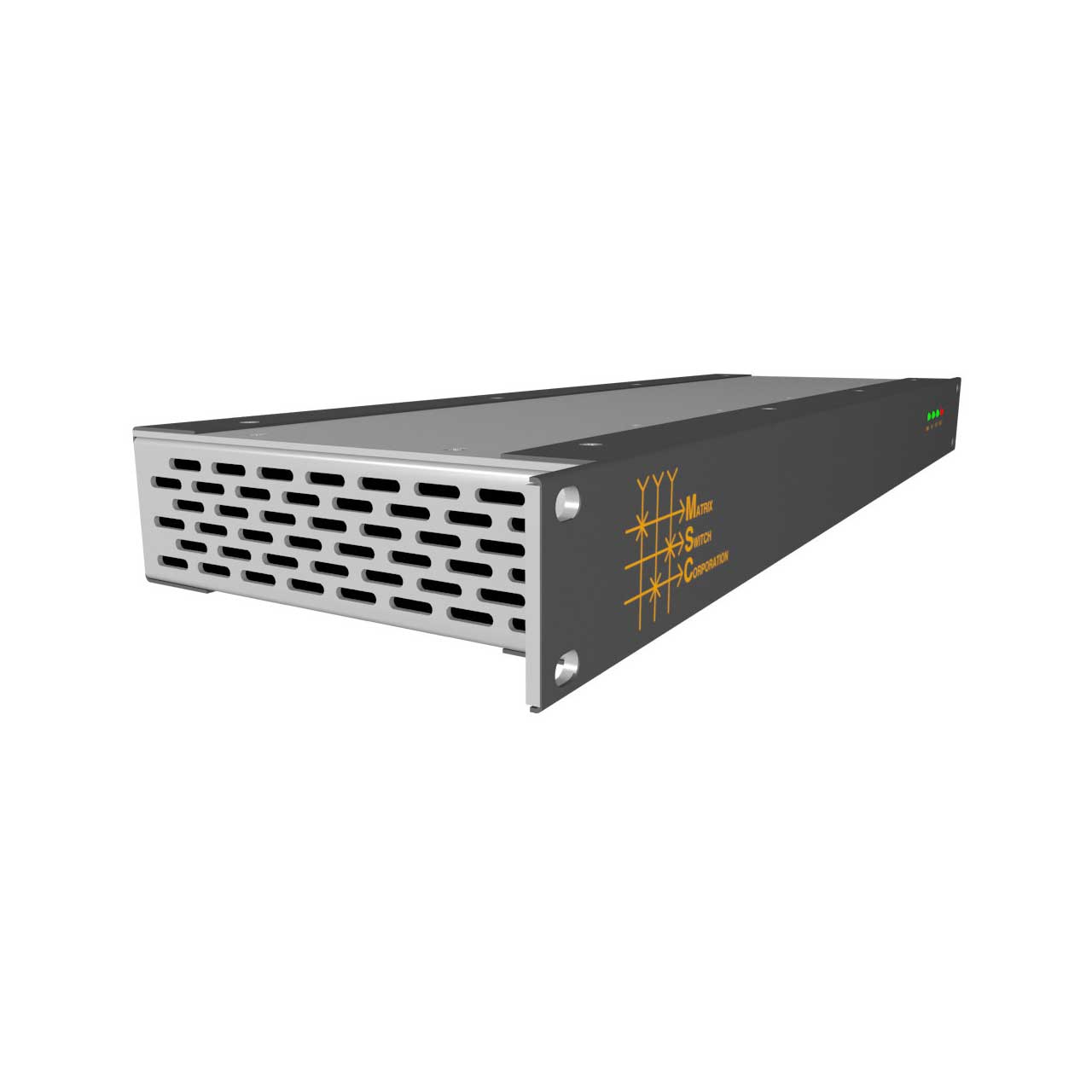

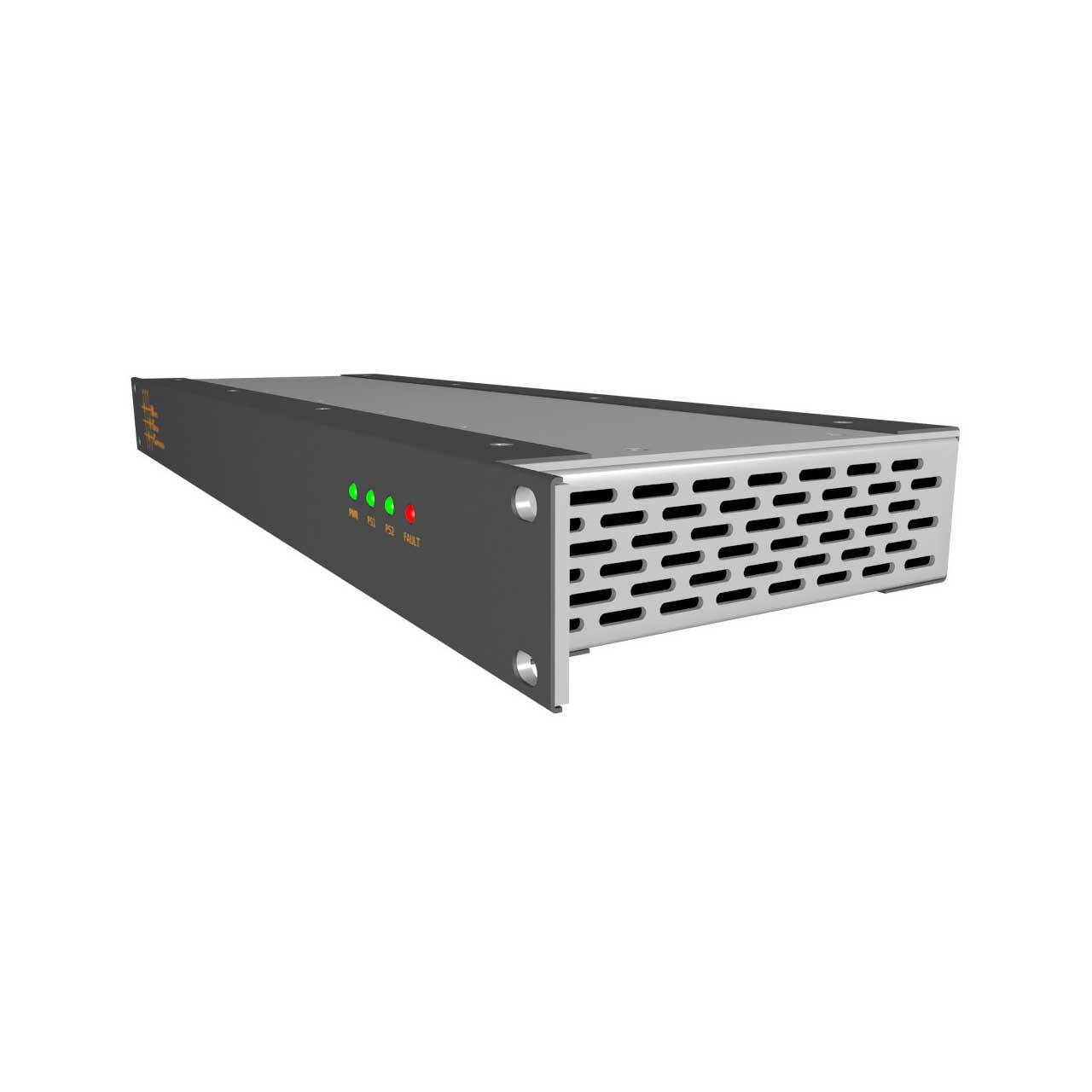

The Matrix Switch MSC-XV1616S composite analog video routing switcher has 16 inputs and 16 outputs. With a minimum signal bandwidth of 50MHz this router is more than enough for any analog video installation. The use of premium quality components, extensive shielding and low noise linear on board power supply regulation has resulted in systems with extremely low crosstalk and noise levels.
Matrix Switch Corporation analog video routers can be used standalone or combined with additional analog video routers to produce a 2 channel YV router or 3 channel YUV or RGB router. When used in conjunction with the MSC-GCP2U32 LCD remote control panel, multiple analog video routers can be combined to expand the available input or output channels, using cascaded systems or input replication.

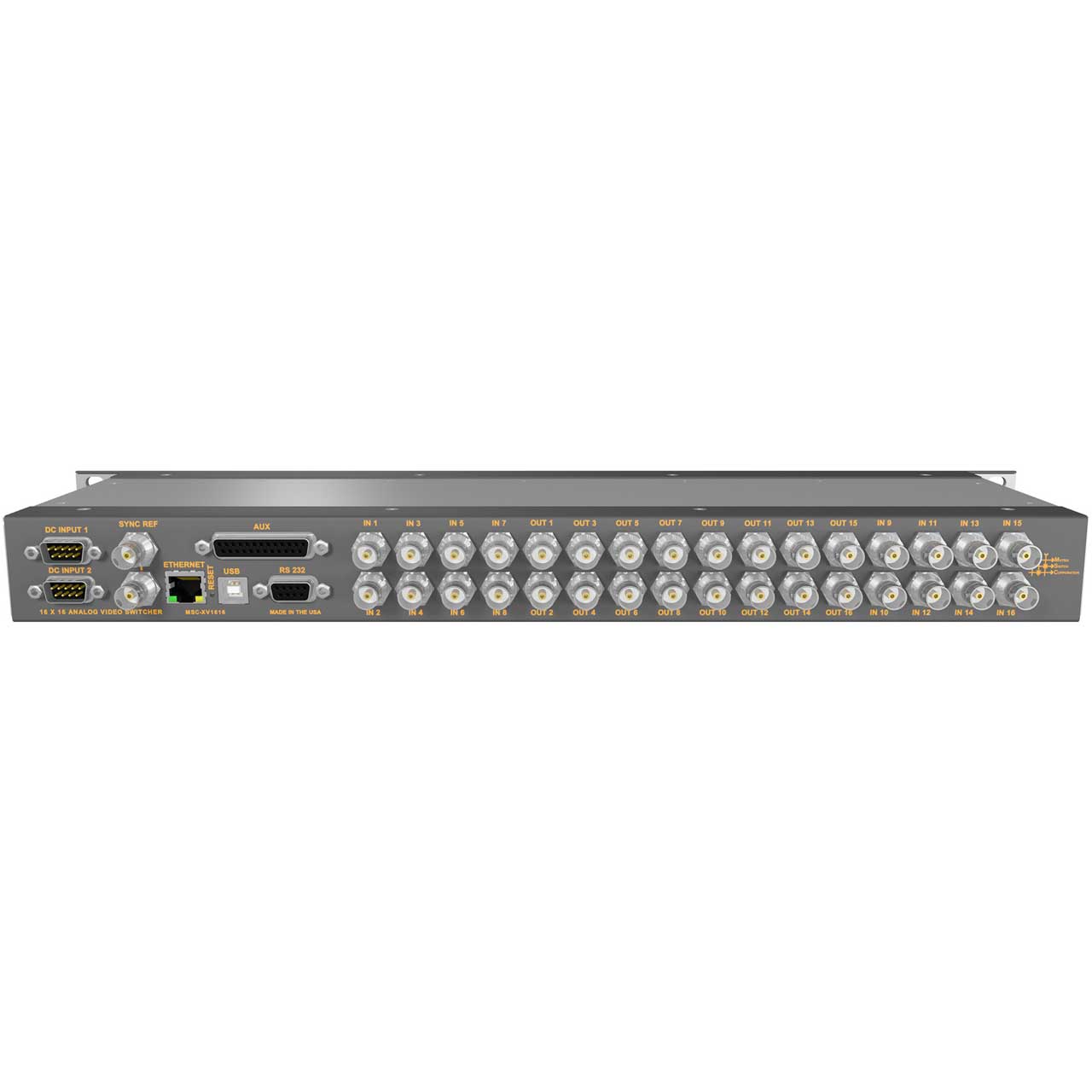

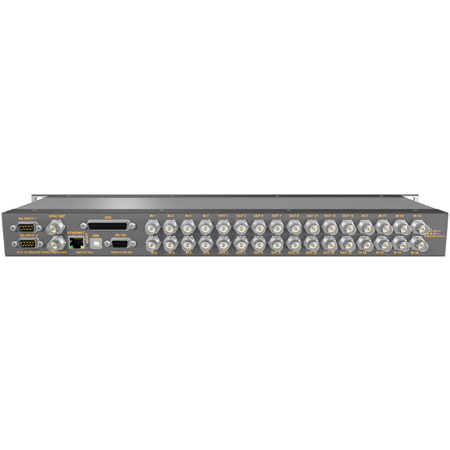

Matrix Switch Corporation routers provide several options for control and system integration. The built-in webpage interface offers a convenient method for control and configuration using a PC or mobile device (Interactive Demo). In addition to the powerful yet easy to use MASCOT protocol, there is support for some common 3rd party protocols. Additional control interfaces on this router include: USB, RS-485, RS-232, AUX GPIO, and TCP/IP over the Ethernet interface. Matrix Switch Corporation Remote Panels can also be used with this router for remote control up to a virtually unlimited distance over TCP/IP.
