DA8P - Overview

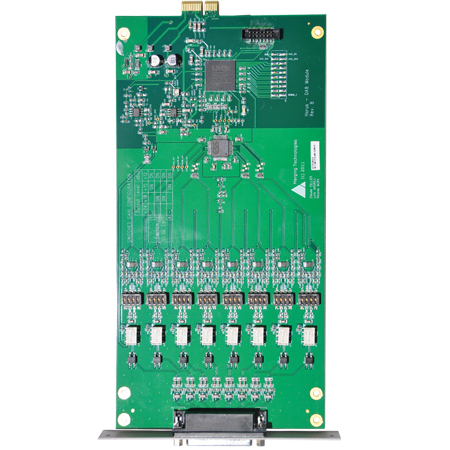

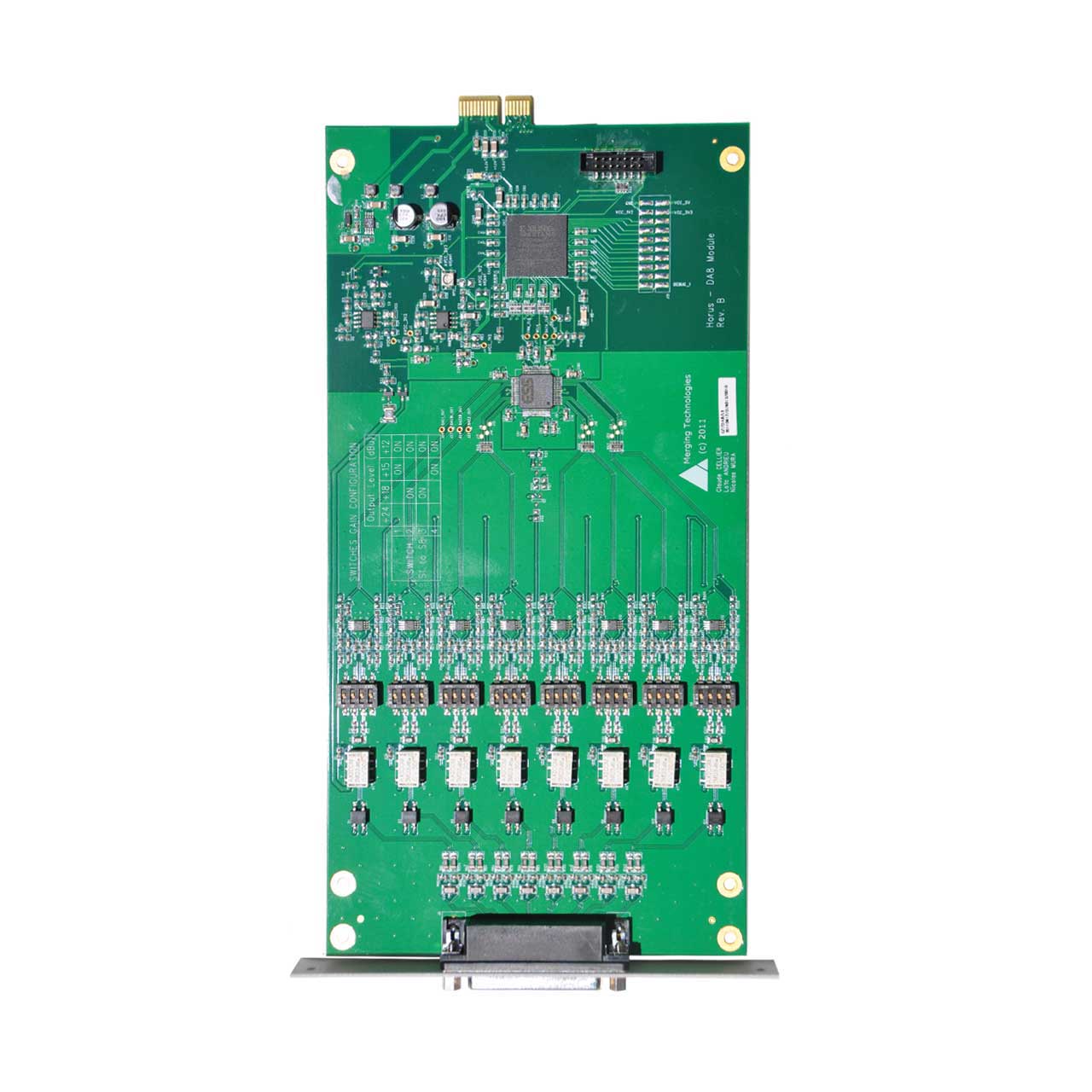

The Merging Technologies DA8P is a multichannel D/A conversion module for the Horus/HAPI MKII and has been shown in testing to be consistently the quietest multichannel D/A conversion modules available anywhere.

  • Features:

    • Auto-mute circuitry for "no-pop" power cycling
    • Digitally controlled trims for line up procedures
    • Dynamic range of 127dB (typ.)
    • Local low phase noise oscillator circuitry


  • Specifications:

    • Max Line Output @ 0 dBFS (settings on +24 dBu): +25 dBu +0/-0.5 dB
    • Frequency response +0/-0.3dB @ fs = 48000 Hz: 6 Hz - 20 kHz
    • Frequency response +0/-0.3dB @ fs = 2.8224 MHz (DSD): NA / 6 Hz - 20 kHz
    • Frequency response +0/-3.0dB @ fs = 2.8224 MHz (DSD): NA / 2 Hz - 50 kHz
    • Line Output Impedance (Differential): 90 ω
    • Dynamic Range (A-weighted, typ): 127 dB
    • THD+N D/A (1 kHz) @ 0 dBFS: < -116dB (0.00016 %)
    • Interchannel Crosstalk @ 1kHz, typ.: -140 dB
    • Connector Pinout: DB-25 / AES59 (Tascam Ana.)


  • Item Includes:

    • 1x Merging Technologies DA8P Multichannel D/A Conversion Module


  • Warranty:

    • 2-Year Limited Warranty


  • GTIN:

    0615104391505
