Blackmagic Design ATEM Mini Live Production Switcher Kit with 2x Pocket Cinema 4K Cameras & HDMI Cables

ITEM #: MTK-ATMMNCIN-KIT MFG #: MTK-ATMMNCIN-KIT

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order


Availability: Sold Out
iAvailability Description Popup


    MTK-ATMMNCIN-KIT - Overview

    Save Over $80 On This Blackmagic Design Switcher & Camera Kit!

    Whether you're filming for a YouTube channel, a small live music performance, a classroom lecture, or a wedding, you can produce high-quality digital cinematic footage with seamless professional switching and transitions with this great Blackmagic Design live production kit with the ATEM Mini switcher and the Pocket Cinema 4K camera!

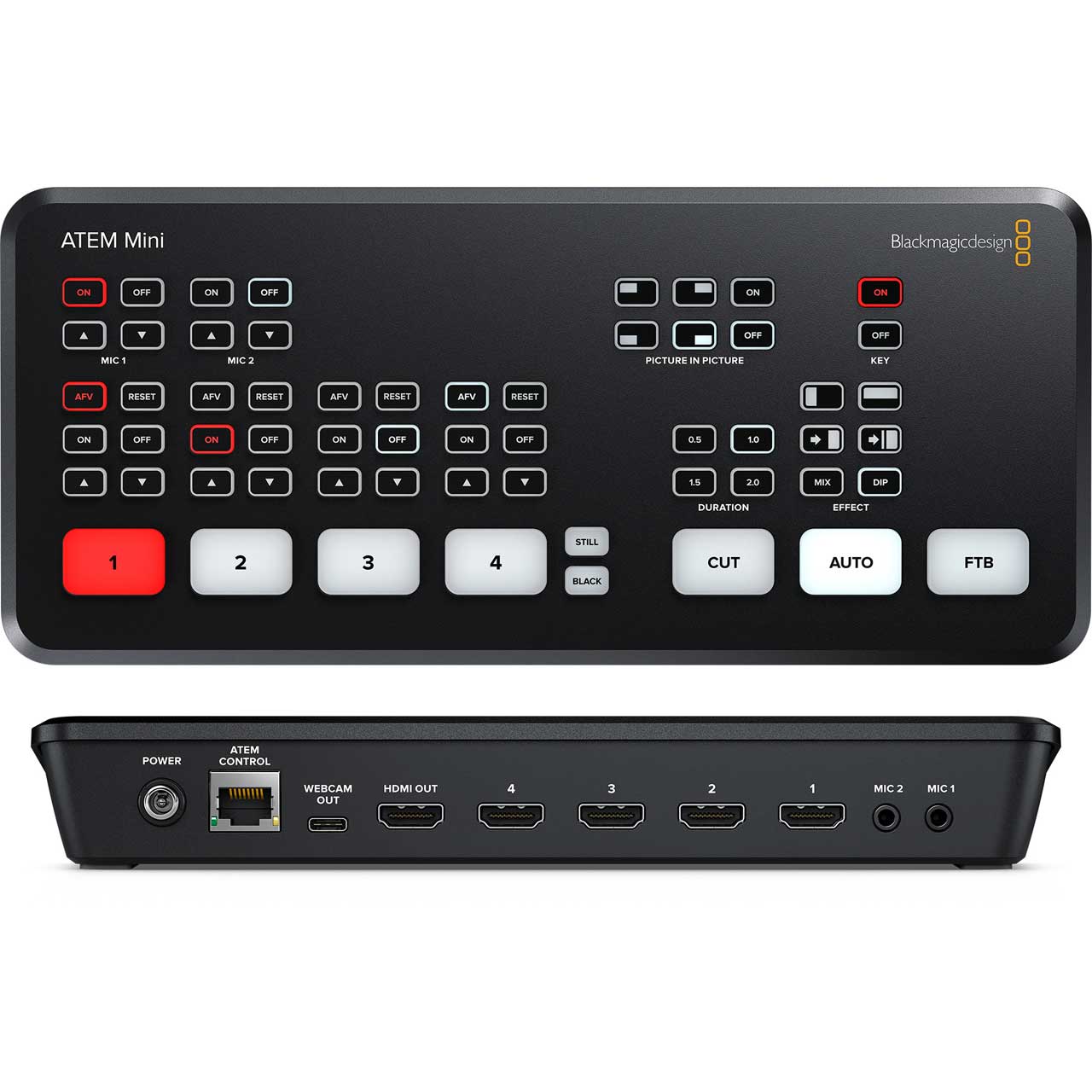

    The Blackmagic Design ATEM Mini is the world's first low cost live production switcher that makes it possible for anyone to create and stream broadcast-quality multi-camera content! Packed with high end broadcast technology, ATEM Mini features 4 HDMI inputs for connecting cameras, computers and game consoles, two microphone inputs, and an HDMI output for monitoring and recording. You also get a USB output for connecting to a computer so you can stream full 1080p HD live online. The intuitive control panel is designed for speed and simplicity. That means you can use it by yourself, without the need for a large dedicated video crew! You also get built in digital video effects, transitions, and keyers for removing backgrounds or adding your own custom graphics. It's perfect for anyone that wants to create their own professional looking content and post them online.

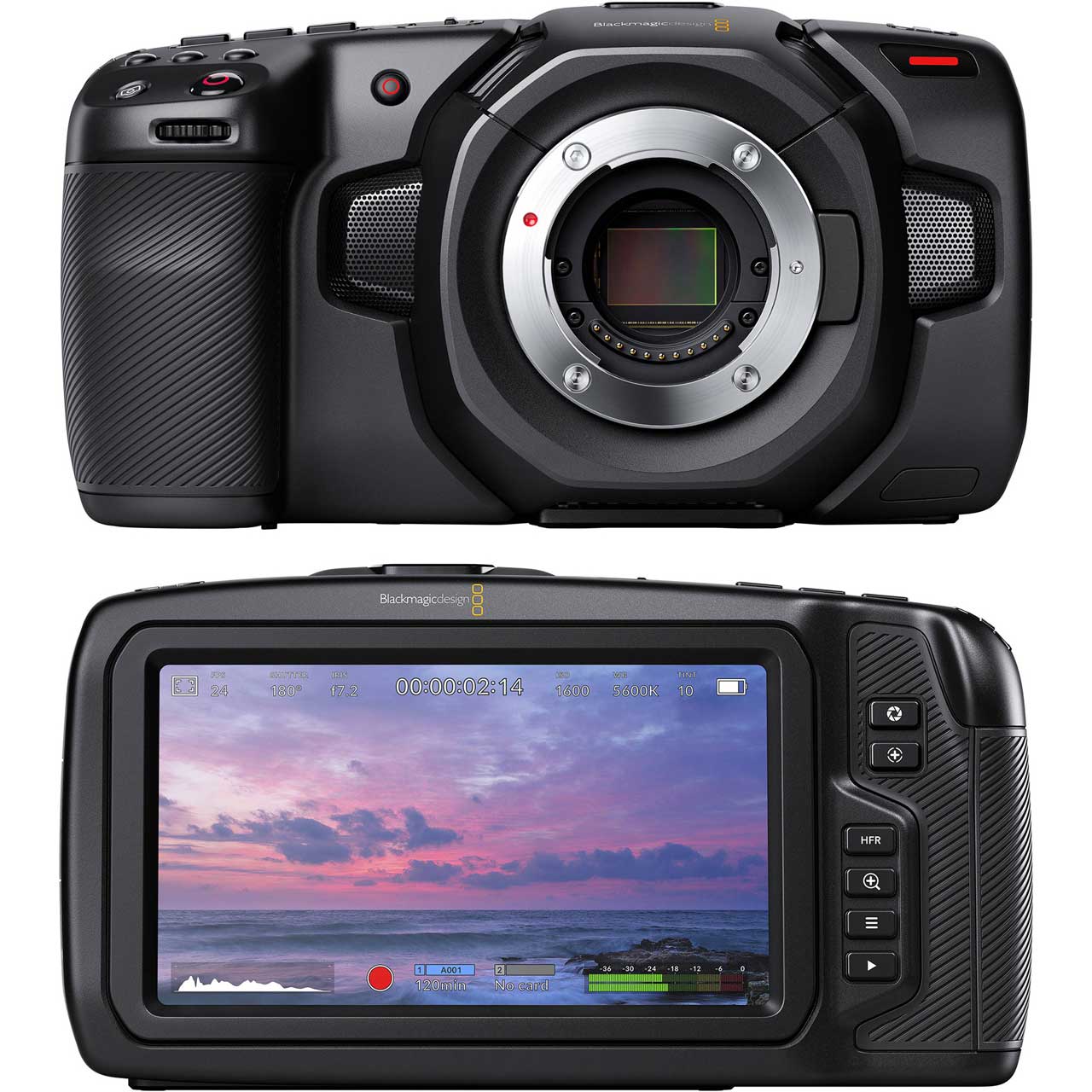

    The Blackmagic Design Pocket Cinema 4K is better than a simple video camera because it has professional features allowing you to create the same "look" as Hollywood feature films. The combination of high dynamic range, great low light performance and Blackmagic RAW gives you feature film images with precise skin tones and gorgeous organic colors. You get advanced features such as a large 5" LCD for easy focus, SD card and CFast media, external USB-C media disk recording, EF or MFT lens mounts and more. DaVinci Resolve Studio is also included for editing, color correction, audio post and VFX. It has the professional features you need for feature film, television programming and documentaries, however now these same features can be used to revolutionize other types of work such as blog videos, YouTube content and more. It has a native sensor resolution of 4096 x 2160, so whether you're shooting in bright sunlight or in almost no light at all, the 13 stops of dynamic range with dual native ISO up to 25,600 provide stunning low noise images in all lighting conditions. It can also let you shoot up to 60 fps in full resolution or 120 fps windowed. Additional features include a USB-C expansion port for recording externally to disks, built-in microphones, XLR input, full sized HDMI, 3D LUT support, Bluetooth and more.

    In addition, you'll have the necessary cables for the ATEM Mini and Pocket Cinema 4K camera to get your production hooked up. Professional switching. Professional filming. Professional results!

    • Features:

      • ATEM Mini
      • Connect up to 4 independant cameras
      • Outputs to HDMI video and USB webcam
      • Work with professional microphones
      • Includes free ATEM Software Control Panel
      • Includes new ATEM Advanced Chroma Key
      • Add professional broadcast transitions and effects

        Pocket Cinema 4K
      • Made from lightweight carbon fiber polycarbonate composite
      • Multifunction grip with fingertip controls
      • 18.96mm x 10mm (4/3) high-resolution cinematic digital film sensor
      • 400 and 3200 Dual Native ISO
      • Active MFT lens mount
      • Multiple resolutions (1920x1080 to 4096x2160) and frame rates (23.98fps to 60fps)
      • Use standard SD Cards, UHS-II or CFast 2.0 media
      • Large 5" 1920x1080 LCD touchscreen monitor

    • Specifications:

      • ATEM Mini
        Connections
      • HDMI Video Inputs: 4x HDMI type A
      • Audio Inputs: 2x 3.5mm stereo mini jack
      • HDMI Program Outputs: 1x HDMI type A
      • Computer Outputs: 1x USB Type-C 3.1 Gen 1
      • ATEM Control: 1x RJ45
      • HD Video Input Standards:
        720p50, 720p59.94, 720p60
        1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
        1080i50, 1080i59.94, 1080i60
      • HD Video Output Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
      • Dimensions (HxWxD): 1.38" x 9.35" x 4.07" (35mm x 237mm x 103mm)
      • Weight: 1.21lbs (0.54kg)

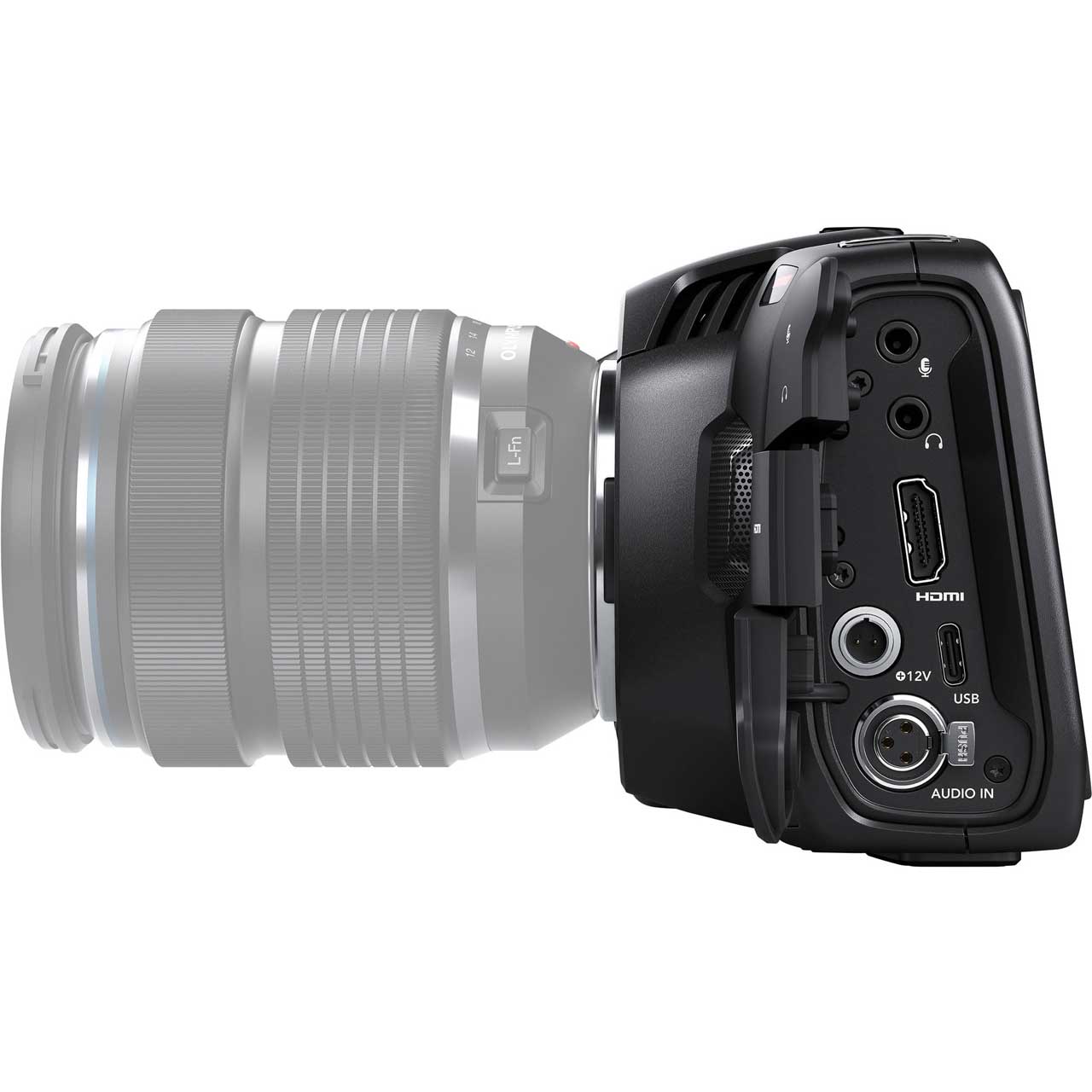

        Pocket Cinema 4K
        Connections
      • Total Video Inputs: None
      • Total Video Outputs: 1x HDMI Type A
      • Analog Audio Inputs: 1x mini XLR analog switchable between mic with phantom power support and line level (up to +14dBu); 1x 3.5mm Stereo Input. Can also be used for Timecode input
      • Analog Audio Outputs: 1x 3.5mm headphone jack
      • Computer Interface: USB Type-C for external drive recording, software updates and media download

        Audio
      • Microphone: Integrated stereo microphone
      • Built in Speaker: 1x mono speaker

        Standards
      • SD Video Standards: None
      • HD Video Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
      • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
      • 4K DCI Standards: 4KDCIp23.98, 4KDCIp24, 4KDCIp25, 4KDCIp29.97, 4KDCIp30, 4KDCIp50, 4KDCIp59.94, 4KDCIp60

        Media & Supported Codecs
      • Media: 1x CFast, 1x SD USH-II card slot, 1x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and ProRes Recording
      • Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems
      • Codecs: RAW Constant Bitrates (3:1, 5:1, 8:1, 12:1), RAW Constant Quality (Q0 and Q5), ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime

        General
      • Operating Systems: Mac 10.14 or later; Windows 10
      • Power Supply: 1x External 12V power supply
      • External Power Input: 1x 2-pin locking connector
      • Battery Type: Canon LP-E6
      • Battery Life: Approximately 60 minutes
      • Power: 12V-20V
      • Dimensions: 7" x 3.4" x 3.8"
      • Weight: 1.59lbs
      • Operating Temperature: 32° - 104°F (0°C - 40°C)
      • Storage Temperature: -4° - 113°F (-20°C - 45°C)
      • Relative Humidity: 0% - 90% non-condensing

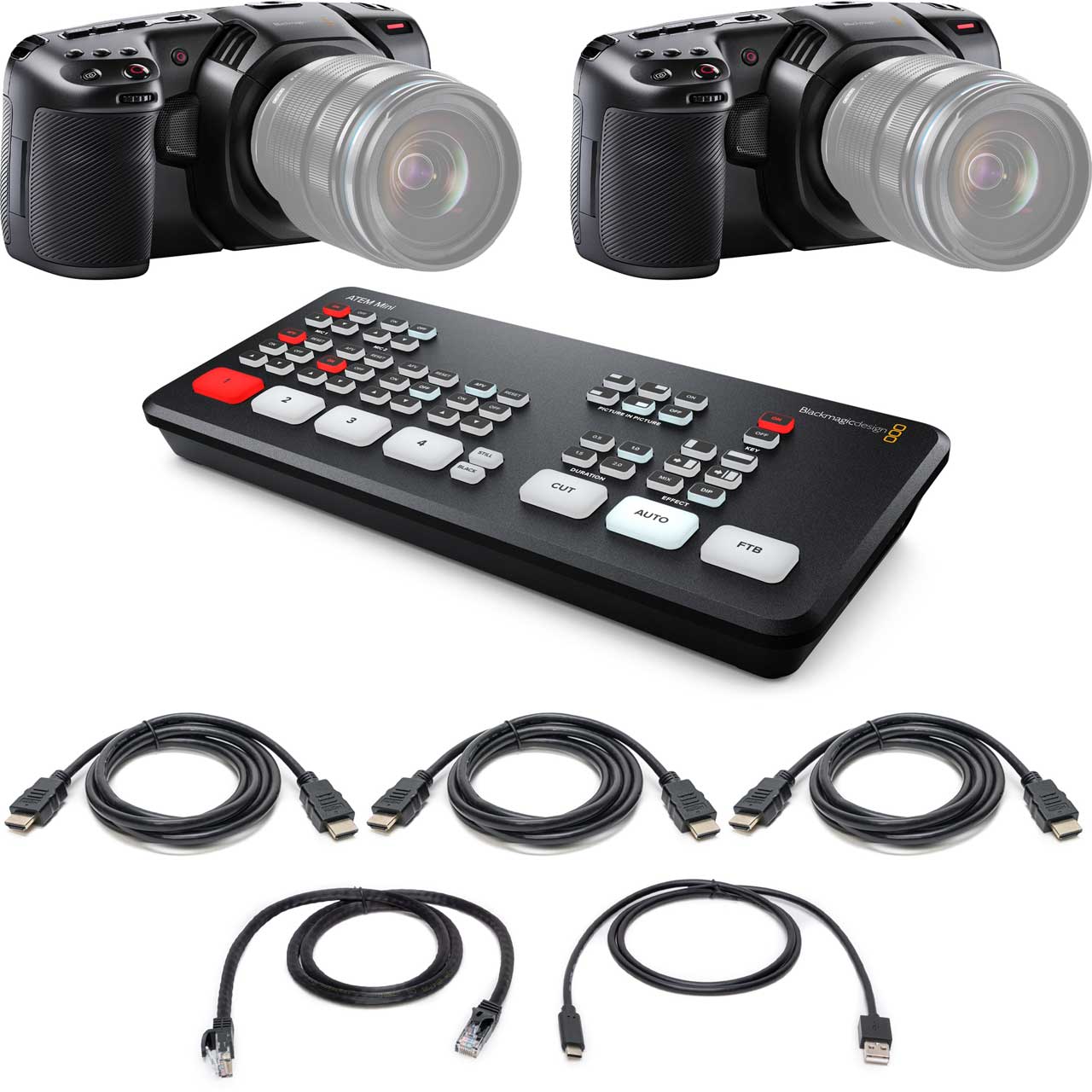

    • Item Includes:

      • 1x Blackmagic Design ATEM Mini Live Production Switcher
      • 2x Blackmagic Design Pocket Cinema 4K Cameras

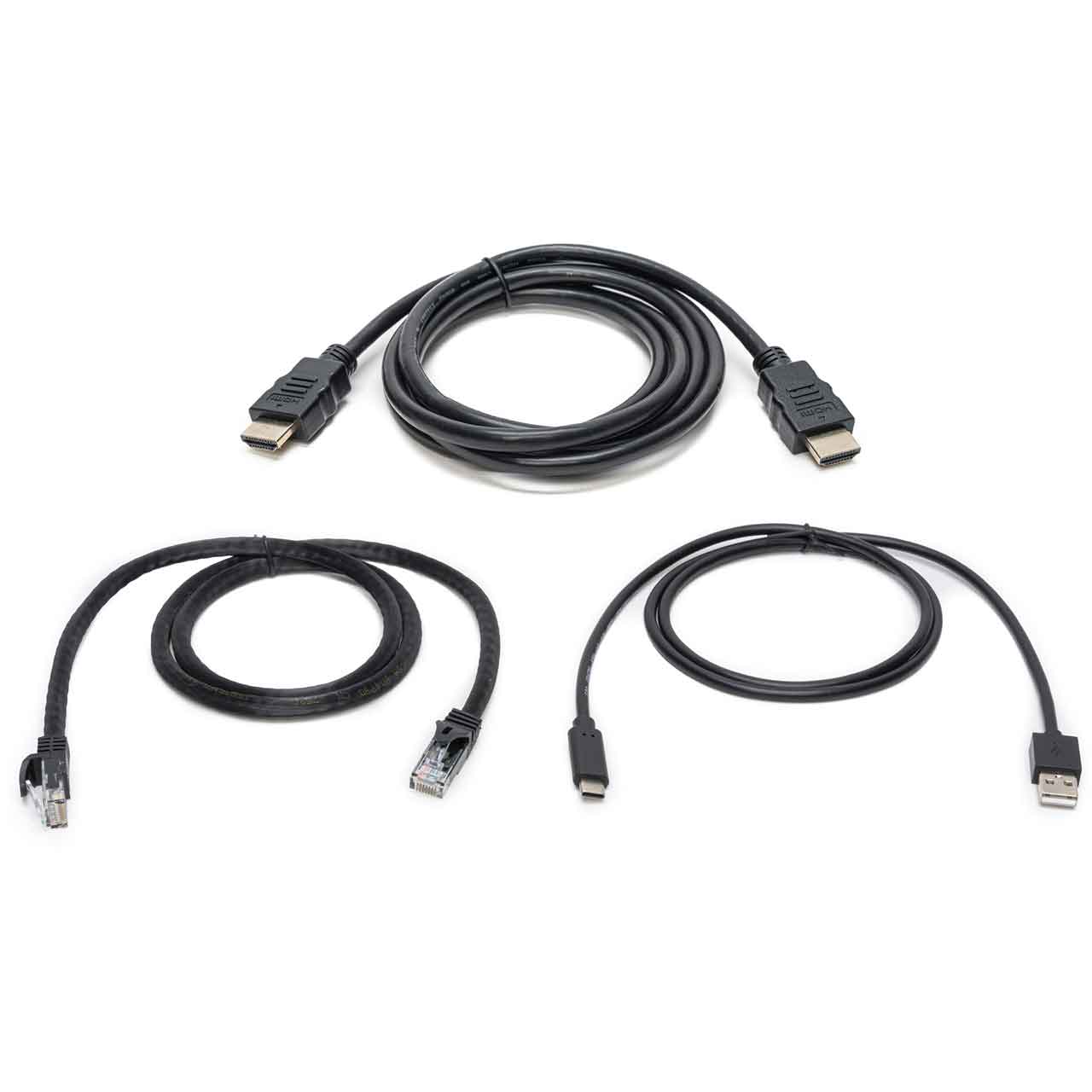

      • 3x 15ft HDMI Cables
      • 1x 3ft Cat6A Ethernet Cable
      • 1x 3ft USB-C to USB-A Cable

    • Warranty:

      • ATEM Mini Pro & Pocket Cinema 4K: 12 Months Limited Manufacturer's Warranty

    • GTIN:

      9338716006445
