Markertek Epiphan Pearl Nano All-In-One Video Production Streamer/Recorder Kit with SD Card & HDMI/SDI/XLR/Cat6 Cables

ITEM #: MTK-EPPRLNAN-KIT MFG #: MTK-EPPRLNAN-KIT

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,950.00

Our Price:

$1,949.00

Availability: In Stock
iAvailability Description Popup


MTK-EPPRLNAN-KIT - Overview

Bring Your Video Production Studio With You In An All-In-One Video Production System That's Small In Size And Big On Pro Features!

The Markertek MTK-EPPRLNAN-KIT is a starter kit that combines the Pearl-Nano all-in-one Streamer/Recorder with an SD card and ALL the necessary HDMI, SDI, XLR, and Ethernet cables needed to get you started recording and streaming your content quickly! The Epiphan Pearl Nano offers the ultimate blend of portability and versatility with a refined yet robust feature set that includes ingestion, encoding, HDMI pass-through, and recording. You can use Nano as a powerful and reliable video distribution device or contribution encoder, or leverage the device's streaming and recording functions as part of a more complex setup with additional production capabilities.

Cloud-Based Configuration and Monitoring
Epiphan Cloud streamlines configuration and monitoring of multiple Pearl Nanos and other Epiphan hardware with centralized access to key device statistics including operational status, system load, unit temperature, available storage, and overall health.

Elevate Your Productions
Build a beautiful layout for your video program with Nano's powerful custom layout designer. Create anything from simple picture-in-picture layouts to eye-popping compositions featuring dynamic backgrounds and other custom graphics - whatever suits your event best.

Ideal For SRT Contributions
The compact and lightweight Pearl Nano supports Haivision's open-source Secure Reliable Transport (SRT) protocol for secure, high-quality, low-latency video streaming over any given network.

Flexible Recording and Storage
Nano makes it easy to record, transfer, and back up files with a variety of storage options. Pearl Nano includes an SD card slot on the front of the device for storage. Need more local storage? Just add an M.2 SATA SSD to Nano's expansion bay on the bottom of the unit. Nano can automatically transfer recorded files to a USB drive, local server, or network-attached storage device.

No-Fuss Networking and Security
Easily add Pearl Nano to any network and prevent unauthorized access with a bevy of security features including DHCP and LDAP support, role-based access control, 802.1x network access control, and SSL.

  • Features:

    • Front screen for basic configuration/control and confidence monitoring
    • Inputs for HDMI and SDI, line-level XLR and RCA
    • HDMI program out and pass-through for zero-latency content display
    • Custom layout builder for a tailored video program
    • Intuitive browser-based UI and local console
    • Cloud-based configuration and control via Epiphan Cloud
    • SRT, HLS, MPEG-DASH, RTMP, and RTMPS streaming protocol support
    • Comprehensive integration with Kaltura and Panopto
    • Power over Ethernet Plus (PoE+) and DC power
    • SD card slot for removable storage
    • Expansion bay for user-supplied M.2 SSD
    • USB input for attached storage
    • 802.1x network access control
    • Lightweight Directory Access Protocol (LDAP)
    • Secure Sockets Layer (SSL)

  • Specifications:

    • Video I/O's
    • Local Video Inputs: 1x 3G-SDI, 1x HDMI 2.0
    • Video Over Ethernet: 1x RTSP, 1x SRT (push)
    • Connectors: 1x BNC, 1x HDMI type A, 1x RJ-45
    • Aspect Ratios: 3:2, 4:3, 16:9, 16:10, and custom aspect ratios
    • Standard Resolutions: PAL, PAL wide, NTSC, NTSC wide
    • Input Resolution Range: 640x480 to 1920x1080
    • Frame Rate: Up to 60 fps
    • Deinterlacing: Yes
    • Max. cable length for SDI: 300ft
    • Max. cable length for USB 3.0: 6ft
    • Output Signal Types: 1x HDMI 2.0, 1x HDMI 2.0a pass-through, 1x H.264/AVC digital video over Ethernet, 1x RTSP, 1x SRT, 1x HLS, 1x MPEG-DASH
    • Output Connectors: 2x HDMI, 1x RJ-45
    • Output Resolution Ranges: Recorded: 480p to 1920x1080p; Streamed: 480p to 1920x1080p; HDMI Output Ports: 480p to 1920x1080p
    • Output Frame Rate: Up to 60fps
    • Output Formats: H.264/AVC (ITU H.264, ISO/IEC 14496-10) 4:2:0, 8 bit color

      Audio I/O's
    • Analog Audio Inputs: 2x XLR, 1x RCA
    • Connectors: 2x XLR, 2x RCA
    • Digital Audio Inputs: 1x SDI, 1x HDMI, 1x USB, 1x RTSP, 1x SRT
    • Connectors: 1x BNC, 1x HDMI type A, 1x USB-A, 1x RJ-45
    • Audio Gain Control: 0dB - 30dB
    • Audio Mute: Yes
    • Configurable Audio Delay: -300ms - 300ms
    • Analog Audio Output: 1x 3.5mm stereo headphone jack
    • Digital Audio Outputs: RTSP and SRT audio over Ethernet, HLS and MPEG-DASH audio over HTTP/HTTPS, HDMI audio (embedded)

      Video & Audio Processing
    • Video Output Color Space: 4:2:0, 8 bits per color
    • Video Codec: H.264/AVC (ITU H.264, ISO/IEC 14496-10) 4:2:0, 8 bit color
    • Video Bitrate: 1-50 Mbps (selectable)
    • Bitrate Control: Constant
    • Video Scaling: Software and hardware
    • Key Frames: 1/2 s, and 1 s up to 5 s in 1 second intervals
    • Audio Compression: MP3, AAC, and PCM
    • Audio Sampling Rate: MP3: 22 kHz, 44 kHz, 48 kHz; AAC: 16 kHz, 22 kHz, 44 kHz, 48 kHz; PCM: 22 kHz, 44 kHz, 48 kHz
    • Audio Bitrate: 64 - 320kbps (MP3 and AAC)

      Recording & Storage
    • Record Formats: AVI, MOV, MP4, and MPEG-TS
    • Upload Image Formats: JPEG, PNG
    • SD Card: Up to 512GB
    • File System For SD Card: EXT4
    • Internal Storage: SATA M.2 2280 SSD storage6 (M Key connector)
    • File Transfer Protocols: FTP, SFTP, SCP, AWS S3 client, and WebDAV client RSync
    • Network File Share Protocols: CIFS/SMB
    • File System For USB Storage: FAT16, FAT32, XFS, EXT2, EXT3, EXT4, NTFS
    • External USB Port: 1x USB 3.0 (UAC)
    • Bitrate: Up to 50Mbps

      General
    • Front Screen: 2.2" built-in screen monitor, 320x240 resolution
    • Control Key Interface: Front panel control keys and multi-function keys
    • Operating Temperature: 32°F - 104°F
    • Cooling: Fan air flow: Left to right
    • Form Factor: Portable desktop model, VESA mountable
    • Power Supply: External AC/DC power adapter: 90 - 240 VAC/12 VDC, 2.5 A, 47 to 63 Hz, PoE+ (802.3at)
    • Dimensions (WxDxH): 8.13" x 5.91" x 1.69"
    • Weight: 2.0lbs (907kg)

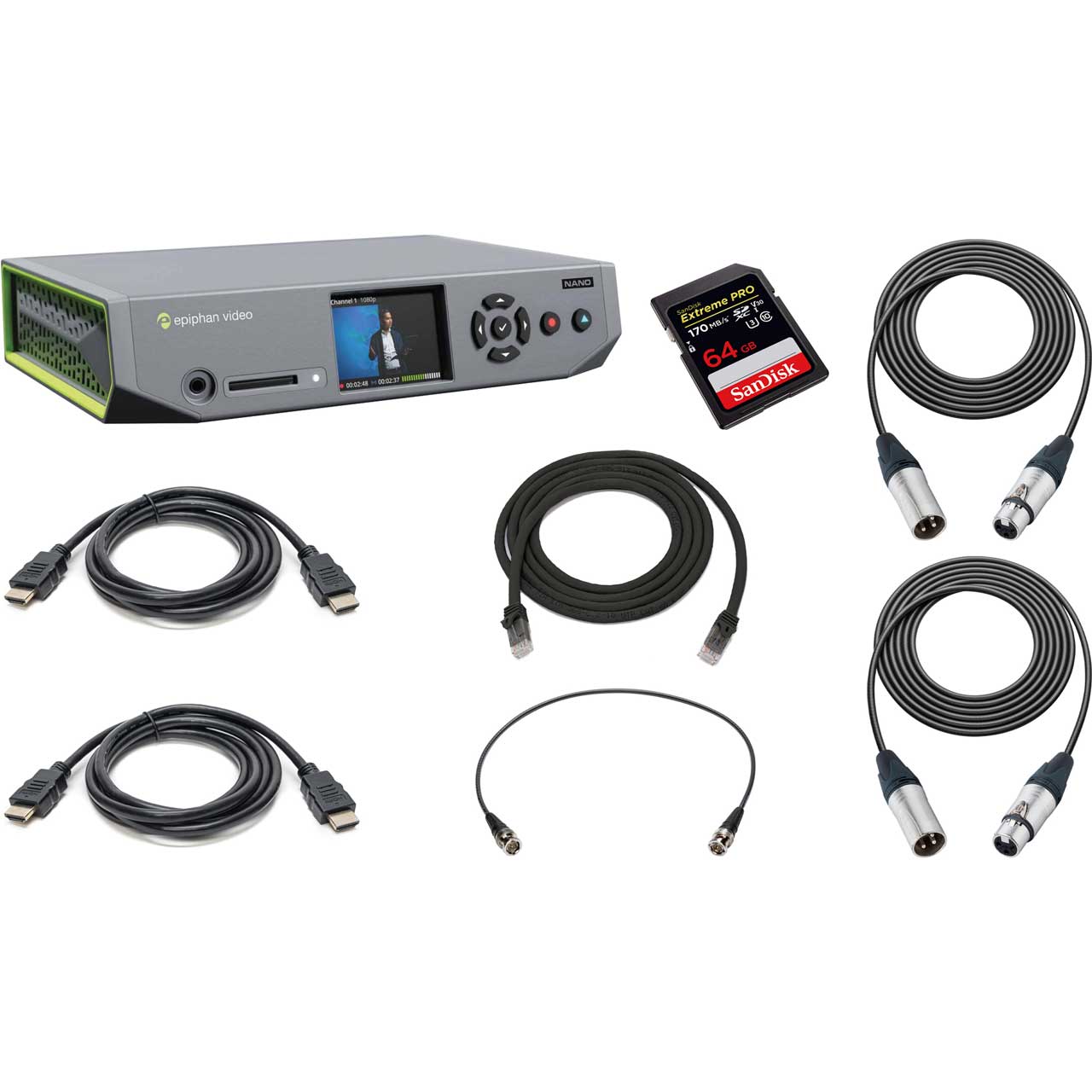

  • Item Includes:

    • 1x Epiphan Pearl Nano
    • 1x Power Supply
    • 1x Quick Start Guide

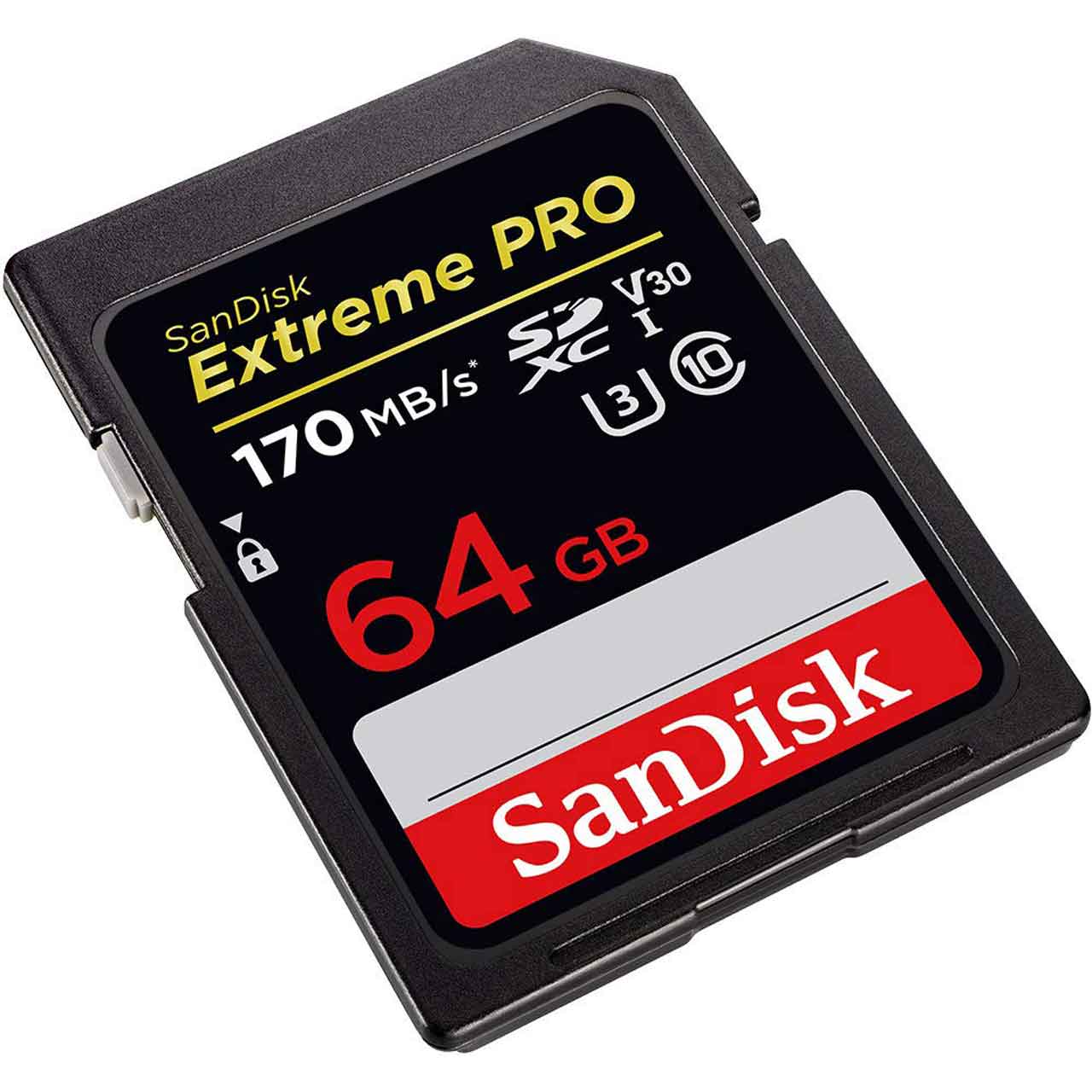

    • 1x 64GB SD Card

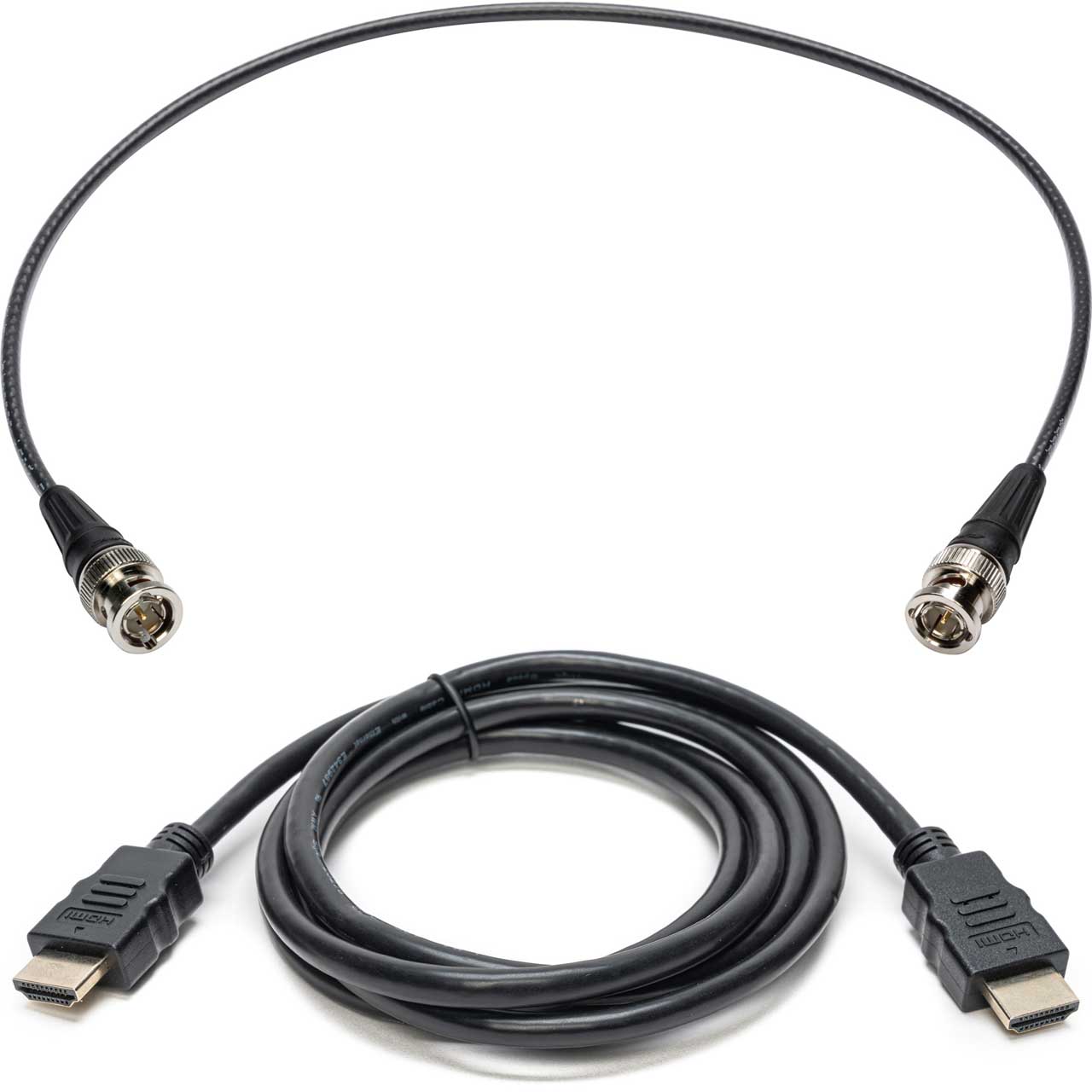

    • 2x 6ft HDMI 2.0 Cables
    • 1x 6ft SDI Cable

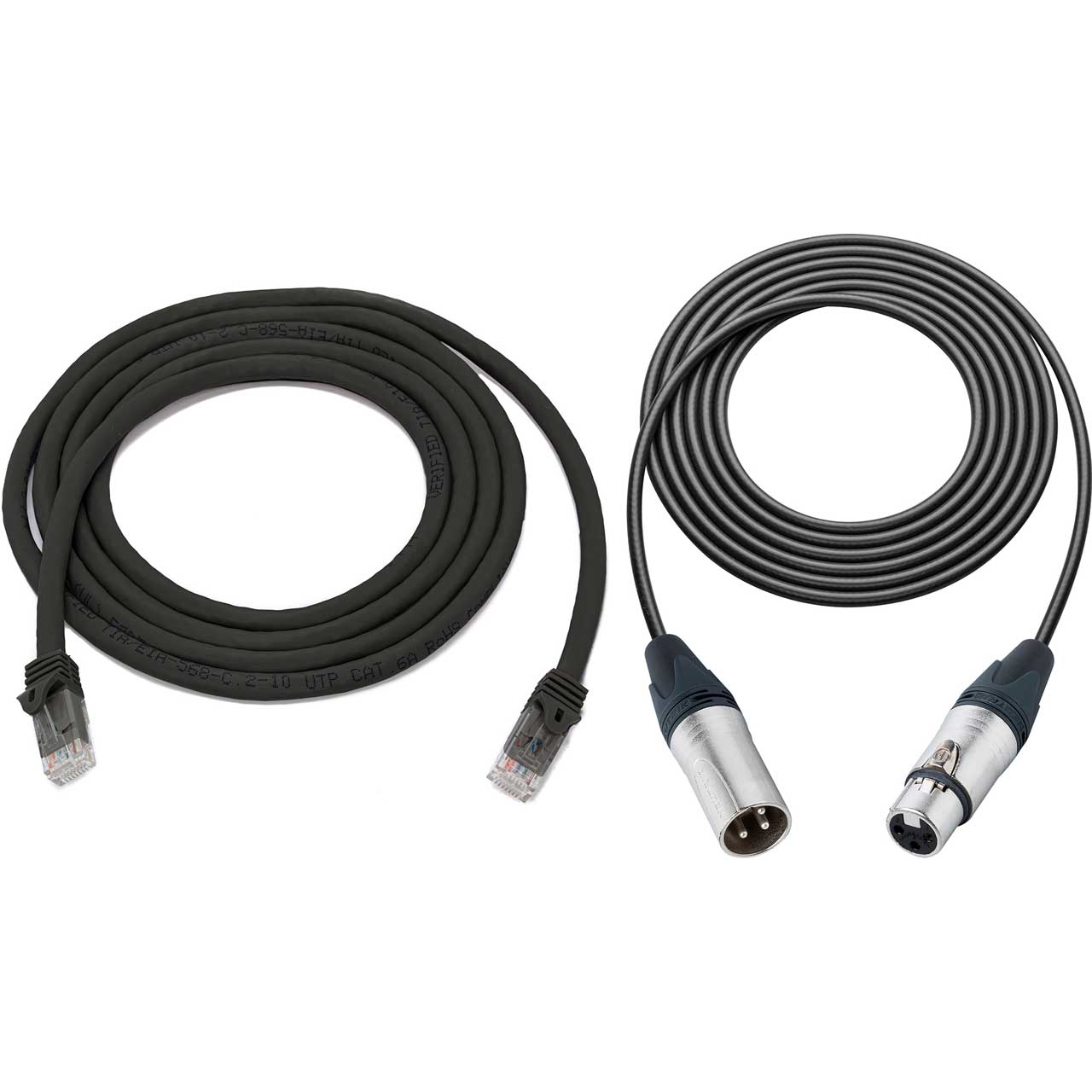

    • 2x 6ft XLR M-F Cables
    • 1x 7ft Cat6A Cable

  • Warranty:

    • 1 Year

  • GTIN:

    0787790141747
