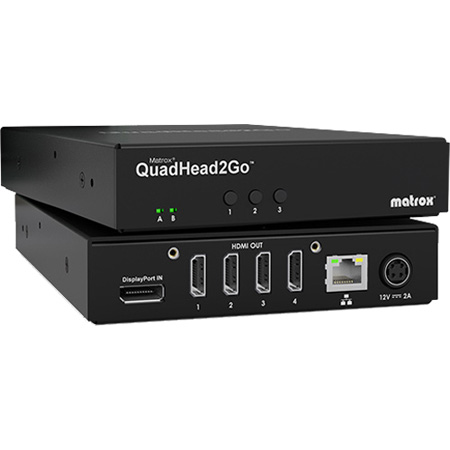

Matrox QUADHEAD2GO Multi-Monitor Controllers Video Wall Processor

QUADHEAD2GO - Overview

• Features:

  • Position, upscale, downscale, rotate, clone, crop outputs as desired
  • Create, edit, save, or delete configurations and/or images at will
  • Work online or in offline mode
  • Control and fine-tune bezels using the pre-set images available on the products
  • Locate devices effortlessly over the network using DHCP or Static IP address
  • Operate on Microsoft® Windows® 10


• Specifications:

  • Product
  • Product Type: 1 input and 4 outputs
  • Form Factor: Appliance (p/n: Q2G-DP4K); Card (p/n: Q2G-DP4K-C): PCIe® x16 mechanical, x1 electrical (power only)
  • Input Connector (Video & Audio Support): Appliance: 1x DisplayPort 1.2; Card: 1x Mini DisplayPort 1.2
  • Max Input Resolutions: 3840x2160 @60Hz, 3840x2160 @30Hz, 7680x1080 @60Hz, 7680x1080 @30Hz, 1920x4320 @60Hz, 1920x4320 @30Hz
  • Output Connectors (Video & Audio Support): Appliance: 4x HDMI; Card: 4x Mini HDMI
  • Max Output Resolutions: 1920x1080 @60Hz, 1920x1080 @30Hz, 1920x1200 @60Hz, 1920x1200 @30Hz; Other output resolutions are supported. Contact Matrox for more details.
  • Memory: 1 GB

    Configurations
  • Supported Configurations: 2x2 (default), 4x1, 3x1, 2x1, 1x2, 1x3, 1x4 in both landscape and portrait modes and other non-rectangular/artistic configurations
  • Non-Rectangular/Artistic Video Walls Support: Yes
  • Rotation: support for 90, 180, 270 degrees
  • Multi-Unit Support: Yes
  • Bezel Management: Yes
  • Clone Mode: Yes
  • HDCP Support: Yes

    Video & Audio Processing
  • Video Scaling: Matrox's advanced multi-channel Video Scaling Engine
  • Video Rotation: Yes. Support for 90, 180, 270 degrees
  • Video Cropping: Yes
  • Audio Format: AAC, PCM, Stereo, and Mono
  • Audio Sampling Rate: 44.1 KHz and 48 KHz; 16-bit stereo

    Networking interface
  • Standard: Ethernet 10/100/1000 Base-T, Auto-Detect, Half/Full-Duplex
  • Connector: RJ45
  • IP Version: IPv4/IPv6*
  • IP Addressing: DHCP (default) and Static IP

    Control & Update Protocols
  • Control Interface: 1 x 10/100/1000 Base-T RJ45 Ethernet port
  • Command & Control Protocols:
    HTTP/HTTPS
    UPnP (discovery)
    mDNS and DNS-SD (discovery)
  • Firmware Update: Via network interface

    Color Space
  • Input Color Space: RGB: 8:8:8 (24 bits per pixel) YUV: 4:4:4, 4:2:2 (8 bits per component)
  • Output Color Space: RGB: 8:8:8 (24 bits per pixel)

    Environmental & power conditions
  • Operating Conditions:
    Temperature: 32 to 113°F (0 to 45°C)
    Humidity: 20 to 80% (non-condensing)
  • Storage Conditions:
    Temperature: -40 to 158°F (-40 to 70°C)
    Humidity: 5 to 95% (non-condensing)

    Power Supply
  • Appliance:
    100-240 VAC in, 12 VDC out, 42 W
    DIN4 locking power connector
  • Card: None (power from the system)
  • Maximum Power Consumption: 15 W

    Hardware
  • Dimensions (WxHxD):
    Appliance: 5.50 x 1.25 x 7.21"(13.97 x 3.18 x 18.31cm)
    Weight: 1.09Lbs (494g)
    Card: 0.85 x 5.00 x 6.21" (2.16 x 12.70 x 15.77cm)
    Weight: 0.37Lbs (170g)
  • Hardware Included: Appliance: 4 x 6 feet power cables for US, EU, UK, Aus/Nz 1x 12 V, 3.5 A, 42 W external power supply with DIN4 connector
  • Card: None
  • Regulatory/Compliance: EMC Class A: FCC, CE, KC, RCM

    Software
  • Matrox PowerWall: Yes. Free software available online.
  • Matrox QuadHead2Go REST API: Yes. Available for application development
  • Matrox PowerDesk: Not supported


• Item Includes:

  • Appliance:
  • Rackmount Kit (RMK-19TR-A)
  • VESA bracket (RMK-6BRKT-A)
  • Secure Cable Solution (SK-Q2G-A)

    Card:
  • Secure Cable Solution (SK-SNLB-6)


• Warranty:

  • 3 Year Warranty


• GTIN:

  0790750255217
